SineDigital,Inc.
Installation Guide for MW-1500AP(H)
)
MW-1500AP(H) Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MW-1500AP(H) and is the answer not in the manual?

Questions and answers

Summary of Contents for SineDigital MW-1500AP(H)

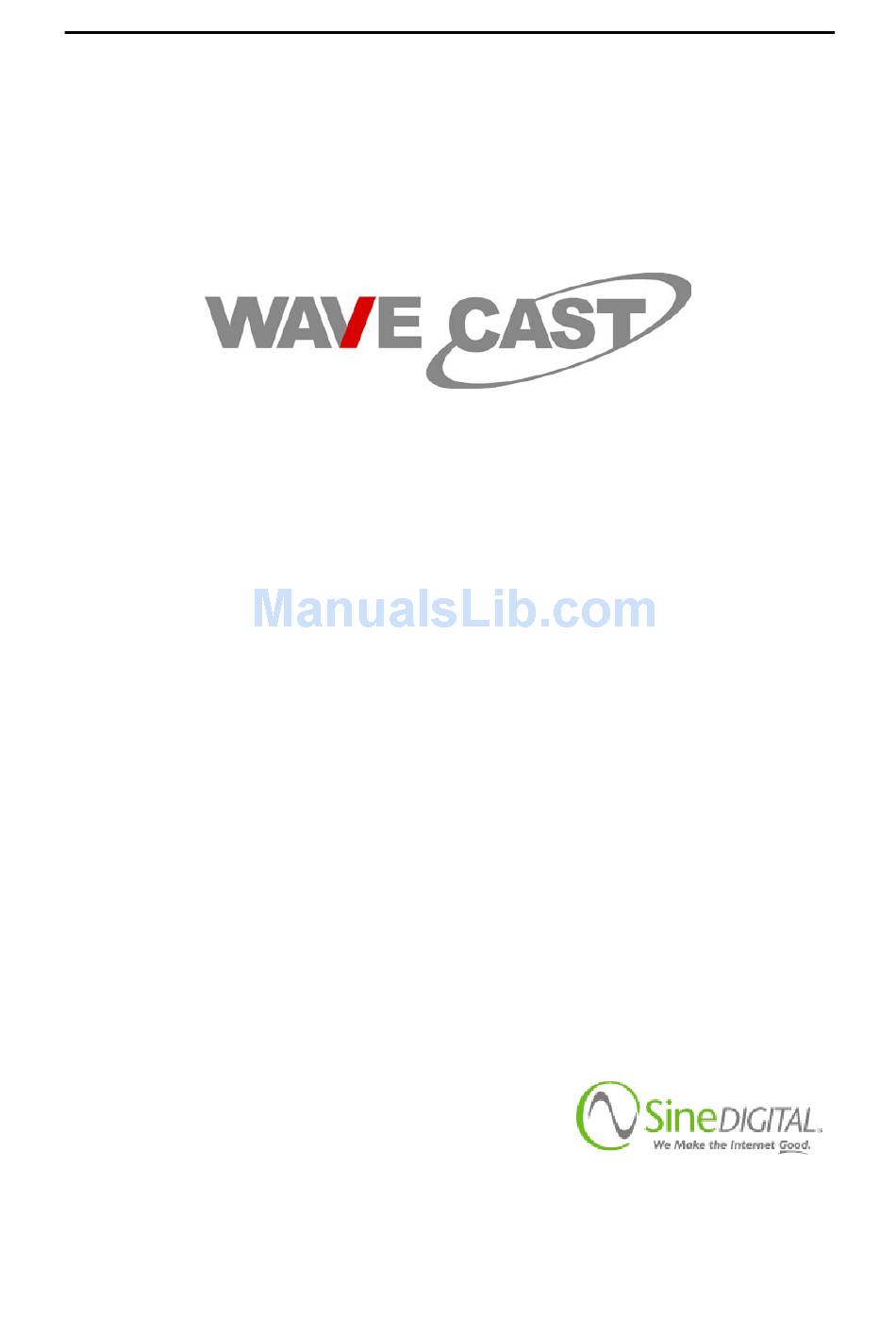

  • Page 1 SineDigital,Inc. Installation Guide for MW-1500AP(H) MW-1500AP(H) Manual...
  • Page 2 The specifications and information herein are subject to change without notice. Please download the latest driver software or manual free of charge from the sinedigital,Inc.homepage at http:// www.sinedigital.com WaveCast is a trademark of SineDigital,Inc.
  • Page 3 ·Design and specification are subject to change without notice for product improvement purposes. Send questions to: SineDigital,Inc. E-mail: support@sinedigital.com Homepage:http://www.sinedigital.com Product integrity issues: - Do not open the case or modify contents of the MW-1500AP(H). Seek the assistance of a qualified professional if some problem occurs with the MW-1500AP(H).

  • Page 4: Table Of Contents

    SineDigital,Inc. Installation Guide for MW-1500AP(H) List of Contents 1. THE WAVECAST ACCESS POINT ---------------------------------------------------------------------------------- 5 MW-1500AP(H) Specification -------------------------------------------------------------------------------------- 6 MW-1500AP(H) Contents ------------------------------------------------------------------------------------------- 7 MW-1500AP(H) LED’s, Ports and Switches -------------------------------------------------------------------- 7 2. MW-1500AP(H) Installation ------------------------------------------------------------------------------------------- 9 MW-1500AP(H) Layout ---------------------------------------------------------------------------------------------- 9 MW-1500AP(H) Installation ---------------------------------------------------------------------------------------- 10 3.

  • Page 5: The Wavecast Access Point

    SineDigital,Inc. Installation Guide for MW-1500AP(H) 1. THE WAVECAST ACCESS POINT The MW-1500AP(H) is a wireless LAN (WLAN) equipment compliant to the IEEE 802.11b WLAN standard and will let you enjoy all the benefits of a regular wired network installation but with an added freedom of mobility.

  • Page 6: Mw-1500Ap(H) Specification

    SineDigital,Inc. Installation Guide for MW-1500AP(H) MW-1500AP(H) Specification Hardware Specification - Ports: 1 x RJ-45 (WAN, Ethernet, 10/100 Base-T type) 1 x DB-9 (COM, console port) 1 x power connector - Displays: 5 x status LED's - Antenna: 2 x external 4dBi dipole (provision for antenna replacement) - Power switch - Init.

  • Page 7: Mw-1500Ap(H) Contents

    SineDigital,Inc. Installation Guide for MW-1500AP(H) MW-1500AP(H) Contents The following items should be included in the MW-1500AP(H) package: - 1 x MW-1500AP(H) - 1 x Ethernet cable (RJ-45) - 1 x Power adapter (5V DC/2A) - 2 x Antenna (4dBi dipole)
  • Page 8 SineDigital,Inc. Installation Guide for MW-1500AP(H) Item Description DC 5V/2A: This jack is for connection with the power adapter. Do not use this jack when you are using the MW-1500AP(H) with a PoE power injector. COM: This port is for the console cable that links the MW-1500AP(H) with the PC.

  • Page 9: Mw-1500Ap(H) Installation

    SineDigital,Inc. Installation Guide for MW-1500AP(H) 2. MW-1500AP(H) Installation MW-1500AP(H) Layout The following are some typical installation layouts for the MW-1500AP(H). You might have to use either a direct cable or cross cable to connect the MW-1500AP(H) with a router, hub, ADSL or cable modem depending of each of these products' manufacturing convention (check with the each product's manufacturer).

  • Page 10: Mw-1500Ap(H) Installation

    SineDigital,Inc. Installation Guide for MW-1500AP(H) MW-1500AP(H) Installation Step 1: Make sure the MW-1500AP(H)'s "POWER SWITCH" is turned off. Connect the Ethernet cable (RJ-45) from router or ADSL modem, etc. into the MW-1500AP(H)'s "WAN" port. Step 2: You may also connect another device such as a PC, printer, access point, etc. to the MW-1500AP(H)'s "LAN"...

  • Page 11: Configuration And Management Via Console Commands

    SineDigital,Inc. Installation Guide for MW-1500AP(H) 3. Configuration And Management Via Console Commands Console commands are used to control the MW-1500AP(H)'s configuration and management functions when you link with the MW-1500AP(H) directly via a serial cable. You will need to use console commands mostly when you first set-up your MW-1500AP(H) for your particular network or when something happens that prevents you from communicating with the MW-1500AP(H) remotely.
  • Page 12 SineDigital,Inc. Installation Guide for MW-1500AP(H) Step 4: Establish a link between the terminal emulation program and the MW-1500AP(H) (consult the manual of your terminal emulation program). Once connected with the MW- 1500AP(H), you will be prompted for a User name and Password. The factory default values are shown below.

  • Page 13: Console Commands

    SineDigital,Inc. Installation Guide for MW-1500AP(H) Console Commands Available console commands are explained below. Many of the commands listed in here have modifiers, which in turn are shown within brackets (i.e. [ ]). Multiple choices of modifiers are separated by slashes (i.e. /). Alphanumerical or hexadecimal values are shown within angle brackets (i.e.
  • Page 14 SineDigital,Inc. Installation Guide for MW-1500AP(H) aaa auth ip<number> <IP address>: Defines the RADIUS authentication server's IP address. An example would be "aaa auth ip1 10.0.0.3". aaa auth port<number> <port number>: Defines the RADIUS authentication server's port number. An example would be "aaa auth port1 1812".
  • Page 15 SineDigital,Inc. Installation Guide for MW-1500AP(H) aaa pod checkpoll <sec>: Defines the check poll period, which is the cyclic time period after which the MW-1500AP(H) will check for data traffic activity with the client. aaa pod idlepoll <sec>: Defines the idle poll period, which is the time period of continuous...

  • Page 16: Channel

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (2) channel AccessPoint> channel SSID (current: wavecast) : testssid Automatic Channel Configuration Enable? (CURRENT:enabled) [Y/N]: Channel (current: 2) [1~13] : 9 Change the configuration options as below. SSID : testssid Channel Proceed? (Y/N) Changes will effect after save and reboot.

  • Page 17: Csmac

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (3) csmac This command configures the MW-1500AP(H)'s MAC filtering function. With this function, you can control the ability of each client to access the network via the MW-1500AP(H). After adding each client's MAC address into a list in the MW-1500AP(H)'s memory, you can either collectively allow or collectively negate network access to those clients in the list.

  • Page 18: Help

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (7) help This command displays a list of some configuration commands available in the MW-1500AP(H) as shown in the figure below. Please refer to each command's section for detailed explanation. AccessPoint> help ------------------------ Help ----------------------------...

  • Page 19: Ifconfig

    SineDigital,Inc. Installation Guide for MW-1500AP(H) The following is an example of the usage of the http command. AccessPoint> http HTTP Server [ENABLED]. HTTP Port:80 HTTP Filtering [DISABLED]. -------------------HTTP Permit No List.------------------- Insufficient parameters. ex) http enable http disable http port 8080...

  • Page 20: Iapp

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (10) iapp Operation of the MW-1500AP(H)'s IAPP (Inter-Access Point Protocol) function must be enabled in order to allow roaming amongst various MW-1500AP(H)'s that are located in a certain area (e.g. Hot Spot sites) and operating with their authentication function enabled.

  • Page 21: Reboot

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (12) rf Typing this command at the prompt will present you with a series of prompts where you can configure settings for RTS Threshold, Fragment Threshold, Power Save Mode, Beacon Interval, Basic Rates, Supported Rates, Tx Control Rates, etc. The factory default settings for these parameters are already at their optimum settings and it is recommended that you do not modify them.

  • Page 22: Redirect

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (14) redirect This command is only applicable when operation of the MW-1500AP(H)'s 802.1x function is enabled. The redirect function allows either or both of the following functions to operate: Just Enrollment: Redirection of client that either fails authentication or tries to access the Internet without authenticating to a specified homepage.

  • Page 23: Show

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (15) show This command is used to verify the configuration status and statistical information of various functions and parameters of the MW-1500AP(H). The available commands are shown below. show aaa: Shows information regarding 802.1x authentication.

  • Page 24: Sntp

    SineDigital,Inc. Installation Guide for MW-1500AP(H) AccessPoint> snmp Insufficient parameters. ex) snmp manager <primary server(trap destination) ip> <secondary server ip> snmp manager 211.50.55.210 0 snmp manager 211.50.55.210 211.50.55.211 ex) snmp community <read-community> <write-community> <trap-community> snmp community public1 public2 public3 ex) snmp on...

  • Page 25: Tftp

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (19) tftp tftp <tftp server IP> <binary file name>: Use this command to upgrade the MW-1500AP(H)'s firmware by using TFTP to download the new firmware from the specified TFTP server. AccessPoint> tftp tftp> help +------------------------------------------------...

  • Page 26: Wep

    SineDigital,Inc. Installation Guide for MW-1500AP(H) (21) wep This command is used to configure the MW-1500AP(H)'s WEP (Wired Equivalent Privacy) function. The current configuration status of WEP can be verified by typing the command show wep at the prompt. In order to control wireless access to the MW-1500AP(H), it must be configured to operate in either of two types of Authentication Algorithms: Open System and Shared Key (the factory default is Open System).

  • Page 27: Appendix A: Acronyms

    SineDigital,Inc. Installation Guide for MW-1500AP(H) APPENDIX A: ACRONYMS AAA: Authentication, Authorization, Accounting ADSL: Asymmetric Digital Subscriber Line AP: Access Point BSS: Basic Service Set CCK: Complimentary Code Keying CTS: Clear To Send DBPSK: Differential Binary Phase Shift Keying DC: Direct Current DHCP: Dynamic Host Configuration Protocol DMZ: Demilitarized Zone.
  • Page 28 SineDigital,Inc. Installation Guide for MW-1500AP(H) SNTP: Simple Network Time Protocol SSID: Service Set Identity TCP: Transmission Control Protocol TFTP: Trivial File Transfer Protocol Tx: Transmit UDP: User Datagram Protocol USB: Universal Serial Bus WAN: Wide Area Network WEP: Wired Equivalent Privacy...
