AndroTec METOR Operator's Manual

Handheld laser receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

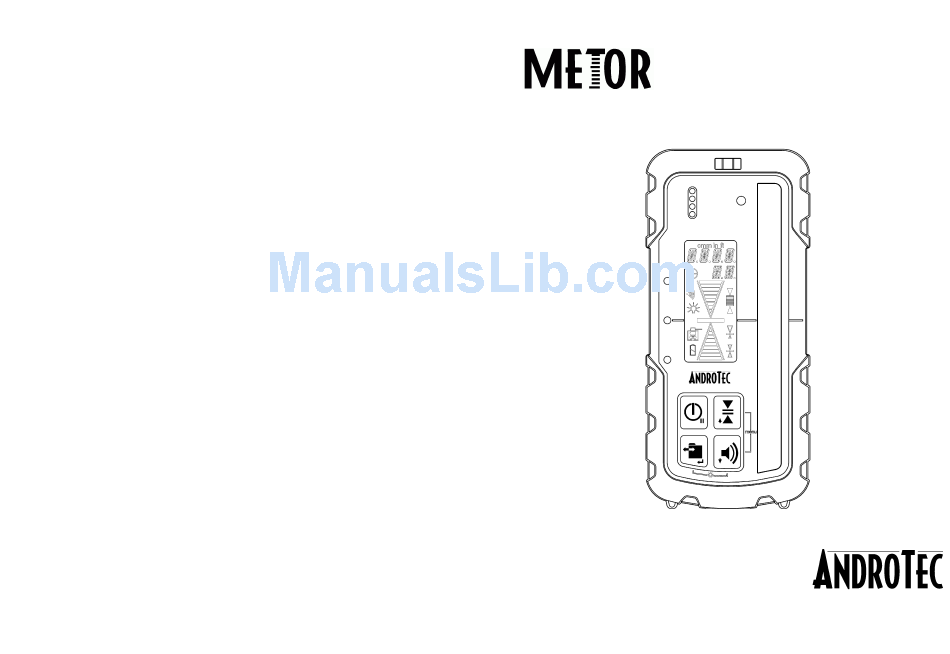

Operator's Manual
Handheld Laser Receiver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the METOR and is the answer not in the manual?

Questions and answers

Related Manuals for AndroTec METOR

Summary of Contents for AndroTec METOR

  • Page 1 Operator's Manual Handheld Laser Receiver...

  • Page 2: Table Of Contents

    Display IMPORTANT: Fill out the warranty registration card and return it to Advanced Functions / Memory AndroTec GmbH within six weeks after purchase to obtain the full three year guarantee. 10 Menu Functions 11 Rod Clamp 12 Specifications Please record your information below for future reference.

  • Page 3: Included In Delivery

    1 Included in delivery 2 General Description The retail pack contains: AndroTec METOR is a handheld laser receiver, designed to receive  AndroTec METOR Laser receiver and to display reference elevation information from red and infrared rotational lasers. A large 127mm vertical reception window captures ...

  • Page 4: Front View

    10 - Marking notch for center on- ting Diodes show position grade position. Top of detector is METOR relative to the laser beam. 80mm from marking notch. Green for on-grade and Red for high 11 - Captive Screw Thread - for or low. center on-grade position.

  • Page 5: Installing The Batteries

    5 Installing the Batteries 6 Keypad 1. Open the battery door using a coin or similar pry device to release 1 - Power Key: Press the power switch to turn the battery door tab. power ON. All LED's, the LCD and the beeper will come on momentarily.

  • Page 6: Secondary Key Functions

    7 Secondary Key Functions 8 Display 5 - LED-Brightness: Pressing the Memory 1 Grade indication arrows and Volume keys simultaneously enables 2 Battery status indicator the selection of LEDs' brightness. Press 3 Laser out-of-level / laser low battery together to cycle through OFF, DIM and 4 LED brightness BRIGHT.
  • Page 7 2 - Battery Status: Indicates four levels of battery status. Battery life 5 - Beeper Volume: indicates if selected beeper volume is LOW, is approx. 60 hours with fresh batteries. MEDIUM, LOUD or OFF. No symbol represents OFF. 6 - Timer: This Symbol indicates an activated timer function. Refer to page 13.

  • Page 8: Advanced Functions / Memory

    A flashing display will also confirm the reading has been captured. Press any switch to return to normal operation. NOTE: Other clamps than the original METOR clamp can not be detected by METOR and can lead to measuring errors in offset Memory: Memory key allows storing and displaying stored position.

  • Page 9: Menu Functions

    User defined on-grade level: Any arbitrary level within 10 Menu Functions 30mm above or below the marking notch can be used as on-grade level. The user defined on-grade level is set by NOTE: The Menu functions can be used to edit various options. For pressing the Accuracy key for two seconds while in beam or while a most applications the factory defaults are the best choice.
  • Page 10 LO (Low) uses minimum averaging to display laser strikes. A.S.O. - Automatic Shut Off (OF / 0.5 / 24): Selects automatic MD (Medium) is default setting and used for most applications. shutoff time from last laser strike. HI (High) can be used in windy conditions, when the laser beam OF: Automatic shutoff turned Off.

  • Page 11: Rod Clamp

    1 - Captive Rod Clamp Screw attaches to the back of detector. 2 - Alignment Points (two): Help secure and align rod clamp. 3 - Magnet: Allows METOR to detect which clamp position is used. 4 - Clamping Screw Knob: Secures clamp to rods by moving the traveling jaw.

  • Page 12: Specifications

    AndroTec GmbH may choose to repair or replace, at its discretion, Automatic Shut Off: Selectable: 30 min., 24 h, Off any METOR, in the event of a failure for any reason, during the Environmental: Waterproof, Dustproof to IP67 warranty period. In case of a warranty claim, return the product and...

  • Page 13: Maintenance And Safety

    For more detailed information about recycling of this product, please INTENDED USES OF DETECTOR: METOR is designed and contact your local Civic Office or your household waste disposal suitable for detecting a rotating laser beam.

  • Page 14: Ce Declaration Of Conformity

    AndroTec GmbH Hauptstraße 186 D-67714 Waldfischbach-Burgalben Bundesrepublik Deutschland http://www.androtec.de Model number: AndroTec METOR Equipment Type / Environment: ITE, commercial, light industrial Harmonized Standards Applied: Electromagnetic Compatibility (EMC), EN 61326:1997 +A1:1998 +A2:2001 +A3:2003 Class B Annex A EN 550022:1998 +A1:2000 +A2:2003 EN 61000-4-2:1995;...
