Summary of Contents for STS Mars 1210

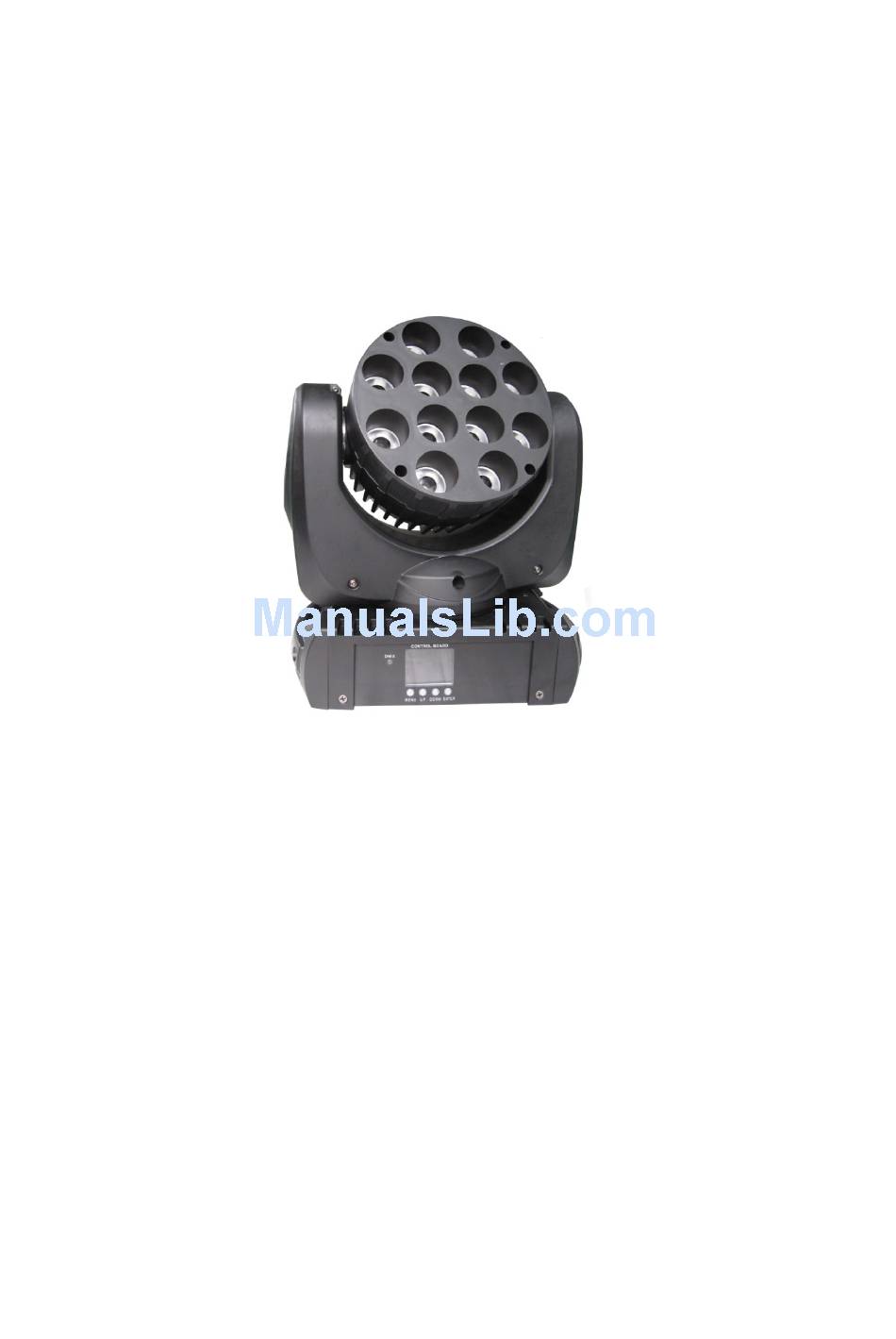

- Page 1 Mars 1210 moving beam User Manual Ver1.0...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Operating Determinations
connected with the outlet.Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands .as this could lead to mortal electrical shock. Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. -
Page 5: Description Of The Device
Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms.The Symbol determines the minimum distance from lighted objects. The minimum distance between light output and the illuminated surface must be more then this value. The device must only be installed on a non-flammable surface, In order to safeguard sufficient ventilation, leave 50 cm of free space around the device. -
Page 6: Operation
weight for 1 hour without any harming deformation. IMPORTANT!OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. -
Page 7: Control Board
Note;it’s necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order to ensure proper transmission on the DMX data link. C O N TRO L B O AR D The control board offer several features :you can simple set the starting address, run the pre-programmed program or make a reset he main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by pressing Up or Down .Press the Enter-button in order to select the desired menu. -
Page 8: Technical Specifications
R255 G255 B171 W255 241-245 R255 G255 B185 W255 246-250 R255 G255 B197 W255 251-255 R255 G255 B234 W255 Built-in Program No function 10-255 ID 1~25 TECHNICIAL SPECIFICATIONS Model Mars 1210 moving beam Voltage 110V- 250V / 50-60Hz Power consumption: 150W... - Page 9 12pcs 10w CREE RGBW high power leds Gross Weight 6.3Kgs Dimensions 370(H) x 340(W) x 230(L) mm...
