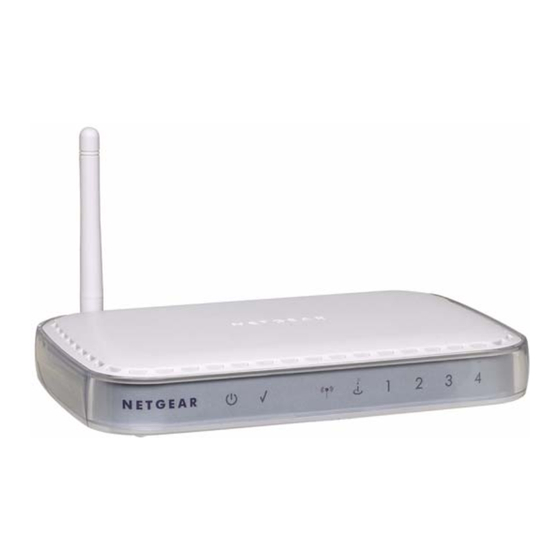

NETGEAR WGT624 v4 User Manual

Super g wireless router
Hide thumbs Also See for WGT624 v4:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual
Super G Wireless Router
WGT624 v4 User Manual
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134 USA
202-10234-02
July 2008

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR WGT624 v4

Summary of Contents for NETGEAR WGT624 v4

  • Page 1 Super G Wireless Router WGT624 v4 User Manual NETGEAR, Inc. 350 E. Plumeria Drive San Jose, CA 95134 USA 202-10234-02 July 2008...
  • Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 4 Certificate of the Manufacturer/Importer It is hereby certified that the WGT624 v4 Super G Wireless Router has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions.
  • Page 5 World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.
  • Page 6 v1.0, July 2008...

  • Page 7: Table Of Contents

    Contents Super G Wireless Router WGT624 v4 User Manual About This Manual Conventions, Formats, and Scope ................... xi How to Use This Manual ....................xii How to Print This Manual ....................xii Revision History .......................xiii Chapter 1 Configuring Internet Connectivity Using the Setup Manual ....................1-1 Logging In to Your Wireless Router ................1-2...
  • Page 8 Super G Wireless Router WGT624 v4 User Manual Chapter 3 Content Filtering Blocking Access to Internet Sites ...................3-1 Keyword Application Examples ................3-2 Blocking Services (Port Filtering) ...................3-2 Blocking Access to Internet Services ...............3-3 Adding a Service to be Blocked ................3-3 Creating a User-Defined Service Type ..............3-4...
  • Page 9 Super G Wireless Router WGT624 v4 User Manual Using Address Reservation ..................5-12 Configuring Static Routes .....................5-14 When to Use a Static Route ...................5-15 Enabling Remote Management Access ...............5-16 Configuring Quality of Service (QoS) ................5-17 Using WMM QoS for Wireless Multimedia Applications .........5-18 Using Universal Plug and Play (UPnP) ................5-20...

  • Page 10: Super G Wireless Router Wgt624 V4 User Manual

    Super G Wireless Router WGT624 v4 User Manual Contents v1.0, July 2008...

  • Page 11: About This Manual

    About This Manual The NETGEAR ® Super G Wireless Router WGT624 v4 User Manual describes how to install, configure, and troubleshoot the WGT624 v4 Super G Wireless Router. The information in this manual is intended for readers with intermediate computer and Internet skills.

  • Page 12: How To Use This Manual

    Double-click a link in the table of contents or index to navigate directly to where the topic is described in the manual. • button to access the full NETGEAR, Inc. online knowledge base for the product model. • Links to PDF versions of the full manual and individual chapters.

  • Page 13: Revision History

    Revision History NETGEAR, Inc. is constantly searching for ways to improve its products and documentation. The following table indicates any changes that might have been made since the WGT624 v4 wireless router was introduced. Table 1-1. Publication Revision History...
  • Page 14 Super G Wireless Router WGT624 v4 User Manual About This Manual v1.0, July 2008...

  • Page 15: Configuring Internet Connectivity

    For first-time installation of your wireless router, refer to the NETGEAR Router Setup Manual. The Setup Manual explains how to launch the NETGEAR Smart Wizard on the Resource CD to step you through the procedure to connect your router, modem, and computers. The Smart Wizard will assist you in configuring your wireless settings and enabling wireless security for your network.

  • Page 16: Logging In To Your Wireless Router

    Super G Wireless Router WGT624 v4 User Manual Logging In to Your Wireless Router You can log in to the wireless router to view or change its settings. Note: Your computer must be configured for DHCP. For help with configuring DHCP, see...
  • Page 17 Super G Wireless Router WGT624 v4 User Manual The Checking for Firmware Updates screen displays unless you previously cleared the Check for Updated Firmware Upon Log-in check box. Figure 1-2 If the router discovers a newer version of firmware, you are asked if you want to update (see “Updating the Router Firmware”...

  • Page 18: Using The Smart Setup Wizard

    Super G Wireless Router WGT624 v4 User Manual 3. The Basic Settings screen displays showing the wireless router’s settings. Figure 1-4 If the wireless router is connected to the Internet, you can click the Knowledge Base link or the Documentation link under Web Support to view support information or the documentation for the wireless router.

  • Page 19: Viewing Or Manually Configuring Your Isp Settings

    4. If no login is required, you can specify the MAC Address setting. 5. Click Apply to save your settings. 6. Click Test to test your Internet connection. If the NETGEAR website does not appear within one minute, refer to Chapter 6, “Troubleshooting”.

  • Page 20: Understanding The Basic Settings Screen

    Super G Wireless Router WGT624 v4 User Manual Understanding the Basic Settings Screen The fields that are displayed depend on whether or not your Internet connection requires a login. ISP does not require login ISP does require login Figure 1-5 The following table explains the fields in the Basic Settings screen.
  • Page 21 Super G Wireless Router WGT624 v4 User Manual Table 1-1. Basic Settings screen fields Settings Description Does Your ISP Require a Login? • Yes • No These fields Internet Service Provider • PPTP (Point to Point Tunneling Protocol). This is used appear only if no primarily in Austrian DSL services.
  • Page 22 Super G Wireless Router WGT624 v4 User Manual Table 1-1. Basic Settings screen fields (continued) Settings Description Internet IP Address • Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP automatically assigns these addresses.

  • Page 23: Setting Up And Testing Basic Wireless Connectivity

    Name (SSID) field, you can enter a value of up to 32 alphanumeric characters. The default SSID is NETGEAR. Note: The SSID is case-sensitive; NETGEAR is not the same as nETgear. Also, the SSID of any wireless access adapters must match the SSID you specify in the wireless router.
  • Page 24 Super G Wireless Router WGT624 v4 User Manual 3. Select the region in which the wireless router will operate. 4. Set the channel. The default channel is 6. This field determines which operating frequency is used. It should not be necessary to change the wireless channel unless you notice interference problems with another nearby wireless router or access point.
  • Page 25 Super G Wireless Router WGT624 v4 User Manual 11. Make sure that the Turn Access Control On check box is not selected. 12. Configure and test your wireless computer for wireless connectivity. Program the wireless adapter of your computer to have the same SSID and channel that you specified in the router, and disable encryption.
  • Page 26 Super G Wireless Router WGT624 v4 User Manual 1-12 Configuring Internet Connectivity v1.0, July 2008...

  • Page 27: Wireless Security

    Chapter 2 Wireless Security The WGT624 v4 Super G Wireless Router provides highly effective security features, which are covered in detail in this chapter. Optimizing Your Wireless Connections The speed and range of your wireless connection can vary significantly based on the location of the wireless router.

  • Page 28: Understanding Wireless Security

    Super G Wireless Router WGT624 v4 User Manual – Microwave ovens (no closer than 10 feet) • Choose your settings. – Use a scanning utility to determine which other wireless networks are operating nearby, and choose an unused channel. –...

  • Page 29: Wireless Security Options

    Restrict access based on MAC (Media Access Control) address. You can restrict access to only trusted computers so that unknown computers cannot wirelessly connect to the WGT624 v4. MAC address filtering adds an obstacle against unwanted access to your network, but the data broadcast over the wireless link is fully exposed.

  • Page 30: Information To Gather Before Changing The Wireless Settings

    – Passphrase: ______________________________ These characters are case-sensitive. Enter a word or group of printable characters. Use the procedures described in the following sections to configure the WGT624 v4. Store this information in a safe place. Wireless Security v1.0, July 2008...

  • Page 31: Viewing Or Change Wireless Settings

    3. View or enter the wireless settings for the router. • Wireless Network Name (SSID). The default SSID is NETGEAR. It is a good idea to change this to a name that you can easily recognize in case there are other wireless networks in your area.

  • Page 32: Wep Wireless Security

    Super G Wireless Router WGT624 v4 User Manual You need to change the channel only if you have interference problems with another nearby wireless router or access point. If this is the case, select a channel that is not being used by any other wireless networks within several hundred feet of your wireless router.

  • Page 33: Setting Up Wep

    Super G Wireless Router WGT624 v4 User Manual • Remember to note what your wireless settings are. For help keeping track of them, see “Information to Gather Before Changing the Wireless Settings” on page 2-4. Note: For instructions for configuring wireless computers or personal digital assistants (PDAs) for WEP, see the documentation for the product you are using.
  • Page 34 • Automatic. Enter a word or group of printable characters for the Passphrase, and then click Generate. The passphrase is case-sensitive; NETGEAR is not the same as nETgear. The four key fields will be automatically populated with key values. •...

  • Page 35: Wpa-Psk Or Wpa2-Psk Wireless Security

    Super G Wireless Router WGT624 v4 User Manual WPA-PSK or WPA2-PSK Wireless Security Note: Before setting up wireless security, verify that your wireless connections are set up and working. See “Setting Up and Testing Basic Wireless Connectivity” on page 1-9.

  • Page 36: Setting Up Wpa-Psk Or Wpa2-Psk

    Super G Wireless Router WGT624 v4 User Manual Setting Up WPA-PSK or WPA2-PSK To set up WPA-PSK or WPA2-PSK wireless security for the WGT624 v4 wireless router: 1. On the main menu, below the Setup heading, select Wireless Settings. Figure 2-5 2.

  • Page 37: Restricting Wireless Access By Mac Address

    Super G Wireless Router WGT624 v4 User Manual Restricting Wireless Access by MAC Address To restrict access based on MAC addresses: 1. Log in to the router at http://www.routerlogin.net as described in “Logging In to Your Wireless Router” on page 1-2.
  • Page 38 Cards list displays. Figure 2-7 6. In the Available Wireless Cards list, either select from the list of cards the WGT624 v4 has found in your area, or enter the MAC address and device name for a device you plan to use.

  • Page 39: Advanced Wireless Settings

    • Wireless Card Access List. When the Trusted PCs Only radio button is selected, the WGT624 v4 checks the MAC address of the wireless station and allows only connections to computers identified on the trusted computers list. Wireless Security 2-13 v1.0, July 2008...
  • Page 40 Super G Wireless Router WGT624 v4 User Manual • 108Mbps Settings. – Disable Advanced 108Mbps Features: Disables data compression, packet bursting, and large frame support. Note: If the current wireless mode is Auto 108 Mbps, then this feature cannot be changed.

  • Page 41: Content Filtering

    Chapter 3 Content Filtering This chapter describes how to use the WGT624 v4 wireless router content filtering features to protect your network. The WGT624 v4 wireless router provides you with Web content filtering options, plus browser activity reporting and instant alerts via e-mail. You can establish restricted-access policies based on time of day, Web addresses and web address keywords.

  • Page 42: Keyword Application Examples

    Super G Wireless Router WGT624 v4 User Manual • To delete a keyword or domain, select it from the list, click Delete Keyword, and then click Apply. • To specify a trusted user, enter that computer’s IP address in the Trusted IP Address field and then click Apply.

  • Page 43: Blocking Access To Internet Services

    Super G Wireless Router WGT624 v4 User Manual Blocking Access to Internet Services To block access to Internet services: 1. On the main menu, select Block Services to go to the Block Services screen: Figure 3-2 2. Select the Services Blocking setting that you want: •...

  • Page 44: Creating A User-Defined Service Type

    Super G Wireless Router WGT624 v4 User Manual 2. From the Service Type drop-down list, select the application or service to be allowed or blocked. The list displays several common services, but you are not limited to these choices. 3. To add any additional services or applications that do not already appear, select User Defined.

  • Page 45: Scheduling Blocking

    Super G Wireless Router WGT624 v4 User Manual Scheduling Blocking You can specify when blocking will be enforced. The Schedule screen is shown below: Figure 3-4 1. Use the check boxes to create a schedule for blocking content: • Days To Block. Select days to block by selecting the appropriate check boxes. Select Every Day to select the check boxes for all days.

  • Page 46: E-Mail Alerts And Web Access Log Notifications

    Super G Wireless Router WGT624 v4 User Manual E-Mail Alerts and Web Access Log Notifications The E-mail screen is shown below: Figure 3-5 To set up e-mail alerts and log notifications: 1. To receive logs and alerts by email, you must provide your email information •...
  • Page 47 Super G Wireless Router WGT624 v4 User Manual 2. Specify whether or not you want alters or logs automatically sent to the specified e-mail address: • Send Alert Immediately. Select this check box to receive immediate notification of attempted access to a blocked site.

  • Page 48: Viewing Logs Of Web Access Or Attempted Web Access

    Super G Wireless Router WGT624 v4 User Manual Viewing Logs of Web Access or Attempted Web Access The log is a detailed record of which websites you have accessed or attempted to access. Up to 128 entries are stored in the log. Log entries will appear only when keyword blocking is enabled, and no log entries will be made for the trusted user.

  • Page 49: Maintenance

    Chapter 4 Maintenance This chapter describes how to use the maintenance features of your WGT624 v4 wireless router. These features can be found under the Maintenance heading in the router’s main menu. Viewing the Router Status The Router Status screen provides status and usage information. On the main menu, under the...
  • Page 50 Super G Wireless Router WGT624 v4 User Manual This screen shows the following fields: Table 4-1. Router Status Fields Field Description Account Name The host name assigned to the router. Firmware Version The router firmware version. Internet Port Router Internet (WAN) port,...

  • Page 51: Viewing A List Of Attached Devices

    The router firmware is stored in FLASH memory, and can be updated as new firmware is released by NETGEAR. The update process typically takes about one minute. Additionally, some updates require you to reset your router to its factory default settings.
  • Page 52 Super G Wireless Router WGT624 v4 User Manual • Saved your router configuration settings (see “Configuration File Management” on page 4-5). After some firmware updates you will must reset the wireless router to its factory default settings. If this is the case then you will need to configure the router.

  • Page 53: Configuration File Management

    Super G Wireless Router WGT624 v4 User Manual Configuration File Management The configuration settings of the wireless router are stored within the router in a configuration file. This file can be saved (backed up) onto a computer, retrieved (restored) from the computer, or cleared to the factory default settings.

  • Page 54: Erasing The Configuration

    Default Configuration and Password” on page 6-7. Changing the Administrator Password The default password for the router is password. NETGEAR recommends that you change this password to a more secure password. To change the password: 1. From the router’s main menu, below the Maintenance heading, select Set Password.

  • Page 55: Advanced Configuration

    Chapter 5 Advanced Configuration This chapter describes how to configure the advanced features of your WGT624 v4 wireless router. These features are listed under the Advanced heading in the router’s main menu. Configuring Port Forwarding to Local Servers Although the router causes your entire local network to appear as a single machine to the Internet, you can make a local server (for example, a Web server or game server) visible and available to the Internet.

  • Page 56: Adding A Port-Forwarding Custom Service

    Super G Wireless Router WGT624 v4 User Manual You can use the Port Forwarding menu to configure the router to forward incoming protocols to computers on your local network. In addition to servers for specific applications, you can also specify a Default DMZ Server to which all other incoming protocols are forwarded. The DMZ Server is configured in the WAN Setup Menu.

  • Page 57: Local Web And Ftp Server Example

    Super G Wireless Router WGT624 v4 User Manual Local Web and FTP Server Example If a local computer with a private IP address of 192.168.1.33 acts as a Web and FTP server, configure the ports menu to forward HTTP (port 80) and FTP (port 21) to local address 192.168.1.33...

  • Page 58: Using Port Triggering

    Some online games and videoconferencing applications are incompatible with NAT. The WGT624 v4 wireless router is programmed to recognize some of these applications and to work properly with them, but there are other applications that might not function well. In some cases, one local computer can run the application properly if that computer’s IP address is entered as the...

  • Page 59: Port Triggering Menu

    Super G Wireless Router WGT624 v4 User Manual After a computer has finished using a port Triggering application, there is a time-out period before the application can be used by another computer. This is required because the wireless router cannot be sure when the application has terminated.

  • Page 60: Wan Setup Options

    Super G Wireless Router WGT624 v4 User Manual 3. Select the service type (TCP or UDP) from the Service Type drop-down list. 4. Enter the outbound port number in the Triggering Port field. 5. Enter the inbound connection port information: a.
  • Page 61 Super G Wireless Router WGT624 v4 User Manual The WAN setup options are explained below: • Disable SPI Firewall. Normally, this option should be enabled, so that your local network will be protected by the stateful packet inspection (SPI) firewall included in the wireless router. However, certain communications functions like VPN might require turning off the SPI feature.

  • Page 62: Assigning A Default Dmz Server

    Super G Wireless Router WGT624 v4 User Manual • Respond to a Ping on the Internet WAN Port. If you want the router to respond to a ping from the Internet, select this check box. This should be used only as a diagnostic tool, since it allows your router to be discovered. Do not select this check box unless you have a specific reason to do so.
  • Page 63 Super G Wireless Router WGT624 v4 User Manual Note: If your ISP assigns a private WAN IP address (such as 192.168.x.x or 10.x.x.x), the dynamic DNS service will not work because private addresses will not be routed on the Internet.

  • Page 64: Using Lan Ip Setup Options

    Super G Wireless Router WGT624 v4 User Manual For example, the wildcard feature will cause *.yourhost.dyndns.org to be aliased to the same IP address as yourhost.dyndns.org 8. Click Apply to save your configuration. Using LAN IP Setup Options The LAN IP Setup feature allows configuration of LAN IP services such as DHCP and RIP. From the wireless router’s main menu, under Advanced, select LAN IP Setup.

  • Page 65: Using The Router As A Dhcp Server

    Super G Wireless Router WGT624 v4 User Manual The LAN IP parameters are: • IP Address. This is the LAN IP address of the router. • IP Subnet Mask. This is the LAN Subnet Mask of the router. Combined with the IP address, the IP Subnet Mask allows a device to know which other addresses are local to it, and which must be reached through a gateway or router.

  • Page 66: Using Address Reservation

    Super G Wireless Router WGT624 v4 User Manual For most applications, the default DHCP and TCP/IP settings of the router are satisfactory. See “Internet Networking and TCP/IP Addressing” in Appendix B” for a link to a tutorial that provides an explanation of DHCP and information about how to assign IP addresses for your network.
  • Page 67 Super G Wireless Router WGT624 v4 User Manual To reserve an IP address: 1. In the LAN IP Setup screen, click Add. Figure 5-6 2. In the IP Address field, type the IP address to assign to the computer or server (choose an IP address from the router’s LAN subnet, such as 192.168.1.X).

  • Page 68: Configuring Static Routes

    Super G Wireless Router WGT624 v4 User Manual Configuring Static Routes Static routes provide additional routing information to your router. Under normal circumstances, the router has adequate routing information after it has been configured for Internet access, and you do not need to configure additional static routes. You must configure static routes only for unusual cases such as multiple routers or multiple IP subnets located on your network.

  • Page 69: When To Use A Static Route

    Super G Wireless Router WGT624 v4 User Manual 5. Select Active to make this route effective. 6. Type the Destination IP Address of the final destination. 7. Type the IP Subnet Mask for this destination. If the destination is a single host, type 255.255.255.255.

  • Page 70: Enabling Remote Management Access

    Using the Remote Management screen, you can allow a user or users on the Internet to configure, upgrade, and check the status of your WGT624 v4 wireless router. Note: Be sure to change the router’s default configuration password to a very secure password.

  • Page 71: Configuring Quality Of Service (Qos)

    To receive the benefits of WMM QoS: • The application must support WMM. • You must enable WMM in your WGT624 v4 wireless router. • You must enable WMM in the wireless adapter in your computer. To configure QoS, use the QoS Setup screen.

  • Page 72: Using Wmm Qos For Wireless Multimedia Applications

    Super G Wireless Router WGT624 v4 User Manual From the main menu, under Advanced, click QoS Setup. The QoS Setup screen displays: Figure 5-10 Using WMM QoS for Wireless Multimedia Applications The wireless router supports Wi-Fi Multimedia Quality of Service (WMM QoS) to prioritize wireless voice and video traffic over the wireless link.
  • Page 73 Super G Wireless Router WGT624 v4 User Manual 1. Open the QoS Setup screen, shown in Figure 5-10 on page 5-18. 2. Click Add Priority Rule. The QoS Priority Rules screen displays. 3. For the Priority Category, select either Applications or Online Gaming. In either case, a list of predefined applications or games will appear in the Applications drop-down list.

  • Page 74: Using Universal Plug And Play (Upnp)

    Super G Wireless Router WGT624 v4 User Manual QoS for a MAC Address To create a QoS policy for traffic from a specific MAC address, follow these steps: 1. Open the QoS Setup screen, shown in Figure 5-10 on page 5-18.
  • Page 75 Super G Wireless Router WGT624 v4 User Manual Figure 5-11 • Turn UPnP On: UPnP can be enabled or disabled for automatic device configuration. The default setting for UPnP is enabled. If disabled, the router will not allow any device to automatically control the resources, such as port forwarding (mapping), of the router.

  • Page 76: Expanding Your Wireless Network

    Super G Wireless Router WGT624 v4 User Manual Expanding Your Wireless Network The WGT624 v4 wireless router can be used with a wireless access point (AP) to build large bridged wireless networks. Wireless repeating is a type of Wireless Distribution System (WDS).

  • Page 77: Wireless Repeating Function

    Super G Wireless Router WGT624 v4 User Manual Wireless Repeating Function You can view or change wireless repeater settings for the wireless router. From the main menu of the wireless router, under the Advanced heading, select Wireless Repeating Function to display the Wireless Repeating Function screen.

  • Page 78: Setting Up The Base Station

    Use a wired Ethernet connection to set up the repeater unit to avoid conflicts with the wireless connection to the base station. Note: If you are using the WGT624 v4 base station with a non-NETGEAR wireless router as the repeater, you might need to change additional configuration settings.
  • Page 79 Super G Wireless Router WGT624 v4 User Manual To configure a WGT624 v4 wireless router as a repeater unit: 1. If you are using the same model of wireless router for both the base station and repeaters, you must change the LAN IP address for each repeater to a different IP address in the same subnet (see “Using LAN IP Setup Options”...
  • Page 80 Super G Wireless Router WGT624 v4 User Manual 5-26 Advanced Configuration v1.0, July 2008...

  • Page 81: Troubleshooting

    Chapter 6 Troubleshooting This chapter gives information about troubleshooting your WGT624 v4 wireless router. After each problem description, instructions are provided to help you diagnose and solve the problem. Note: Product updates are available on the NETGEAR website at http://www.netgear.com/support.

  • Page 82: Power Led Not On

    The router firmware is corrupted. To restore your firmware: 1. Make sure that your PC is connected to your router and the router is powered on. 2. Insert the Super G Wireless Router WGT624 v4 Resource CD that came with your router into your PC.

  • Page 83: Local Or Internet Port Leds Not On

    Super G Wireless Router WGT624 v4 User Manual Local or Internet Port LEDs Not On If either the LAN LEDs or WAN LED do not light when the Ethernet connection is made, check the following: • Make sure that the Ethernet cable connections are secure at the router and at the hub or workstation.

  • Page 84: Troubleshooting The Isp Connection

    Super G Wireless Router WGT624 v4 User Manual • Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet Explorer, click Refresh to be sure the Java applet is loaded. • Try quitting the browser and launching it again.
  • Page 85 Super G Wireless Router WGT624 v4 User Manual If your router is still unable to obtain an IP address from the ISP, the problem could be one of the following: • Your ISP might require a login program. Ask your ISP whether they require PPP over Ethernet (PPPoE) or some other type of login.

  • Page 86: Troubleshooting A Tcp/Ip Network Using A Ping Utility

    Super G Wireless Router WGT624 v4 User Manual Troubleshooting a TCP/IP Network Using a Ping Utility Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP network is made very easy by using the ping utility in your computer or workstation.

  • Page 87: Testing The Path From Your Computer To A Remote Device

    Super G Wireless Router WGT624 v4 User Manual Testing the Path from Your Computer to a Remote Device After verifying that the LAN path works correctly, test the path from your computer to a remote device. From the Windows run menu, type: PING -n 10 <IP address>...

  • Page 88: Date And Time

    Super G Wireless Router WGT624 v4 User Manual 1. Press and hold the Default Reset button until the Test LED turns on (about 5 seconds). 2. Release the Default Reset button, and then wait for the router to reboot. Date and Time To view the current date and time of day, on the main menu below the Content Filtering heading, select E-mail.

  • Page 89: Technical Specifications And Default Configuration

    Configuration This appendix provides technical specifications for the WGT624 v4 wireless router. Technical Specifications The table below shows the technical specifications for the WGT624 v4 Super G Wireless Router. Network Protocol and Standards Compatibility Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP...

  • Page 90: Default Configuration Settings

    Default Configuration Settings You can use the reset button located on the back of your WGT624 v4 wireless router to reset all settings to their factory defaults. This is called a hard reset. To perform a hard reset, push and hold the reset button for 3 seconds.
  • Page 91 Super G Wireless Router WGT624 v4 User Manual Table A-1. Default Configuration Settings (continued) Feature Default Behavior Local Network Router LAN IP address (aka gateway IP 192.168.1.1 address) Router subnet 255.255.255.0 DHCP server Enabled Time zone Time zone adjusted for Daylight Savings...
  • Page 92 Super G Wireless Router WGT624 v4 User Manual Technical Specifications and Default Configuration v1.0, July 2008...

  • Page 93: Appendix B Related Documents

    Appendix B Related Documents This appendix provides links to reference documents you can use to gain a more complete understanding of the technologies used in your NETGEAR product. Document Link Windows XP and Vista Wireless http://documentation.netgear.com/reference/enu/winzerocfg/index.htm Configuration Utilities Internet Networking and TCP/IP http://documentation.netgear.com/reference/enu/tcpip/index.htm...
  • Page 94 Super G Wireless Router WGT624 v4 User Manual Related Documents BETA...
  • Page 95 Index disabling wireless client association 5-23 access DMZ 5-2, 5-8 restricting by MAC address 2-11 server 5-7 router main menu 6-3 DNS server Account Name 4-2 primary 1-8 administrator password 4-6 secondary 1-8 documentation updates 4-3 domain name server 4-2 base station, setting up 5-24 dynamic DNS 5-8 Basic Settings screen 1-6...
  • Page 96 Super G Wireless Router WGT624 v4 User Manual troubleshooting 6-4 primary DNS server 1-8 LAN IP setup 5-10 QoS policy 5-19, 5-20 LEDs Quality of Service (QoS) 5-17, 5-18, 5-19 troubleshooting 6-2, 6-3 logging in 1-2 logging out 1-4 range...
  • Page 97 Super G Wireless Router WGT624 v4 User Manual troubleshooting 6-1 basic functioning 6-1 ISP connection 6-4 Trusted Host 3-2 Universal Plug and Play (UPnP) 5-20 updating firmware 1-3 upgrading, router firmware 4-3 WAN Setup 5-6 WDS 5-22 base station 5-24...
  • Page 98 Super G Wireless Router WGT624 v4 User Manual Index-4 v1.0, July 2008...
