LUNA 24
QUICK REFERENCE GUIDE
Version 3.40 10/99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUNA 24 and is the answer not in the manual?

Questions and answers

Summary of Contents for ETR Lighting LUNA 24

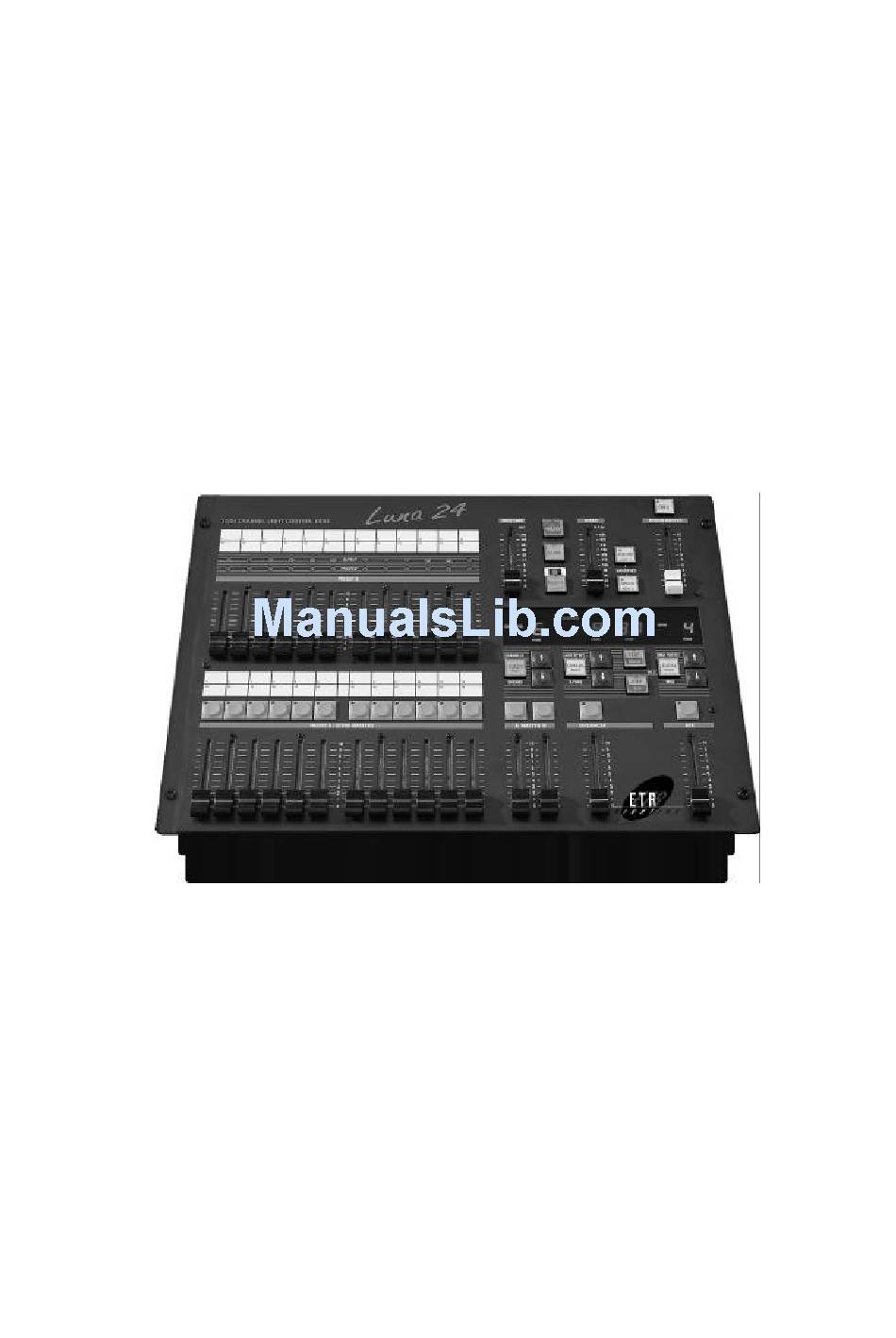

  • Page 1 LUNA 24 QUICK REFERENCE GUIDE Version 3.40 10/99...
  • Page 2 This short introduction is a good aid to work with LUNA 24. But it doesn’t replace the main manual. Before you start working with LUNA 24 please read the main manual, especially chapters „Precautions and Safety instructions“ and „Transport and Installation“.
  • Page 3 LUNA 24 CHOOSING OPERATING MODES LUNA 24 can be operated in 4 different ways for different tasks. O p e r a t i n g m o d e 1 : 2 Preset With the faders of PRESET A and PRESET B you must first produce two different,...
  • Page 4 LUNA 24 2 PRESETS A-B - OPERATION mode: 12 circuits OUTPUT- LEDs FADE TIME SPEED GRAND MASTER SEC. B . P . M . DELETE 2 0 0 4 8 0 1 4 0 3 2 0 2 4 0...
  • Page 5 LUNA 24 1 PRESET / 12 SCENE MASTERS mode: 12 circuits Contents: p. 1 Summary - important parts and controls - black-out - overall lighting L i g h t i n g s c e n e - produce...

  • Page 6: Blind Mode

    LUNA 24 1 PRESET / 12 SCENE MASTERS mode: 12 circuits Modify Scenes: Choose scene: Press the red MODIFY-key simultaneously with the grey FLASH-key of the chosen scene. The LED is illuminated red. MODIFY-LED is illuminated. Modify mode is active.
  • Page 7 LUNA 24 1 PRESET / 12 SCENE MASTERS mode: 12 circuits 120 Lighting Scenes: 10 banks (0-9), each including 12 scenes, are available. CH. 1-12 CH. 13-24 The bank number is shown in display as „PAGE“. Use arrow-keys below to choose.
  • Page 8 LUNA 24 1 PRESET / CROSSFADER mode: 24 circuits Contens: p. 1 Summary - important parts and controls - black-out - overall lighting FLASH-key functions Fading time p. 2 M a n u a l o p e r a t i o n...

  • Page 9: Manual Operation

    LUNA 24 1 PRESET / CROSSFADER mode: 24 circuits Manual Operation: All faders on zero. GRAND MASTER fade up to 100%. Crossfader off: Press both arrow-keys. CH. 1-12 CH. 13-24 PAGE-display starts flashing. Push MASTER B-fader full range up or down.
  • Page 10 LUNA 24 1 PRESET / CROSSFADER mode: 24 circuits Crossfade Operation: All faders on zero, GRAND MASTER on 100%. FLASH MODE = „PREVIEW“.“ CH. 1-12 CH. 13-24 1 2 0 l i g h t i n g 10 banks (0-9), each including 12 scenes, are available.
  • Page 11 LUNA 24 1 PRESET / CROSSFADER mode: 24 circuits Editing Scene: C h a n g i n g m o d e Press MODIFY-key simultaneously with FLASH-key of MASTER B. MODIFY „on“: MODIFY-LED illuminates green. ESCAPE MASTER B S e l e c t s c e n e : The scene in crossfader will be changed.

  • Page 12: Scene Masters

    LUNA 24 12 SCENE MASTERS mode: 24 circuits Contents: p. 1 Summary - important parts and controls - channel assignments - black-out - overall lighting p. 2 L i g h t i n g s c e n e...
  • Page 13 LUNA 24 12 SCENE MASTERS mode: 24 circuits Lighting Scene: 1 2 0 s c e n e s : 10 banks (0-9), each with 12 scenes, are available. CH. 1-12 The bank number is shown on the display with „PAGE“.
  • Page 14 LUNA 24 12 SCENE MASTERS mode: 24 circuits FADE TIME SEC. Fading Time: The FADE TIME-fader influences the SCENE MASTER-faders. It is slowing down the fading time to the preset time. FLASH-Key Functions: The grey FLASH-keys control 5 functions. FLASH, SOLO and PREVIEW of the scenes, and channel FLASH and SOLO.

  • Page 15: General Information

    LUNA 24 CHASER Contens: p. 1 General Programming - program a sequence - delete old program p. 2 R e c a l l - choose running mode - choose crossfading mode - prepare new program p. 3 Change programs...
  • Page 16 LUNA 24 CHASER Recall: MASTER A-fader on zero. Move up SEQUENCER-fader. Chaser is on output. Choose running mode: C o n t i n u i n g Set trigger frequency with SPEED-fader. SPEED r u n n i n g o r d e r : SPEED-key-LED is flashing.

  • Page 17: Change Programs

    LUNA 24 CHASER Change Programs: All faders on zero, GRAND MASTER on 100%. C h a n g e m o d e o n : Press MODIFY-key and grey SEQUENCER-key simultaneously. The respective LEDs are illuminated. On display CHASER is flashing.

  • Page 18: Audio - Effects

    LUNA 24 AUDIO - EFFECTS Contens: p. 1 General - 5 different audio-effects Programming R e c a l l p. 2 Change program - change scene - delete scene - copy scene Adjust audio-level General Information: 10 different audio-effect programs can be stored.
  • Page 19 LUNA 24 AUDIO - EFFECTS Change Programms: S t a r t c h a n g e m o d e : Press MODIFY-key and grey AUX-key simultaneously. Both respective LEDs are illuminated. MODIFY ESCAPE S e l e c t s c e n e : Use AUDIO MODE-key to select the scene.
  • Page 20 Press grey SEQUENCER-key to flash respective spotlight. S e l e c t f a d e r c i r c u i t : On display, lefthand to CHANNEL, it shows which fader circuit of LUNA 24 controls the...
