Summary of Contents for Audiotricity Chimera Signature

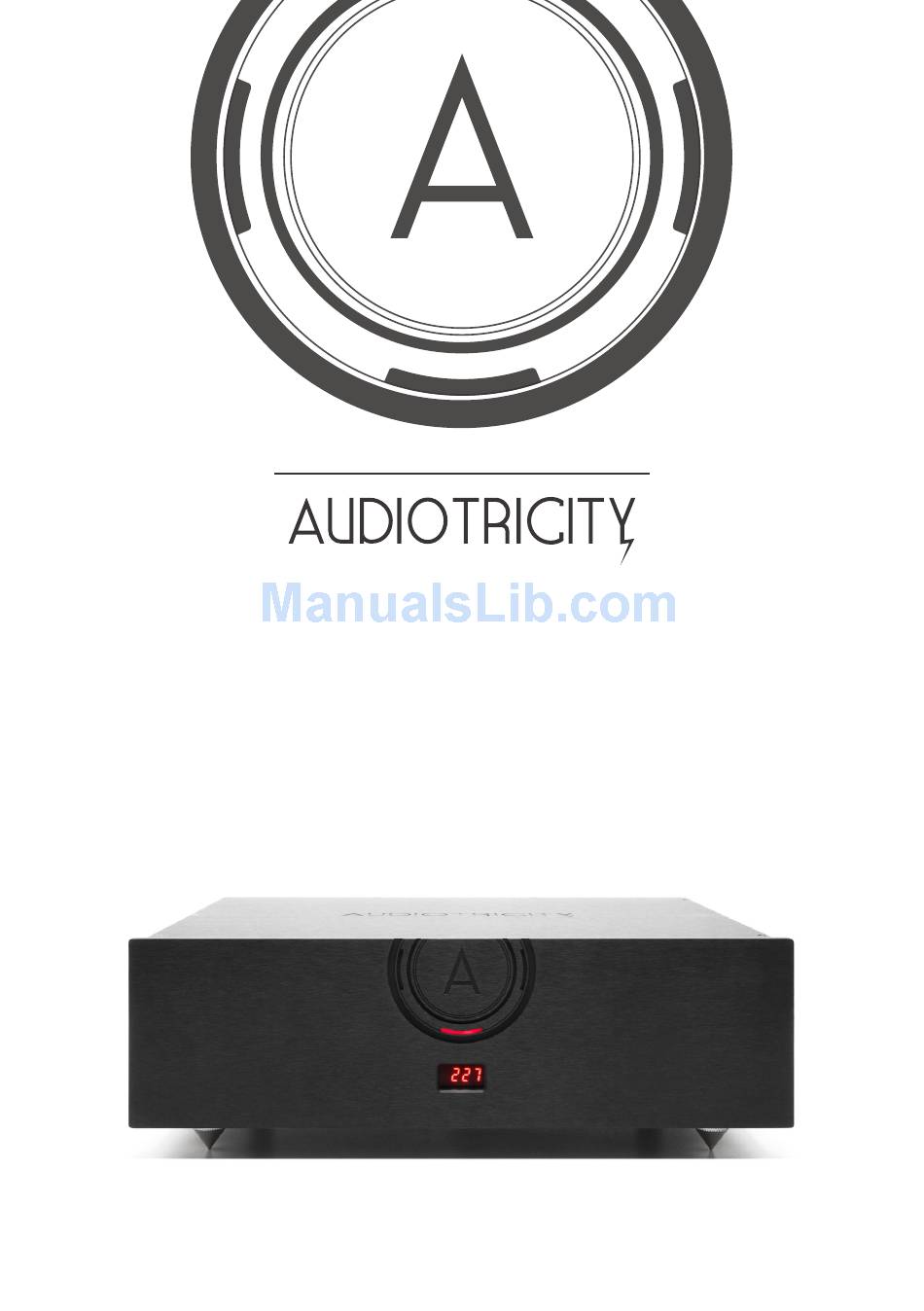

- Page 1 C H I M E R A SIGNATURE E X C L U S I V E P O W E R C O N D I T I O N E R O W N E R ’ S M A N U A L...
- Page 3 Specially in the Chimera Signature model that features very exclusive parts. Please enjoy the Chimera Signature and I truly hope it will bring you many years of musical enjoyment. Take a few minutes to read this Owner’s Manual before proceeding with the installation of the power conditioner.
-
Page 5: Table Of Contents
TABLE OF CONTENTS OWNER’S MANUAL CHIMERA SIGNATURE POWER CONDITIONER LEGAL NOTIFICATIONS PRODUCT FEATURES UNPACKING AND INSTALLATION FRONT PANEL REAR PANEL MAKING CONNECTIONS OPERATION POWER-OFF MAINTENANCE PERFORMANCE OPTIMIZATION UPGRADE PROGRAM LIMITED WARRANTY SPECIFICATIONS DIMENSIONS TROUBLESHOOTING... -
Page 7: Legal Notifications
The current version, 1.3, of this manual was produced by the Audiotricity engineering, sales, and marketing departments. The information in this manual is the sole property of Audiotricity. Any reproduction in whole or part without the expressed written permission of Audiotricity is prohibited. -
Page 8: Product Features
Chimera performance a bit further, our engineers had done research, small tweaks, and used even better parts (some of them present in Stheno). The Chimera Signature is the right choice for demanding audiophiles that don’t need to go for Stheno performance and price, but want to upgrade Chimera features a bit more. - Page 9 This provides a central ground point for all electronic components in the system; it normalizes voltage differentials between component chassis’, which may reduce the ground loops, and it also lowers chassis ground noise using dedicated ground filter. © AUDIOTRICITY 2014, ALL RIGHTS RESERVED...
-
Page 10: Unpacking And Installation
We strongly suggest that you save all of the packing materials. If the power conditioner is returned to Audiotricity or your dealer, the original packing materials must be used for shipment to avoid possible damage. Neither Audiotricity nor the shipper can be held responsible for damages incurred during transit if the original factory packing is not used. - Page 11 Installation requirements The surface that will support the Chimera Signature power conditioner must be capable of safely supporting the nearly 16kg weight of the power conditioner. The power conditioner doesn’t need too much ventilation, it can be mounted tight in the rack without regard for air flow.
-
Page 12: Front Panel
OWNER’S MANUAL CHIMERA SIGNATURE POWER CONDITIONER Operation Indicator LED: When the Chimera Signature is in operation, this led is illuminated. Digital Voltmeter display: When Chimera Signature is in operation, this display will continuously monitor your mains voltage with a 3 reads/sec. -
Page 13: Rear Panel
CONDITIONER 32A NEUTRIK PowerCON input: This is the Mains power input. You can use the power cable provided with the Chimera Signature or you can use other after-market with 32A NEUTRIK powerCON plug. High current outlets: These outlets are designed with low frequency filtering and with Max 16A each. -
Page 14: Making Connections
Chimera Signature power cable Chimera Signature requires a 32A NEUTRIK powerCON terminated power cable. We have supplied a high-end power cord with the Chimera Signature. However, many users may wish to use after-market AC power cords available from many cable manufacturers. Only use power cables rated for 20-Amps of continuous current. - Page 15 Wait approximately 5 seconds between each component to avoid current spikes. WARNING: Never plug the power cable to the NEUTRIK 32A powerCON input with the cable connected to the wall outlet. © AUDIOTRICITY 2014, ALL RIGHTS RESERVED...
-
Page 16: Operation
During operation The Chimera Signature was designed to be always in operation even when you are not using your system. You should only turn off the power conditioner if you won’t need it for a long period of time or if it exists any operational problem. -
Page 17: Power-Off
In order to avoid risk of electrical shock, always wait a minute between turn off and unplug cables from the power conditioner. © AUDIOTRICITY 2014, ALL RIGHTS RESERVED... -
Page 18: Maintenance
If you have any questions about the care or cleaning of your Chimera Signature power conditioner, please contact Audiotricity customer support or your dealer before attempting to clean the chassis. -
Page 19: Performance Optimization
For best performance allow at least 300 hours of continuous operation. Mounting platforms Ideally the Chimera Signature should be placed on a proper shelf, amp stand or solid platform. A heavy plank of wood or a granite slab works well also. -
Page 20: Upgrade Program
Audiotricity upgrade program not only let you upgrade to follow levels as you can upgrade to new Technology generations. This way, with a single upgrade, you can give your audio system two level upgraded. -
Page 21: Limited Warranty
CONDITIONER Audiotricity warrants the Chimera Signature power conditioner against manufacturing defects and defects in materials for ten years from the date of purchase from Audiotricity or any authorized dealer, subject to the conditions listed below: The warranty covers only new products purchased directly from Audiotricity or any authorized Audiotricity dealer. -
Page 22: Specifications
SPECIFICATIONS OWNER’S MANUAL CHIMERA SIGNATURE POWER CONDITIONER Maximum Voltage Outlets • • EU: 240V EU: EU1-16R • • US: 125V US: NEMA 5-20R • • Asia: 230V Asia: NEMA 5-20R • • UK: 230V UK: BS 1363 Maximum Current Wiring system •... -
Page 23: Dimensions
DIMENSIONS OWNER’S MANUAL CHIMERA SIGNATURE POWER CONDITIONER 450 mm (17.7 in.) 435 mm (17.1 in.) 378 mm (14.9 in.) © AUDIOTRICITY 2014, ALL RIGHTS RESERVED... -
Page 24: Troubleshooting
If the breaker doesn’t trip in step 5, put the power conditioner hydraulic breaker in the ON position. If all of these steps fail to return power to the power conditioner, consult Audiotricity or authorized dealer for service. Power conditioner hydraulic breaker trips every time I turn the unit on Don’t try to power on the power conditioner again and contact Audiotricity or an authorized... - Page 25 Check the instructions of each component to check if you are following the correct steps to turn the components on. If all of these steps fail to return power to the power conditioner, consult Audiotricity or authorized dealer for service.
