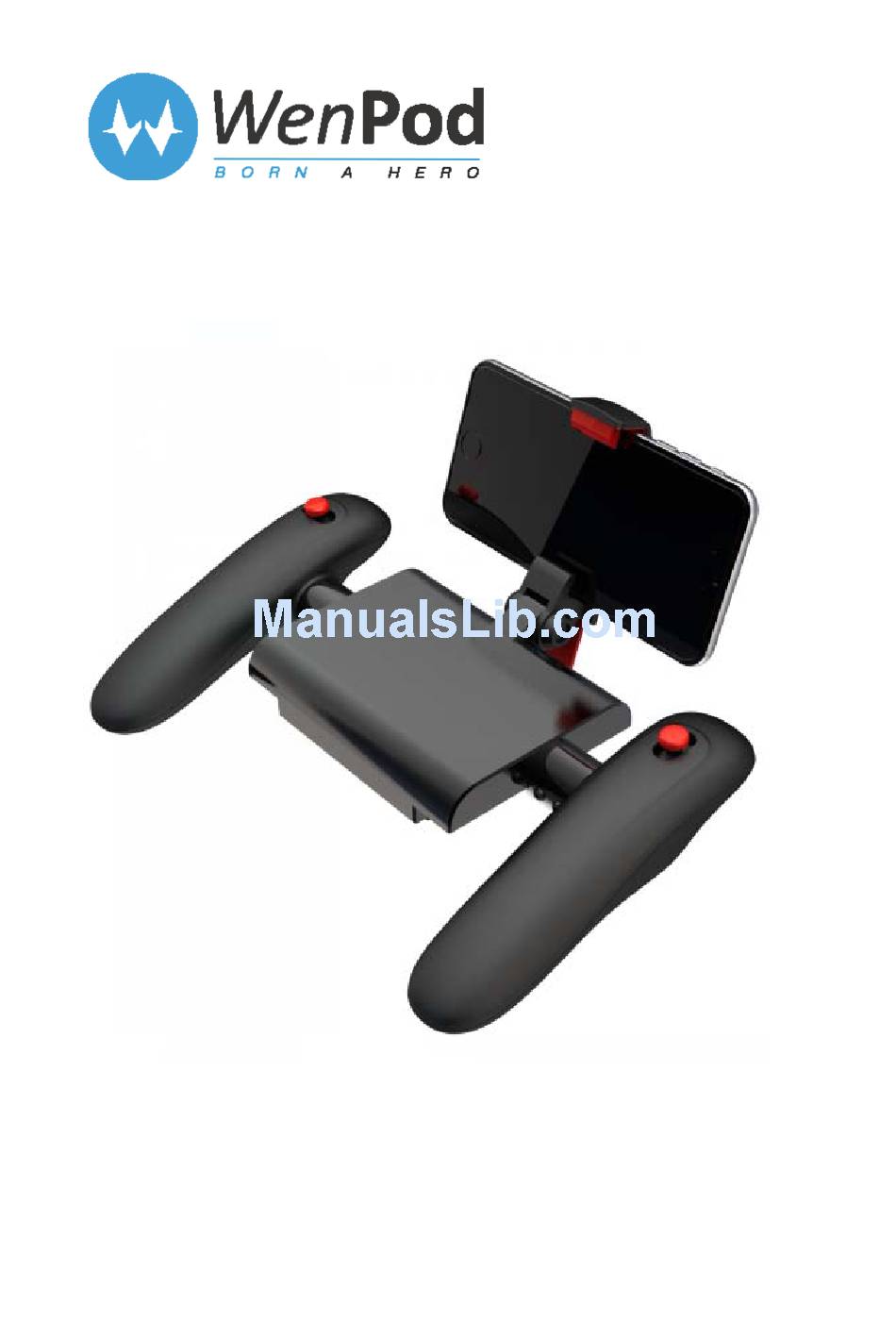

- Page 1 Motion Control User Guide...
-
Page 2: Table Of Contents
CONTENTS Part 1 Product Introduction ..........1 Item List..................1 Product parameters.............2 Part 2 Preparation before Usage ........3 Charge ..................3 Mount and Dismount Battery .........4 How to Mount Smart Phones .........5 Part 3 Usage Introduction............ 5 Power on..................5 Matching..................6 Joystick Mode................7 Kinetic Mode................8 Part 4 ............10... -
Page 3: Part 1 Product Introduction
MD2 by simply moving the hands in the direction they want. A highly intelligent kinetic mode is applied to MC on the basis of joystick mode. This helps cameramen find new view in different modes and experience brand new sensation. -
Page 4: Product Parameters
Product Parameters Model：WenPod MC Size： 260 X 180 X 70 mm Weigh：0.6kg Payload：0.3kg Battery Type：Wenpod LB-1 Li Ion Battery Operating Time：50-100 minutes in normal temperature Charging Time：about 60 minutes in normal temperature Output Specification：USB 5V 2.1A；DC3.5 12V 2A Operating Temp：-10℃ —40℃... -
Page 5: Part 2 Preparation Before Usage
9.Indicator Light 10.Speed Control Dial Switch Part 2 Preparation before Usage Here is the preparation before using MC and instruction about BC-02 charger. Charging Instruction 1．Connect adapter to DC3.5 Charging hole of BC-02, then plug the adapter in the socket. - Page 6 （Figure 1） （Figure 2） Light Indication Charging Full No battery Green Switch 3．The following two modes are OK for charging (Max current 2.4A): No battery With LB-1 4．The following modes can charge other electrical equipment simultaneously. (Max current 2.4A)
- Page 7 With LB-1 Tips to use MC and battery: ※ Full charge the battery before usage for new MC. ※ Please take out the batteries and put them in a dry cool place if you do not use the charger for a long time.
-
Page 8: How To Mount Smartphones
Figure 5）. Adjust the smartphone to a proper position, press the fastener to lock it in place. A USB port and a DC3.5 port is at the back of MC for charging from different equipment（See Figure 6）. - Page 9 2、Operation on MC： 3、Pairing will be finished in about 2 seconds. Indicator lights on both MD2 and MC turn constant blue if pairing successfully. Restart MD2 and MC to use. ※ Once MD2 and MC are paired successfully, the pairing...
-
Page 10: Joystick Mode
There is no need to pair again. Joystick Mode 1、Power on MD2 and MC. Both indicator lights flash green. 2、Enter joystick mode 3、Joystick operation 1) Left joystick: Move the joystick left and right to control the pan axis of MD2. -
Page 11: Kinetic Mode
※Note: Follow mode is only effective in joystick mode. Kinetic Mode 1、Power on MD2 and MC. Both indicator lights flash green. 2、Enter kinetic mode. 3、Kinetic remote operation 1）Turn the control left and right to control the pan axis of... -
Page 12: Part 4 Repair Service
2）Tilt the control up and down to control the tilt axis of MD2. 3)If the right joystick of MC is held, the control of MD2 is pause temporary. This allows you to adjust the control to a more comfortable position. Take control again by releasing the button. - Page 13 In case that you find a quality problem, please email to service@wenpod.com or call our Hotline 4008-251-718 to apply for a repair service. You will receive an SMS soon. Please send the unit to us following the instruction of the SMS.
- Page 14 Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 15 Warning: Changes or modifications made to this device not expressly approved by Guangzhou Hi-Tron AI Techonolgy Co.,Ltd. may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
