Summary of Contents for SSHEAT 60-150

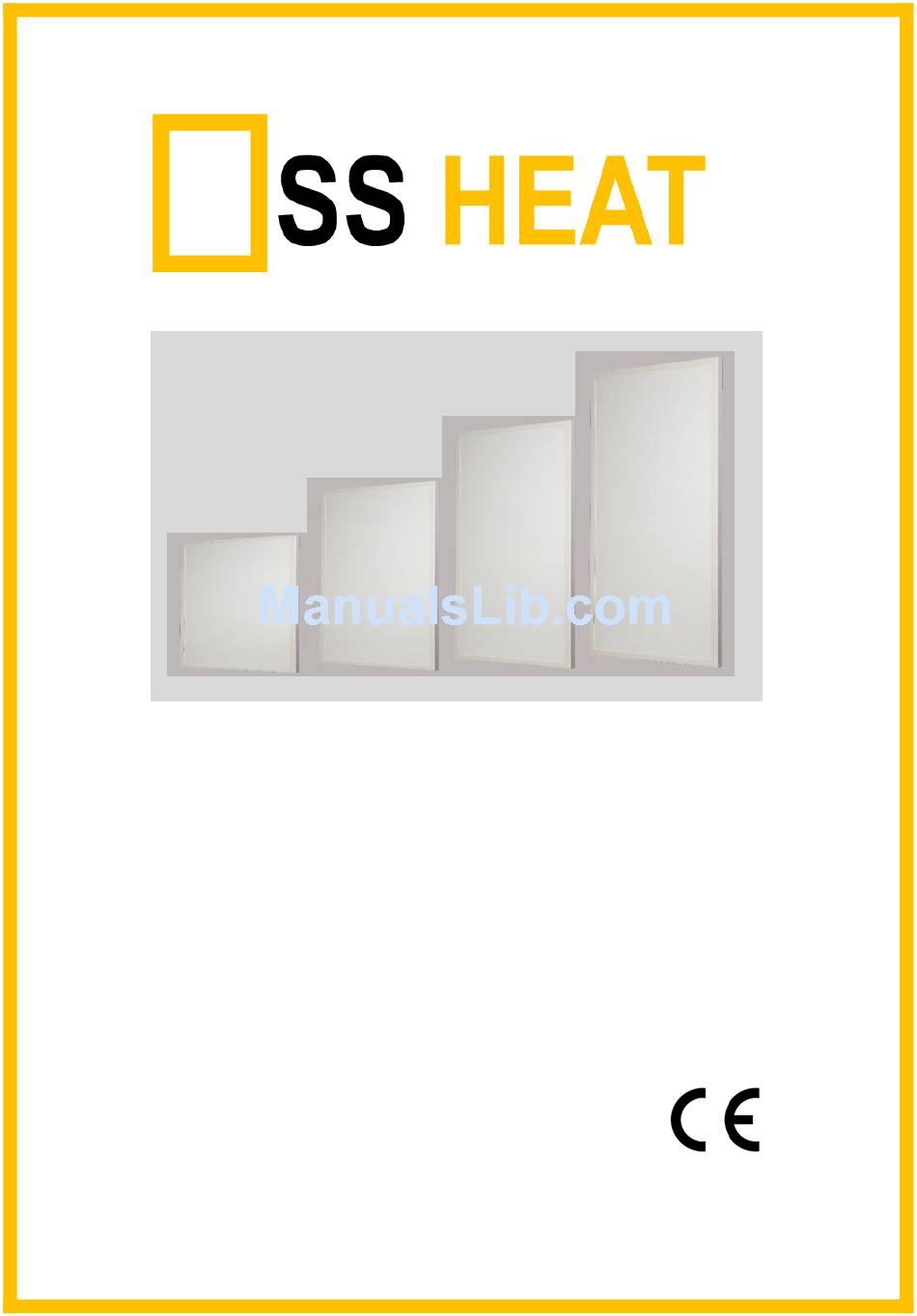

- Page 1 THE EFFICIENT HEATING USER AND INSTALLATION GUIDE SSH INDOOR SERIES MODELS 60-150 60-120 60-90 60-60 Manual updated on 4 January 2016...
- Page 2 Before installation, please read this guide carefully for an appropriate installation and later use. If you have any questions regarding the installation or use of the product, please contact us through our website: www.ssheat.co.uk or directly through your distributor. Thank you. TABLE OF CONTENTS: 1.
-
Page 3: Safety Warnings
1. Safety warnings BEFORE YOU CONNECT THE DEVICE, READ THIS MANUAL CAREFULLY WARNINGS Do not spray the panels with water or detergents during cleaning. Spilling water or detergents on the panels may result in colour changes and stains. Do not cover the surface of the SSH panel while it is switched on. This may result in reduced performance and malfunction due to overheating. - Page 4 Damaged or defective SSH panels are not covered by the guarantee whenever: • The damage has been caused by environmental conditions. • Damages are caused by variations in the mains supply. • The SSH panel is damaged by removal, disassembly and reassembly. •...
- Page 5 How to use the SSH panel while reducing electrical consumption • This device contains no control device. Optionally, it can be connected to thermostats or domotic systems for automatic conexion and temperature control. • Adjust the thermostat to the desired temperature. It is also possible to programme a schedule so it switches on and off automatically, reducing energy use.
- Page 6 Smart Sun Heat emits heat in the low portion of the long-range infrared spectrum, between 4 and 14цm, using the invisible wavelength used by the sun to heat items, offering, in addition to significant energy savings, some of the health benefits of the sun without any of the risks. This is due to the emission of this special type of low-frequency, long-distance infrared waves, which are similar to some of those emitted by the sun.
- Page 7 Technical specifications by model: SSH PANEL SSH SERIES POWER INTENSITY SIZE B x L x H WEIGHT MODEL INDOOR Amps 60-60 SR/3 SMART 59.8 x 59.8 x 2 60-90 SR/4 SMART 89.8 x 59.8 x 2 60-120SR/5 SMART 119.8 x 59.8 x 2 60-150SR/6 SMART 149.8 x 59.8 x 2...
-
Page 8: Electrical Requirements
SS Heat puts its technical department at your disposal to advise you about the optimal size and location for your installation. Electrical requirements • SS Heat panels must be connected to an electrical circuit for each area, activated by a differential circuit breaker and protected by magneto-thermal switches at the control panel for the room. - Page 9 Recommendations for the location of panels • SS HEAT panels are heating systems that use direct heat irradiation so it is recommended for you to install them on ceilings either as the main heating system or as supplementary heating. • In small spaces, the installation of the panel at the centre of the ceiling will offer greater heating efficiency.
- Page 10 Location of the thermostat SS HEAT heating panels only heat air indirectly. Therefore, for the thermostat to function properly, it is essential for it to be placed in the area that heat reaches directly. Taking into account that the aperture angle of the area heated by each plate is of 40 degrees, according to the example, on a ceiling with a height of 3 Thermosta...
- Page 11 Installation of plates Using your clean hands or gloves: 1. Remove elements protruding from the ceiling, dirt and any other element that could prevent the appropriate attachment of plates to the ceiling. 2. Mark the position of the plate, marking the location of fixing screws.
- Page 12 THE EFFICIENT HEATING SS HEAT, THE LEADING BRAND IN ENERGY-EFFICIENT HEATING SYSTEMS WE INVITE YOU TO VISIT OUR WEBSITE WWW.SSHEAT.CO.UK WHERE YOU CAN ACCESS THE LATEST NEWS ABOUT ENERGY-EFFICIENT HEATING SYSTEMS FOR INSTALLATION INDOORS AND OUTDOORS This document contains information property of Smart Sun Heat. The supply of service and the performance described herein will depend on the specific conditions of each project.
