Summary of Contents for Altimium TP70WP

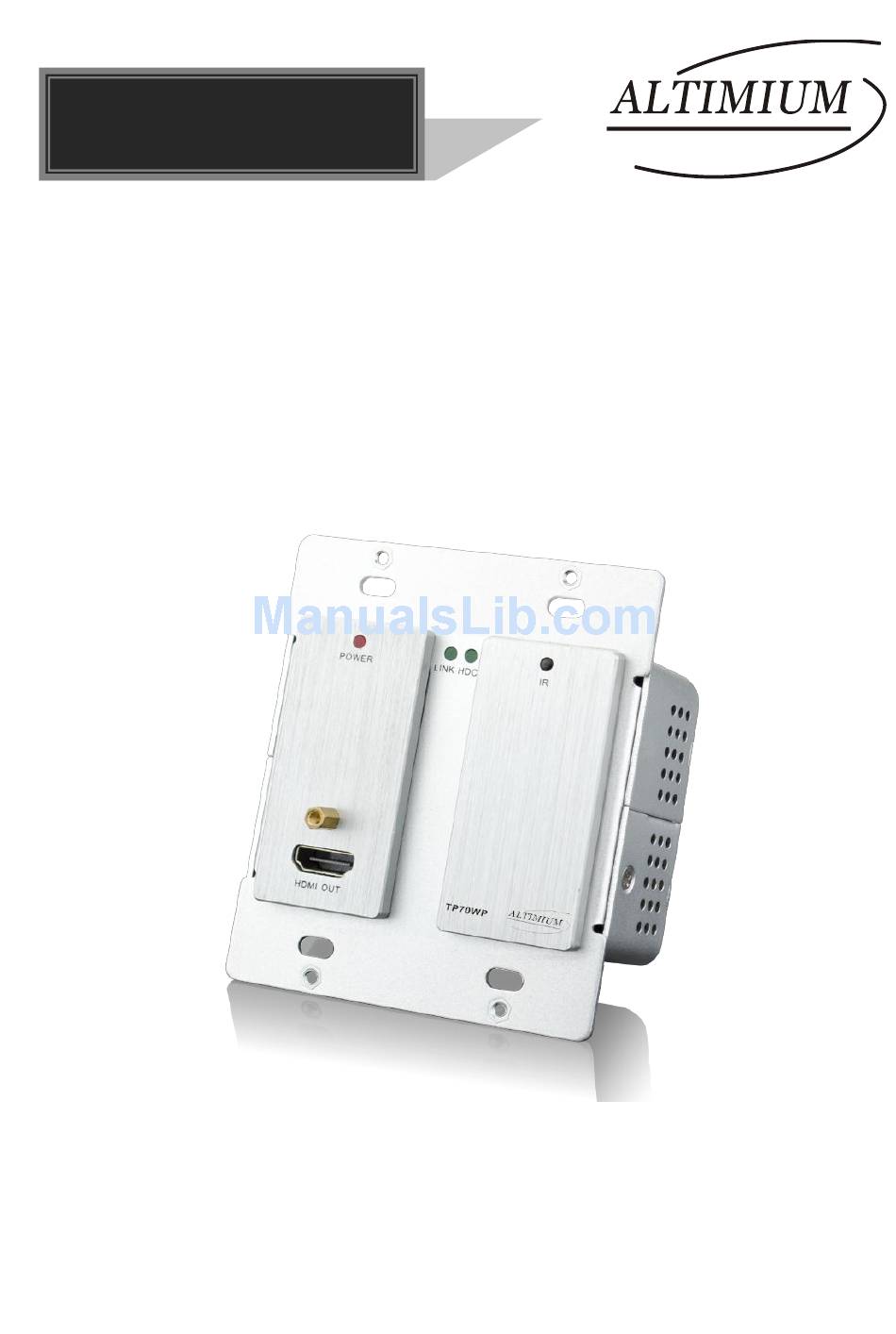

- Page 1 User Manual TP70WP HDBaseT Wall Plate Receiver All Rights Reserved Version: TP70WP_2016V1.1...
-
Page 2: Fcc Statement
Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com... -
Page 3: Safety Precautions
Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. Altimium www.altimium.com... -
Page 4: Table Of Contents
HDBaseT Wall Plate Receiver Contents 1. Introduction ......................... 1 1.1 Introduction to TP70WP ..................1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ..................... 4 3.1 Usage Precautions .................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to TP70WP TP70WP is a Decora style HDBaseT receiver that installs in a double-gang wall plate to provide a convenient interface for HDMI / DVI output. It has 1 HDMI OUT, 1 HDBT IN with PoC & PoE, 2 IR IN and 1 IR OUT. It supports HDMI 1.4& HDCP for reliable transmission. -
Page 6: Panel Description
LINK HDCP: HDCP compliance indicator, illuminate green when ③ &HDCP the source signals is with HDCP; blink when it is not with HDCP; and turn off when there is no source signal. In-built IR sensor ④ Altimium www.altimium.com... -
Page 7: Rear Panel
2． Once connecting an IR Receiver to the IR IN socket, both the in-built IR sensor and the extended IR Receiver is capable to collect IR signal. 3． Pictures shown in this manual are for reference only, different model and specifications are subject to real product. Altimium www.altimium.com... -
Page 8: System Connection
Step1. Connect HDMI source device (e.g. Blue-ray DVD) to HDMI IN socket of the HDBaseT Twisted Pair PoC Transmitter with HDMI cable. Step2. Connect the HDBT ports of HDBaseT Twisted Pair PoC Transmitter and TP70WP. Step3. Connect a HDMI display to the HDMI OUT port of TP70WP. Altimium www.altimium.com... -
Page 9: Poc/ Poe Solution
Step4. Connect a control terminal (e.g. a PC) to the RS232 port of either HDBaseT Twisted Pair PoC Transmitter or TP70WP. Step5. Both HDBaseT Twisted Pair PoC Transmitter and TP70WP have IR IN and IR OUT sockets. When one model is used for IR signal receiver, the IR signal must be sent out by the other model. -
Page 10: Specification
Decora style two gang Dimension Power Power 7w (Max) DC 12V 1A Consumption Supply Reference Temperature 0 ~ 55℃ 10% ~ 90% Humidity Dimension 89x 104 x 35 mm Weight 0.24Kg (W*H*D) Note: All nominal levels are at ± 10%. Altimium www.altimium.com... -
Page 11: Panel Drawing
HDBaseT Wall Plate Receiver 5. Panel Drawing 89 mm POWER LINK HDCP HDMI OUT Altimium www.altimium.com... -
Page 12: Troubleshooting & Maintenance
Static becomes stronger Check the grounding and when connecting the video bad grounding make sure it is connected connectors well. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. Altimium www.altimium.com... -
Page 13: After-Sales Service
HDBaseT Wall Plate Receiver 7. After-sales Service If there appear some problems when running TP70WP, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 16 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
