Summary of Contents for Fibersystem 21-180

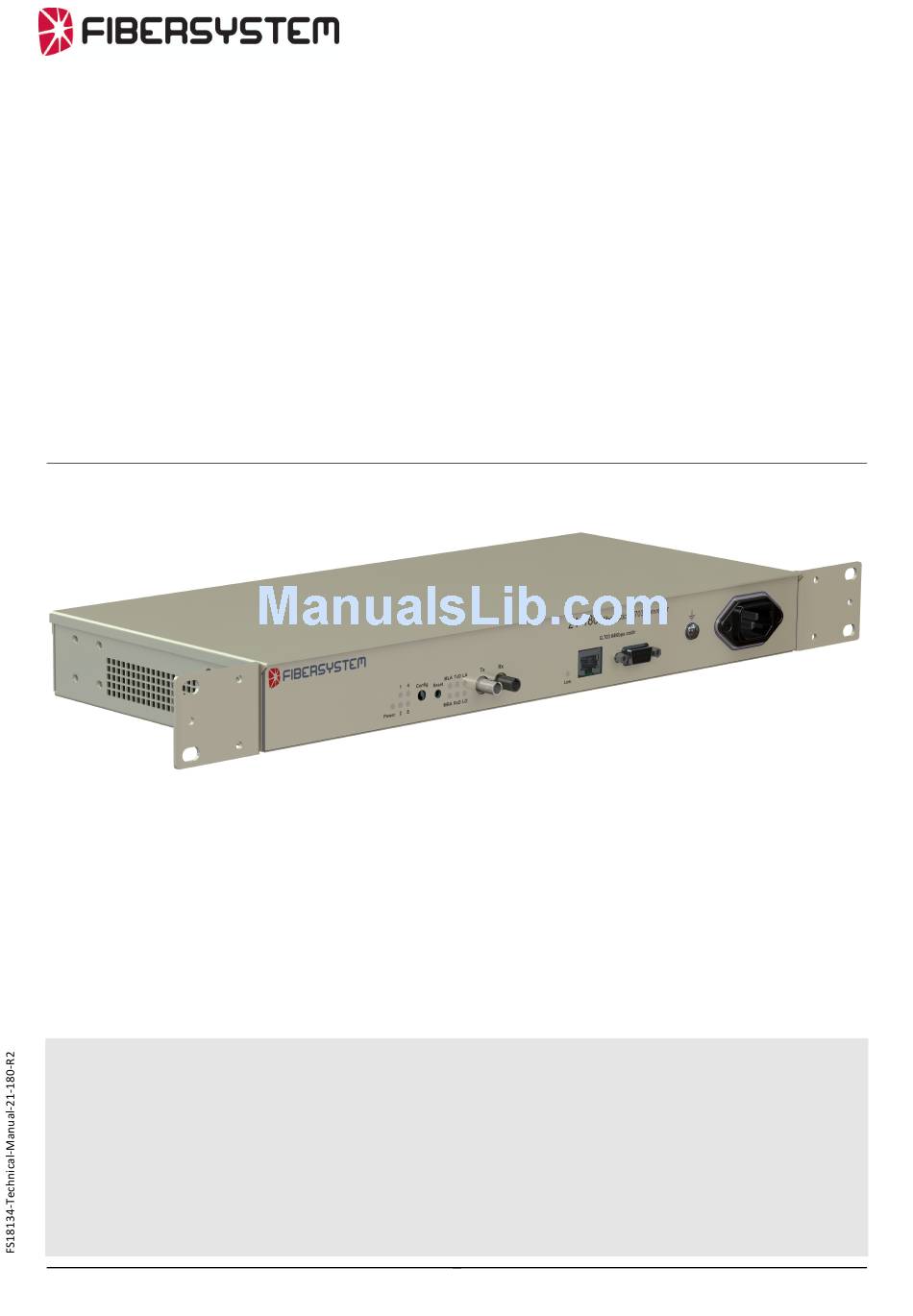

  • Page 1 Fiberoptic G.703 Converter 21-180 Technical manual...
  • Page 2: Table Of Contents

    About the contents of this manual The information in this document may be changed at any time without notice. Table of Contents About the contents of this manual Product 21-180 consists of: Table of Contents Serial number. Version and revision history.
  • Page 3: Version And Revision History

    Version and revision history. Revision history for product: Revision R0. Product released for serial production. 2006-06-26. Revision history for this document. Revision AK0. 2006-06-22, AnNy, document created. Revision 2006-06-26, AnNy, document released. Revision R1. 2006-06-26, AnNy, applications updated. Revision R2 2018-03-12, MiLa, document corrected.
  • Page 4: Functional

    Applications The fiberoptic port of the ABB REL55x/56x , Line Differential Protection Terminals, is directly connected to the fiberoptic port of 21-180. The 21-180 Codir- port is then connected to a 2048kbps G.703 E1 multiplexer. E1 Multiplexer E1 Multiplexer G.703...
  • Page 5 Or connect to another Fibersystem product using the same fiber optic protocol.
  • Page 6: Features

    Features Fiberoptic and data transfer protocol Data speed/protocol Fibersystem proprietary protocol. Optical data Wavelength 820nm Fiber optical connector Optical System budget 13dB with multimode fiber, (62.5/125 um) 9dB with multimode fiber, (50/125 um) Typical distance 2km (6dB systemmargin for 62.5/125 and 3dB margin for 50/125).
  • Page 7: Insulation

    Insulation Dielectric test IEC 60-255-5, 2,0kV 1min Impulse voltage test IEC 60255 / EN 50178 5kV / 6kV Insulation resistance IEC 60255-5; >100MOhm at 500VDC Physical size and Weight The unit can be to be mounted in a 19” rack. By adjusting, the rack mount brackets, the unit can also be mounted on a wall or similar.
  • Page 8: Unpacking

    Screw, MFX-H M3x5 FZB 50-65-0106 Power cord, 1.8m European connector. 50-65-5030 Rubber feet 90-20-0112 This manual 21-180, (Part number includes all parts in list above). Power cord. 2 Rack mounting brackets 4 Rubber feet 8 screws for rack mounting brackets...
  • Page 9: Serial Number

    Installation. Serial number. The products serial number is the best way for Fibersystem to identify the product. If the serial number is not noted on your delivery notes, please add the serial number to your own product documentation. This will be useful at future contact with Fibersystem.
  • Page 10 Mounting Before mounting check if 21-180 must be configured internally. See later in this chapter under section “Signal ground - Protective earth/ground”. The products can be used stand alone, rack mounted or attached with screws to wall or similar. The rack brackets have two alternative places on each side of the unit and the brackets can be rotated for alternative positions.
  • Page 11: G.703 Codir Port

    G.703 Codir Port The Codir interface uses one balanced pair for each direction of transmission. Impedance 120 Ohm. The RJ45 connector and the 9-pin D-sub connector are connected in parallel. Signal Function Signal direction RJ45 9-p D-sub Tx A Transmit data A Tx B Transmit data B Rx A...
  • Page 12: Functional Earth/Ground, Fe

    “Soft”. Signal ground is connected to PE with a resistor, (100kOhm), in parallel with a condensator, (100nF). A direct connection between Signal ground and PE can be strapped. To do this the 21-180 must then be opened. Disconnect power. Four screws at the backpanel shall be removed. Puch top lid towards backpanel.
  • Page 13 To connect Signal ground and Protective ground directly connect the terminals of P2 with strap.
  • Page 14: Normal Use

    Configuration Normal use Normally no configuration is needed! When two 21-180 are connected back-to-back, (G.703 Codir ports connected to each other), one of the 21-180 should be set to “Internal Clock”. Config rotary switch Configuration switch The rotary switch has 16 positions, (HEX-switch).
  • Page 15: External Clock

    Internal clock – “Master mode” When HEX-switch is on position 2, the clock used is generated by an internal clock. This is for example used when two 21-180 are directly connected to each other with galvanic cables. Only one 21-180 shall have this configuration.
  • Page 16: Power On

    Start and usage. Power on. Connect the power cord to the 21-180 and then connect to a power supply with PE, (Protective Earth/ground connection). The “LO”-LED shall be lit green. If not, try to cross-connect the fibers at one end of the link.
  • Page 17 1 , 2 , 4 , 8 Yellow LEDs. Marks the position of the Config switch. The four LEDs forms a binary value, lit LEDs, corresponding to the 16 positions of the Config switch. Only position 0, 1 and 2 of the configuration switch are used. LEDs 4 and 8 shall always be “black”.
  • Page 18: Ce - Mark

    If you still have problems or questions, don’t hesitate to contact help desk. Please gather all relevant information, including serial number, about your installation before contacting help desk. Our technical support can be reached at: Fibersystem AB Gardsfogdevagen 18B S-16866 Bromma Sweden Telephone: +46-8-564 828 80 •...
