Dear users:
Thank you for purchasing and using our products. For the sake of your safety and interests, before using the
products, please carefully read the product specifications as well as all the materials attached to the PC. If you
don't operate and use the products according to the product specifications, we shall not assume any
responsibility for any personal harmony, assets or other losses incurred.
The product specifications (hereinafter referred to a specifications ):
 The proprietary of the specifications belongs to our company;
 The proprietary of trademark and trade name mentioned in the specifications belongs to their respective
owners;
 If the content of specifications doesn't conform to that of the actual product, the actual product shall be
binding.
If you have any misunderstanding or objection about any content or article & clause in the specifications,
please put forward a written objection within 7days after purchasing the PC. Otherwise, it shall be deemed
that you have agreed to, understood and accepted all the contents of the specifications.

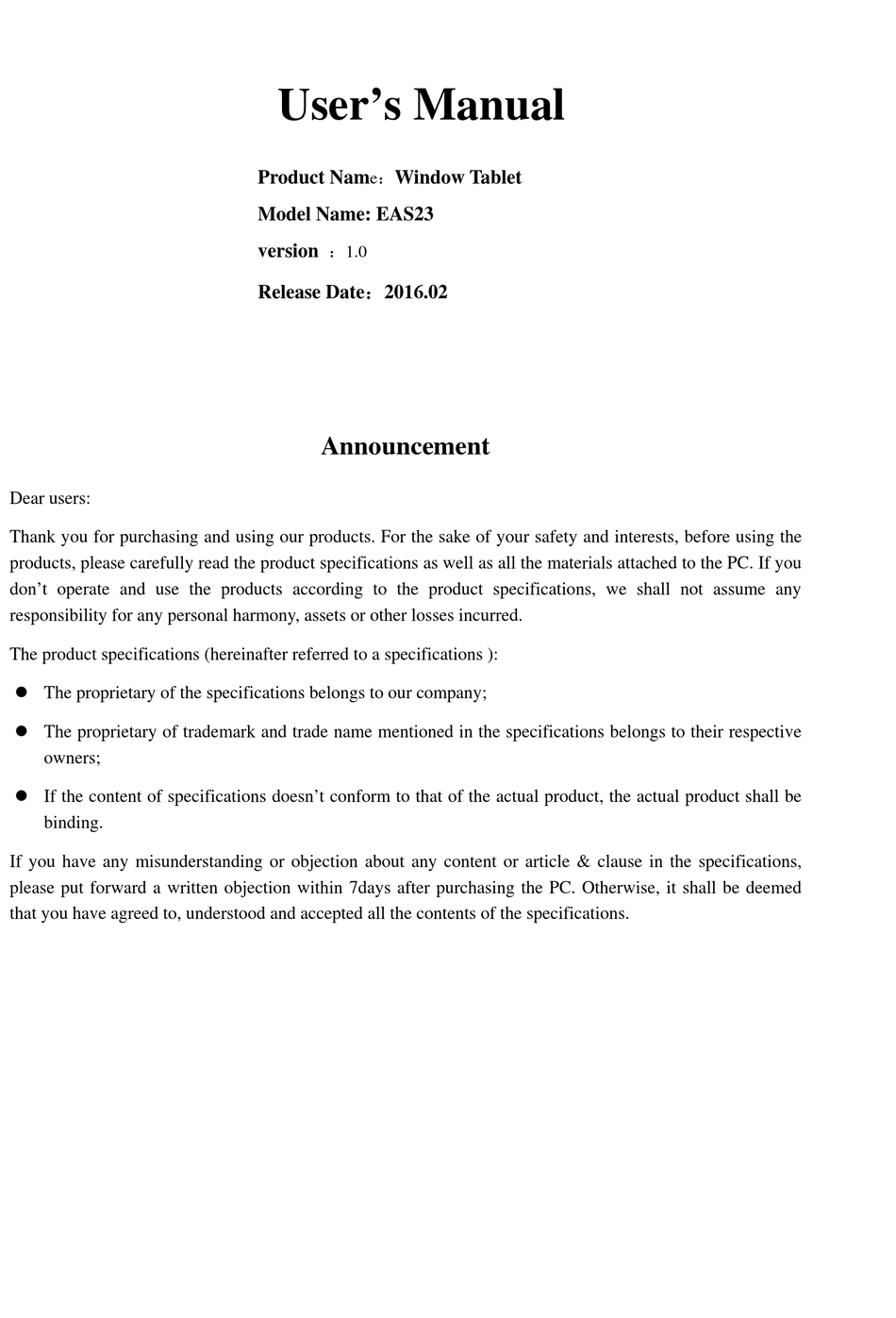

User's Manual
Product Nam
Window Tablet
e：
Model Name: EAS23
：1.0
version
Release Date：2016.02
Announcement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAS23 and is the answer not in the manual?

Questions and answers

Related Manuals for EDUGEAR EAS23

Summary of Contents for EDUGEAR EAS23

  • Page 1 User’s Manual Product Nam Window Tablet e： Model Name: EAS23 ：1.0 version Release Date：2016.02 Announcement Dear users: Thank you for purchasing and using our products. For the sake of your safety and interests, before using the products, please carefully read the product specifications as well as all the materials attached to the PC. If you don’t operate and use the products according to the product specifications, we shall not assume any...

  • Page 2: Table Of Contents

    Catalogue 1.0    Product overview ............................ 4   1.1 Introduction  ............................... 4   1.2 Unpacking and inspection ......................... 4   1.3 Introduction to parts & components ...................... 5   2.0 Basic common knowledge on computer operation .................. 7   2.1 Stop the computer  ............................ 7   2.2 Function of keyboard  .......................... 7   2.4 Display screen ............................ 8   2.5 Electromagnetic-screen .......................... 8  ...

  • Page 3: Product Overview

    1.0 Product overview 1.1 Introduction  Product name: Window Tablet  Series and type: EAS23  Characteristics of product performance: The Window Table adopts the latest mobile computation technology of INTEL and has a better performance.  Clear LCD：The Window Table has a TFT, which brings you clear and bright colorful words and images.

  • Page 4: Introduction To Parts & Components

    1.3 Introduction to parts & components (Note: The following images are schematic diagrams and the real objects shall be binding)
  • Page 5 NAME NAME NAME Front camera Light Rotary locking button Front camera Power adapter jack Volume Increase key MINI HDMI port Light Sensor Volume Decrease key Screen+Touch Panel USB port Back camera Light HOME KEY Earphone input port Back camera Reset Right key of mouse Thermal import(Option) Thermal export(Option)

  • Page 6: Basic Common Knowledge On Computer Operation

    2.0 Basic common knowledge on computer operation 2.1 Stop the computer When you finish your work, you can shut off the computer power or let the computer enter the mode of Sleeping or hibernation. Mode of stopping method Method on re-starting or usage Please follow the program for shutting the operating system.

  • Page 7: Display Screen

    2.3 Touch pad The built-in touch pad of keyboard is a position device. You can fell the movement on its surface. Move your finger on the surface of touch pad, the cursor will follow. 2.4 Display screen In order for the comfort of your eyes, your laptop computer is equipped with LED LCD, which supports high resolution and real color function.

  • Page 8: The Use Of The Electromagnetic Pen

    needs of professional drawing, digital animation field. In addition, the electromagnetic pen with the mainstream 2048 Order handwriting pressure sensitivity, able to pass a more accurate handwriting mode, simulate more real pen to write pen diameter thickness effect. We will experience the most realistic, accurate original handwriting input experience.

  • Page 9: Setup Of Bios (Basic Input & Output System)

    3.0 Setup of BIOS (basic input & output system) In this chapter, we will teach you how to enter the BIOS setup program as well as the setup of control options for all kinds of hardware. You will also learn how to use the setup of the built-in protection. The setup of common program is a hardware status program built in the BIOS of the laptop computer.

  • Page 10: Boot Menu

    3.2 Boot Menu Edit Boot Order: Edit Boot Order Windows Boot Manager: Windows Boot option...

  • Page 11: Main

    3.3 Main System Date: Setup of the system data System Time: Setup of the system time System Information：Setup of the system information...

  • Page 12: Advanced

    3.4 Advanced Select Language：Selects the display language for the BIOS...

  • Page 13: Security

    3.5 Security Account's Password Status: Clear the account or password...

  • Page 14: Exit

    3.6 Exit Exit Saving Changes: Save Settings exit Exit Discarding Changes: Do not save your settings and exit Load Setup Defaults：Load the default settings Discard changes: Do not save your settings Save Changes: Save Settings...

  • Page 15: Installation Of Driver Program

    4.0 Installation of driver program The laptop computer support Windows8.1 Open CD on any external CD-drive via USB , operation procedures, illustrated as follows: (Note: The following images are schematic diagrams and the real objects shall be binding) Driver installation of WIN8.1 Click on the corresponding chart icon, and then follow the prompts to complete installation.

  • Page 16: Special Notice

    5.0 Special notice 5.1 Special hint In order to facilitate understanding and arouse your attention, as for product safety or information needing special attention to, we will give you the hints in this chapter or the chapters that follows according to the following levels and special warning words.
  • Page 17  Please make sure to pull from the root of socket so as to guarantee safety.  Please don’t disconnect the power adaptor.  Please don’t use the power adaptor not attached to the Window Table because this will damage the Window Table. 4）...
  • Page 18 temperature increasing excessively quickly, which thus leads to electrified damages. [Note] Before using the Window Table, please make sure that the Window Table connection, power use and other affairs conform to the requirements in the specifications. Removal, transportation and storage [Note] When moving the Window Table, special care should be taken.

  • Page 19: Instructions On Safety

    network line, power line and other conducts which are connected with outside. In case of thunder, please don’t insert and pull these lines & cables. [Note] Carefully examine the AC power line attached when purchasing the Window Table. In case of any problems, please contact relevant dealer.

  • Page 20: Fault Analysis And Elimination

    6. 0 Fault analysis and elimination  In this chapter, you will learn how to solve general problem on hardware. Your Window Table must pass a Window Table test and conform to the system specification before being  delivered. However, incorrect operation or negligence during the conveyance process will lead to the occurrence of problems.

  • Page 21: Special Declaration

    7.0 Special Declaration This Window Table can support several peripheral Window Tables & hardware, such as mouse, keyboard. As for the peripheral equipment accompanied with the Window Table,the Window Table doesn’t guarantee the compatibility and reliability of its products. When users use the products, they must conform to the contents in the specifications.

  • Page 22: Annex A:product Specifications

    8.0 Annex A:Product Specifications System Windows 8.1 Intel(R) Core(TM) I5/I3Series（I5-4202）/celeron® pentium® cpu Series （3560） System memory 2G/4G (Option) On board SSD: 32G/64G/128G (Option Storage 11.6” TFT LED screen resolution of 1366*768/1920*1080 (Option Panel Electromagnetic Electromagnetic screen + Electromagnetic pen（Option） Touchpanel 11.6 ”capacitance Touchpanel Card Reader Support Micro SD Card...
  • Page 23 FCC NOTE ： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT.
