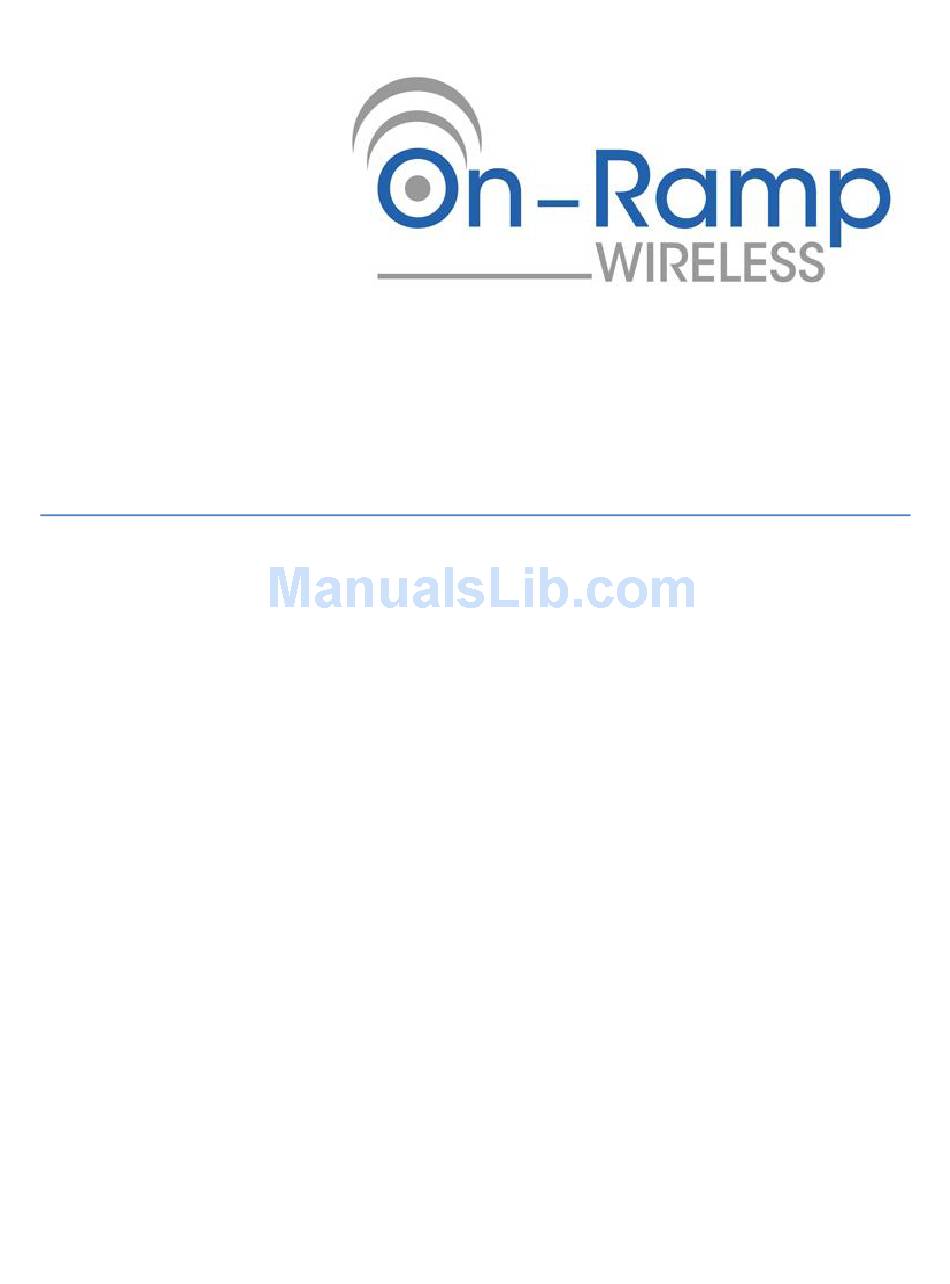

Page 1: Access Point
Access Point User’s Guide 012-0001-00... - Page 2 FCC Compliance and Advisory Statement This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Wall Mount ............................5 Pole Mount ............................6 Horizontal Mounting ..........................6 Rack Mount ............................6 Cabling................................8 Connections .............................. 8 Antenna Parameters ..........................9 Safety information ............................11 Access Point User’s Guide 012-0001-00 P a g e On-Ramp Wireless © 2010... - Page 4 Ultra-Link Processing™ - Access Point Access Point User’s Guide 012-0001-00 P a g e | ii On-Ramp Wireless © 2010...
-
Page 5: Product Overview
Enclosure Features On-Ramp Wireless’ Ultra-Link Processing™ Access Point is housed in a rugged weatherproof enclosure that is ideal for both indoor and outdoor applications. Constructed of heavy gauge aluminum, it is designed for high temperature and corrosive environments. The AP can be mounted in a vertical or a horizontal orientation. -
Page 6: Environmental/Operational Parameters
Manufacturer’s Name: On-Ramp Wireless Manufacturer’s Address: 10920 Via Frontera, Suite 200, San Diego, CA 92127, USA Declares our sole responsibility that the product: Product Name: On-Ramp Wireless Access Point, ULPAP110 Conforms to the following Product Specifications: Safety: IEC 60950-1:2005 (2nd Edition); AM 1:2009 UL 60950-1:2003 R7.06... -
Page 7: Installation
Installation Professional Installation The ULPAP110, and any associated equipment requires professional installation; a) installation of the equipment must be controlled, b) Installation must be performed by licensed professionals, c) installation of the equipment requires special training (special programming, field strength measurements and transmit power calculations) to meet FCC/IC guidelines. -
Page 8: Pole Mount
5. Using a ¼” x 4” flat blade screwdriver, loosen the mounting tabs. 6. Rotate the mounting tabs 90 degrees from their horizontal orientation to a vertical orientation. Access Point User’s Guide 012-0001-00 P a g e On-Ramp Wireless © 2010... - Page 9 11. Secure a fixing nut, from the bottom of the rack tray, onto each screw and tighten the nut. 12. Slide the rack tray into the rack when the AP is secured to the rack tray. Access Point User’s Guide 012-0001-00 P a g e On-Ramp Wireless © 2010...
-
Page 10: Cabling
Connections Connect GPS antenna cable to the GPS connector (Male) Connect the Antenna cable to the antenna connector (Male) Connect the Power (PoE) to the Access Point Access Point User’s Guide 012-0001-00 P a g e On-Ramp Wireless © 2010... -
Page 11: Antenna Parameters
The Access Point transmit output power is adjusted, if required as part of a professional installation, using On-Ramp Wireless’ Network Management Software. This device has been tested with the antennas listed below, and having a maximum gain of 9 dBi. - Page 12 (E.i.R.P.) is not more than that permitted for successful communication. The responsibility for staying within these power limits falls on the professional installer. Access Point User’s Guide 012-0001-00 P a g e | 10 On-Ramp Wireless © 2010...
-
Page 13: Safety Information
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Access Point User’s Guide 012-0001-00 P a g e | 11 On-Ramp Wireless © 2010...
