Summary of Contents for Garz & Fricke SANTOKA 12.1 BX PCT

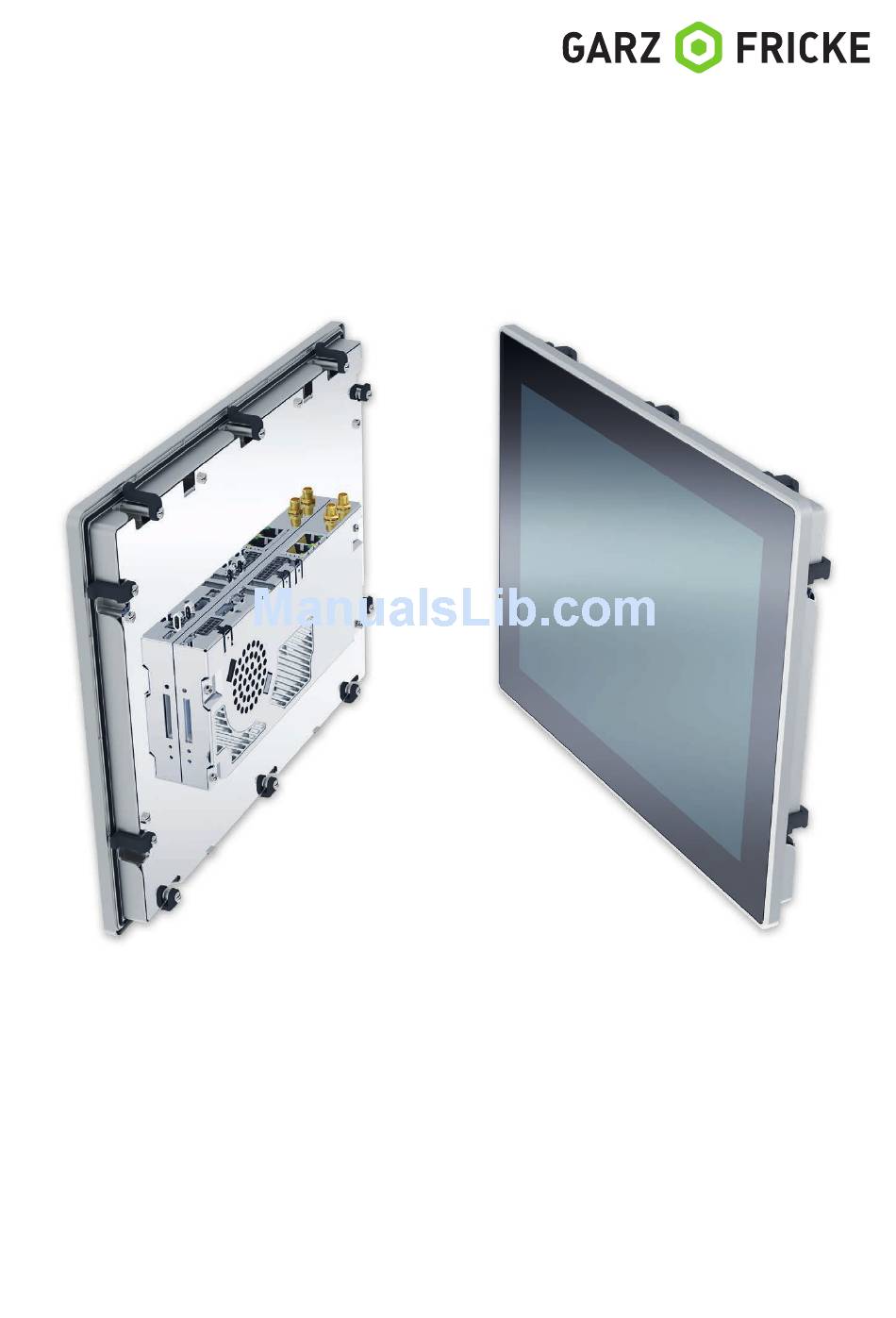

- Page 1 SOLUTIONS THAT COMPLETE! SANTOKA 12.1 BX PCT ARM Cortex-A9 Panel Mount Product Manual...
- Page 2 PRODUCT MANUAL SANTOKA Document Revision History The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. Revision Date Author Description V 1.0...
-
Page 3: Table Of Contents
PRODUCT MANUAL SANTOKA Table of Contents Introduction ..................4 Safety Hints..................5 Product Introduction ................. 7 Type Plate and Device Information ............7 Product names and variants ..............8 Related Documents and Online Support ..........9 Technical Data ..................10 Block Diagram SBC .................12 Connectors ....................13 Installation and Start Up .............. -
Page 4: Introduction
PRODUCT MANUAL SANTOKA Introduction Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 5: Safety Hints
PRODUCT MANUAL SANTOKA Safety Hints Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded systems have been built and tested by us and left the company in a perfectly safe condition.In order to maintain this condition and ensure safe operation, the user must observe the instructions and warnings contained in this manual. - Page 6 PRODUCT MANUAL SANTOKA IV. Approvals The SANTOKA may be equipped with a certified transmitting module. The internal / external antenna(s) used for this module must provide a separation distance of at least 2 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 7: Product Introduction
PRODUCT MANUAL SANTOKA Product Introduction This document is applicable for hardware revisions 1.0 or later of the SANTOKA series. „Annex D: Hardware Revision Information“: Please find the hardware version grid in SANTOKA is an Embedded System to be used as human machine interface (HMI) in various applications. Please refer to Annex „G-2 Field of Application“... -
Page 8: Product Names And Variants
PRODUCT MANUAL SANTOKA Product names and variants Product name definition: SANTOKA <CPU> <7.0> <BX> <PCT> <IPS> <additional description> <Vx.y.z> Explanation: SANTOKA Product family name (invariable) <CPU> x1, x2, x2l, x4, x4P (number of cores inside the i.MX6 processor) <7.0> Display size in inch <BX>, <SG>, <OF>... -
Page 9: Related Documents And Online Support
PRODUCT MANUAL SANTOKA Related Documents and Online Support This document contains operating system specific information. The following additional documentations are available: OPERATING SYSTEMS Contains information about Linux BSP with development environment Linux Yocto Jethro Linux Embedded System Yocto (Codename: Jethro, Version 3.0) includes first information about the bootloader Flash-N-Go http://mx31.de/d UPDATE / BOOT / SYSTEM... -
Page 10: Technical Data
PRODUCT MANUAL SANTOKA Technical Data CPU Type i.MX6Solo i.MX6Dual i.MX6Quad i.MX6QuadPlus Core Class ARM Cortex - A9 Core Clock 1 GHz NEON for SIMD media acceleration and VFP operations; Multi-format HD 1080p video decoder and HD 720p video encoder hardware engine; L1 cache, 32 KB for instruction, 32 KB for data Features 512 KB L2 cache 1 MB L2 cache... - Page 11 PRODUCT MANUAL SANTOKA Housing Front 4.0 mm toughened glass, RAL 9005 Frame Fine zinc alloy, matt chrome Rear 1.4016 stainless steel, foam seal Ingress Protection Front IP 66/Rear IP20 Device Dimensions W x H x D 305.9 x 242.7 x 41.0 mm Weight tbd.
-
Page 12: Block Diagram Sbc
PRODUCT MANUAL SANTOKA Block Diagram SBC Block Diagram SANTOKA 24 V i.MX6 Step Down 2-pole Molex Converter 2x Display LVDS LVDS0 20-pole Hirose LVDS1 Power PMIC 12V Supply 5V Supply Battery GPIO Backlight CR1220 PWM1_OUT 12-pole Molex Battery Res.Touch RC 1 Touchscreen I2C-3 Controller... -
Page 13: Connectors
PRODUCT MANUAL SANTOKA Connectors As this manual describes a boxed version, only the external interfaces will be mentioned in the following chapter. X117 (Exemplary Illustration. It shows a cutout of the fully equipped SANTOKA) Pos. Description Wi-Fi/Bluetooth Antena connectors Ethernet (X117 1+2) Power (X1) CAN/RS-485 Interface (X39) Optional with galvanic isolation... - Page 14 PRODUCT MANUAL SANTOKA (Exemplary Illustration (cutout) both sides) Pos. Description Reset Switch (SW1) Bootselect Switch (SW2)1 SD card slot (X31) Power LED (D30) 1 For the function of this switch please refer to the Flash N Go User Manual.
-
Page 15: Installation And Start Up
PRODUCT MANUAL SANTOKA Installation and Start Up The content of this document is limited to explain the device connectors and how to access SANTOKA via FTP over your local area network (LAN) within a few seconds. For advanced hardware specifications and software „3.3 Related Documents and Online Support“... -
Page 16: Internal And External Interfaces
PRODUCT MANUAL SANTOKA Internal and External Interfaces Wi-Fi and Bluetooth Antenna Connectors Wi-Fi connector Bluetooth connector Header: SMA (RP-SMA optional) Ethernet (X117) (1+2) Name Description Information Rx/Tx might be swapped (Auto-MDIX) SPARE 1 +/- might be swapped (Autom. polarity correction) SPARE 2 Header: RJ45 Green LED (link) is default off and turns on when link is detected. -
Page 17: Power (X1)
PRODUCT MANUAL SANTOKA Power (X1) Name Description Level DC Ground Vcc_In DC Input voltage Nom. 9 to 32 V DC Header: Molex 43045-0200 Micro-Fit 2p Plug: Molex 43025-0200 Micro-Fit 2p, crimp contact Molex 43030-0007 Shielding with 6,3 mm male spade terminal connector. Caution: Power supplies connected to this device must be compliant to the requirements of “limited power sources”... -
Page 18: Can/Rs-485 Interface (X39)
PRODUCT MANUAL SANTOKA CAN/RS-485 Interface (X39) Name Description Level GND_CAN_RS485 Ground for CAN and RS485 group CAN1_TERM To enable CAN1-Termination, bridge with CAN1_H CAN1_H CAN bus 1 high +24 V CAN1_L CAN bus 1 low +24 V CAN1_TERM To enable CAN1-Termination, bridge with CAN1_L RS485_TERM To enable RS485-Termination: bridge with RS485_A CAN1 Termination... -
Page 19: Usb Host (X34)
PRODUCT MANUAL SANTOKA USB Host (X34) Name Description Level USB_H1_VBUS Power supply +5 V DC max 500mA USB_H1_DN Data minus (D-) USB_H1_DP Data plus (D+) Ground Header: USB Type A USB Host (X113) Name Description Level USB_H1_VBUS Power supply +5 V DC max 500mA USB_H1_DN Data minus (D-) USB_H1_DP... -
Page 20: Hdmi (X111)
PRODUCT MANUAL SANTOKA HDMI (X111) Name Description Level D2 + TMDS Data2+ TMDS Data2 shield D2 - TMDS Data2- D1 + TMDS Data1+ TMDS Data1 shield D1 - TMDS Data1- D0 + TMDS Data0+ TMDS Data0 shield TMDS Data0- CK + TMDS Clock+ TMDS Clock schirm CK -... -
Page 21: Rs-232/Rs-232 (X13)
PRODUCT MANUAL SANTOKA RS-232/RS-232 (X13) Name Description Level Ground RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Ground RS232_TXD2 Port#2: Transmit data (Output) RS232_RXD2 Port#2: Receive data (Input) RS232_RTS2 Port#2: Request-to-send (Output) RS232_CTS2 Port#2: Clear-to-send (Input) Header: Molex 43045-1000 Micro-Fit 10p... -
Page 22: Usb Otg (X20)
PRODUCT MANUAL SANTOKA 6.10 USB OTG (X20) Name Description Level USB_OTG_VBUS Power supply +5 V DC max 500mA USB_OTG_DN Data minus (D-) USB_OTG_DP Data plus (D+) USB_OTG_ID Device ID Ground Header: Micro-USB Type AB 6.11 SD Card Slot (X31) Name Description Level DAT3... -
Page 23: Power Led (D30)
PRODUCT MANUAL SANTOKA 6.12 Power LED (D30) Should be green if the device is powered up. 6.13 Bootselect Switch (SW2) Push during a power on sequence to boot into the secondary OS. 6.14 Reset Switch (SW1) Push for a power on reset. -
Page 24: Battery-Holder (X125)
PRODUCT MANUAL SANTOKA 6.15 Battery-Holder (X125) Name Description Level Supply CR1220 Ground Header: AUK BH19VWG-R5H-H Battery: CR2032... -
Page 25: 6.16 Battery Specifications
PRODUCT MANUAL SANTOKA Battery 6.16 Battery Specifications The internal baseboard is equipped with a Primary Lithium battery (type CR1220), which has a typical lifetime of 8 years. Type Garz & Fricke Article Number Battery type CR1220 010-0059R Manufacturer Model Varta CR1220 Alpha 3 Manufacturing Ltd. -
Page 26: 6.17 Replacement Of The Internal Battery
PRODUCT MANUAL SANTOKA 6.17 Replacement of the Internal Battery The internal battery is placed as per figure below. For replacement, the SD-card and the back cover have to be removed. The device shall be opened by authorized and skilled personnel only. Danger of electric hazard! First before opening, please make sure that the unit is completely disconnected from any power supply, direct or indirect. -
Page 27: Annex A: Technical Drawing
DIN ISO entgraten und scharfe 2768-mK 1302 Kanten brechen Name Signatur Datum Bearbeitet DG/3dpro 29.03.17 SANTOKA 12.1 BX PCT Geprüft Genehmigt 17,30 Produktion Qualität Blatt 900-xxxxR 15,85 © Garz & Fricke GmbH Ers. f.: 09.08.2017 Schc Glas und Rahmen waren zwischenzeitlich auf 3mm... -
Page 28: Annex B: Quality And Incoming Inspections
PRODUCT MANUAL SANTOKA Annex B: Quality and Incoming Inspections Display and Touch Maximum Maximum Specification amount amount Notes display area other area Electrical Minimum One dot = one subpixel Bright Dot defects distance One pixel consists of three Dark Dot L ≥... -
Page 29: Annex C: Evaluation Criteria Of Standard Display Module
PRODUCT MANUAL SANTOKA Annex C: Evaluation criteria of standard display module Evaluated Zone 1: Areas in the immediate viewing area: dirt and dust enclosures / stains / striae / scratches from max. 500 μm (diameter) or 0.02 mm2 (surface), 5 pcs. per dm2 are permitted, but no clustering. -
Page 30: Annex D: Hardware Revision Information
PRODUCT MANUAL SANTOKA Annex D: Hardware Revision Information This document is applicable for all products listed below. Please note that customized variants might possibly not support all features listed herein. Additional features are documented in specific attachments. Platform Article Number Marking on PCB SANTOKA x1 12.1 BX PCT 0567 SANTOKA V1.2.2... -
Page 31: Annex E: Assembly Options
PRODUCT MANUAL SANTOKA Annex E: Assembly Options Wi-Fi / Bluetooth Some appliances require a wireless network connection. To be more flexible with regard to future Wi-Fi standards and regulations, we decided not to assemble this functionality directly onto the single-board-computer. We recommend an external USB or miniPCIe solution. Drivers for both versions will be included in the related operating systems. -
Page 32: Annex F: Guidelines And Standards
PRODUCT MANUAL SANTOKA Annex F: Guidelines and Standards RoHS Declaration Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8th June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 33: Garz & Fricke Conformity Statement
PRODUCT MANUAL SANTOKA Garz & Fricke Conformity Statement Garz & Fricke GmbH develops and distributes reliable, ARM-based embedded solutions. We offer various solutions from computer-on-modules (COM) to single-board computers (SBC) and fully- assembled human machine interface (HMI) with pre-installed operating system, display and housing. These solutions are offered exclusively as OEM products. -
Page 34: Annex G: Common Documentation
PRODUCT MANUAL SANTOKA Annex G: Common Documentation Warranty hints Garz & Fricke embedded systems are subject to manufacturer’s warranty as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the warranty period. -
Page 35: Field Of Application
PRODUCT MANUAL SANTOKA Field of Application The products covered by this document are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) we highly recommend a personal contact with our consultants and/or technical sales team. -
Page 36: Annex H: Technical Support
PRODUCT MANUAL SANTOKA Annex H: Technical Support Before contacting the Garz & Fricke support team, please try to help yourself by the means of this manual or any other documentation provided by Garz & Fricke or the related websites. If this does not help at all, please feel free to contact us. Our technicans and engineers will be glad to support you. -
Page 37: Annex I: General Information
PRODUCT MANUAL SANTOKA Annex I: General Information Trademarks and service marks Names and logos in this document may be trademarks of their respective companies. In some cases descriptions for copyrighted products are not explicitly indicated as such. The absence of the ™...
