Summary of Contents for OtoPet-USA LS-150

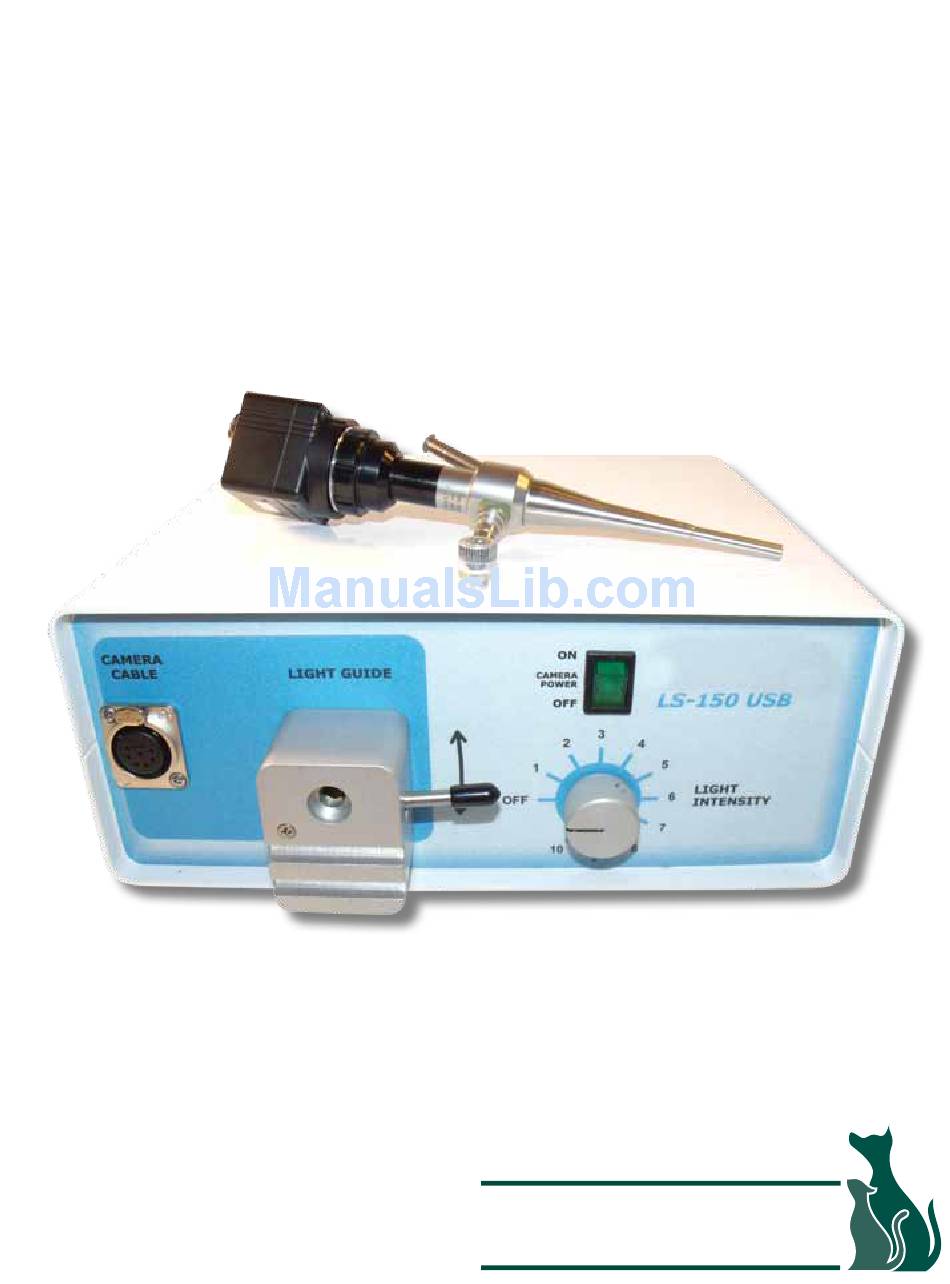

- Page 1 LS-150 USB Light Source with Video Capture Setup and Operation OtoPet-USA is a division of DermaZoo 8909 Iverleigh Court, Potomac, MD 20854 - USA Office: 301-365-0192 • Toll Free: 866-374-0897 Fax: 301-983-2369 • Email: info@otopet-usa.com www.OtoPet-USA.com...
- Page 2 OtoPet-USA LS-150 Light Source with Video Capture Manual Video Settings - VetScope View If you have VetScope View, follow these instructions. If you don’t have this lightsource connected to a computer, skip to the asterix (*) below. Make sure your light source and camera are on.
- Page 3 OtoPet-USA LS-150 Light Source with Video Capture Manual Video Settings - VetScope View continued Press down on the lever as shown to the right to insert the light cable. Camera Connections Twist the Composite BNC 1/4 turn onto the male connnection on the rear of the mini-camera.
- Page 4 Rear Connections Connect the power cable into the Power Inlet socket in the rear of the LS-150 USB Light Source. Connect a USB cable from your computer to the socket marked USB. If connecting directly to a monitor, plug an RCA/BNC cable into the connection marked Composite Video.
