Operation & Installation Instructions
PUV-200
Series
405-PUV-100-02
405-PUV-200-02
405-PUV-300-02
405-PUV-100-03
405-PUV-200-03
405-PUV-300-03
405-PUV-100-06
405-PUV-200-06
405-PUV-300-06
405-PUV-100-10
405-PUV-200-10
405-PUV-300-10
405-PUV-100-15
405-PUV-200-15
405-PUV-300-15
405-PUV-100-20
405-PUV-200-20
405-PUV-300-20
PUV-HO-200
Series
PULSAR - Standard Systems
System
Rated Flow
2 gpm
3 gpm
6 gpm
11 gpm
15 gpm
21 gpm
PUV-300
Series
System
Rated Flow
405-PUV-HO-100-04
405-PUV-HO-200-04
4 gpm
405-PUV-HO-300-04
405-PUV-HO-100-10
405-PUV-HO-200-10
10 gpm
405-PUV-HO-300-10
405-PUV-HO-100-14
405-PUV-HO-200-14
14 gpm
405-PUV-HO-300-14
405-PUV-HO-100-25
405-PUV-HO-200-25
25 gpm
405-PUV-HO-300-25
405-PUV-HO-100-40
405-PUV-HO-200-40
40 gpm
405-PUV-HO-300-40
PUV-HO-300
Series
Advertisement
Table of Contents
Summary of Contents for Pulsar Ultraviolet 405-PUV-100-02

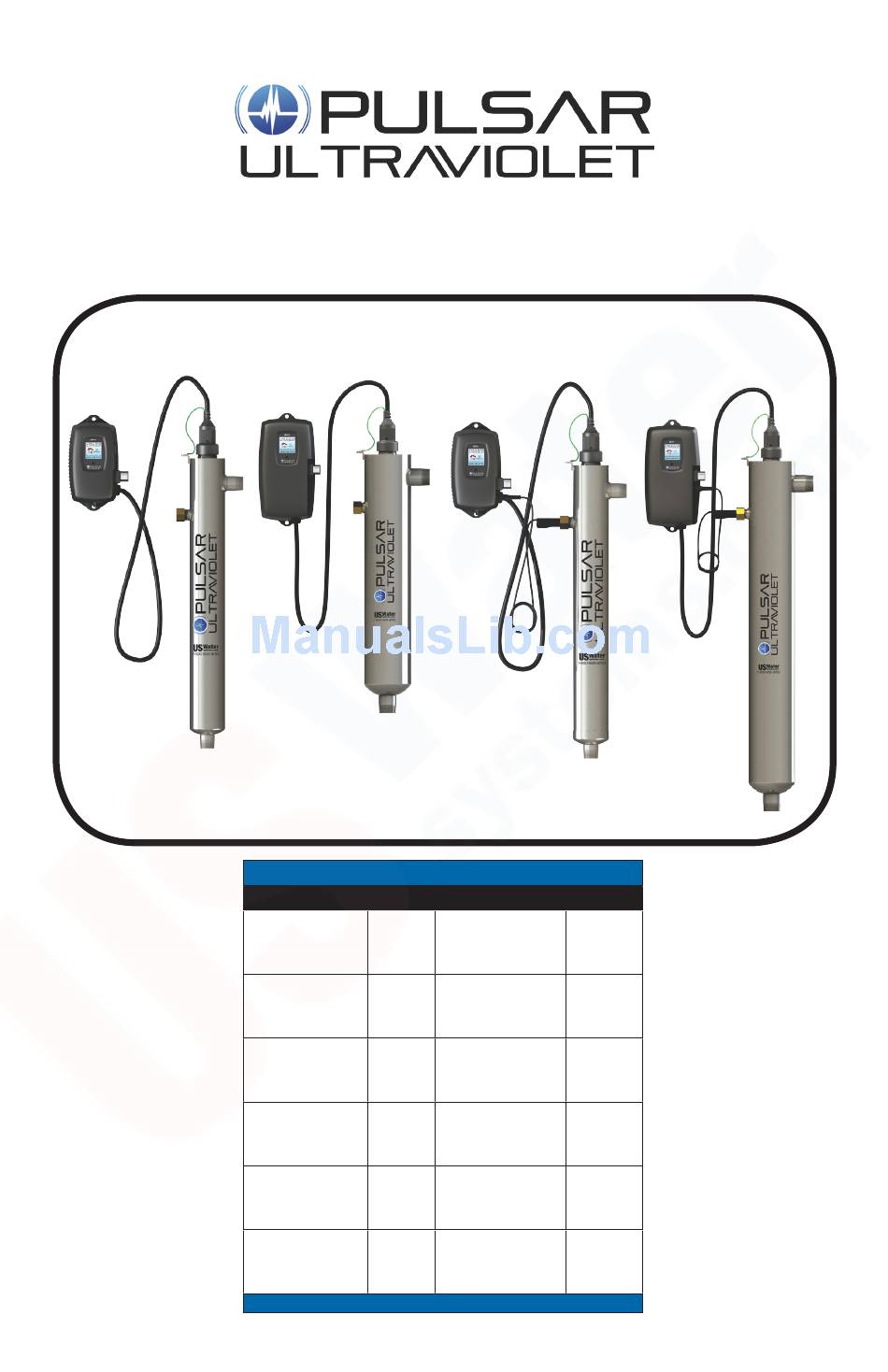

- Page 1 Operation & Installation Instructions PUV-200 PUV-HO-200 PUV-300 PUV-HO-300 Series Series Series Series PULSAR - Standard Systems System Rated Flow System Rated Flow 405-PUV-100-02 405-PUV-HO-100-04 405-PUV-200-02 2 gpm 405-PUV-HO-200-04 4 gpm 405-PUV-300-02 405-PUV-HO-300-04 405-PUV-100-03 405-PUV-HO-100-10 405-PUV-200-03 3 gpm 405-PUV-HO-200-10 10 gpm...
- Page 2 Congratulations on purchasing this ultraviolet disinfection system. By purchasing a Pulsar UV Disinfection system you are receiving not only a high quality product but also peace of mind. Protecting your water supply with a UV system gives you reassurance that your family will have access to safe drinking water throughout your entire home with no chance of microbiological contamination.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Considerations ......................4 Before You Begin ........................ 4 Water Quality Parameters ....................5 Assembly ..........................6 System Sizing ........................8 Location ..........................8 Installation ......................... 9 System Disinfection ......................12 Cleaning the Quartz Sleeve ....................12 Cleaning the UV Sensor .................... -
Page 4: Safety Considerations
Safety Considerations Although your UV system has been manufactured to the highest safety standards, care must be followed when operating and/or maintaining your system. 1. Before servicing this equipment, disconnect the power cord from the electrical outlet. 2. Energy given off by the UV lamp is harmful to your eyes and skin. NEVER look directly at an illuminated UV lamp without adequate eye protection and always protect your skin from direct exposure to the UV light. -
Page 5: Water Quality Parameters
Water Quality Parameters UV disinfection is extremely effective against microorganisms but only if the UV light can pass through the water it needs to treat. This means that the quality of your water is very important in order to ensure complete disinfection. Treated water should be tested for at the least the parameters listed below. -
Page 6: Assembly
Assembly Unpack the system and ensure all the components are included with the system. Your system is shipped with the following components: Pulsar (Standard output lamp systems) LAMP KEY GLAND NUT CONTROLLER 320006 “100” Series O-RING 406-PUV-BL-100 310038 “200/300” Series UV LAMP 406-PUV-BL-200 406-PUV-LM-02 “-02”... - Page 7 Pulsar-HO (High output lamp systems) LAMP KEY GLAND NUT CONTROLLER 320006 “HO-100” Series O-RING 406-PUV-BL-HO-100 310038 “HO-200 / HO-300” Series UV LAMP 406-PUV-BL-HO-200 406-PUV-LM-HO-04 “-04” series 406-PUV-LM-HO-10 “-10” series 406-PUV-LM-HO-14 “-14” series 406-PUV-LM-HO-25 “-25” series 406-PUV-LM-HO-40 “-40” series SLEEVE SPRING 310039 GLOW PLUG QUARTZ SLEEVE...
-
Page 8: System Sizing
System Sizing All Pulsar UV systems are rated for a specific flow rate in water that meets the quality parameters on page 5. PLEASE NOTE that increasing the flow above this rating or disinfecting water that does not meet the quality parameters will decrease the dose and therefore compromise the microorganism inactivation. -
Page 9: Installation
To facilitate lamp removal, ensure there is enough space at the lamp connector end to safely remove the UV lamp and/or quartz sleeve (See Figure 2). The controller will require a ground fault circuit interrupter (GFCI or GFI) outlet and should be mounted beside or above the reactor. PLEASE NOTE: All Pulsar UV disinfection systems are intended for indoor use only as they should not be exposed to the elements. - Page 10 Step 6: Once the system has been plumbed in, gently remove the quartz sleeve from its packaging being careful not to touch the length with your hands. The use of cotton gloves is recommended for this procedure as oils from the hands can leave residue on the sleeve and lamp which can ultimately block the UV light from getting to the wa- ter.
- Page 11 Step 11: Always hold UV lamps by their ceramic ends, not by the lamp quartz. Remove the lamp from its packaging. Again, the use of cotton gloves is recommended. Remove the lamp key from the lamp’s connector and set it aside for the next step. Be careful to not touch the key’s exposed contacts.
-
Page 12: System Disinfection
System Disinfection With a new installation, or any time the UV system is shut down for service, without power, or is inoperative for any other reason, the lines in the home or facility could be contaminated. Use the following steps to fully disinfect the lines throughout the entire home or facility. Step 1: Check for and remove any “dead ends”... -
Page 13: Cleaning The Uv Sensor
Step 11: Replace the o-ring and slide the sleeve back into the reactor following steps 7 and 8 from the installation section of the manual. Cleaning the UV Sensor Depending on the water quality, the UV sensor may require periodic cleaning. At a minimum, the UV sensor should be cleaning on an annual basis. -
Page 14: 100" Series Controllers
”100” Series Controllers Simplistic in operation, these systems feature a tri-color LED that indicating system status and a 4-digit display to indicate lamp life remaining. Pressing the button will change the dis- play to indicate total running time. When the UV lamp is on and within its operating age, the LED will be green. -
Page 15: 200" Series Operational Screens
4-20 mA Module Check Ethernet Module Check Remote Alarm Module Check A final module screen is displayed showing which specific modules were initialized. The controller then displays the lamp optimization screen for 60 seconds to allow the lamp to reach its optimum output. Finally, a final “start-up complete” screen is displayed. The system will now be ready to disinfect water flow. -
Page 16: 300" Series Operational Screens
“300” Series Operational Screens On systems with the UV monitor, the system will display the same screens as on the “200” series except the UV Intensity replaces the home screen. The UV Intensity screen displays the level of UV light detected by the sensor. UV intensity can be affected by poor water quality, scaling on the quartz sleeve and/or sensor, lamp failure or lamp expiring. -
Page 17: Lamp Replacement ("100" Series Systems)
“100” Series At any point during this sequence, the audible chirp or alarm can be deferred for seven days by holding the controller button down for a period of five seconds. The number of deferrals used will be displayed as below. Once the deferral expires, the alarm will sound once again. The de- ferral can be repeated up to three times. -
Page 18: System Troubleshooting
System Troubleshooting Hard Alarms: The following give a constant audible alarm. If present, the solenoid valve is closed, and the 4-20, remote alarm and ethernet modules transmit the alarm. System Display Problem Resolution Reset lamp protection circuit -unplug unit for 10 seconds. The system has detected Replace the lamp with the a problem with the... - Page 19 Soft Alarms: The following remaining errors give a 15 second audible chirp only System Display Problem Resolution Ensure all modules are connected properly to the system and to each other. Modules can be tested indi- The module indicated is vidually by plugging in one no longer communicat- at a time and cycling power ing to with the system.
-
Page 20: Temperature Management Devices
Temperature Management Devices Your Pulsar UV system is designed to run continuously to ensure optimal disinfection. However, during periods when no water is drawn through the system, the energy from the disinfection process can cause the temperature of the water inside the chamber to rise. In extreme situations elevated water temperature or the fluctuation in temperature can lower the output of the UV lamp. - Page 21 SOLENOID CONNECTION MODULE: Connects a NORMALLY CLOSED line voltage solenoid valve to the system. On a non-monitored system, the sole- noid will only close on a lamp failure error. On a monitored system, the solenoid is closed when the UV level drops below 50%. Also note that in cases where emergency use of untreated water is re- quired, the controller can be placed into a manual override mode allowing for the flow of water in an...
-
Page 22: Pulsar Standard Output System Specifications
Pulsar Standard Output System Specifications PULSAR EQUIPMENT SPECIFICATIONS Residential systems (standard output lamps) Multi-Use / 405-PUV-100-02 405-PUV-100-03 405-PUV-100-06 405-PUV-100-10 405-PUV-100-15 405-PUV-100-20 MODEL 405-PUV-200-02 405-PUV-200-03 405-PUV-200-06 405-PUV-200-10 405-PUV-200-15 405-PUV-200-20 405-PUV-300-02 405-PUV-300-03 405-PUV-300-06 405-PUV-300-10 405-PUV-300-15 405-PUV-300-20 3.8 gpm 6.1 gpm 11 gpm... -
Page 23: Pulsar-Ho High Output System Specifications
Pulsar-HO High Output System Specifications PULSAR EQUIPMENT SPECIFICATIONS Residential Crossover systems (high output lamps) Light Commercial / 405-PUV-HO-100-10 405-PUV-HO-100-04 405-PUV-HO-100-14 405-PUV-HO-100-25 405-PUV-HO-100-40 MODEL 405-PUV-HO-200-10 405-PUV-HO-200-04 405-PUV-HO-200-14 405-PUV-HO-200-25 405-PUV-HO-200-40 405-PUV-HO-300-10 405-PUV-HO-300-04 405-PUV-HO-300-14 405-PUV-HO-300-25 405-PUV-HO-300-40 4.0 gpm 10 gpm 14 gpm 25 gpm 40 gpm Flow Rate 15 lpm... -
Page 24: Pulsar Systems Limited Warranty Statement
Pulsar Systems Limited Warranty Statement Products manufactured by US WATER are warranted to the original user only to be free of de- fects in material and workmanship for a period as specified below. This warranty only applies to the original purchaser and is not transferable. UV SYSTEMS Ten (10) year Limited Warranty on the stainless steel reactors, from the date of original purchase, or installation (proper documentation required for verification). -
Page 25: Warranty Registration
TO GET WARRANTY SERVICE Please contact the Dealer or Distributor where the product was originally purchased to obtain service under this warranty. Your Dealer / Distributor will obtain a Warranty Return Authoriza- tion and will then need to return the product to US WATER, together with proof of purchase and installation date, failure date, and supporting installation data. - Page 26 2 6 | P a g e...
- Page 27 2 7 | P a g e...
- Page 28 US Water Systems, Inc. 1209 Country Club Rd. Country Club Industrial Park Indianapolis, IN 46234 Phone: (800) 608-8792 www.uswatersystems.com PN#910259 Version Date: 10-2017...
