Summary of Contents for Think Wireless TWDBMPSB-01

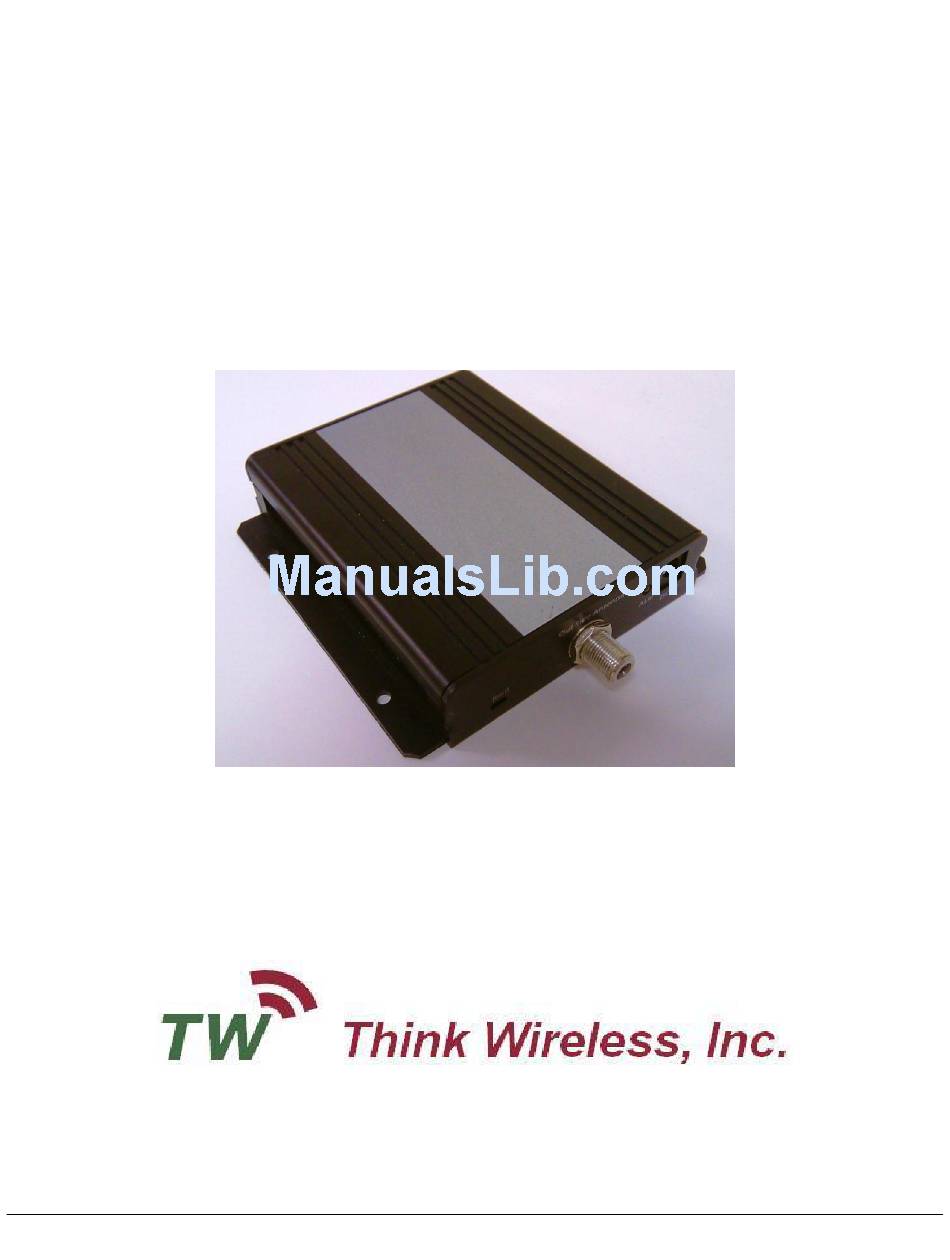

- Page 1 Dual Band Mobile Phone Signal Booster INSTALLATION AND OPERATION MANUAL P/N: TWDBMPSB-01 - 1 -...
-
Page 2: Table Of Contents
INSTALLATION AND OPERATION MANUAL 1. Package Contents………………………………………………………. 3 2. Important Safety Information…………………………………………… 3 a. Limited Warranty……………………………………………. 4 b. Limitation on Liability...…………………………………….. 4 c. FCC Regulations..…………………………………………… 4 3. Pre-installation Guidelines……………………………………………… 4 a. Installation Tools……………………………………………. 4 b. Installation Procedure……………………………………….. 4 c. Electrical Power………………………………………………6 d. -
Page 3: Package Contents
Indoor/Outdoor directional 8/11dBi dual band panel antenna (optional) 2. Important Safety Information The TWDBMPSB-01 system complies with all FCC, IC, UL rules, regulations and codes. Follow all guidelines in the installation and instruction manual and read completely before beginning the installation procedure. Do not deviate or disregard any of the safety features included in the manual or with the equipment, nor operate the system in an unintended application. -
Page 4: A. Limited Warranty
Think Wireless in writing. If products sold hereunder are not as warranted, Think Wireless shall, at its option either refund the purchase price, or repair or replace the product, provided proof of purchase and written notice of nonconformance are received by Think Wireless, Inc. - Page 5 The inside and outside antenna also must be separated by an exterior wall. Typical In-Building Coverage The TWDBMPSB-01 system is designed to provide optimal coverage for areas up to 3,000 square feet Interior coverage varies based upon the building construction and materials.
-
Page 6: C. Electrical Power
The location of the TWDBMPSB-01 unit must be accessible within reach of the supplied 50’ cable and within 6’ of an AC adapter (or an extension cord can be used). The TWDBMPSB-01 unit is not waterproof and must be kept in a dry location. -
Page 7: Home/Office Installation
(not supplied). Route cable according to site installation plan to the TWDBMPSB-01 unit. 3. Attach the other end of the cable to the TWDBMPSB-01 unit on the port labeled outside antenna. 4. Connect the inside antenna (P/N ANTDBUS-01) to TWDBMPSB-01 connector labeled “Inside antenna.”... -
Page 8: Antenna & Accessory Options
7. Technical Support Locate the serial number on the TWDBMPSB-01 unit before calling. The serial number is located on the bottom of the TWDBMPSB-01 unit. The TWDBMPSB-01 serial number must be available to authorize technical support and/or establish a return authorization.
