Important: Retain these instructions

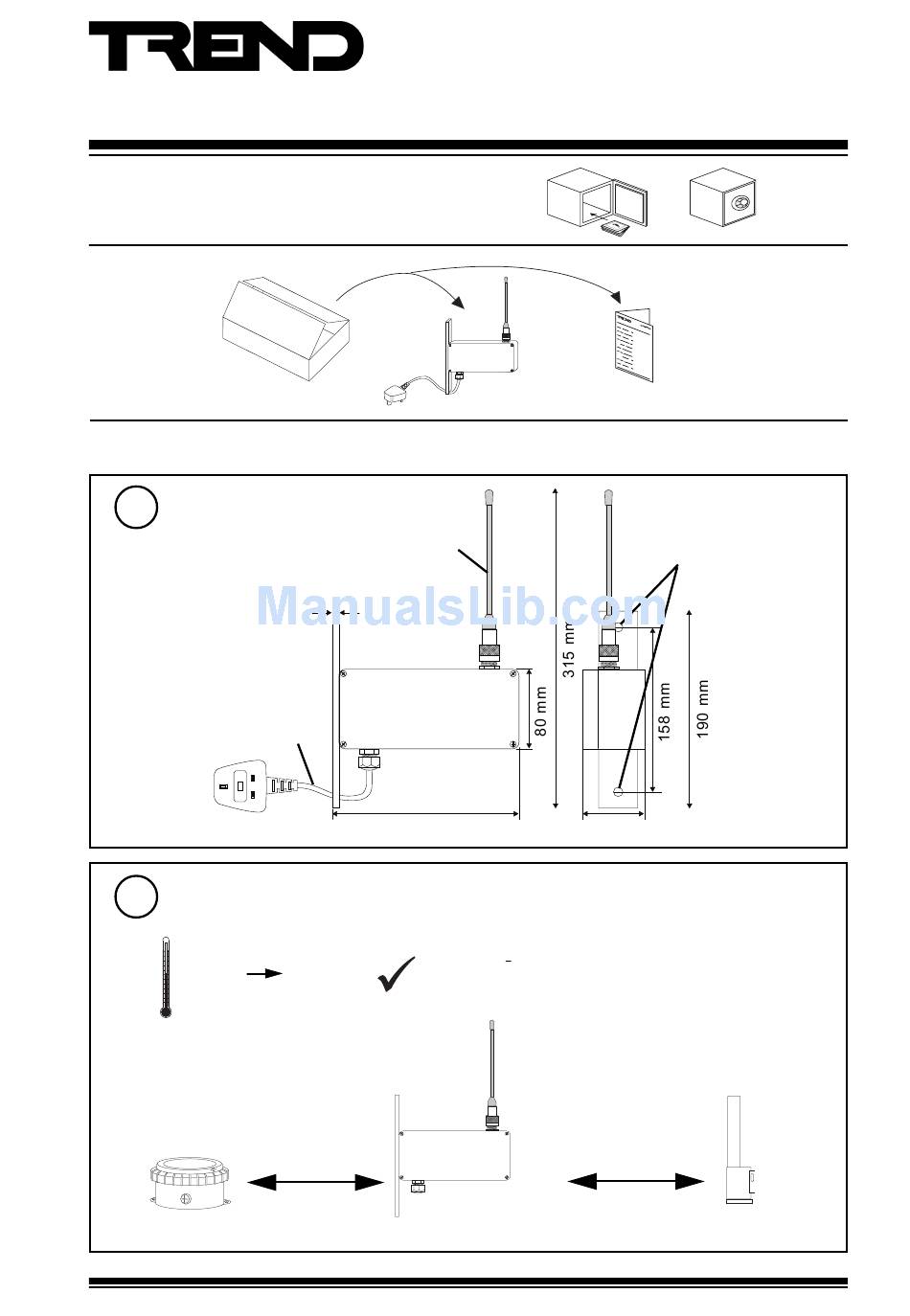

UNPACKING
INSTALLATION
1
Dimensions
13 A plug
(supplied)
2
Requirements
ambient limits
a
-20 °C
b
e.g. TW/P (TB/TO)
75 m maximum
wireless sensor
ACCW/RW/IQ Wireless Sensors Repeater Installation Instructions TG200852 Issue 1/A 20/06/05
Wireless Sensors Repeater
antenna
6 mm
2 m
180 mm
+55 °C
ACCW/RW/IQ
wireless repeater
Installation Instructions
ACCW/RW/IQ
60 mm
indoor use only
non-condensing
Protection IP675
Note that range may be affected by
environmental characteristics, e.g. partitions,
walls, building structure etc.
75 m maximum
ACCW/RW/IQ
Installation Instructions
TG200852
2 holes
Ø 9 mm
XW/R/IQ
wireless receiver
1
Advertisement
Summary of Contents for TREND ACCW/RW/IQ
- Page 1 Note that range may be affected by environmental characteristics, e.g. partitions, walls, building structure etc. e.g. TW/P (TB/TO) 75 m maximum 75 m maximum ACCW/RW/IQ XW/R/IQ wireless sensor wireless repeater wireless receiver ACCW/RW/IQ Wireless Sensors Repeater Installation Instructions TG200852 Issue 1/A 20/06/05...
- Page 2 2 holes Ø 9 mm Ensure antenna is vertical Either use 13 A UK style fused plug provided or wire to a fused spur (fuse: 1 A 250 V HRC 20 mm) ACCW/RW/IQ Wireless Sensors Repeater Installation Instructions TG200852 Issue 1/A 20/06/05...
- Page 3 Install Sensor and Receiver Switch On TW/S Installation Instructions TG200781 TW/P Installation Instructions TG200782 PCW/.. Installation Instructions TG200784 XW/R/IQ Installation Instructions TG200783 Test System Δ T e.g. TB/TI/.. XW/R/IQ 1 min. ACCW/RW/IQ ACCW/RW/IQ Wireless Sensors Repeater Installation Instructions TG200852 Issue 1/A 20/06/05...
- Page 4 Do not dispose of with normal household waste. Do not burn. Trend Control Systems Ltd reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
