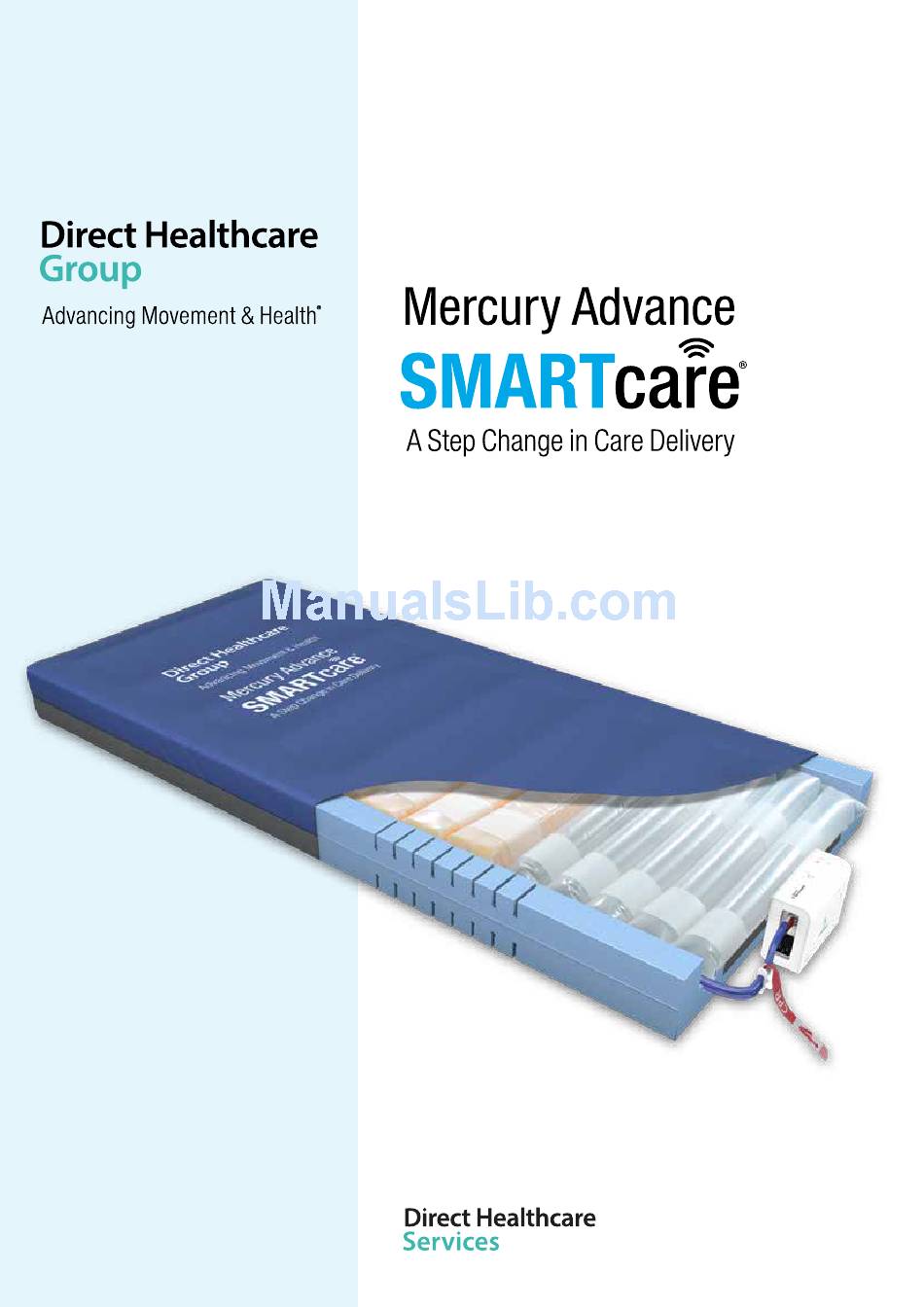

  • Page 1 Service Manual D I R E C T H E A L T H C A R E G R O U P . C O M...
  • Page 2 M E R C U R Y A D V A N C E S M A R T C A R E D I R E C T H E A L T H C A R E G R O U P . C O M...

  • Page 3: Table Of Contents

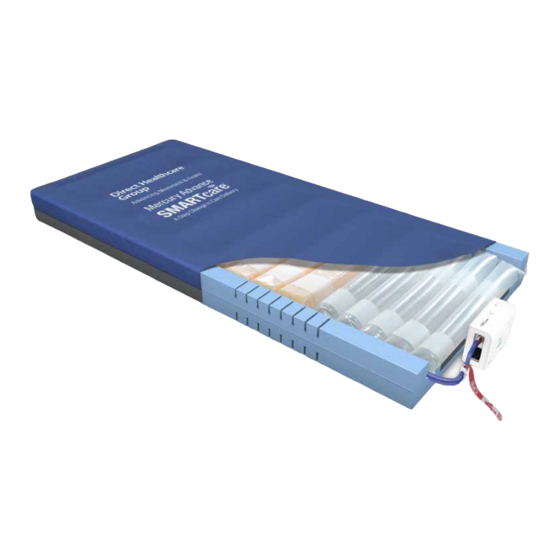

    S E R V I C E M A N U A L The new generation hybrid support surface The Mercury Advance SMARTcare is a pressure relieving mattress suitable for use with patients at VERY HIGH RISK of pressure ulcer damage.

  • Page 4: Introduction

    M E R C U R Y A D V A N C E S M A R T C A R E 1. Introduction Mercury Advance SMARTcare is an innovative solution in the prevention and treatment of pressure ulcers. It offers effective dual therapy in a single surface by combining advanced, clinically proven technologies previously only available in separate hybrid surfaces.
  • Page 5 S E R V I C E M A N U A L LED Mode Settings This symbol when illuminated (the green indicator light) is used to indicate that the equipment is on or ready for use. When a patient requires more pressure in the cells, as they may be uncomfortable or feel as though the support surface is too soft or unstable, then please select a “High”...

  • Page 6: Troubleshooting

    M E R C U R Y A D V A N C E S M A R T C A R E 3. Troubleshooting Warning / Fault Cause Solution Control Unit does The Control 1. Check the Control Unit is connected to mains power outlet with the correct voltage. Unit may not be not operate;...

  • Page 7: Installation

    Cover the Mattress with a loose-fitting sheet. Static Mattress Use The Mercury Advance SMARTcare can be used as a pressure reducing mattress for patients at High Risk of pressure ulcer damage without the need to attach the Control Unit. In this mode, the Mercury Advance SMARTcare mattress will continuously offload pressures in vulnerable areas such as the heels.

  • Page 8: Transportation

    Should a patient show signs of no longer needing dynamic therapy and depending on clinical judgement, the Mercury Advance SMARTcare System can be stepped down to a ‘foam in air’ static hybrid mattress. To do this, turn off the Mercury Advance Mark II Control Unit and disconnect the Dual Function Connector by pressing the red pump release button.

  • Page 9: Maintenance Procedures

    S E R V I C E M A N U A L 7.3 Mains Failure Warning This condition may be caused, for example if Mains power is lost. 7.4 Alternating Mode Failure (no alternation) This will be indicated by a warning LED on A and B and an Audible Warning. 1.
  • Page 10 The Control Unit can be cleaned by wiping with a cloth dampened with a detergent solution or a Sodium Hypochlorite solution. Also, refer to symbol chart. 8.5.1 Warning Ensure the Mercury Advance Smartcare System is not exposed to: 1. Excessive heat sources e.g. fires, radiators etc. 2. Water, particularly immersion of the Control Unit.
  • Page 11 S E R V I C E M A N U A L 8.10 Taking the System Apart The Control Unit is designed so almost all components can be removed without disassembling other parts. Open the housing by removing the 4 screws from the bottom part.
  • Page 12 M E R C U R Y A D V A N C E S M A R T C A R E 8.11 The components The main components in the Mercury Advance Control Unit. 8.11.1 PCBA Connector for Compressor Connector for Rotor valve motor Connector for Micro switch (Brown/blue) Connector for Membrane...
  • Page 13 S E R V I C E M A N U A L 8.11.4 The hooks Hook attachment Rubber suspension Hook 8.110.5 Air inlet/power outlet Air outlet Power inlet Fuse holder ON/OFF 8.12 Filter Maintenance The Control Unit has a light that when illuminated indicates a Service is required. 1.

  • Page 14: Technical Specification

    The Control Unit can be cleaned by wiping with a cloth dampened with a detergent solution or a Sodium Hypochlorite solution. Also, refer to symbol chart. 8.5.1 Warning Ensure the Mercury Advance SMARTcare System is not exposed to: 1. Excessive heat sources e.g. fires, radiators etc. 2. Water, particularly immersion of the Control Unit.
  • Page 15 S E R V I C E M A N U A L 9. Technical Specification Declaration – electromagnetic immunity Guidance and manufacturer’s declaration – electromagnetic immunity The MAT1610001 is intended for use in the electromagnetic environment specified below. The customer or the user of the system should ensure that it is used in such an environment. Immunity test IEC 60601 Compliance level...

  • Page 16: Technical Specification

    M E R C U R Y A D V A N C E S M A R T C A R E 9. Technical Specification Declaration – electromagnetic immunity – for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING Guidance and manufacturer’s declaration –...
  • Page 17 S E R V I C E M A N U A L 9. Technical Specification Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM – for ME EQUIPMENT or ME SYSTEM that are not LIFE – SUPPORTING Recommended separation distances between portable and mobile RF communications equipment and the MAT1610001 Alternating Control Unit The MAT1610001 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 18: Technical Data

    M E R C U R Y A D V A N C E S M A R T C A R E 10. Technical Data 12. Symbols Guide 10.1 Control Unit Mattress Symbols Serial Number ....As per label on rear of Control Unit WASH AT 80˚...

  • Page 19: Detachable/Removable Parts

    • Do not connect to any other medical device or equipment. • Correct fuse rating MUST be used. Failure to do so could result The Mercury Advance SMARTcare System should not be used for in the risk of a fire.
