Summary of Contents for PTN WP8

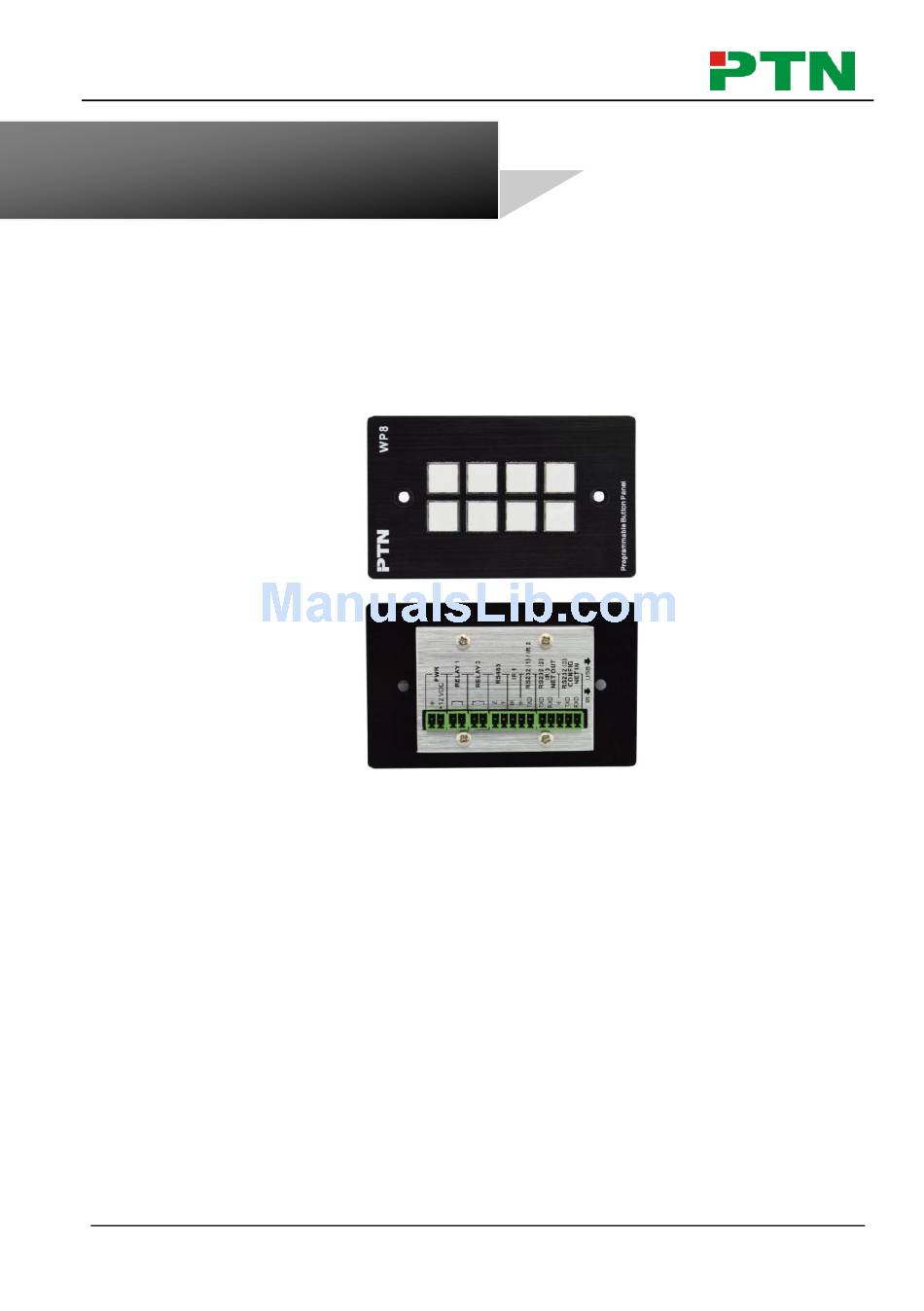

- Page 1 Programmable Control Panel USER MANUAL PTN Programmable Control Panel Version: WP82013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
Programmable Control Panel Table of Contents 1. Introduction ........................ 1 1.1 Introduction to WP8 ..................1 1.2 Package Contents .................... 1 2. Features ........................1 3. Specification ....................... 2 4. Connection Introduction ..................... 2 4.1 Introduction of the Interfaces ................2 4.2 Connection of Programming and Looping ............ -
Page 4: Introduction
1.1 Introduction to WP8 WP8 is a programmable Wall Control Panel. Every button is programmable and works either individually or together. WP8 is built in the programmable 3 RS232, 1 RS485, 3 Infrared & 2 Relay, and 1 mini USB for programming. -
Page 5: Specification
Mini USB Connector: 1. Communicate with PC which uses PS-WP to program the buttons. 2. Transmit the infrared data when learning IR (Optional). Infrared sensor port: receive and learn the IR code, to build the IR database. PTN Electronics Limited www.PTN-electronics.com... - Page 6 ② ③ ④ The WP8 has various ports in the rear panel, including Lopping port, RS232 port, RS485 port, IR port, Relay port and Power port. Below is the introduction: ① This port includes two parts: One part is RS232 (2)/IR3, it can be used for control other devices or looping output.
-
Page 7: Connection Of Programming And Looping
After connect the WP8 as above, and then we should set the ID of each WP8 by PS-WP. The ID number is from 01 to 99, and it also is the class of WP8 in the loop, PTN Electronics Limited... -
Page 8: System Operations
Programmable Control Panel different WP8 should set to different ID. After connections finish, we can set the control modes by PS-WP. For detailed connecting, please check the picture below: Last class … Second class Detailed looping connecting 5. System Operations 5.1 Introductions of the Front Panel... -
Page 9: Usb Driver Installation
There are USB driver file and PS-WP software in the disk. The PS-WP can run directly without installation. But when connect WP8 with PC by USB, it may need to install the USB driver. Use the driver file to install the driver of USB, we can use USB to program the WP8. -
Page 10: Main Menu
The pictures below show the differences between WP8-V and WP8-H. NOTICE: When select the model WP8, it will pop up “Output Port Selection” dialog, user can select different RS and IR types, depend on the uses of the two shared ports. - Page 11 Programmable Control Panel The output port set in PS-WP and the port used in WP8 is corresponding. And there are four output types. They are showed as below form (“√” means port is available): Output port of Output mode of PS-WP √...
-
Page 12: Panel/Key Setting
Here take WP8-V for example, to introduce the uses of different buttons: 1. White keys: keys 1-8, correspond to the buttons on WP8. Click the key, it will pop up dialog as below: Key Action Type：... - Page 13 3. Yellow Keys: Keys 33-36, all are virtual keys. Key 33 and 34 are for I/O control, which is not supported with WP8. Key 36 is a start action, if add events to this action, when the WP8 is power on, it will execute the events in this action. Key 35 is delay button, there are three time slots can be set.
-
Page 14: Action List
Toggle setting. Before set events, an action must be added first. The following introduction will show you the setting of each event: RS232 Setting This item is used for setting the parameters of the WP8’s serial ports. Click “RS232”, it will show as below: PTN Electronics Limited... - Page 15 Notice: When editing finish, remember to save the editing, and then press “OK”. 2) There are two send types: send once and send more times. When select “more times”, the send times and the delay between times can be set. See in picture below: PTN Electronics Limited www.PTN-electronics.com...
- Page 16 4) User can set the event name. It is optional function, not necessary. IR Setting This item is used for setting the parameters of the WP8’s IR ports. Click “IR”, it will show as below: 1) The data of IR need to be selected from library. Click “Change Lib” to select a library file and open it.
- Page 17 See in picture below: 3) The send port must be selected as the same as model setting, otherwise the event cannot be added. 4) The IR can set the carrier on/off, to turn on/turn off the IR sending. PTN Electronics Limited www.PTN-electronics.com...
- Page 18 Programmable Control Panel I/O Setting There is no I/O port in WP8, so the setting is not introduced in this manual. Relay Setting This item is for the replay ports setting. The setting is as the picture below: Port Action: “On”...
- Page 19 If the compare is incorrect, the event behind compare will not be executed. LED setting This item is used for set the button LEDs in WP8 to turn on/off. The setting is as below: PTN Electronics Limited www.PTN-electronics.com...
- Page 20 (here take keys 5-8 for example): In event setting, we add four different events to the four page actions of key1, and the four other keys will be added the page event to each of them as below: PTN Electronics Limited www.PTN-electronics.com...
- Page 21 When press the button8 and then button1, the button1 will execute the event of num4, press button1 more times it will execute num4 more times. Loop Setting This item is used for looping WP8. When use the loop function, the ID of each WP8 must be set. PTN Electronics Limited...
- Page 22 When press the button6 and then button1, the button1 will execute the event of num2, press button1 more times it will execute num3, then num4->num1->num2 and so on. PTN Electronics Limited www.PTN-electronics.com...
-
Page 23: Event List
5.3.5 Event List The event list shows all events of the selected action, and for each action of WP8, the most events can be added is ten. The executing priority is from 1 to 10, see the picture below. -
Page 24: System Diagram
Programmable Control Panel 6. System Diagram The WP8 can active different ports at one time. It means every button can send the RS232 and RS485 commands, IR code and control the relay at the same time. The demo system diagram as below:... -
Page 25: Troubleshooting & Maintenance
Programmable Control Panel 7. Troubleshooting & Maintenance 1) When WP8 cannot work, please check and make sure the power cord connection is well, power connector cannot be mixed or connect wrong. Then restart, if still not work, the WP8 may be broken. Please send it to the dealer for repairing. -
Page 26: After-Sales Service
Programmable Control Panel 9. After-sales Service 1) If there appear some problems when running WP8, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases.
