SPECIFICATIONS:
Input source ....................................Line
Line / MIC IN ....................................1/4" TRS or XLR
Control Buttons .............................Power, Bluetooth pairing, Volume knob, EQ Controls,
....................................................................AUX / MP3 Level, Line Level, 6pcs
LED indicator ..................................Peak indicator / Power indicator
Battery ..............................................No
Power Input ....................................AC120V, 60Hz
Auto Standby..................................No
Auto Power off ..............................No
Speaker Output wattage ...........800W
Speaker Driver size ......................18" (woofer) + 4.5"(Tweeter)
Speaker Grill Finishing ................Metal
Full Range .......................................Yes
MAX SPL............................................120dB/128dB(peak)
THD+Noise.......................................＜10%
S/N ......................................................＞75dB
Cabinet Material ...........................Plastic
Dimension .......................................24.2"x21.6"x34.3"
Weight(KG) .....................................63lbs
Operating Temperature
Operating Temperature Range 32F to 104F
Operating Humidity Range ......40~90%
Storage Temperature Range ....-13F to 158F
Key
power On/Off key..........................Power on:Switch "Power"Key to "I"
.............................................................Power off: Switch "Power"Key to "0"
Bluetooth
Bluetooth Version ........................2.1
Bluetooth Profile............................A2DP,AVRCP
Bluetooth Frequency Branc.......2.402GHz~2.480GHz
Bluetooth Range............................15m
Connections
XLR or 1/4"Jack Mic / Line In......Yes
AC Out ...............................................No
-8-
EDISON
PROFESSIONAL

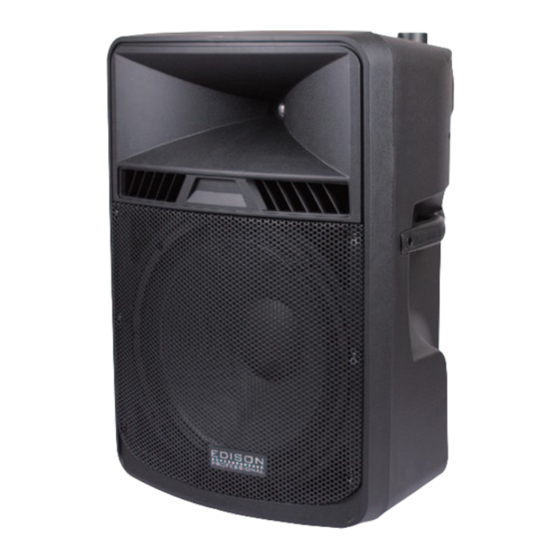

ST-5000MKII
FOR QUESTIONS OR TECHNICAL SUPPORT
Please call:
STOP
(888)604-8881
Please do not return this product to the store.
TM
User Manual
Advertisement
Table of Contents
Related Manuals for EDISON Professional ST-5000MKII
Summary of Contents for EDISON Professional ST-5000MKII
- Page 1 Control Buttons ......Power, Bluetooth pairing, Volume knob, EQ Controls, ..............AUX / MP3 Level, Line Level, 6pcs PROFESSIONAL LED indicator ........Peak indicator / Power indicator Battery ..........No ST-5000MKII Power Input ........AC120V, 60Hz Auto Standby........No User Manual Auto Power off ......No Speaker Output wattage ...800W Speaker Driver size ......18"...
- Page 2 Troubleshooting TABLE OF CONTENTS No Power • First check to make sure the speaker is plugged in to a live AC outlet. • Make sure the POWER switch is on. LIMITED WARRANTY ........................2 No Sound IMPORTANT SAFETY INSTRUCTIONS.................... 3 •...
-
Page 3: Important Safety Instructions
The ST-5000MKII Has a built in USB battery bank. In order to use this feature you must use your of insulated” dangerous voltage” within (OR BACK), NO USER SERVICEABLE PARTS operating and maintenance (servicing) the product’s enclosure that may be of... - Page 4 • Make sure to choose BLUETOOTH from your device to complete the connection. door location this is vitally important! • Only one Bluetooth device can be connected to the ST-5000MKII speaker at a time. • Do not attempt to mount the speaker on a stand without an assistant.
- Page 5 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
