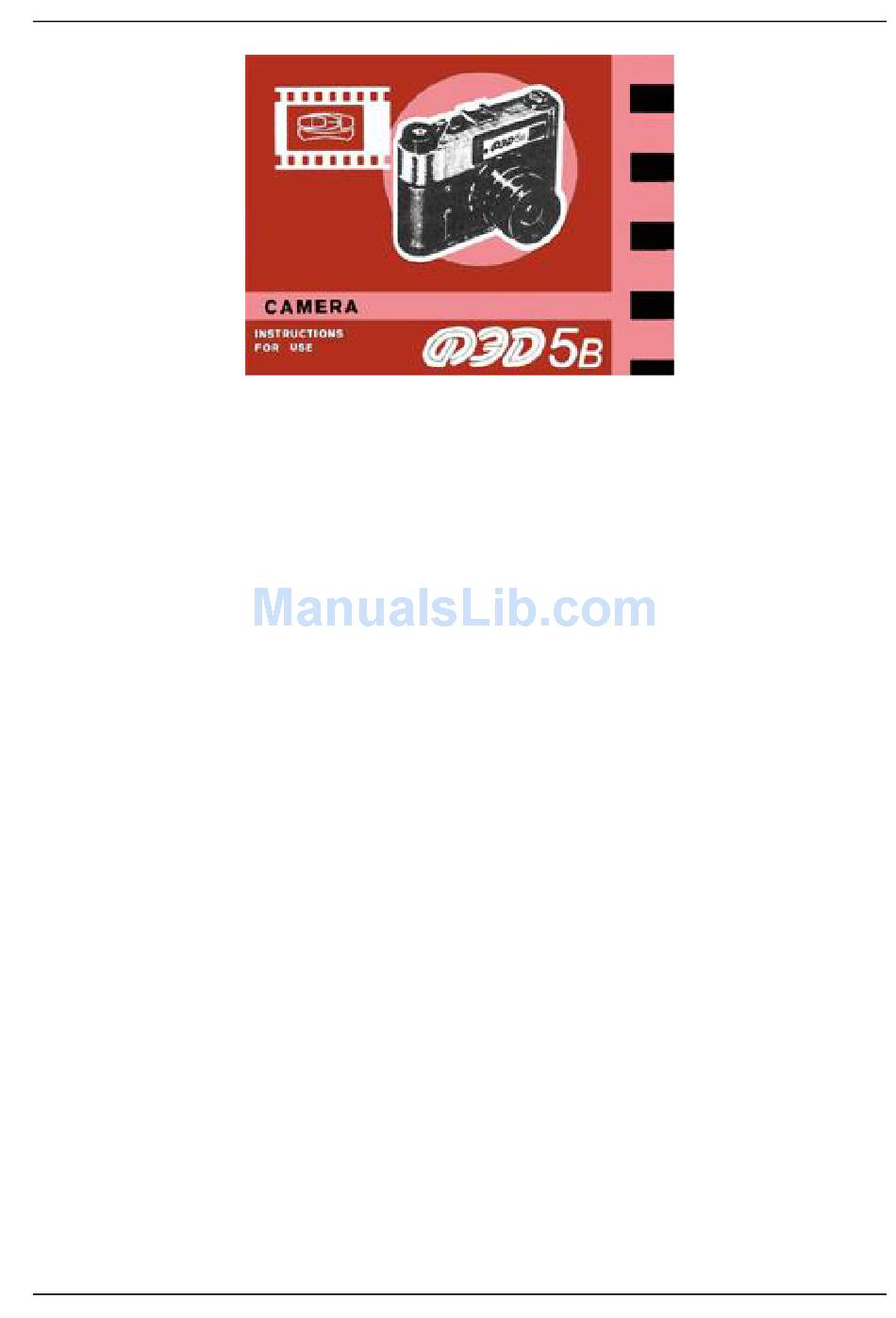

FED 5B Instructions For Use Manual
  1. Manuals
  2. Brands
  3. FED Manuals
  4. Film Camera
  5. 5B
  6. Instructions for use manual

FED 5B Instructions For Use Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
FED 5B
IMPORTANT:
Set the shutter speeds only when the shutter has been cocked. Do not turn the exposure head in the
interval between "30" and "1". Failure to comply with these requirements results in breaking of the
camera.
Since efforts are continually made to improve the reliability and performance of the product, minor
changes may be introduced without special notice.
1. General Directions
Camera FED 5B is intended for amateur and professional shooting on standard black-and-white and
colour perforated film 35 mm wide.
The camera is simple in handling. Fulfilment of the rules set forth in the present manual ensures its
reliable operation for many years.
While handling the camera, do not exert excessive efforts, protect it from dust, avoid to touch its
optics.
The design of the camera is protected by the USSR inventors' certificates Nos 773562, 313194.

2. Specifications

Picture size, mm . . . . . . . . . . . . . . . . . . . . . . .
Film magazine load . . . . . . . . . . . . . . . . . . . . . film 1.65 m long for 36 pictures
Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . anastigmat INDUSTAR-61 Л/Д; 1 : 2.8; f =55 mm
Lens fastening thread . . . . . . . . . . . . . . . . . . .
Coupling dimensions for attachments, mm:
plane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
threaded . . . . . . . . . . . . . . . . . . . . . . . . . . .
Focusing range . . . . . . . . . . . . . . . . . . . . . . . .
View finder . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . curtain-type, with speeds from 1 to 1/500 s
Automatic releaser . . . . . . . . . . . . . . . . . . . . .
Synchronizer . . . . . . . . . . . . . . . . . . . . . . . . . . mechanical
Tripod thread . . . . . . . . . . . . . . . . . . . . . . . . .
Mass of camera in case, kg . . . . . . . . . . . . . . . 0.96
FED 5B
Instructions for Use, 1992.
24×36
M 39×1 mm
M 40.5×0.5
from 1 m to ∞ (infinity)
optical, combined with range finder,
provided with dioptric correction of ±2D
and "B" (by hand)
X-contact, for electronic flash lamps
1/4"
– 1 –
Instructions for Use, 1992

Advertisement

loading
