Summary of Contents for Ruihua Black 600

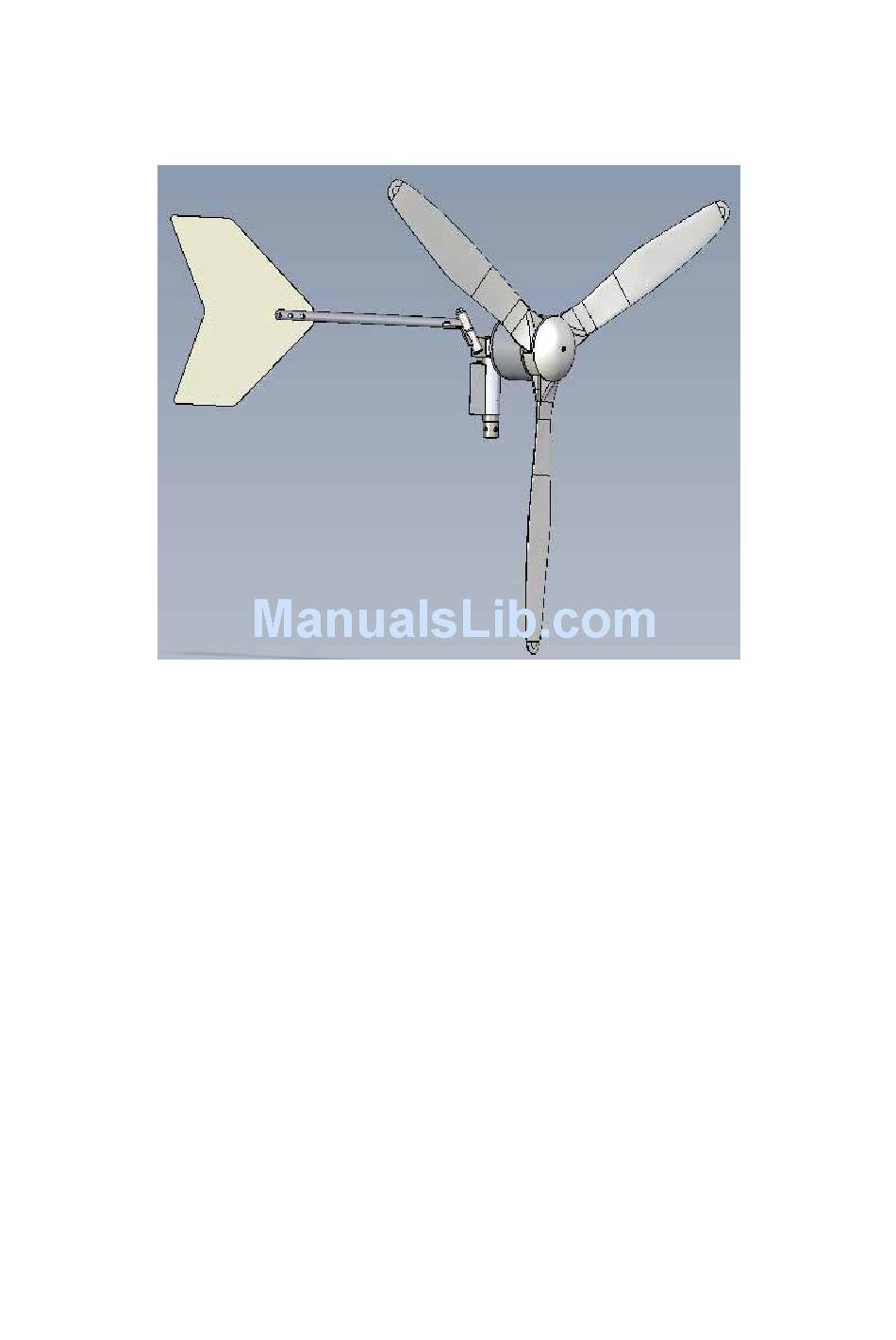

- Page 1 Assembly instructions and manual for the wind turbine Black 600 - 1 -...
-
Page 2: Table Of Contents
contents 1. General advices for the wind turbine 2. security advices 3. technical specifications of the wind turbine 4. assembly of the wind turbine 5. connection to the charge controller 6. connection to the feed-in inverter 7. troubleshooting 8. checkup and maintenance 9. - Page 3 Thank you very much for purchasing the wind turbine Black 600. You have bought a premium product which silhouettes explicitly against products of our competitors. The wind turbines of the Black series have no magnetic detent torque and holding torque, which allows a start-up from wind speeds of 0,8 m/sec.
-
Page 4: Security Advices
Security advices Wind turbines are dangerous devices because of their high rotational frequency and the created voltage, so please read these security advices carefully: Mechanical risks: The rotating rotor is a big danger because it turns invisible, when a certain wind speed is reached. - Page 5 It has to be assured that the electric installation is only made by persons who have got expert knowledge. The wind turbines are produced with a big accurateness, however it can happen that a wind turbine was not assembled completely or that a screw disengaged itself during transportation. Please check all single assemblies concerning damages and unfixed assemblies, e.g.
-
Page 6: Technical Specifications Of The Wind Turbine
Technical specifications of the wind turbine position description number Tail M10 spring washer M 10x20 screw Nylon washer Generator holder Generator Blades made from carbone nylon Aluminium plate M8 washer M8 spring washer M 8 x 45 screw Cover M 8 x 45 screw Pole, not included. - Page 7 The BLACK wind turbines use the kinetic energy of the wind. The rotor blades are powered of this energy and inside the generator, this energy gets converted to three-phase AC. The energy, which is stored inside the wind, raises to the third power to the wind speed, therefore it is to be expected that when the wind speed is as double as before, you will get 8 times as much energy as before.
-
Page 8: Assembly Of The Wind Turbine
Assembly of the wind turbine Before mounting the turbine, you should have an appropriate installation location. That is almost always the most complicated task during installation of the wind turbine. Small wind measuring systems do not really help because the smaller the rotor the more swirl wind speeds are shown. - Page 9 When an adequate installation location was found, you will have to choose an adequate tower. Because the tower has to be quite high, it would make sense to plan the height of the tower in a way that you can reach it easily in order to proof the security. If the tower is completed in a thin way, it has to be braced repeatedly according to the height of the tower.
- Page 10 The tail is not only able to turn the wind turbine into the wind automatically, but also to protect the Black 600 of overload. The tail turns slowly out of the wind when the wind speed is too high at about 550 Watt. Therefore it is important that the tail is mounted correctly. The tail has always be able to dissemble itself laterally.
- Page 11 for it is that the consumption is lower at alternating current. You have to lay 3 wires from the wind generator to the charge controller, as seen on the following drawing. Please take the correct wires profile from this chart: 12volt：...
- Page 12 Mount the tower pressure of the wind turbine with 4 screws M 8 with the tower. Notice that the screws may not go deeper than 11 mm into the tower pressure, because the cables lie in the middle of the axle. Erect the tower vertically.
-
Page 13: Connection To The Charge Controller
Connection to the charge controller For connecting the converter, please pay attention to the instructions of the converter’s manual. Notice that converters usually need to have a constant tension and neet to be protected against overvoltage. You can also find suitable converters and overvoltage protection at our online shop. - Page 14 风力发电机 太阳能电池板 S O L AR WI N D G E NE R A T OR The three cores of the wind turbine have to connected at the backside of the charge controller, the order of connection does not matter at 3-phases-alternating-current. It is also possible to connect a solar panel up to 100 Wp and a hybrid charge controller.
- Page 15 discharged at a 24 volt system, it can happen that the charge controller will recognize a 12 Volt system. You can see the voltage V and the current I, which lies against the battery. Charge off: push the button + and – , program the charging end voltage of your batteries, pay attention to the descriptions of your battery’s company, the charging end voltage can be between 12 and 15 Volts.
- Page 16 User on, defines the voltage, at which point the consumer load should switch on again. When the consumer load is switched off, battery voltage rises. If the value would not be big enough, the consumer load would switch on and off in short periods. This function can also be used with smaller batteries.
-
Page 17: Connection To The Feed-In Inverter
Connection to the feed-in inverter Please read carefully the instructions of the inverter’s manual when you want to connect an inverter. Notice that the most inverters need to use constant tension and have to be protected against overvoltage. There are suitable inverters and overload protections available at our online shop. -
Page 18: Checkup And Maintenance
During winter time, snow can hardly adherence on the blades. Warranty Ruihua guarantees that this device has no material damages within 12 months after purchase, which could influence the function of the wind turbine. Should there occur any damages during this period, qou will have to inform Zhejiang Ruihua immediately. - Page 19 When the wind turbine or its components have to be rebuilt and decomposed for checkup, repair, change or replacement because of warranty claims, then these costs have to be paid by the customer. Zhejiang Ruihua decides whether a wind turbine has to be repaired or replaced by a new one.
