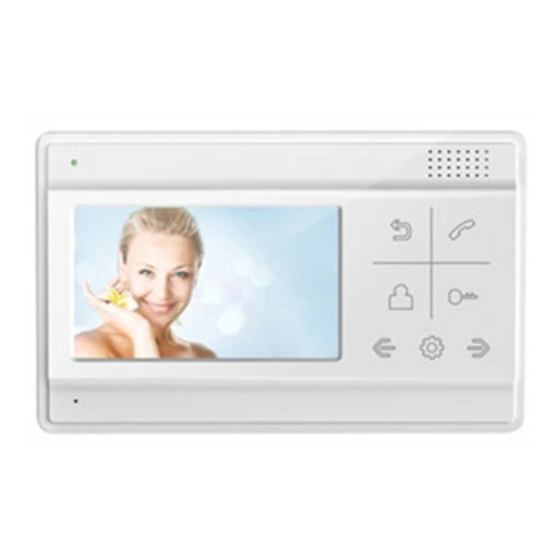

Color video door phone

Advertisement

Quick Links

COLOR VIDEO DOOR PHONE
· Please carefully read this User's Guide(in particular, precautions for safety) before using a product and
follow instructions to use the product exactly
· The parameters of product are subject to changes without prior notice.
1、Warning and caution
Make sure to follow the instructions to prevent any danger or property losses.
1.Warning
Death or serious
injury is expected.
2.Caution
A injury or property
losses are expected.
warning
Do not put the plug in the
socket simultaneously.
It may generate abnormal
heat or cause a fire.
NO
Do not use water, thinner or
a detergent used to wash oil
products when you wash the
exterior.
Make sure to wash it by using
a dry cloth to prevent any
breakdown or electric shock.
warning
CAUTION
The socket holes
are lager than
usual.
If the socket holes are larger
than normal, do not put the
plug.
It may cause an electric shock
or a fire.
Install the product in a flat and
stable place.
Otherwise, it may not function
properly.
It indicates prohibition.
It indicates disassembly.
It indicates prohibition of contact.
It indicates dos and don'ts.
It indicates that the plug should be pulled out from
the socket.
NO
Do not connect to other
products while in use.
It may cause breakdown.
NO
Do not install the product in a
humid place.
It may cause an electric
shock or a fire.
NO
NO
Make sure that dust or
foreign substances are not
gathered on the product.
If the product generates
strange sound, make sure to
pull the plug immediately
and contact service center.
NO
Do not forcibly bend the cord
or put a heavy object on the
product.
It may cause a fire.
NO
Do not forcibly pull out the
cord from the socket.
If the cord is damaged, it
may cause a fire or an
electric shock.
NO
Make sure to prevent foreign
substances from entering
the product.
It may cause a breakdown.
Avoid direct rays of the sun
or heating devices at a time
of installation.
NO
Do not put the plug in the socket
with a wet hand.
It may cause an electric shock.
Do not disassemble, repair
or modify the product.
It may cause a fire, an electric
shock or an injury due to
malfunction of the product.
Do not use AC circuit breaker.
It may cause an electric shock.
Do not put a heavy object on
the product.
It may cause a breakdown.
Do not disassemble or give an
impact to the product.
Pull the plug if the product is
not used for a long time.
NO
NO
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2604A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EALINK M2604A

  • Page 1 COLOR VIDEO DOOR PHONE · Please carefully read this User's Guide(in particular, precautions for safety) before using a product and follow instructions to use the product exactly · The parameters of product are subject to changes without prior notice. 1、Warning and caution Make sure to follow the instructions to prevent any danger or property losses.
  • Page 2 、 The function and name of each part 11 10 1). Monitor button: monitor 7). Indicator light: Power indicator light 2). Return button: Return /hang off 8). LCD 3). Speaker 9). Microphone 4). Answer button: answer the call/ 10). Setting button: Enter system call transfer settings/Confirm 5).
  • Page 3 4、Package contents Desiccant Monitor User manual Wall bracket 2*Expansion bolt 5 pin connector 2*4 pin connector Adaptor 2*M3.5*30 (red/blue/yellow/ (red/blue/yellow/ fixing screws white/brown) white) 5、Terminal wiring diagram SLAVE MONITOR DOOR2 DOOR1 PORT 3 PORT 2 PORT 1 DC IN Page 3...
  • Page 4 6、System wiring diagram CCTV Slave monitor(Room 2) Slave monitor(Room 3) Slave monitor(Room 4) Port 3 Port 2 Port 3 Port 1 CCTV Port 2 Port 1 Master monitor(Room 1) Door station 2 Master monitor(Room 1) Door station 1 Door station 1 7、Installation Guide 1)Refer to relevant wiring diagram for the system you have chosen and ensure youhave the correct cable;...
  • Page 5 9、Functions in common use 1). How to answer the call and transfer the call to other indoor monitors answer button When call from door station or other indoor monitor, the indoor monitor(s) will chime, short press or pick up the handset to answer the call. If no one answers, the monitor(s) shall be back to standby status after chime time end. When the unlock button monitor is chiming, or when talk with visitor, short press can unlock the door.
  • Page 6 6). How to adjust the Volume, Brightness, Chrominance, contrast ratio and display scale. navigation button At video display or audio play interface, user can short press to adjust the volume or brightness. At video display status, when adjust volume/brightness interface, short press setting button can switch to adjust other parameters interface: Volume, Brightness, Chrominance, contrast ratio &...
  • Page 7 11、Specification ltems Content Power I nput DC14.5V , 0.8A 5W(Max). Power consumption 0.3W(In standby) Operation 0℃ to +40℃ temperature Operation humidity 4.3 inch Display panel Intercom function Hands- free Connection 4 wires Dimension 180*112*17mm Weight 260g 12、Advance setting ltems Content Defaut value 0.change is not VCOMDC available for end user...
