Summary of Contents for XtendLan KEYBPTZ3DPJ-LAN

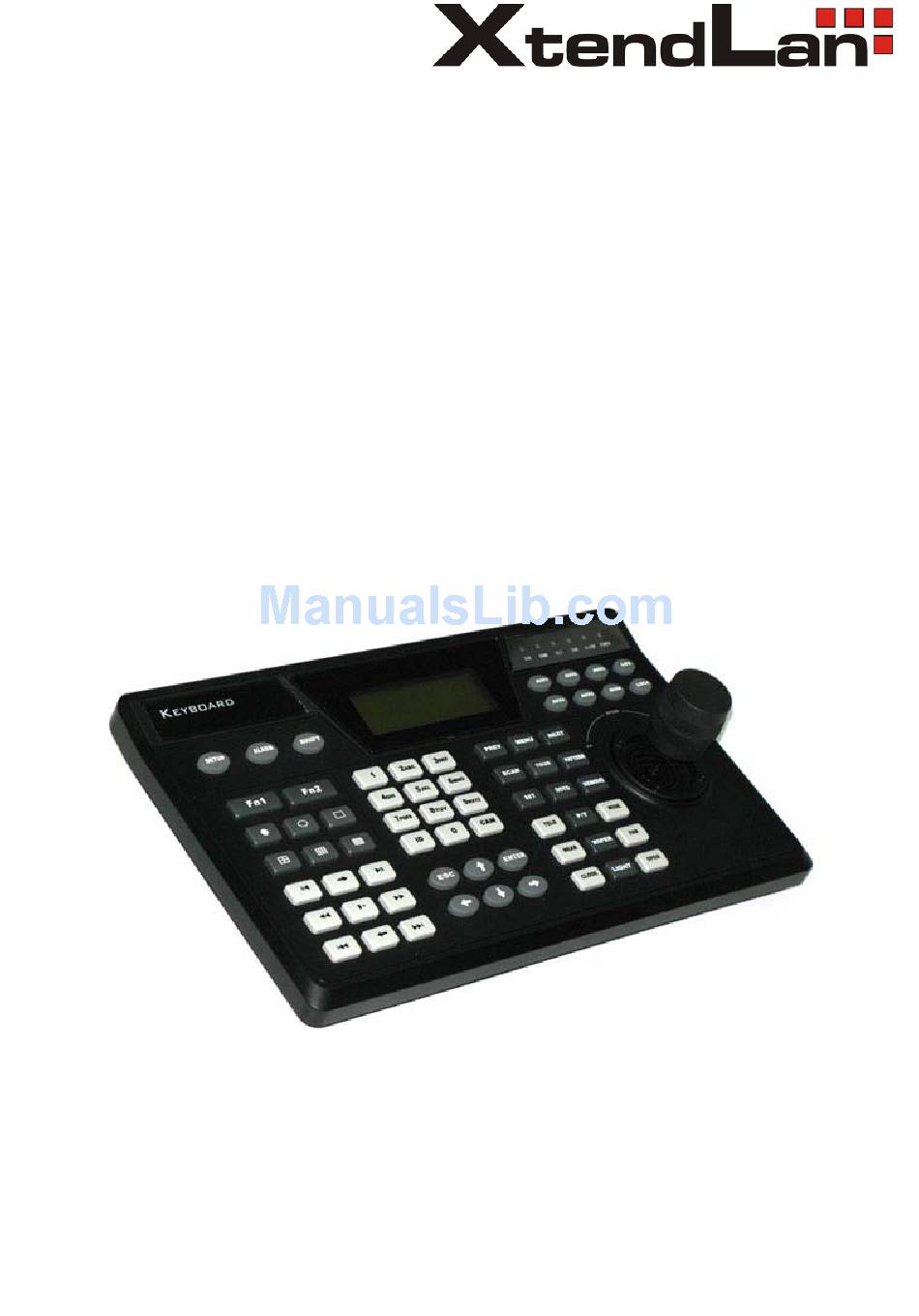

- Page 1 KEYBPTZ3DPJ-LAN LAN PTZ Keyboard User’s Guide...
-
Page 2: Table Of Contents
Contents Welcome...........................4 Important Safeguarding and Warnings ................5 Feature and Specification ....................6 1.1 Feature ........................6 1.2 Specification ......................6 Keyboard Function ......................7 2.1 Keyboard Appearance ..................7 2.2 Key Function List ....................7 2.3 Keyboard Ports ....................10 2.4 Port Features......................10 2.5 Power........................10 Menu Tree ........................12 3.1 Input Method......................13 3.2 Log In........................13 3.3 Log out........................13... - Page 3 5.3 DVR and Keyboard Setup ..................22 5.3.1 DVR Setup....................22 5.3.2 Keyboard Setup after Serial Port Connection........23 5.3.3 Keyboard Setup after Network Connection...........24 5.4 Operation ......................24 5.4.1 Login......................24 5.4.2 Logout ......................24 5.4.3 Record......................24 5.4.4 PTZ Control and Image Color ..............25 5.4.5 Tour and Single/Multiple Window Switch..........25 5.4.6 Network keyboard backup (USB backup) ..........25 Network Keyboard Control Dome................27 6.1 Cable Connection ....................27...
-
Page 4: Welcome
Welcome Thank you for purchasing our network keyboard! This operating manual is designed to be a reference tool for the operation of your keyboard. Here you can find information about this keyboard features and functions, as well as a detailed menu tree. Before operation please read the following safeguards and warnings carefully! -
Page 5: Important Safeguarding And Warnings
Important Safeguarding and Warnings All installation and operation should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation All the examination and repair should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair. -
Page 6: Feature And Specification
1 Feature and Specification 1.1 Feature This series keyboard has the following features One keyboard can control multiple DVRs, or you can use multiple keyboards to control one DVR. Support dome operation. Support RS485 port and RS232 port. Support PTZ operation via joystick Support all operations you get from DVR front panel function keys Support keyboard lock function Support multiple-level operation rights... -
Page 7: Keyboard Function
2 Keyboard Function 2.1 Keyboard Appearance Keyboard is shown as in Figure 2-1. Figure 2-1 ① Function key: There are three function keys: SETUP/ALARM/SHIFT ② LCD: Here is to display on-screen menu. ③ Indication light: There indication lights. DVR/DOME/ALT/COM/ALARM/POWER. ④ DVR function: Here are operation keys for you to control DVR. ⑤... - Page 8 Other Light turns on when connected with other device indication light Serial port Light turns on when connected with serial port indication device light Alarm ALARM Light turns on when connected with alarm indication devices light Power POWER Light turns on when keyboard connected with indication power and works properly.
- Page 9 backward Slow play ► Various slow play speeds Fast Various fast play speeds forward Previous Play the previous video Next Play next video Reverse Reverse play frame by frame play frame ← by frame Character Switch between numeral/characters, click Shift Public functio to switch.
-
Page 10: Keyboard Ports
Focus PTZ focus zooms out zoom out Lens PTZ lens zoom out CLOSE zoom out Lens PTZ lens zoom in OPEN zoom in Light LIGHT Control dome light Joystick Assistant menu and function key operation. Assistant AUX1----- Assistant key function AUX6 Shortcut key to search log files LOCK... - Page 11 Figure 2-3...
-
Page 12: Menu Tree
Net Setting Menu Tree Time Setting Keyboard menu tree is shown as below. Address Setting Local Menu operation Device Name CTL Point Device Type Network Connection Connection Type RS232 Password RS485 User Management Advance Default Empty Point Backlight Assistant Alarm Setup Language Language Date... -
Page 13: Input Method
3.1 Input Method Click SHIFT, you can switch between numeral/capitalized character/small character. : Numeral A: Capitalized character @ Small character. 3.2 Log In Plug in power socket, power indication light is on. You can see welcome information in LCD. Network keyboard 2006-12-20 14.00.00 Click Enter or SETUP, system pops up a dialogue box. -
Page 14: Menu Operation
4 Menu Operation Menu operation includes five items: Local setup CTL point Advance Assistant System information There are two ways for you to operate: Use left/right d keys to move cursor to select property and then use up/down to select other menu to set. For special menu setup please click ENTER to confirm or ESC to cancel. -
Page 15: Ctl Point
4.2 CTL Point CTL point includes the following items: Device name Device type Connection type Network connection RS232 RS485 ID:*3 Dev name: DVR-1 Dev Type: DVR Connection type: RS232 4.2.1 ID Here is for you to input front device ID. Move the cursor to highlight ID and then use input numeral. -
Page 16: Advance
After you have selected connection type, please click ENTER to go on connection setup. Note: All the setup here should conform to you current connection type. If your connection type setup is RS232, you front device should connect with keyboard via RS 232 port. Otherwise you can not use keyboard to control current device! All listed items here should not leave in blank, otherwise you can not use fast search function. -
Page 17: Set Local As Default
Ordinary user can only modify its own password and operate all functions within power setting limit. Guest can not operate functions. He can only review DVR video or check version information. Add user Delete user Power setting 4.3.2.1 Add User Here is for you to add a new user. -
Page 18: Empty Control Point
4.3.4 Empty Control Point Here is for you to delete all control point information. Click ENTER to clear all. Clear ALL CTL Point? Yes: ENTER No: Esc 4.4 Assistant Setup Assistant setup includes the following items: Back light: ON Alarm: ON Language: English 4.4.1 Backlight Setup You can open LCD backlight. - Page 19 You can click ENTER to go to the above menu and then input corresponding property to search. E.g.: If you want to search a device of ID3. Input ID as 3 and then click ENTER to confirm. System pops up the following interface, ID 3 is a dome and its RS232 address is 3. System automatically connects the dome.
-
Page 20: Keyboard Control Dvr
5 Keyboard Control DVR 5.1 Serial Port Connection 5.1.1 RS232 Serial Port Connection Use one RS232 cable to connect DVR serial port and keyboard serial port together. DVR address number ranges from 1 to 255，please refer to DVR manual for more information. -
Page 21: Multi-Keyboard Level-Link Via Rs485
Rs485 connection via converter … 485->232 converter 485->232 converter 485->232 converter …… One 485 bus can connect with thirty-two RS485->232 converters，one RS485->232 converter can connect with twelve DVRs. 5.1.3 Multi-keyboard Level-link via RS485 Other 485 devices …… Multi-converter connection： The last converter on RS 485 port must be short circuited. (E.g.: open converter). See the image below, you need to change [1-2] short circuit to [2-3] short circuit. -
Page 22: Rj45 Port Connection
Connect RJ45 port to the network to realize network control, upgrade and USB backup. 5.2.1 RJ45 port connection 5.2.1.1 Direct connection Crossover cable 5.2.1.2 Connect via Switch …… Straight-through cable Switch …… 5.3 DVR and Keyboard Setup 5.3.1 DVR Setup Before operation, please make sure cable connection is proper. -
Page 23: Keyboard Setup After Serial Port Connection
5.3.2 Keyboard Setup after Serial Port Connection In menu, go to control point setup. Here you need to input the following information. ID: *3 Dev name: DVR-1 Dev type: DVR Connection type: RS232 If there is a * before the ID number (such as *3), it means this front device has control point setup. -
Page 24: Keyboard Setup After Network Connection
Note: 232 address and 485 address are corresponding DVR local number. DH2 is network keyboard/2 generation control keyboard protocol, its corresponding DVR serial port protocol is network keyboard protocol. DH1 is the first generation keyboard protocol, its corresponding DVR serial port is control keyboard protocol or Dahua protocol. -
Page 25: Ptz Control And Image Color
Click record button （ ）to go to record interface. You can use direction keys to modify channel name and status. Click ENTER to save modification, click ESC to exit without saving modification you have done. 5.4.4 PTZ Control and Image Color In single window display mode, click Fn1, system pops up PTZ and image color menu. - Page 26 X here range from 0 to 4. Click ENTER to save video and system pops up process bar. Download NO.X file ？ YES：ENTER， NO：ESC If there is no USB device connected, system pops up message to alert you. No USB device connected...
-
Page 27: Network Keyboard Control Dome
6 Network Keyboard Control Dome 6.1 Cable Connection Please make sure keyboard AB line and dome AB line connection is right. Connect dome to power, and then connect dome video cable to the monitor. Before operating, please go to dome menu to go on setup. If dome address is 1, then keyboard RS 485 address is 1. -
Page 28: Direction Setup
Click MENU, the interface is shown as below. The menu here should work with dome menu. 1. up 5.Previous menu 2. down 6.Next menu 3. Left 7.Confirm 4. Right 8.Exit 6.3.1 Direction Setup 6.3.1.1 Speed It is to control direction. The value ranges from one to eight. Please Speed：5 use the number buttons of the keyboard to input value (between 0~8) 〈Zoom〉... -
Page 29: Tour
④、Use up/down to highlight scan. Input scan value and click ENTER to begin scanning. ⑤、Use left/right keys to highlight stop. Click ENTER to stop scanning. Note: for versatile scan and random scan, you need Value ：1 Scan corresponding ＞ start Scan setup protocols to support. -
Page 30: Pattern
• Firstly, input 2 in tour group and click ENTER. • Secondly, input 5 in tour point and click ENTER. Now you have deleted tour point 5. • Thirdly, input 6 in tour point and click ENTER. You have deleted tour point 6. 6.3.5 PATTERN 6.3.5.1 Pattern setup •... -
Page 31: Network Keyboard Upgrade
7 Network Keyboard Upgrade Before upgrade, please make sure your network keyboard is well connected. You can use command “PING” to test network connection, the return value TTL should be less than 255. Please download upgrade file to your local PC. You can download upgrade file from our website or from our local service engineer. - Page 32 Use you mouse to click the upgrade file; drag it to the “open files” column and then release. You can see the file path and current file is open. System pops up alert information if it is not keyboard upgrade file.
-
Page 33: Make Serial Port
8 Make Serial Port Keyboard standard accessories package includes the following items. One DB9 Seven DB9 One six-pin crystal port One 25-pin (DB25) One 485 transmission box. (Including one power source.) 8.1 RS232 Serial Port 232 serial port 232serial port （DB9）... - Page 34 485 switch box and DVR connection Note: you can use standard RS232 port to connect keyboard with DVR. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice. Please visit our website for more information.
