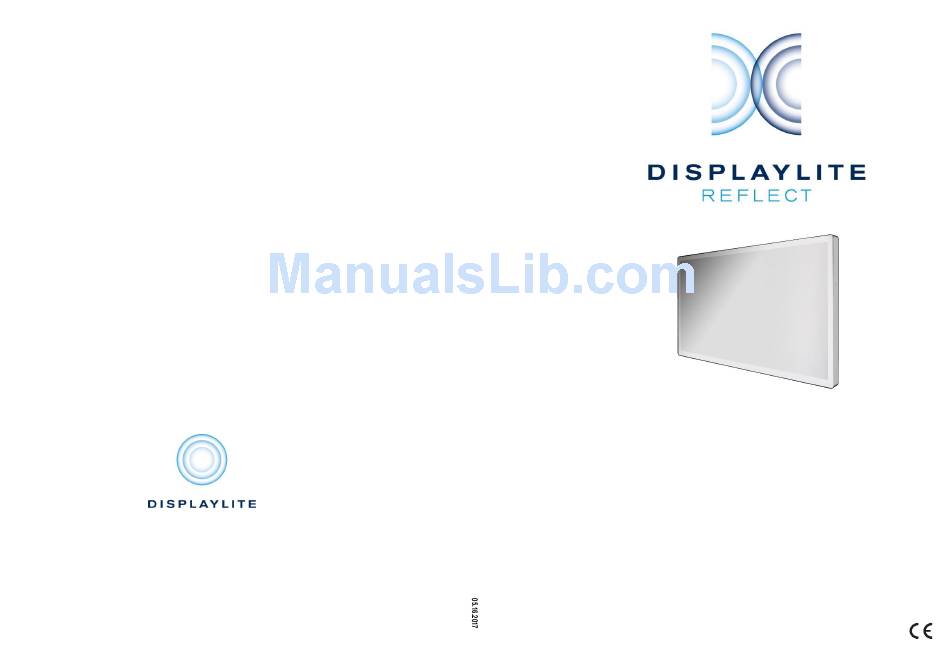

Mirror Touch Display
User Manual Version 1.0
OLS-3250MD / OLS-4650MD
www.displaylite.com
+44 (0)1480 455114
info@displaylite.co.uk
The colour and appearance may differ depending on the product.
Specifications are subject to change without prior notice to improve performance.
Copyright © 2017 Displaylite Ltd
Please read and comply with all safety information in this manual before using the product
All rights reserved. No part of this publication maybe reproduced,
Distributed or transmitted in any form without written permission.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DISPLAYLITE OLS-3250MD
Summary of Contents for DISPLAYLITE OLS-3250MD
- Page 1 The colour and appearance may differ depending on the product. Specifications are subject to change without prior notice to improve performance. Copyright © 2017 Displaylite Ltd Please read and comply with all safety information in this manual before using the product All rights reserved.
- Page 2 Plug & Play VESA DDC2B Compliant Windows 7/8/10 Compliant Thank you for purchasing our product. The Displaylite Reflect Mirror Touch Display is intended for general use such as in meeting rooms, visitor centres, museums and retail environments. Service: Solutions can be found under Trouble Shooting, Section 11 on page 28. Please contact your supplier in the first instance.
-
Page 3: Important Safety Instructions
Displaylite Reflect 32 / 46 14. Dimension Notice to users ■ Class A digital device Displaylite Reflect32 This device is designed for industrial or commercial purposes with a safety certificate for electromagnetic interference, it is not intended to be used in the home. -
Page 4: Compliant Timing
13. Compliant Timing Horizontal Vertical Video Mode Dot Clock CAUTION Frequency Frequency 640 x 480 31.469kHz 59.940Hz 25.175MHz RISK OF ELECTRIC SHOCK DO NOT OPEN 720 x 400 31.467kHz 70.080Hz 28.320MHz SVGA 800 x 600 37.879kHz 60.317Hz 40.000MHz CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, 1024 x 768 48.363kHz 60.004Hz... -
Page 5: Table Of Contents
Displaylite Reflect 32 / 46 Contents ■ Displaylite Reflect46 Specifications are subject to change without notice to improve quality. ※ European Union Disposal Information ..................4 ※ Recommendations for Installation ..................5 Product Name OLS-4650MD ※ Special Notes on LCD Monitors ..................6... -
Page 6: European Union Disposal Information
Displaylite Reflect 32 / 46 ※ European Union Disposal Information 12. Specifications ■ Displaylite Reflect32 English Français Deutsch Disposal of old Electrical & Electronic Equipment (Applicable Mise au rebut des équipements électriques et électroniques Entsorgung von elektrischen & elektronischen Altgeräten (geltend usagés (Valable dans l’ensemble de l’Union Européenne ainsi que... -
Page 7: Recommendations For Installation
3. If you are experiencing a problem which is not described below or you cannot correct the A minimum clearance(10cm) must be provided for good ventilation. (See page 6) When problem, discontinue using the monitor and contact your dealer or Displaylite for further the minimum clearance is not available additional ventilation must be provided via the assistance. -
Page 8: Special Notes On Lcd Monitors
POWER MANAGEMENT feature may not work properly. ■ If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or Displaylite for advice or replacement packaging. - 27 -... -
Page 9: Cleaning
WARNING If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or Displaylite. CAUTION For safety reasons, turn off the power switch and unplug the monitor before you clean it. -
Page 10: Safety Precautions
Do not put any solid objects or liquids such as water into the monitor. In case of an English English Nederlands Dutch accident, unplug your monitor immediately and contact your dealer or Displaylite. Using the monitor with any object inside may cause fire, electric shock or Français French Poliski Polish damage. -
Page 11: Display Settings
Displaylite Reflect 32 / 46 9.3. Display Settings ■ INSTALLATION LOCATION ∙ Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also... -
Page 12: Unpacking
Displaylite Reflect 32 / 46 9. Adjustment Menu Contents 2. Unpacking 9.1. Brightness / Contrast 1) Before unpacking your monitor, prepare a stable, level, and clean surface near a wall outlet. Set the LCD monitor box in an upright position and open the top of the box. -
Page 13: Installation
Displaylite Reflect 32 / 46 3. Installation ■ LOCK MODE: Disables the Menu buttons on the rear of the monitor Press and hold the MENU button and the power switch for about 3 seconds when the menu is ∙ Follow the manual instructions for the type of mount you have selected. Refer all servicing to not displayed. -
Page 14: Product Features
Displaylite Reflect 32 / 46 8. Operating The Monitor 4. Product Features ▶ Front To create the best picture, your LCD monitor has been configured at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. -
Page 15: Support
Displaylite Reflect 32 / 46 7. Computer Setting ■ ▶ Signal Timing Input Ports A list of supported video signal timing can be found on page 31: COMPLIANT TIMING. ■ ➊ POWER Windows 7/8/10 Plug & Play ➋ The LCD monitor complies with the DDC2B of VESA standard. The Plug & Play function runs on Windows 7/8/10 by connecting the monitor to a DDC2B compliant computer with the signal cable ➌... -
Page 16: Remote Control
Displaylite Reflect 32 / 46 5. Remote Control ∙ To use the remote control we advise you to position it at the back of the monitor (left side) where the remote sensor is located. It might not work if you use it standing in front of the monitor. -
Page 17: Preparing The Remote Control
- The RS232 port can be used to control the monitor via a computing device to change the settings of the monitor remotely such as turning the monitor on, off or performing a reset. Please contact Displaylite for further details. -
Page 18: Basic Operation
Displaylite Reflect 32 / 46 5.2. BASIC OPERATION ■ ■ Turning the monitor ON Move the cursor horizontally [Remote Control] Select menu or setting, or perform the adjustment The monitor turns on and the power indicator turns green when you press the power button on by pressing the ◀...
