Summary of Contents for Jinan E-Shine Electronics ESF-1800W
-

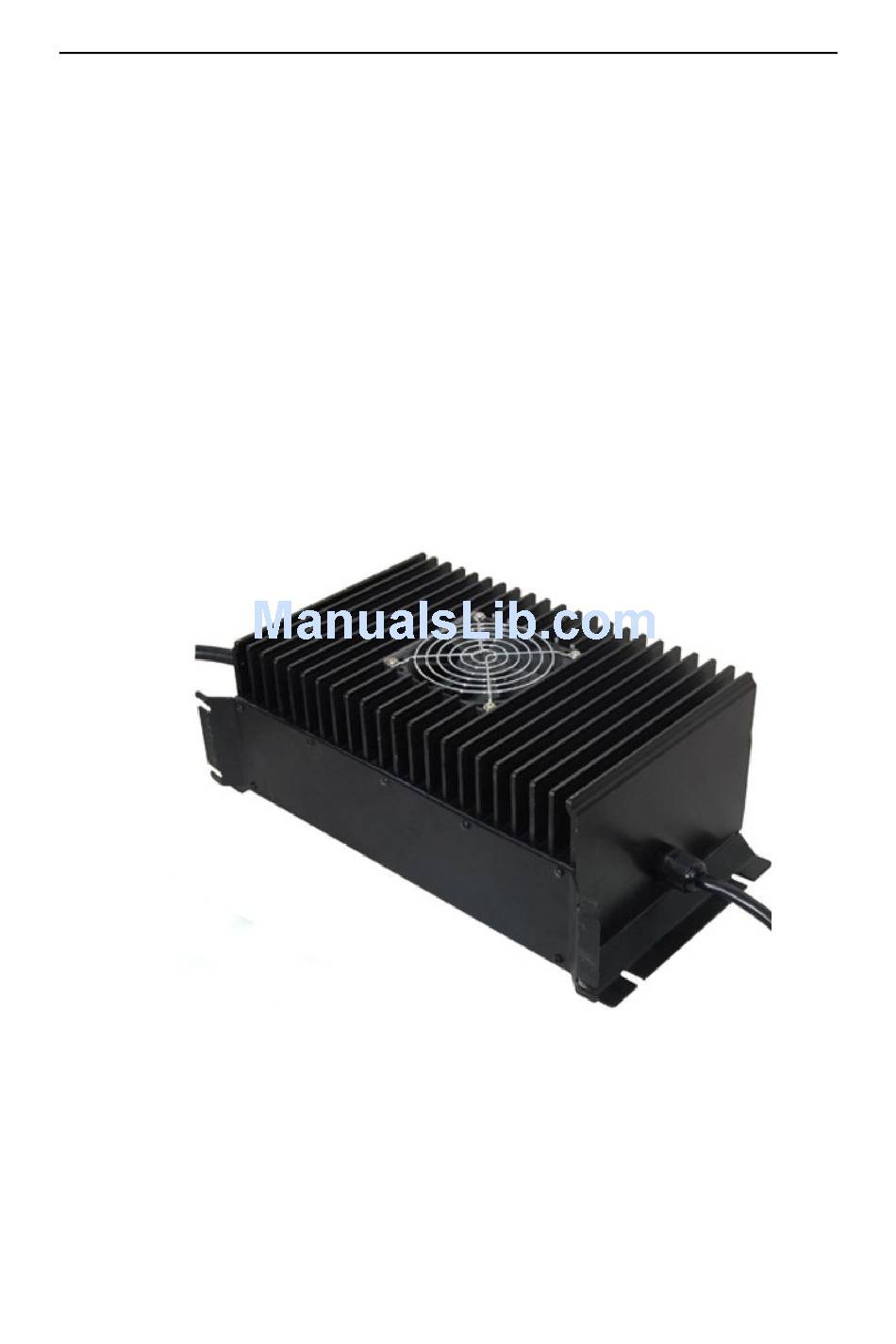

Page 1: User Manual
ESF.ESFP Smart battery charger user manual Jinan E-Shine Electronics Co., Ltd... - Page 2 overview ESF represent car waterproof but no PFC (APFC) smart battery charger. ESFP represent car waterproof with PFC (APFC) smart battery charger PFC usage. Saves energy: To a large extent to supply energy uses in the power net, reduce harmonic wave. 2) Reduced pollution of the power net.
- Page 3 4. OUTPUT Reverse Connect Protection 5. Charger temperature Protection 6. Charger temperature Protection 7. Input Over-Voltage Protection 8. Input Low-Voltage Protection Indication function ESF/ESFP series chargers have power indication and error indication functions power indication： ① 100% Power indicator State： indicator light（ 1） is power indicator light, it is red when the charger connect to AC power.
- Page 4 ⊙（1）battery charger overheat State： （ 1） When “battery charger overheating” light flash, means the charger internal protections function start due to charger long time working or external environment temperature is too high. (When the charger inside temperature reaches 75℃, the protection begin working).In...
- Page 5 Safety Features： （1）Voltage-Withstand： Terminals to earth (shell) and the dielectric strength of circuit without electrical connection to each other should withstand the test voltages. The testing voltage is AC voltage 50~60Hz. Test between terminals should not be a corona, ionization, arcing or breakdown phenomenon.
- Page 6 different kinds of charging curve to choose. （2）According to different lead-acid types, there are different kinds of charging curve to choose. Dimension: (1)ESF Model: Front installation size 1800W Model (mm) 2400W Model (mm)
- Page 7 3000W Model (mm)
- Page 8 Side installation size (2)ESFP Model: Front installation size 1800W Model (mm) 2400W Model (mm)
- Page 9 3000W Model (mm) Side installation size...
- Page 10 Installation considerations (1) The charger should be Installed in the vehicle on a level surface and keep the vertical heat sink upright .A space of 10 cm around heat sink should be open to ensure airflow. (2) Make sure all vents are not blocked. Hot air generated from the charger should smoothly drain out of the body .The space can’t be sealed or half-sealed to prevent overheating and affect the properly working of the charger.
- Page 11 or consulting the local power supply bureau. (6) For safety and electromagnetic compatibility, The charger is equipped with three holes plug, applying with grounding wire socket. (7) Please use the cable cord with the ability to sustain current .if you are using an extension cord or power strip, Make sure that the total of amperes required by all the equipment on the extension is less than the extension’s rating.
- Page 12 Deprecated...
