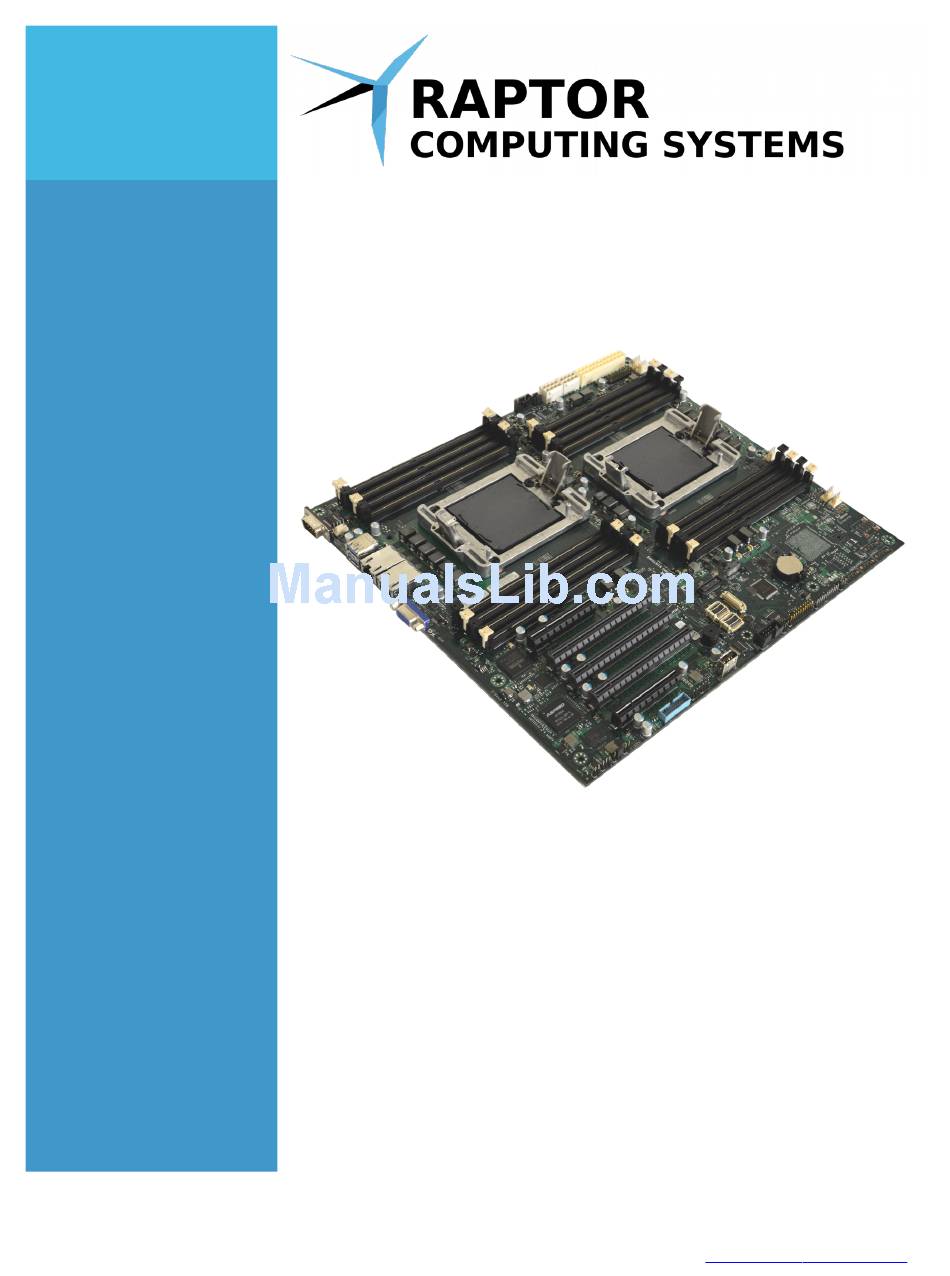

T2P9D01 Mainboard

User's Guide

For System Configuration

and Set Up

T2P9D01 User's Guide Version 1.04

https://www. raptorcs.com

Table of Contents

Summary of Contents for Raptor T2P9D01

Page 2: Table Of Contents
Removal................................15 RAM INSTALLATION AND REMOVAL...................16 Population Tables............................... 16 Installation................................17 Removal................................17 HEADERS AND CONNECTORS.....................18 Pin Numbering Conventions..........................18 Front Panel................................19 © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 3 CPU 2 PCI Express Slots........................... 52 CPU 2 Micro PCIe Connector..........................56 CPU 1 Fan Header............................... 58 CPU 2 Fan Header............................... 59 Primary Chassis Fan Headers........................... 60 © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 4 EARLY BOOT DEVICE FIRMWARE..................66 Introduction................................. 66 Installation................................66 Removal................................66 SUPPORT..........................68 Getting Help................................ 68 ERRATA............................69 PCB Version 1.00..............................69 PCB Version 1.01..............................69 © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 5: Copyright And Disclaimers
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF RAPTOR COMPUTING SYSTEMS, LLC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Page 6: Safety Information
• Place the product on a stable surface at all times. • If you encounter technical problems with the product, contact a qualified service technician or your retailer. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved...
Page 7: Notices
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved...
Page 8: Mainboard Specifications
TI TUSB7430 2x USB3.0 ports on rear panel 2x USB3.0 ports on internal header Serial Host 1x RS232 port on rear panel © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 9 Environmental Requirements Operation: 10°C - 35°C Storage: -40°C - 70°C Humidity: 20% - 90%, non-condensing NOTE: Specifications are subject to change without notice. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 10: Mainboard Overview
Mainboard Overview DESIGN The T2P9D01 has been specifically designed for applications requiring high security, high I/O capability, and large amounts of processing capability. PCIe slots and peripherals are directly connected to each CPU, therefore two CPUs must be installed to use all PCIe slots.
Page 11: Installation
NOTE: Before you install this mainboard into your chassis, study the pattern of mounting studs, rear panel slots, and internal chassis components to ensure the mainboard fits correctly. There are 10 mounting holes available on the T2P9D01; ensure that your chassis provides studs for all 10 for maximum reliability and longevity of the mainboard.
Page 12: Cpu Installation And Removal
In some cases, removing and re-placing the heatsink is the easiest method to allow it to seat correctly. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www.
Page 13: Installation
Illustration 3: Socket as Shipped Carefully remove the protective cover, making sure not to touch any of the exposed socket pins. Illustration 4: Remove Protective Cover © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved...
Page 14 Illustration 5: Align Notches and Carefully Place CPU in Socket Place the heatsink assembly on top of the CPU, following instructions given earlier. Illustration 6: Align Pins and Place Heatsink on CPU © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved...
Page 15: Removal
Failing to do so could cause the CPU to fall out of the socket, causing damage to the CPU, the CPU socket, and any components located below the CPU. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www.
Page 16: Ram Installation And Removal
10 DIMMs 11 DIMMs 12 DIMMs 13 DIMMs 14 DIMMs 15 DIMMs 16 DIMMs (X) denotes memory DIMM is installed in indicated slot © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 17: Installation
If the DIMM still will not seat, double check that the type of memory is correct. The T2P9D01 only accepts full-size 288-pin DDR4 DIMMs, and other types of memory will not seat or function. DO NOT attempt to force a DIMM into a slot as this may cause permanent damage to the RAM, CPU, and/or mainboard.
Page 18: Headers And Connectors
Single row headers use a monotonically increasing pin number, starting from pin 1. Key pins are not physically present, but are still counted as pins in the numbering scheme. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved...
Page 19: Front Panel
LED Anode +3.3V (standby power) NIC 2 link / activity LED cathode LED Anode +3.3V (standby power) NIC 1 link / activity LED cathode © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 20 Identify button (active low) HDD activity LED cathode +3.3V (main power) Power LED cathode NMI button (active low) Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 21: Bmc Serial Console
BMC SERIAL CONSOLE J7701 Function Function Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 22: Trusted Platform Module Connector
LPC address / data bit 2 +3.3V (main power) LPC address / data bit 1 LPC address / data bit 0 Ground I2C clock I2C data © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 23 +3.3V (standby power) LPC serial IRQ Ground Window open (active low) BMC GPIO B3 (active low) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 24: Flexver™ Connector
LPC address / data bit 3 (secure) LPC address / data bit 0 (platform) LPC address / data bit 2 (secure) LPC address / data bit 1 (platform) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 25 Module presence detect 2 (active low) Integrity loop 1 Integrity loop 1 Force FSI secure mode (active high) Platform reset (active low) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 26: Occ Mode
OCC MODE J6912 Function Function OCC alert (active low) Ground (current limited) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 27: Bmc External Reset Header
BMC EXTERNAL RESET HEADER J7000 Function Function BMC reset (active low) Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 28: Bmc Ttl Auxiliary Serial Header
BMC TTL AUXILIARY SERIAL HEADER J10116 Function Function Ground BMC COM2 RXD (TTL) BMC COM2 TXD (TTL) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 29: Bmc Heartbeat Indicator Header
BMC HEARTBEAT INDICATOR HEADER J10114 Function Function Ground BMC heartbeat LED cathode © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 30: Internal Usb 3.0 Header
SuperSpeed TX (Port 4, negative polarity) SuperSpeed TX (Port 4, positive polarity) Ground Hub (Port 1, negative polarity) Hub (Port 1, positive polarity) Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 31 SuperSpeed TX (Port 3, negative polarity) Ground SuperSpeed RX (Port 3, positive polarity) SuperSpeed RX (Port 3, negative polarity) +5.0V USB power (current limited) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 32: Bmc I2C Port 5
BMC I2C PORT 5 J9602 Function Function BMC I2C SCL Ground BMC I2C SDA © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 33: Bmc I2C Port 6
BMC I2C PORT 6 J9603 Function Function BMC I2C SCL Ground BMC I2C SDA © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 34: Planar Vpd Programming Header
PLANAR VPD PROGRAMMING HEADER J10104 Function Function +3.3V (standby power) Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 35: Fpga Programming Header
FPGA PROGRAMMING HEADER J10107 Function Function Ground SPI clock SPI MOSI SPI MISO SPI slave select (active low) +3.3V (standby power) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 36: Fpga Mode Switch 1
FPGA MODE SWITCH 1 J7800 Function Function Mode enable bit 1 (active low, pullup) Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 37: Chassis Intrusion Detect
CHASSIS INTRUSION DETECT J9900 Function Function Intrusion detect (active low, pullup) RTC battery (+3.0V, current limited) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 38: Fpga Mode Switch 2
FPGA MODE SWITCH 2 J10109 Function Function Mode enable bit 2 (active low, pullup) Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 39: Pm8068 Sas Debug Connector
UART TX (Port 1) UART RX (Port 0) UART RX (Port 1) Ground Reset (active low) JTAG TDI JTAG TMS JTAG TCLK © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 41: 5V Power
5V POWER J19511 Function Function +5V (main power) Ground Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 42: Cpu 1 Secure Mode Disable
CPU 1 SECURE MODE DISABLE J1600 Function Function Secure Mode Disable (active high) +1.1V (standby power, current limited) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 43: Cpu 2 Secure Mode Disable
CPU 2 SECURE MODE DISABLE J4300 Function Function Secure Mode Disable (active high) +1.1V (standby power, current limited) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 44: Pmbus Connector
PMBUS CONNECTOR J10103 Function Function I2C SCL I2C SDA Alert (active low, open drain) Ground +3.3V (main power) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 45: Cpu Eps Power Connectors
Function Function Ground Ground Ground Ground +12V (EPS main power) +12V (EPS main power) +12V (EPS main power) +12V (EPS main power) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 46: Atx Power Connector
+3.3V (main power) Ground +5.0V (main power) Ground +5.0V (main power) Ground ATX power good (active high) +5.0V (standby power) +12V (main power) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 47 No connection Ground ATX power enable (active low) Ground Ground Ground No connection +5.0V (main power) +5.0V (main power) +5.0V (main power) Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 48: Cpu 1 Pci Express Slots
+12V (main power) +12V (main power) +12V (main power) +12V (main power) +12V (main power) Ground Ground JTAG TCK (N/C, pull down) SMBus Clock © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 49 B38 Lane 5 TX (N) Lane 5 RX (N) B39 Ground Lane 5 RX (P) B40 Ground Ground B41 Lane 6 TX (P) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 50 B74 Lane 14 TX (P) Ground B75 Lane 14 TX (N) Lane 14 RX (N) B76 Ground Lane 14 RX (P) B77 Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 51 B79 Lane 15 TX (N) Lane 15 RX (N) B80 Ground Lane 15 RX (P) B81 Presence detect (active low) Ground B82 Reserved (N/C) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 53 Lane 3 RX (N) B29 Ground Lane 3 RX (P) B30 Reserved (N/C) Ground B31 Presence detect (active low) Reserved (N/C) B32 Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 54 Lane 11 RX (P) B65 Ground Ground B66 Lane 12 TX (P) Ground B67 Lane 12 TX (N) Lane 12 RX (N) B68 Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 55 B79 Lane 15 TX (N) Lane 15 RX (N) B80 Ground Lane 15 RX (P) B81 Presence detect (active low) Ground B82 Reserved (N/C) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 56: Cpu 2 Micro Pcie Connector
N/C (reserved) Ground Ground Lane 0 RX (P) Lane 0 TX (P) Lane 0 RX (N) Lane 0 TX (N) Ground Ground © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 57 B18 Lane 3 TX (P) Lane 3 RX (N) B19 Lane 3 TX (N) Ground B20 Ground N/C (reserved) B21 +3.3V (main power) © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 58: Cpu 1 Fan Header
CPU 1 FAN HEADER J7905 Function Function Ground +12V (main power) Tachometer input PWM output © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 59: Cpu 2 Fan Header
CPU 2 FAN HEADER J7904 Function Function Ground +12V (main power) Tachometer input PWM output © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 60: Primary Chassis Fan Headers
PRIMARY CHASSIS FAN HEADERS J7900 / J7901 / J7902 / J7903 Function Function Ground +12V (main power) Tachometer input PWM output © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 61: Secondary Chassis Fan Header
SECONDARY CHASSIS FAN HEADER J10110 Function Function Ground +12V (main power) Tachometer input PWM output © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www. raptorcs.com...
Page 62: Fan Zones
CPU fans fails in a dual-CPU system. The T2P9D01 factory setpoint for CPU core temperature is 50°C, and the system will attempt to maintain the cores at that temperature even under light or no load. As a result, a lightly loaded system may not benefit from air drawn over the CPU heatsink(s), and mainboard / peripheral cooling predominantly comes from chassis fans in this situation.
Page 63: Usage
INITIAL POWER-ON When first applying standby power to the T2P9D01, i.e., when the system is plugged in after being disconnected from power, the internal BMC needs to boot before any other operation request will be accepted. The status of this BMC boot is indicated by two front panel LED patterns:...
Page 64: Bmc Access
BMC ACCESS Certain operations require BMC access to execute. The T2P9D01 BMC is attached to network port 1 via NCSI, and is configured to request an IP address via DHCP. Once it is connected and has a valid IP address, you can...
Page 65 BMC Flash ROM, so it may be useful to have an external programming method available before attempting to update the BMC firmware. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved https://www.
Page 66: Early Boot Device Firmware
WARNING: We strongly recommend that you only use libre device firmware to provide continued security and stability of the T2P9D01 platform. Depending on the exact kernel drivers and position of the firmware within the system, firmware components may be able to read and write userspace, kernel, and/or hypervisor data without detection.
Page 68: Support
Support GETTING HELP If you require assistance operating your T2P9D01, you may contact Raptor Computing Systems technical support@raptorcs.com support directly at . Alternatively, we also have a Wiki and other support resources https://www.raptorcs.com available online at ; the information you require may already be available on one of these resources.
Page 69: Errata
OCuLink peripheral is unlikely to be damaged by being plugged in to the µPCIe port, it will not function while attached. © 2017 - 2018 Raptor Computing Systems, LLC T2P9D01 User's Guide Version 1.04 All Rights Reserved...
