Summary of Contents for Mirarobot S60 FPV

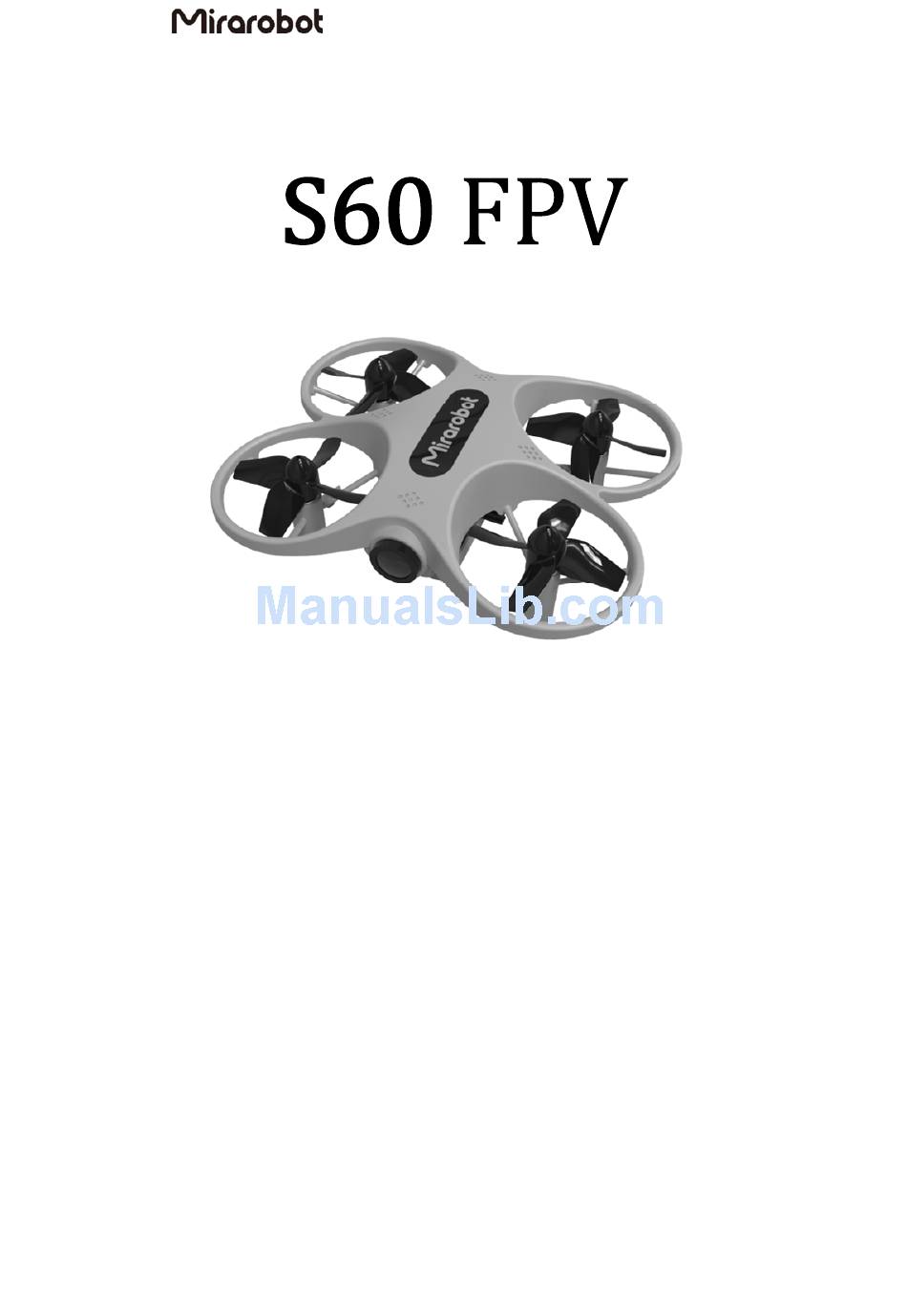

- Page 2 INSTRUCTION MANUAL...
- Page 3 This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Wuxi Mirarobot Science & Technology Co., Ltd. This manual contains instructions for safety, operation and maintenance.
-
Page 4: Operating Safety Precautions
GENERAL PRODUCT SAFETY PRECAUTIONS Keep all batteries, chemicals, small parts and anything electrical out of the reach of children. Avoid water exposure to this product. Keep parts dry. Keep moving parts clean. OPERATING SAFETY PRECAUTIONS As the user of this product, you are responsible for operating it safely, not ... -
Page 5: Charging Warnings
Propeller Diameter: 65mm (2.56in) Flying Weight: 27g (0.95oz) CHARGING WARNINGS Failure to comply with the following warnings could result in product malfunction, electrical issues, excessive heat, FIRE, and ultimate injury and property damage. NEVER leave charging batteries unattended. ... -
Page 6: Install The Transmitter Batteries
charging. Charging (Solid red LED) Charge Done (LED OFF) CAUTION Only use chargers specifically designed to charge the included Li-Po battery. Failure to do so could result in fire, causing injury or property damage. NEVER exceed the recommended charge rate. ... -
Page 7: Transmitter And Receiver Binding
CAUTION Always disconnect the Li-Po battery from the drone when not flying to avoid over- discharging battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged, resulting loss performance and potential fire when the batteries are charged. TRANSMITTER AND RECEIVER BINDING Your RTF Transmitter comes pre-bound. -
Page 8: Transmitter Control
Arming the motors: Put the drone on the floor. Move the throttle down and wait for the red LED to flash. TRANSMITTER CONTROL Rudder Aileron (Left/Right (Left/Right) Trim Trim Bind Mode adjustment adjustment button switch Pitch rudder Throttle (Front/Rear) (Up/Down) Flight Mode Selection Stability mode (red LED): The bank angle is limited. - Page 9 transmitter. Attempting to do so will cause the transmitter to register a faulty center position. Always land the quadcopter and release the sticks before changing flight modes. UNDERSTAND THE PRIMARY FLIGHT CONTROLS If you are not familiar with the controls of your quadcopter, take a few minutes to familiarize yourself with them before attempting your first flight.
- Page 10 FLY THE QUADCOPTER Takeoff Increase the throttle until the model is approximately 2 ft.(600mm) off the ground in a low-level hover and concentrate on balancing the throttle stick`s position so that the quadcopter holds a steady hover altitude. In some cases, you may need to make a few short "hops"...
-
Page 11: Low Voltage Cutoff (Lvc)
as possible. Average flight times are approximately 4 minutes. Always unplug the battery as soon as you land! NOTICE Crash damage is not covered under warranty. To prevent excessive wear to the motors, always allow the motors to cool between flights. -
Page 12: Specifications
NOTICE The 25mW micro video transmitter range on your quadcopter is less than your flight control transmitter range. Tips: If you are flying with an FPV headset and are prone to motion sickness, sit in a chair. Fly in open areas, away from people, trees, cars and buildings. The range of the system can be impacted by any obstructions blocking your signal. -
Page 13: Video Display
Change the frequency by pressing the switch on the battery frame to connect with different FPV display or VR glasses. With one press to change frequency and hold for 2s to choose frequency group. Video Display If you want to experience the flight with a FPV display, 32CH 5.8G FPV is recommended. FPV starts as soon as the drone is turned on, then turn on the display. - Page 14 1. Power off the transmitter. Move the 1.Transmitter too near transmitter a large drone during binding distance from the drone. process Disconnect and reconnect 2.Bind switch or button the flight battery to the LED on receiver flashes was not held while drone.
-
Page 15: Fcc Information
1.Less than a 5-second wait between first powering on the 1. Leave the transmitter transmitter and powered on. connecting the flight Disconnect and reconnect LED on the receiver battery to the the flight battery to the flashes rapidly and the quadcopter quadcopter quadcopter will not... -
Page 16: Compliance Information For The European Union
MHz), 14dBm (5725 MHz-5850 MHz Band). Compliance Information for the European Union EU Compliance Statement Hereby, Mirarobot declares that the radio equipment type S60 FPV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available... - Page 17 This device may be used in each member state. Instructions for disposal in the European Union This Product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment.
-
Page 18: Handling And Storage
Damaged or swollen Batteries can be unstable and very hot. DO NOT touch Batteries until they have cooled. Dispose of Batteries in the manner required by your city, country, state or Country. Contact the appropriate Mirarobot Product support office to speak to a Service technician for more information. -
Page 19: Battery Limited Warranty
15 minutes and seek immediate medical attention. Battery Limited Warranty All instructions, warranties and other collateral documents are subject to change at the sole discretion of Wuxi Mirarobot Science & Technology Co., Ltd. For up to date product literature, visit www.mirarobot.com. Warranty Period Exclusive Warranty-Wuxi Mirarobot Science &... -
Page 20: Damage Limits
Purchaser's exclusive remedy. Replacement decisions are at the sole discretion of Mirarobot. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the Product. This warranty does not cover damage due to improper installation, operation maintenance or attempted repair by anyone. -
Page 21: Warranty Services
LAW-These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Mirarobot reserves the right to change or modify this warranty at any time without notice. - Page 22 INSPECTION OR SERVICES-If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Mirarobot Online Service Request submission process found on our website or call Mirarobot to obtain a Return Merchandise Authorization (RMA)number.
- Page 23 0.5 hour of labor. In addition, you will be billed for return freight Mirarobot accept money orders and cashier’s checks, as well as Visa, MasterCard American Express, and Discover cards. By submitting any item to Mirarobot for service, you are agreeing to Mirarobot's Terms and Conditions found on our website www.mirarobot.com...
- Page 24 Wuxi Mirarobot Science&Technology Co., Ltd. Qingyun Building5, NO.99, Furongsan Road, Xishan Economic- Technological Development Zone, Wuxi, Jiangsu, China Tel:0086-510-83781667 Fax:0086-510-83781609 Email: marketing@mirarobot.cn www.mirarobot.com...
