Summary of Contents for SineWave Amplifiers CYN-DRIVE

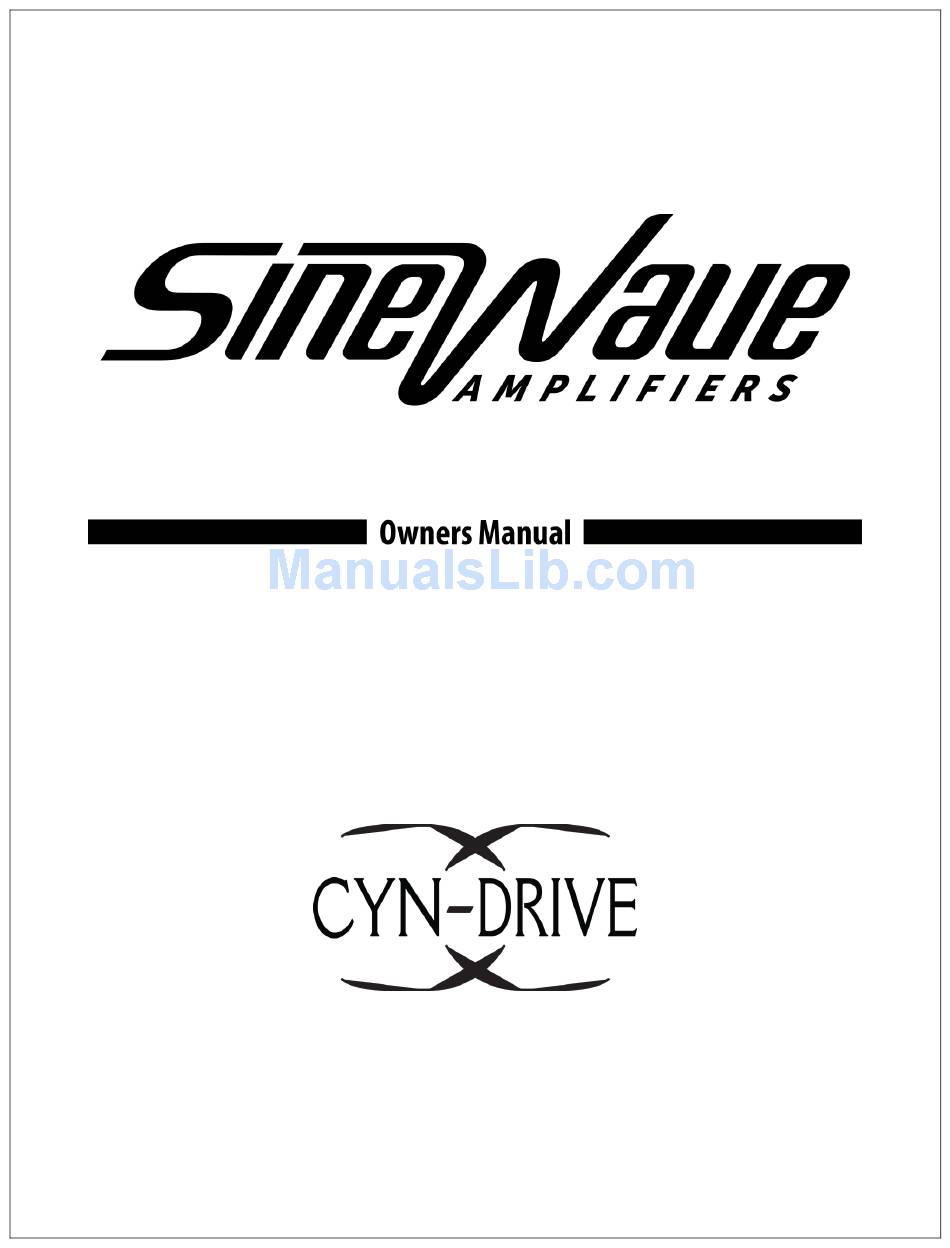

- Page 1 20 Watt, 50 Watt, 100 Watt Options...
- Page 2 Front Panel Functions Input - Instrument input. - The Signal Strength circuit is designed to optimize the front end of Signal Structure Switch the amp and how it integrates into the back end of the preamp. This circuit offers two options: o The high is more akin to an old vintage blackface in the way the bass and gain overpower the rest of the amp.
- Page 3 Deep Switch - Boosts the lower frequency of the input signal. It will also change the response curve of the EQ and the gain stage. Bass Control - Adjusts the low end response of the input signal. It will also as it is turned both up and down change the amount of signal gain that will hit the gain stage.
- Page 4 Reverb EQ Switch The Reverb EQ is a three way switch that changes the frequency range of the mix signal. o 0- This is the normal mode and will be considered neutral in both voicing and feel. o 1- This setting will increase all the highs in the wet signal. Making the mix splashier. o 2- This setting will decrease all the highs and mellow out the reverb signal.
- Page 5 headroom. However the bias can be set to a “hotter” sweet spot and create natural power stage breakup. The Bias adjustment Control will need a flat head screwdriver to adjust. Just stick the driver into the controls center hole. o Cathode Mode This option is a preset circuit configuration that will allow the output section to have more natural breakup and harmonic content.
- Page 6 Fuse Options: 100VAC: o 50 Watt 2.5 amp Slow-Blow o 100 Watt 3.2 amp Slow-Blow 120VAC o 50 Watt 2.5 amp Slow-Blow o 100 Watt 3.2 amp Slow-Blow 220VAC, 230VAC, & 240VAC o 50 Watt 1.6 amp Slow-Blow o 100 Watt 2.5 amp Slow-Blow *Power Stage Tube Options: Only install tubes that your amplifier was built for.
- Page 7 100 Watt (6L6 or El-34/6CA7)Solid State Rectification Are Available P3 & P4 Become 6L6GC-STR For 100 Watt Power Sections Please Contact Support If you Have Any Questions Regarding Tubes Or Service *Warning* There Are No Serviceable Parts Inside! Please Refer To Qualified Personal For Service. Thanks For Purchasing! SineWaveAmps.com 707-695-2322...
