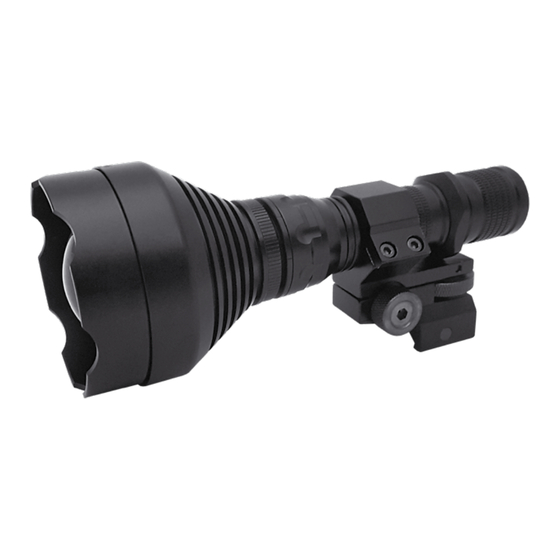

ATN IR850 Supernova
LONG RANGE INFRA-RED ILLUMINATOR
USER'S GUIDE (IR850 SUPERNOVA) REVISION 1 – FEBRUARY, 2018
u s e r ' s g u i d e
Important Export Restrictions! Commodities, products, tech-
nologies and services contained in this manual are subject to
one or more of the export control laws and regulations of the US
BIS-Department of Commerce, Export Administration Regula-
tions. It is unlawful and strictly prohibited to export, or attempt to
export or otherwise transfer or sell any hardware or technical data
or furnish any service to any foreign person, whether abroad or in
the United States, for which a license or written approval of the U.S.
Government is required, without first obtaining the required license
or written approval from the Department of the U.S. Government
having jurisdiction. Diversion contrary to U.S. law is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR850 Supernova and is the answer not in the manual?

Questions and answers

Summary of Contents for ATN IR850 Supernova

  • Page 1 ATN IR850 Supernova LONG RANGE INFRA-RED ILLUMINATOR USER’S GUIDE (IR850 SUPERNOVA) REVISION 1 – FEBRUARY, 2018 u s e r ’ s g u i d e Important Export Restrictions! Commodities, products, tech- nologies and services contained in this manual are subject to...
  • Page 2 Constructed using aircraft grade aluminum Surface Hard anodized finish, highly durable Waterproof IPX8 standard Dimensions, mm 176 (length) x 70 (head) x 27 (tail) Weight, g Color Black * ATN reserves the right to change the above specifications at any time without notice.
  • Page 3 B AT T E R Y The IR850 Supernova is available use single 18650. 1. Unscrew the Tail cap from the Battery Tube, until it is free. 2. Place Battery within the Battery Tube, observing proper battery polarity.
  • Page 4 M O D E S The IR850 Supernova has 4 stage output-Low at 5%-30%-70%-100%. These modes can be accessed by turning the brightness control ring. Low output setting Medium output setting High output setting F O C U S Turn the light to maximum out- put and shine it on a wall 8~10 m away.
  • Page 5 A D J U S T M E N T To adjust the windage and ele- vation, the two round dials must be turned/adjusted. The round dial on the left is your elevation adjustment. The flat dial is your windage adjust- ment.
  • Page 6 For customer service and technical support, please contact American Technologies Network Corp. 1341 San Mateo Avenue, South San Francisco, CA 94080 phone: 800-910-2862, 650-989-5100 e-mail: service@atncorp.com www.atncorp.com ©2018 ATN Corporation...
