HomePro
RF Home Automation
Shown with supplied
Decora
TM
trim plate
Note: This module must be "Included in the Network" only
where it will be permanently installed. The proper opera-
tion of this node in the mesh network is dependent on it
knowing its location with respect to other nodes. You cannot
"test bench" configure this module, then install.
ZRW103 WALL MOUNTED SWITCH

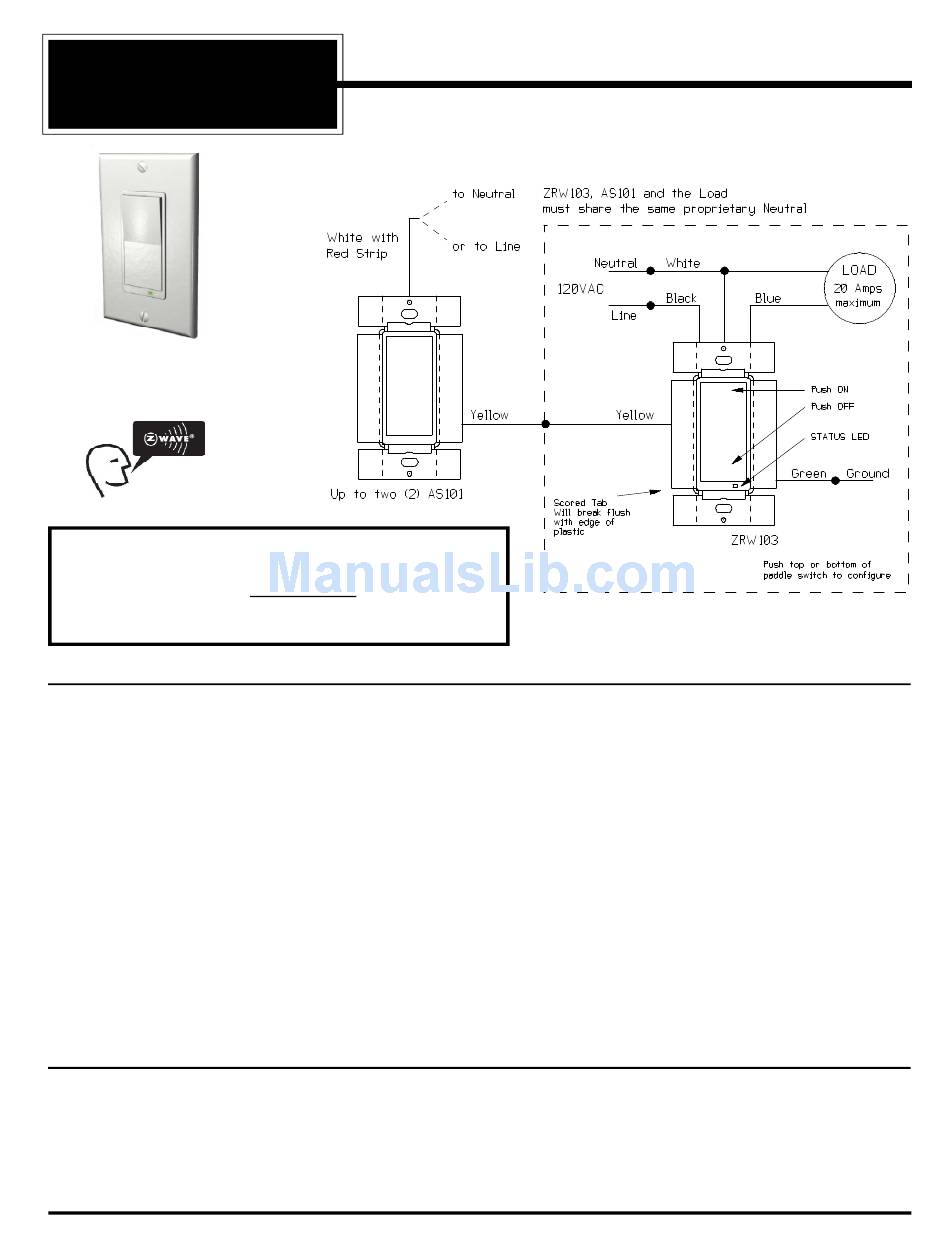

The ZRW103 Wall Mounted 3-Way Switch is a component of the HomePro lighting control system. Wire the Wall
Mounted Switch in place of the standard wall switch according to the diagram above and program from the Wireless
Controller to operate loads. Inclusion of this Switch on the ZTH100 Wireless Controller menu allows remote ON/OFF
control of lamps connected.
This Wall Mounted Switch is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other types can
be added to the system and will also act as repeaters if they support this function of repeating the signal received to
other modules in the system.
As part of a Z-Wave network, the ZRW103 will also act as a wireless repeater to insure that commands intended for
another device in the network are received. This is useful when the device would otherwise be out of the radio range
of the wireless controller.
There are no field repairable assemblies on this unit.. If service is needed, the unit must be returned where purchased.
DANGER! SHOCK HAZARD. Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric code and local regulations in the United States, or the Canadian
Electrical Code and local regulations in Canada. It is recommended that a qualified electrician perform this installation.
Make sure the load controlled by the switch does not exceed 2400 watts. For indoor use only. Retain instructions for
future use.
INSTALLATION
Wire this Switch in place of a current wall switch according to the diagram above.
When used, AS101's are required to be wired to the same line (or neutral) which is also wired to the master unit
as well as the load being controlled, and not wired to any other neutral. If multiple neutrals are tied together in one
box, separate the neutrals to preserve the integrity of the ZRW103 circuit. Caution! Do not wire unit "live" (with power
on the circuit) and do not allow the yellow wire to contact line voltage, neutral or ground or you will damage the device.
Refer to your Controller operating instructions to add this module under the command of the Wireless Controller.
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
Z-Wave Radio Frequency (RF) Controlled, 120 VAC,
0763-01
Z-Wave ZRW103 Series 200 Instructions, Release 2.2
1
ZRW103
Wall Mounted Switch, 3-Way,
Series 200, Release 2.2
P/D 012108
Advertisement
Table of Contents
Summary of Contents for HomePro ZRW103
- Page 1 As part of a Z-Wave network, the ZRW103 will also act as a wireless repeater to insure that commands intended for another device in the network are received. This is useful when the device would otherwise be out of the radio range of the wireless controller.
- Page 2 STEP 3. You should see an indication on your Controller that the “DEVICE WAS INCLUDED” in the network. NOTE: If you have trouble adding the ZRW103 to a group it may be that the Home ID and Node ID were not cleared from it after testing.
- Page 3 • Valid Values = 0 or 1 (default 0) LED Transmission Indication The ZRW103 will flicker its LED when it is transmitting to any of its groups. This flickering can be set to not flicker 0763-01 Z-Wave ZRW103 Series 200 Instructions, Release 2.2...
- Page 4 You can assign an “SUC Route” to the ZRW103. Refer to your controller’s instructions on how to do this (if it supports it). Assigning an SUC Route to the ZRW103 allows it to request an update of the Z-Wave devices that are between it and the Z-Wave device to which it was trying to transmit.
- Page 5 Z-Wave is a registered trademark of Zensys, Inc. and/or its subsidiaries. ® 0763-01 Z-Wave ZRW103 Series 200 Instructions, Release 2.2 HomePro P/D 012108 by ADVANCED CONTROL TECHNOLOGIES, INC.
