Summary of Contents for Askey TN450A1

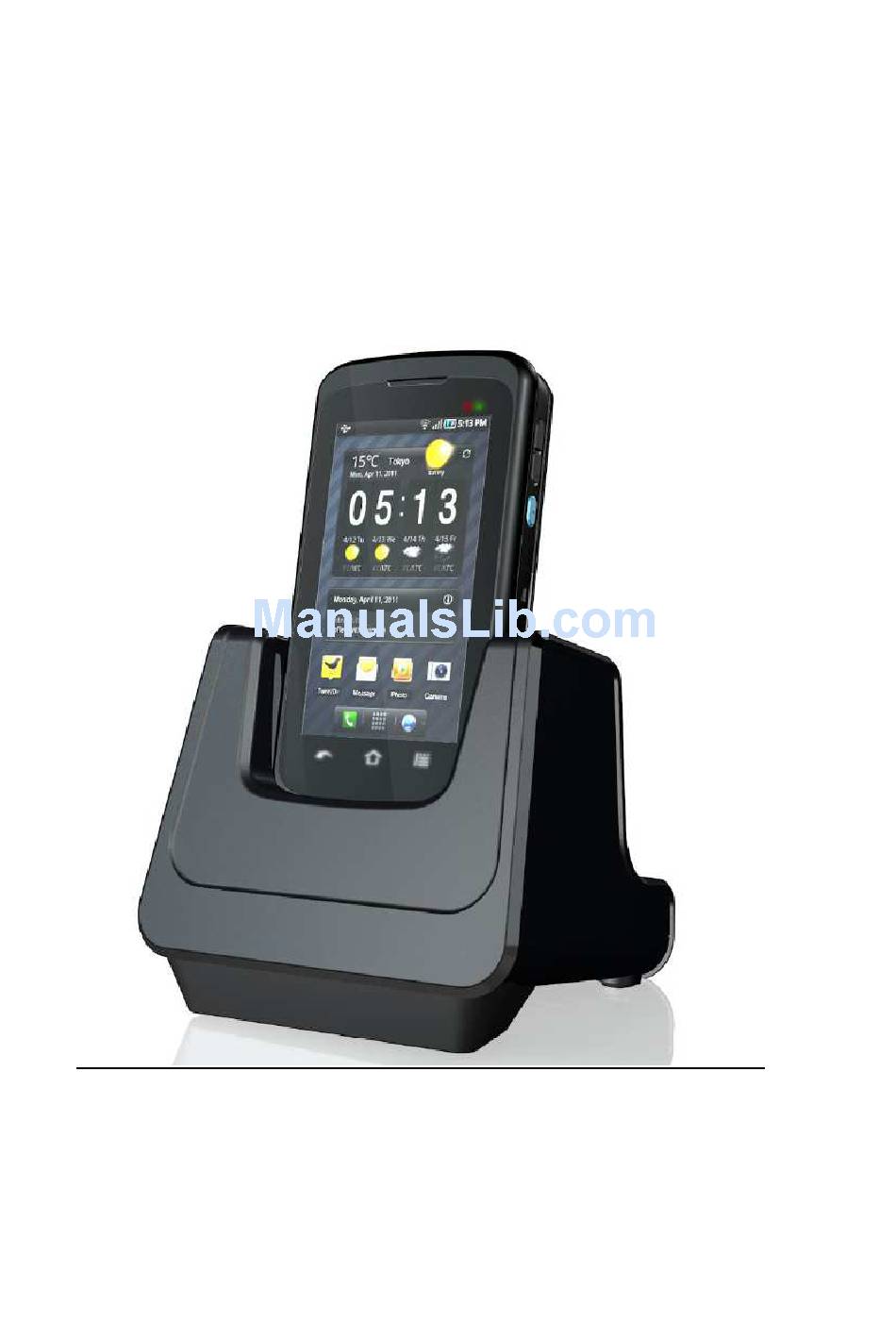

- Page 1 TN450A1 QUICK START & REGULATORY GUIDE TURBONET...
-
Page 2: Product Features
Product Features:... -
Page 3: Product Specification
Product Specification: Item Description System Qualcomm MSM8960 Processor Dual Core 1.5GHz Android OS Android Jeally Bean 4.2.2 Memory 1GB LPDDR2 SDRAM Storage Internal 8GB eMMC Flash (To be continued) Display, Camera and Scaning Size: 4.5" Resolution: WVGA 720(W)*1280(H) Display Type: TFT, Transmissive Display Contrast ratio: 900 (Typ) Brightness: 400 nits (Typ) - Page 4 Databar Expanded, Codeablock F, DataMatrix ECC200, DataMatrix ECC000-140, Aztec Code, Aztec Runes, Chinese Sensible Code, QR Code, Micro QR Code, Maxi Code, PDF 417, Micro PDF417, GS1 DataBar Composite, UPC/EAN Composite. Front Camera Sensor OmniVision MT9E013 Resolution: 8MP (3264H*2448V) Angle of view: 74.5°C Auto-Focus Type: VCM(Voice Coil Motor) Rear Camera Focus Range: 10cm~ Infinity...
- Page 5 Battery Life 10 hours Reset Function Physical key under micro SD door (1) AC adaptor charging (via micro USB) Charging method (2) docking station charging (no sleeve charging) (3) battery cartridge Wireless charger Qi (WPC V1.1) Compliant Power Supply (Optional) Peripheral 3-axis accelerometer Proximity sensor...
- Page 6 Mechanical and Environment Dimension L 149.87 x W 80.24 x T 30.61 mm Weight 345g Ingress Protection IP65 Drop 1.5M on poly wood, 6 drops Air: ±8KV Contact: ±4KV Operating 0°C~ 45°C battery in charging mode Temperature (include -20°C+60°C battery in discharging mode LCM and battery) Storage Temperature -20~+60°C Accessories (in package)
-
Page 7: Getting Started
“SIM 2”) Close the door after installation. Getting Started Charge the battery Before using the TN450A1, charge the battery using one of the following accessories approved by TURBONET : Micro USB cable through PC Micro USB cable + Power Adaptor Jack... -
Page 8: Data Capture
Power Off To Power off the TN450A1, press and hold the button until the device option dialog box appears, choose “Power off”. When the Power off dialog box appears, tap “OK”. - Page 9 Setting Go to “BarcodeScan” Type: To choose Barcode type Barcode Scan...
- Page 10 Select “ Beep”: To have beep sound after scan Select” Vibrate”: Need device vibration after scan Select” Automatic Carriage Return” Require to send enter key automatically after scan 2. Launch a bar code reading application or use Data Wedge. 3. Point the exit window at the bar code 4.
- Page 11 Select “P1” Select Remap Key...
- Page 12 Choose “Barcode Scan” Select “P2” Remap Key choose “Barcode Scan” Scan Key(P1) (P2) 5. The red laser aiming pattern turn on to assist in aiming , scan ready when beep sounds. 6. Release the scan button.
-
Page 13: Gps Information
Scan a Bar Code with Camera Using the rear camera to scan bar code. 1. Launch a bar code reading application or use Data Wedge. 2. Point the back of the TN450A1 at the bar code. 3. Press the scan button Photo & Videos Using the rear camera to take photos and capture video. - Page 14 NFC Detection Enable NFC Feature Go to “Settings” Tick “NFC”...
- Page 15 Enable Android Beam Slide to “ON”...
-
Page 16: Regulatory Information
Regulatory Information Caution: Only use TURBONET approved accessories. Wireless Device Country Approval Regulatory markings, subject to certification, are applied to the device signifying the radio(s) are approved for use in the European countries under CE coverage. For 2.4GHz or 5GHz products : Europe includes Austria, Belgium, Bulgaria, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherland, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain,... - Page 17 interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna.
- Page 18 Power Adaptor Use only a TN450A1 approved Power Adaptor with electrical ratings : Output 5VDC, min 2A, with a maximum ambient temperature of at least 45℃. Use of alternative power adaptor will invalidate any approvals given to this device and maybe dangerous.
- Page 19 Batty Safety The area in which the units are charged should be clear of debris and combustible materials or chemicals. Particular care should be taken where the device is charged in a non -commercial environment. Follow battery usage, storage, and charging guidelines found in the user guide. Improper battery use may result in a fire, explosion, or other hazard.
- Page 20 ® Italy requires a user license for outside usage. Bluetooth Wireless Technology for use through the EEA has the following restrictions: Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400 -2.4835 GHz France, outside usage is restricted to 10mW EIRP Italy requires a user license for outside usage.
