Summary of Contents for JIC JIC-18

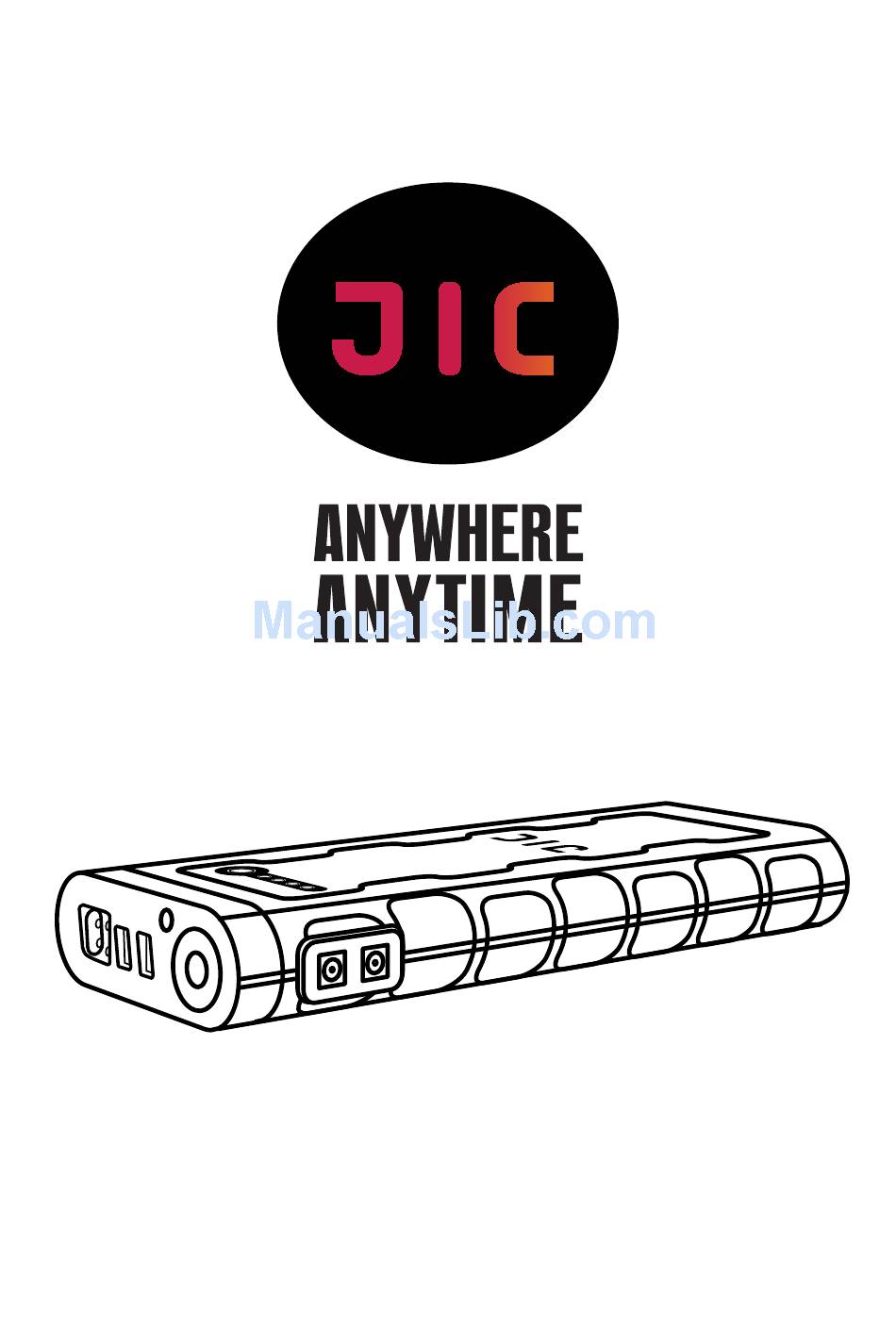

- Page 1 Всевозможные сочетания слога User’s ManUal Multi-purpose starter charger Model JIC-18 18000 mAh...
- Page 2 When using this device for electronic equipment or as a starter for transport vehicle observe health and safety rules. Read all instructions carefully. Keep this User’s Manual close at hand or download its on-line version from the following web-site: jic.energy/support...
-
Page 3: Built-In Protection
USEFUL THING! In Hand- sTarTs CHarGes POCKeT-sIzed lUGGaGe On enGIne GadGeTs THe Plane sTarTer FOr 12V bUIlT-In PrOTeCTIOn 24 MOnTHs’ warranTY* lOses JUsT 2-5% OF CHarGe Per MOnTH 1000 reCHarGInG CYCles**, FaUlT-Free OPeraTIOn FOr Years OPeraTIOn TeMPeraTUre ranGe FrOM -20 TO +60°C * The duration of the guarantee period in different countries can vary and depends on the laws of each country in which the product has been implemented. - Page 4 ING” position and raise a parking brake up. For cars with manual transmission - move the lever into neutral position and raise a parking brake up. • To provide optimum operation of “JIC” device and secure vehicle electronics, one should switch off all electronic equipment of a car (an air conditioner, heating, radio, lighting, charge devic- es etc.).
- Page 5 Terminal connection should be of as high quality as possible; bad or low-quality connection will not enable starting. 2. Make sure that “JIC” device is off. Thoroughly insert connector in the “JIC” device. Check the security of connection between terminals and clamps as well as between connector and “JIC”...
- Page 6 Quick starting Guidelines for “JIC” device. To start a car engine you just need to have “JIC” starter. There is no longer need to wait for help - “JIC” will save the situation! Be careful and perform a series of precautionary measures before car engine starting;...
- Page 7 “JIC” starter can be used for the following gasoline and diesel engines: • Model JIC-18: gasoline engines with capacity up to 7 liters, diesel engines with capacity up to 4 liter (engine capacities are just approximately specified; power requirements for each car differ).
- Page 8 CHarGInG “JIC” starter is completed with 9 connector adaptors and an adaptor to charge a range of popular laptops, including but not limited to: Acer, Dell, Fujitsu, HP, IBM, Lenovo, Samsung, Sony and Toshiba. To charge laptops “JIC” device is fitted with two outputs (12V and 19V).
- Page 9 • Do not open “JIC” device to replace internal battery. There are no parts in the device which can be replaced by the user himself. • Do not keep “JIC” device at temperatures over +30 °C or lower –20 °C for a long period of time since it can reduce battery capacity.
- Page 10 • Air temperature (hard frost will reduce any battery capacity); • Type of used JIC –18 device. Question: How many times “JIC” device can charge a cell phone, tablet PC or other mobile device? How much time will it take? answer: These parameters will be different for each mobile device since batteries of these devices are characterized by different power and capacity.
-
Page 11: Troubleshooting
Connect “JIC” device to the charging devices operated from mains which is included in the supply package. If you are on your way then connect “JIC’ device to the car adaptor (via electric cigar lighter). Even if your car accumulator is discharged it has enough power to reset “JIC” device. -
Page 12: Scope Of Supply
Cables to connect device to accumulator Charging device (mains charger) Car adaptor USB-cable for charging (3-in-1) (w/Micro, 30-pin connector) Adapator for laptop Adaptor cable User’s Manual Guideline for Quick Start Transportation casing Spare parts are available for order at the address: www.jic.energy... - Page 13 Repayment of money is not provided. If JIC company finds out that the product is not a defective one, then this product will be sent back to the consumer at his own expense.
- Page 14 Our specialist will explain how to return the defective products for after-sales service. JIC company is to be notified regarding a claim within warranty period in the written form, JIC compa- ny is to receive defective products within 10 days after the day when the consumer has notified it about claim occurrence.
