Summary of Contents for Sure Rider Harrier

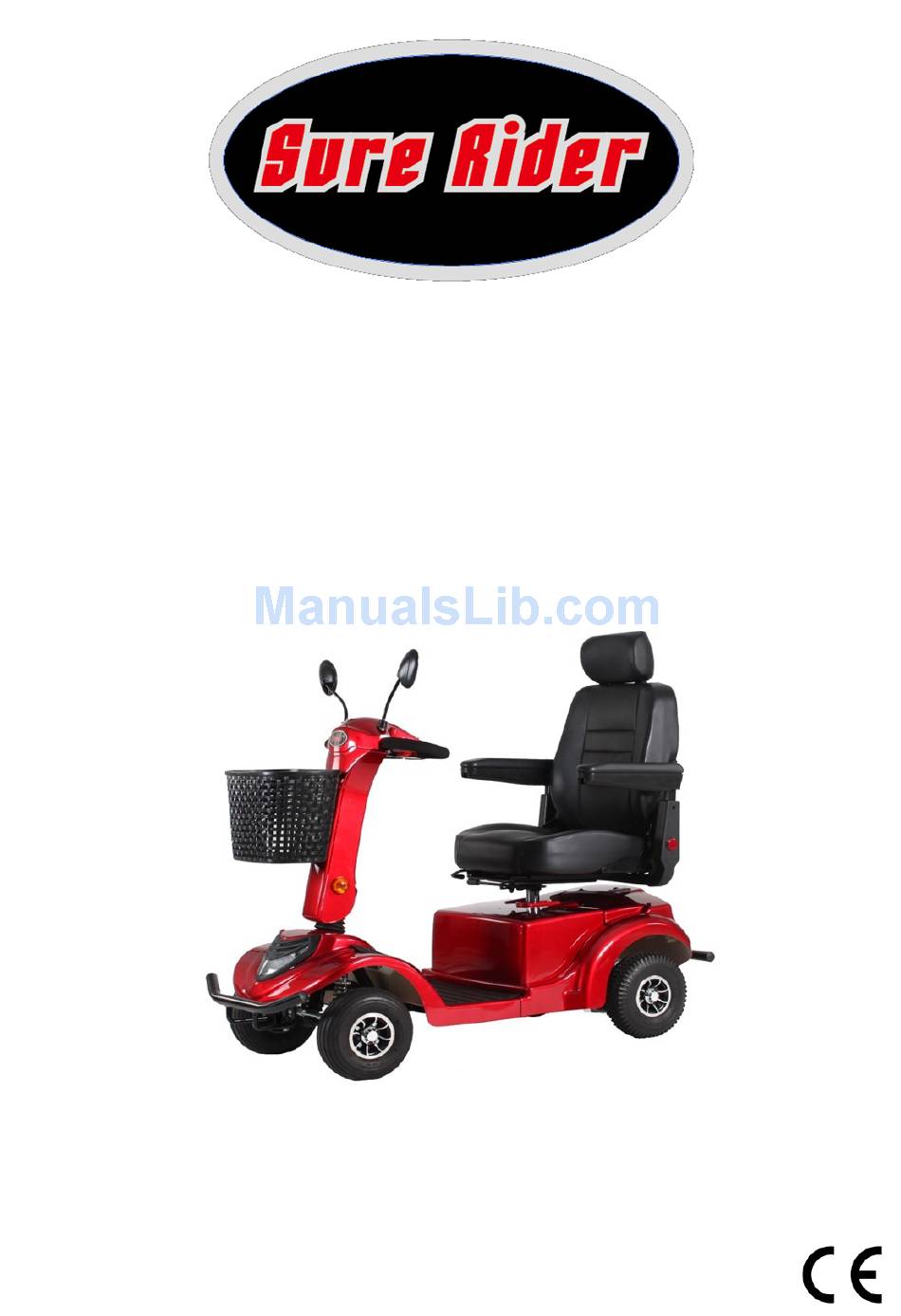

- Page 1 Harrier Owner’s Manual Sure Rider. Fengate Drove, Weeting, Brandon, Suffolk, IP27 0PW Telephone: 01842 811321...
- Page 2 WARNING Read the User Manual carefully before operating the Scooter. If you do not fully understand any part of this manual, please contact your dealer. Read this manual step by step, as injury or damage may occur from misuse! WARNING Electromagnetic Interference (“EMI”) can cause powered vehicles to behave erratically, which could be dangerous to the user.
- Page 3 CHAPTER 1 – Overview of the Scooters main features. Congratulations on choosing this electrically powered scooter from Sure Rider. The Scooter is designed for a maximum occupant mass of 146kg (23 Stone). This is an indoor/outdoor scooter designed to work in normal environmental conditions from very cold temperatures (-30ºC/-22ºF) to very hot temperatures (+45ºC/+113ºF).
- Page 4 PROHIBITED! These actions are prohibited. These actions must not be performed at any time or under any circumstances. Performing a prohibited action can cause personal injury and/or equipment damage. On the scooter, this is a black symbol with a circle and slash. Please note and strictly adhere to the following Safety Instructions.
- Page 5 If for any reason the Scooter does not stop when you release the throttle control lever, or takes longer to stop than it should (3 meters on a level surface), turn the main key switch to OFF, and contact your dealer. Do not use the Scooter in heavy rain or extreme humidity, or at temperatures below -30ºC (-22ºF) or above +45ºC (+113ºF).
- Page 6 Since your seat upholstery is fire resistant, do not cover it or replace with any upholstery other than upholstery of the same kind. When removing the battery cover, watch out for hot parts. The motor, axle, EMB, electronic cards and electronic controller might be hot, Do not touch them until you have checked their temperature.
-
Page 7: Chapter 3 - Safety Instructions
The battery charger is for indoor use only. Flammable materials do not expose to open flame. At the rear of the Scooter is the manual release lever of the EMB. When using this lever, be careful not to touch the internal surface of the motor, as it could be very hot and cause injury. -
Page 8: Removable Parts
WARNING! Do not modify your Scooter in any way not author- ised by the manufacturer. Do not use accessories if they have not been tested or approved by the manufacturer. REMOVABLE PARTS WARNING! Do not attempt to lift or move your Scooter by any of its removable parts, including the armrests, seat, or shroud. -
Page 9: Incline Information
INCLINE INFORMATION More and more buildings have ramps with specified degrees of incli- nation, designed for easy and safe access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on your Scooter. -Proceed with extreme caution as you approach the downgrade of a ramp or incline. -
Page 10: Cornering Information
These tests were conducted with the Scooter seat in the highest position and in its farthest rearward position. Use this information as a guideline. Your Scooters ability to travel up inclines is affected by your weight, scooter speed, your angle of approach to the incline, and your Scooters setup. -
Page 11: Outdoor Driving Surfaces
OUTDOOR DRIVING SURFACES -Your Scooter is designed to provide optimum stability under normal driving conditions, on dry, level surfaces of concrete, tarmac, or asphalt. However, we recognize that there will be times when you will encounter other surfaces. For this reason, your Scooter is designed to perform well on packed soil, grass, and gravel. -
Page 12: Freewheel Mode
FREEWHEEL MODE Your Scooter is equipped with a manual freewheel lever that, when pushed forward, allows the Scooter to be pushed manually. Freewheel Manual lever -Disengage the drive motors only on a level surface. -Stand beside the Scooter to engage or disengage freewheel mode. Never do this while sitting on the Scooter. - Page 13 LIFTS/ELEVATION PRODUCTS If you travel with your Scooter, you may find it necessary to use a lift or elevation product to aid in transportation. We recommend that you closely review the manu- facturer’s instructions, specifications, and safety information before using the lift/ elevation product.
-
Page 14: Reaching And Bending
GETTING ONTO AND OFF YOUR Scooter Getting onto and off your Scooter requires a good sense of balance. Please observe the following safety tips when getting on and off your Scooter: -Remove the key from the key switch. -Ensure that your Scooter is not in freewheel mode. -Ensure that the seat is secured in place. -
Page 15: Chapter 4 - Operating Instructions
ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI/RFI) WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can have an adverse effect on the performance of electrically powered mobility vehicles. EMI/RFI can come from sources such as cellular phones, mobile two-way radios (such as walkie- talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links, microwave signals, paging transmitters and medium- range mobile transceivers used by emergency vehicles. - Page 16 Speed limit dial The speed limit dial is located on the tiller panel. When the speed (#3) limit dial is set to MAX, the Scooter will drive at approximately 4mph.When the speed limit dial is set to MIN, the Scooter will drive at approximately 1mph.
- Page 17 FIGURE B (Tiller/Handlebar Adjustment) Handlebar adjustment lever To adjust the tiller, push the lever inwards to disengage the pin, set the tiller to the required position and then engage the pin by putting the lever back to its standard position.
- Page 18 After stopping After stopping the Scooter, turn the key switch to OFF and remove the key. The ON LED will turn off. Note: The EMB locks automatically when the throttle control lever is released and the Scooter has come to a complete stop.
- Page 19 CHAPTER 5 – Charging the Scooters Batteries. Read the charger manual before using it. Warning: If you use a charger other than the one supplied with your Scooter, ask your dealer for instructions. CHARGING BATTERIES (see Figure C) 1. Insert the charger plug (8) in the charging socket (10) located on the right side of the tiller column.
-
Page 20: Chapter 6 - Maintenance
CHAPTER 6 – MAINTENANCE Although the Scooter requires very little maintenance, do not neglect it. When performing maintenance procedures on the Scooter, make sure that it stands on a level surface and that the key is not inserted. This chapter contains both periodic maintenance procedures and maintenance procedures to be performed as required. -
Page 21: Chapter 7 - Trouble Shooting & Repair
The following table provides troubleshooting and repair instructions for prob- lems that may be encountered when operating the Scooter. The best way to correct the problem - The table contains three columns: Remember: You can contact Sure Rider at any time for further professional support Symptom... -
Page 22: Chapter 8 - Emi Warning
CHAPTER 8 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electro- magnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones. -
Page 23: Two-Year Limited Warranty
Avoid extreme temperature of hot and cold during storage. Freezing can damage low charged batteries and they may become unusable. Sure Rider reserves the right to change specification and/or prices without prior notification or warning. Kestral Handbook Feb 2017...
