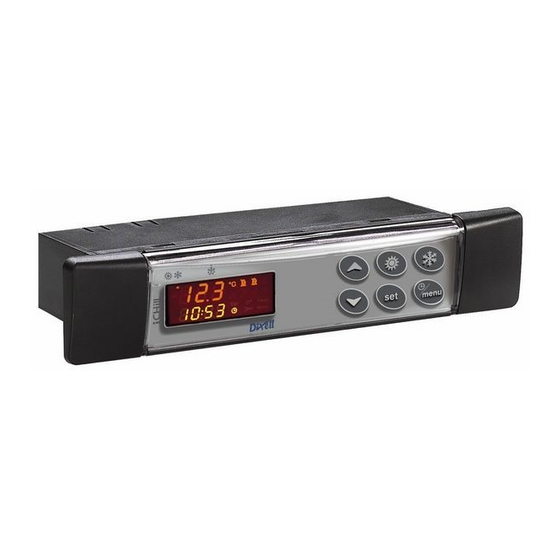

dixell ichill IC260L User Manual
  1. Manuals
  2. Brands
  3. dixell Manuals
  4. Control Unit
  5. ichill IC260L
  6. User manual

dixell ichill IC260L User Manual

Ichill ic200l series
Hide thumbs
Table of Contents

Advertisement

Quick Links

IC200L Series
User manual
dIXEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ichill IC260L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dixell ichill IC260L

Summary of Contents for dixell ichill IC260L

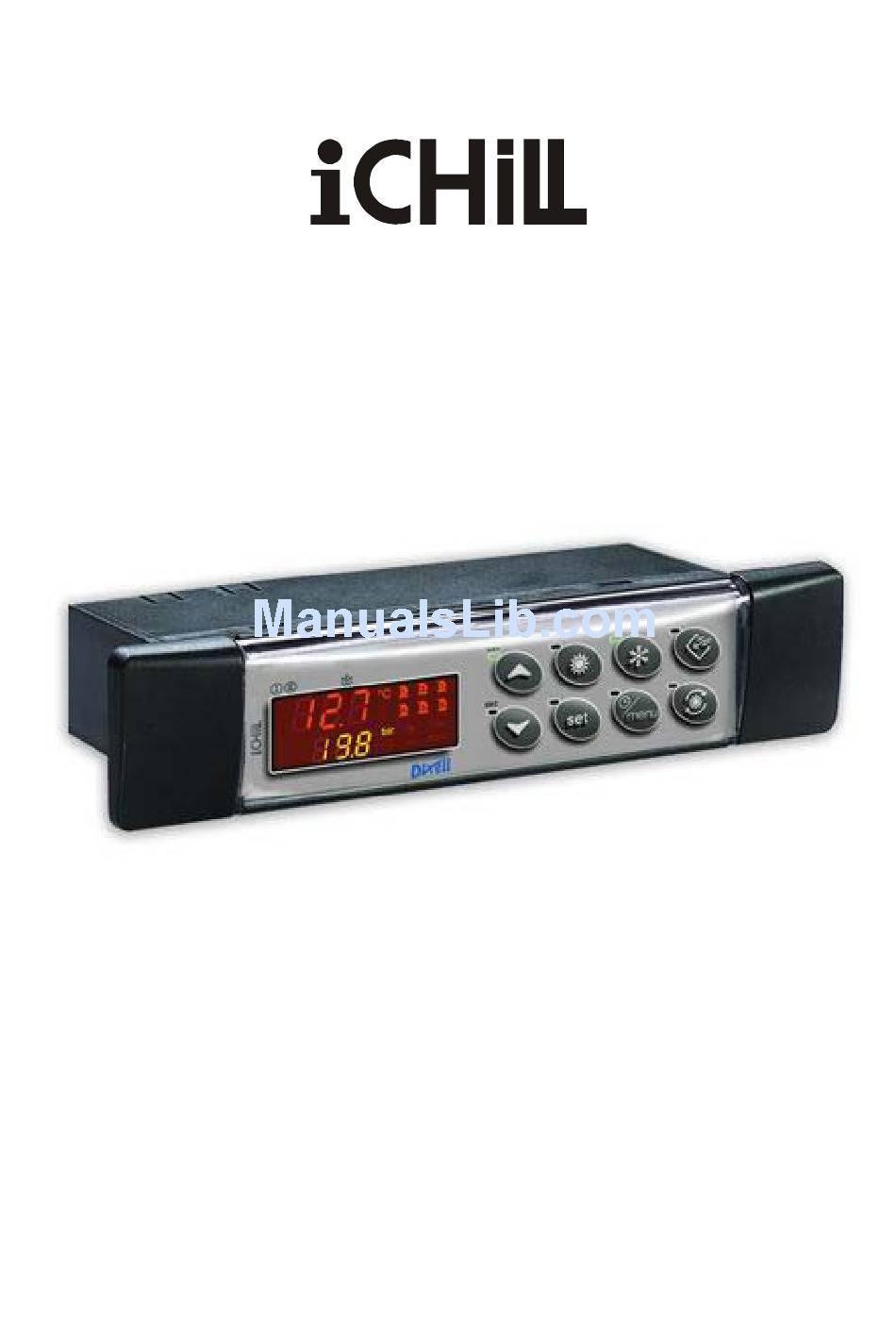

  • Page 1 IC200L Series User manual dIXEL...

  • Page 2: Table Of Contents

    INDEX GENERAL ADVICE GENERAL FEATURES MAIN FUNCTION IC200 L TABLE OF THE FEATURES USER INTERFACE FUNCTION OF THE LEDS OF THE KEY BUTTONS USE OF THE LED ON THE MODELS VI620 - VI620S REMOTE PANELS USE OF THE LED ON THE MODELS VI820 - VI820S REMOTE PANELS KEY FUNCTION KEY COMBINANTION LED AND ICONS...
  • Page 3 12.3 CHILLER – HEAT PUMP FUNCTIONING MODE 12.4 KEYBOARD SELECTION 12.5 ANALOG INPUT SELECTION UNIT START- STOP 13.1 START – STOP AND STAND- BY FROM KEYBOARD 13.2 UNIT START- STOP FROM DIGITAL INPUT DISPLAY LAYOUT 14.1 HOW TO SHOW THE MEASUREMENT LIST. 14.2 SHOW THE CIRCUIT 1 OR 2 CUSTOM DISPLAY...
  • Page 4 23.3 THERMOREGULATION OF THE SUPPORT HEATERS FOR AIR/AIR UNIT 23.4 CONDENSER ANTI-FREEZE HEATERS REGULATION 23.5 THE THERMOREGULATION OF THE ANTI-FREEZE HEATERS OF THE CONDENSER/RECOVERY 23.6 GRAPH OF THE ANTI-FREEZE- INTEGRATION HEATING - BOILER HEATER RELAYS 23.7 BOILER THERMOREGULATION(ANTIFREEZE), BOILER FUNCTION ANTI - FREEZE ALARM AND HEATERS REGULATION THROUGH DIGITAL INPUT THERMOREGULATION AND COMPRESSORS ROTATION...
  • Page 5 DEFROST CYCLE 38.1 FORCED DEFROST 38.2 COMBINED DEFROST 38.3 MANUAL DEFROST 38.4 DEFROST START CONDITION WITH TWO CIRCUIT UNIT 38.5 END OF THE DEFROST IN A TWO CIRCUITS WITH ONE CONDENSING FAN CONTROL UNIT 38.6 AUTOMATIC DEFROST PROCEDURE 38.7 OTHER INFORMATION ABOUT THE DEFROST 38.8 DEFROST PARAMETER DESCRIPTION RECOVERY...

  • Page 6: Electrical Connections

    45.2 PLEXIGLASS PROTECTION BOTTOM OPEN 45.3 PLEXIGLASS PROTECTION TOP OPEN 45.4 METAL FRONT FRAME 45.5 VERTICAL BOARDS VI620 – VI820 PANEL CUT-OUT ELECTRICAL CONNECTIONS ACCESSORIES 47.1 MONOPHASE FAN CONTROL: 230VAC AND CUT PHASE CONTROL 47.2 INVERTER: MICROFAN 380VAC UP TO 4KW OR 8KW 47.3 TRANSFORMER TECHNICAL DATA...

  • Page 8: General Advice

    · The instrument must not be opened. • · In case of failure or faulty operation send the instrument back to the • distributor or to “Dixell s.r.l.” (see address) with a detailed description of • the fault. • · Consider the maximum current which can be applied to each relay (see •...

  • Page 9: General Features

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 GENERAL FEATURES iCHILL IC200L is an electronic controller for chiller unit applications having one or two circuits: • Air/air • Air/water • Water/water • Motocondensing Additional features : • Heat pump with gas reversibility •...
  • Page 10 Internal Data logger up to 100 events Supervisor / tele assistance/ monitoring • TTL output for XJ485 interface (Mod #Bus protocol) for XWEB300 / XWEB3000 Dixell monitoring system for local and remote control Up to 2 remote terminals with display read-out customizable •...

  • Page 11: Ic200 L Table Of The Features

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 3 IC200 L TABLE OF THE FEATURES FEATURES IC260L IC261L IC280L IC281L CHILLER WITH HEAT PUMP, CHILLER WITH HEAT PUMP FREE COOLING AND HEATING RECOVERY FRONTPANEL KEY BUTTONS OUTPUT RELAYS DIGITAL INPUTS configurable configurable configurable...

  • Page 12: User Interface

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 4 USER INTERFACE 4.1 F KEY BUTTONS UNCTION OF THE S OF THE Use of the led on the IC260L / IC261L models Use of the led on the IC260L / IC261L metal models...
  • Page 13 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Use of the led on the models IC280L / IC281L Use of the led on the metal models IC280L / IC281L Pg.12/105...
  • Page 14 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 4.2 U VI620 - VI620S SE OF THE LED ON THE MODELS REMOTE PANELS 4.3 U VI820 - VI820S SE OF THE LED ON THE MODELS REMOTE PANELS...

  • Page 15: Key Function

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 4.4 KEY FUNCTION ACTION FUNCTION Push and release Show chiller set point SetC and heat pump SetH In chiller or heat pump if the Energy saving or the Dynamic Push once setpoint are enabled it shows the real setpoint Setr, the led is blinking.

  • Page 16: Key Combinantion

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 4.5 KEY COMBINANTION ACTION FUNCTION Push for 3 seconds together Enter the programming In Pr3 level: push SET and the push Select the parameter level visibility Pr1 / Pr2 / Pr3 DOWN key Push once together Exit the programming...
  • Page 17 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 4.7 D ISPLAY AND CONS ICON MEANING / FUNCTIONNING Celsius degrees: ON for temperature measurements of probe values or parameters Fahrenheit degrees: ON for temperature measurements of probe values or parameters Bar: ON for pressure measurements of probe values, setpoint or parameters Psi: ON for pressure measurements of probe values, setpoint or parameters ON = compressor 1 active...

  • Page 18: Remote Terminal

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 4.8 M EANING UNCTIONNING OF THE BOTTOM DISPLAY LED Led # 1 – 2 (With RTC) If the bottom display shows the RTC the 1 and 2 leds are blinking. Led # 1 – 2 In function Menu During the time counting to the next defrost for one or both circuits the led 1 and 2 are blinking.

  • Page 19: Wiring Connections

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 7 WIRING CONNECTIONS 7.1 H IC260L - IC280L M ARDWARE ESOURCES FOR ODELS 10 digital outputs (relays) 18 digital inputs (free of voltage) 10 analogue inputs: NTC probes or through configuration 6 NTC / PTC and 4 pressure transducer 4÷20mA or ratio-metric 0÷ 5.0Volt 6 modulating outputs 1 output for remote panel (max 2 remote panels) 1 TTL output for “Hot Key 64”...
  • Page 20 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 7.3 A NTC – PTC P NALOG NPUTS ROBES PbC = Common terminal 7.4 D IGITAL NPUTS GND = Common terminal 7.5 A 30 (4 ÷ 20 NALOG NPUT FOR RESSURE RANSDUCER SIGNAL Using 4÷20mA pressure transducer set the Parameter CF07 = 0 / 1...
  • Page 21 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 7.6 A 30 (0 ÷ 5V NALOG NPUT FOR RESSURE ATIOMETRIC RANSDUCER SIGNAL Using 5V ratio-metric pressure transducer set the Parameter CF07 = 2 / 3 7.7 PWM O UTPUT FOR ONDENSING PEED ONTROL...
  • Page 22 With only one condensing circuit configured, the Out1 / Out2 outputs work together giving the same signal. With the two 0 – 10V outputs the iCHILL can drive a mono-phase or three-phase controllers (such as the Dixell inverter models XV340GS) up to 8KW.
  • Page 23 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 7.10 P 0 ÷ 10V ROPORTIONAL OUTPUTS DUMPER CONTROL GND = common 7.11 P ROPORTIONAL OUTPUTS CONFIGURED FOR AUX RELAY CONTROL GND = common By parameter programming is possible to connect a 12 volt, 40mA relay. Pg.22/105...
  • Page 24 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 7.12 H 64 C ONNECTION The programming HOT KEY 64 allows to upload or download a copy of the parameters of the instrument (see HOT KEY paragraph). 7.13 XJ485 C ONNECTION The XJ485 interface is a converter between the RS485 and the TTL connector output.
  • Page 25 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 7.14 R VI620 – VI820 EMOTE ANELS The instrument receives up to two remote panels. Using the remote panels provided with the ambient NTC probe the display measurement, and the control can be managed directly by this probe. Use shielded cable for the connection up to 150mt maximum. In case of communication failure the upper display shows “noL”...

  • Page 26: Digital Inputs

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 23. Temperature probe NTC for auxiliary output #2 24. Temperature probe NTC for condensing circuit #1 25. Temperature probe NTC for condensing circuit #22 After the number 25 the display configuration can be selected from o 1 to c62 that allows to set an analogue input as digital input (see polarity of the digital input/outputs).
  • Page 27 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 26. Water pump overload of evaporator 1 27. Water support pump overload of evaporator 28. Water pump overload of condenser 1 29. Water support pump overload of condenser 30. Recovery request for circuit 1 31.
  • Page 28 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Star-delta start: relay linea #2 compressor #1 31. Star centre of the Star-delta start of the compressor 1# 32. Capacity step valve #1 compressor #1 33. Capacity step valve #2 compressor #1 34.

  • Page 29: Table Of The Parameters

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 9 TABLE OF THE PARAMETERS MENU SELECTION Description Label Shows all the parameters Shows only the Thermoregulation parameters Shows only the Configuration parameters Shows only the Dynamic Setpoint parameters Shows only the Energy Saving, RTC parameters Shows only the compressor parameters Shows only the Auxiliary Output parameters Shows only the Fan Control parameters...
  • Page 30 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 dP 1 Default read-out of the top display dP 2 Default read-out of the bottom display dP 3 Default display read-out configuration top / bottom 0= Configurable 1= Top display: Evaporator IN, Bottom display: Evaporator OUT 2= Top display: Condenser IN, Bottom display: Condenser OUT 3=Top display:...
  • Page 31 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 CF 7 Pressure or temperature analogue input functioning = Temperature / pressure NTC – 4÷20 mA : The condensing temperature is controlled with NTC probe while for the evaporating pressures of the circuits 1 and 2 and the pressure probe configured as auxiliary output 1 and 2 are controlled with 4÷20mA transducers.
  • Page 32 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 CF 26 PB9 Offset -12.0 12.0 °C °F CF 27 PB10 Offset -12.0 12.0 °C °F CF 28 Pressure value at 4mA or 0.5 Vdc of the PB3 transducer 50.0 CF 29 Pressure value at 20mA or 5 Vdc of the PB3 transducer 50.0 CF 30...
  • Page 33 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 CF 71 Proportional output 2 0= Not enabled 1= Free cooling Dumper / Mixing valve 2= 3-way valve for hot water 3= Dumper for air change 4= auxiliary output Relay driver ON / OFF CF 72 Proportional output 3 0= Not enabled...
  • Page 34 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Sd 3 External air setpoint in chiller mode -30.0 70.0 °C °F Sd 4 External air setpoint in heat pump mode 70.0 °C °F Sd 5 External air differential in chiller mode -30.0 30.0 °C...
  • Page 35 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 CO 8 Relay ON time of the Solenoid valve Intermittent for screw compressor, with 0 the function is not enabled. CO 9 Relay OFF time of the Solenoid valve Intermittent for screw compressor Compressor start-up CO 10 Kind of compressor start-up...
  • Page 36 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 CO 36 Pump down operating mode (See pump down ON/OFF function) 0= Not enabled 1= Unit off with pump–down, unit on without pump–down 2= Unit off with pump–down, unit on with pump–down 3= Chiller mode off with pump–down, chiller mode on without pump–down 4= Chiller mode off with pump–down, chiller mode on with pump–down CO 37...
  • Page 37 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 US 7 Auxiliary setpoint 2 (See graph and auxiliary relay functions) -30.0 70.0 °C °F 50.0 US 8 Auxiliary differential 1 (See graph and auxiliary relay functions) 25.0 °C °F 14.0 Password Password Password...
  • Page 38 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 FA 16 Minimum speed for condenser fan in Heat Pump mode. To set the minimum fan speed percentage value (30..100%), it is related to the fan power supply. FA 17 Maximum speed for condenser fan in Heat Pump mode. To set the maximum fan speed percentage value (30..100%), it is related to the fan power supply.
  • Page 39 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Ar 6 Antifreeze alarm probe / heaters / appoggio in Chiller mode. 0= Not enabled 1= Evaporator inlet 2= Evaporator outlet 1 and 2 3= Evaporator outlet 1 and 2 and common outlet Ar 7 Antifreeze alarm probe / heaters / support heaters in HP mode.
  • Page 40 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 dF 11 Temperature setpoint for combined defrost end of the 1 circuit. -30.0 70.0 °C °F dF 12 Temperature setpoint for combined defrost of the 2 circuit after parameter -30.0 70.0 °C DF10 counting.
  • Page 41 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Password Password Alarms Parameters Description m. u. Resolution Low alarm AL 1 Low pressure alarm delay from analog and digital input AL 2 Low pressure alarm delay from digital input after compressor stop if the low pressure switch is used for the pump down.
  • Page 42 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 AL 22 Maximum number of pump down alarm events per hour in start-up condition. After this number the alarm is logged, displayed and signalled with alarm relay + buzzer. Always manual reset if AL22 = 0 Always automatic reset if AL22 =16 From automatic to manual reset if AL21 =1..15 and parameter AL23 config.
  • Page 43 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 AL 41 Number of compressor high discharge temperature events per hour to determine the alarm reset condition: Always manual reset if AL41 = 0 Always automatic reset if AL41 =16 From automatic to manual if AL41 = 1..15 AL 42 Maximum number of generic alarm events (each event stop the regulation) before turning the alarm from automatic to manual:...
  • Page 44 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 • The parameter can be showed but not changed. 11.2 E 1 - P 2 - P NTER THE PROGRAMMING LEVELS Pr1 LEVEL: Push SET + DOWN together for 3 seconds, the top display shows the PAS label and the bottom display shows the Pr1 label. The leds cir1/cir2 are blinking (up and down leds) to inform that you now are in PR1 programming level.
  • Page 45 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Parameter status, leds and bottom display in Pr1 • If the selected parameter can not be changed the leds 1 and 2 are blinking. • In Pr1 level the user can not see and change any parameter of Pr2 and Pr3. •...
  • Page 46 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 • Leds 1 / 2 are blinking: the parameter can not be changed. • All the leds are off: the parameter is available only in Pr3. • Led 4 on: the parameter can be changed also in Pr2. •...

  • Page 47: Selection And Start Of The Running Mode

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Proportional output configured as ON/OFF Analogue input configured as digital input have a different parameter description that allows to configure the operating mode and the corresponding polarity. Example of programming: The bottom display shows the parameter label (CF36) Digital input ID1 configuration; Note that the top display shows “c”...

  • Page 48: Unit Start- Stop

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 12.3 C – H HILLER UMP FUNCTIONING MODE IT IS DEFINED BY THE PARAMETER CF78. 12.4 K EYBOARD SELECTION CF78 = 0: pushing key the unit starts in chiller, pushing key the unit starts in heat pump CF78 = 1: pushing key the unit starts in heat pump, pushing key the unit starts in chiller...

  • Page 49: Display Layout

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 14 DISPLAY LAYOUT As default, In normal condition, the display shows the circuit 1 information. The displayed circuit is indicated from the corresponding led Cir1 on (UP key), or Cir2 (circuit 2, DOWN key). 14.1 H OW TO SHOW THE MEASUREMENT LIST With the led Cir1 on, push UP or Down keys to display the labels of the information of the circuit 1.
  • Page 50 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Select the dP01 parameter into the range 0..14 descripted here below: PARAMETER CORRESPONDING DESCRIPTION VALUE LABEL dP01=0 No display read out No label dP01=1 NTC temperature probe of the evaporator water inlet Out1 circuit 1 dP01=2 NTC temperature probe of the evaporator water outlet 1 and 2...
  • Page 51 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 15.2 D EFAULT READ OUT OF THE BOTTOM DISPLAY To set the default value displayed on the bottom display: Set the parameter dP03 = 0, it means configurable; Select the dP02 parameter into the range 0..17 descripted here below: PARAMETER CORRESPONDING DESCRIPTION...

  • Page 52: Display Information

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Bottom display: circuit 2: • Evaporator 2 water outlet, with the label OuT2. Par. dP03 = 2 Top display of the circuit 1: • Condenser 1 water inlet temperature with the label CIn1 Bottom display of the circuit 1 •...

  • Page 53: Function Menu " M" Key

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 16.4 D ISPLAY IN EMOTE From digital input configured as remote ON/OFF: the active input sets the unit in OFF (even when the unit is a motocondensing unit). The top display shows “OFF ”, the led of the decimal point is blinking. 16.5 D ISPLAY IN OTOCONDENSING CONFIGURATION...
  • Page 54 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Repeat operation 1 – 5 to reset the other alarms. 17.3 C OMPRESSOR OVERLOAD PASSWORD The default value is 0 to change this value enter Pr3 level under the AL parameter family 17.4 A LARM LOG LIST ALOG FUNCTION TO SEE THE ALARM LOG...
  • Page 55 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 To exit the COEn function push MENU key or wait the timeout. 17.10 R OUT OF A COMPRESSOR OT ENABLED During the normal running condition a disabled compressor is displayed with a blinking label alternated with the measurement value of the display.
  • Page 56 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 17.16 R OUT OF THE ROPORTIONAL UTPUT PERCENTAGE OF THE CONDENSER FAN CONTROL The proportional outputs of the two circuits, that control the fan speed, can be showed in the menu function. Cond FUNCTION selects the proportional output 1 and 2.

  • Page 57: Energy Saving

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 FUNCTION trEM to show the temperature of the remote panels Identification label trEM. trE1 value of the NTC probe of the remote #1 trE2 value of the NTC probe of the remote #2 Select with UP or DOWN the trEM function Push SET the trE1 or trE2 label is shown on the bottom display, the top display shows the probe value.

  • Page 58: Dynamic Setpoint

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Energy saving or unit ON/OFF where: X with range 0..7 represents the energy saving with RTC and X Y where: Y with range 0..7 represents the unit on/off Example of a daily programming: Monday Enater parameter programming In the ES parameter family, select the parameter ES07, the top display shows 0 - 0...
  • Page 59 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 • In chiller mode the parameter Sd01 is not equal to 0. • In heat pump mode the parameter Sd02 is not equal to 0. • a 4÷20mA analogue input is configured as dynamic setpoint control or a NTC analogue input is configured as external air temperature for dynamic setpoint control.

  • Page 60: Auxiliary Relays

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 20 AUXILIARY RELAYS The auxiliary relays can be configured to manage two independent, from heat pump or chiller mode, output controls. Each output can be managed with a dedicated temperature or pressure probe input ( NTC probe, 4..20mA or 0..5V transducers) or with the common available temperature or pressure configurable inputs.

  • Page 61: Selection Of The Kind Of Thermoregulation

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Par. ST04 Heat pump setpoint It allows to set the Heat pump working temperature within the range ST05..ST06. Par. ST05 Minimum setpoint limit in heat pump. The user can not program a setpoint value lower than ST05, the range is –30 °C..ST04. Par.

  • Page 62: Graph Neutral Zone Compressor Control

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 22.2 G RAPH OF THE COMPRESSOR THERMOREGULATION N HEAT PUMP 22.3 GRAPH NEUTRAL ZONE COMPRESSOR CONTROL Not yet available on this version Compressor regulation in chiller Compressor regulation in heat pump 22.4 GRAPH PROPORTIONAL INTEGRAL COMPRESSOR REGULATION CONTROL Not yet available on this version Compressor regulation in chiller...
  • Page 63 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Par. Ar07 = 3: the thermoregulation, the anti-freeze alarm and the relay outputs for heaters circuit 1 and 2 is controlled throughout the NTC probes configured as evaporator water outlet circuit #1, circuit #2 and evaporator water common outlet , or if they are all configured, by the first probe that goes below the setpoint.

  • Page 64: Anti - Freeze Alarm And Heaters Regulation Through Digital Input

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 23.6 G RAPH OF THE ANTI FREEZE INTEGRATION HEATING BOILER HEATER RELAYS 23.7 B ), B OILER THERMOREGULATION ANTIFREEZE OILER FUNCTION To determine the electrical heater control in chiller or heat pump mode because the electrical heaters can be used as anti-freeze or can also be used to integrate or heating the heat pump mode or in particular situation in chiller mode.

  • Page 65: Saturation - Circuit Balancing

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 CO14= 0 Sequential. Depending on the thermoregulation: the 1 compressor is turned on, then the 2 and the 3 etc.; then the 3 off, the 2 and then 1st. The first is off only if the 2 and 3 are off.

  • Page 66: Part Winding

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Fig. 1 27.3 D IRECT START UP OF A CAPACITY COMPRESSOR When working with capacity compressors and with full power start-up: the controller turns the solenoid valve on first and then, after 1 second, the compressor motor.

  • Page 67: Capacity Control

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Set Par CF56 = 31. Star-delta centre relay of the compressor #1; 27.8 S ELTA TART OMPRESSOR Each compressor needs three relay outputs: One relay output as Line #1 of the compressor #1 (Relay K1 of the Fig.3). One relay output as Line #2 of the compressor #1 (Relay K3 of the Fig.3).
  • Page 68 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Compr. Compressor ON Compressor ON Compressor ON Compressor ON Out relay Step P 1 ON Step P 1 ON Step P 1 ON Step P 1 OFF Out relay Step P 2 OFF Step P 2 ON Step P 2 ON Step P 2 OFF...

  • Page 69: Pump Down

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Having one compressor with 3 partializations, with CO07=2 when the compressor is off the partialization valve is always on, so as, in case of start-up, it allows to have the minimum load. After the compressor is started the valve is on only for CO13 time and it won’t be considered as regulation step.
  • Page 70 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 If the thermoregulation is stopped via digital input (as remote off) or from chiller/heat pump keys, during the pump down process the chiller or the heat pump led will blink. When the next thermoregulation restarts the PD solenoid valve turns on and after 1 seconds, if the low pressure switch is not active, the compressors start.

  • Page 71: Unloading

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 ATTENTION If the pump down function is enabled, during the unit start-up from digital input as pump down pressure switch and also from analogue input as low pressure transducer, the compressor will restart only if both the inputs are satisfied. 29.5 P OWN ALARM DURING COMPRESSORS SWITCHING OFF ACTIVATION...

  • Page 72: Regulation

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 30.4 U NLOADING WITH RESSURE ONDENSING TEMPERATURE OR VAPORATING PRESSURE CONTROL The function is always enabled for both the running mode in order to reduce the load and helps the unit to start: in chiller for high temperature of the external air to avoid high pressure alarms, in heat pump for low temperature of external air to avoid the low pressure alarms.

  • Page 73: Water Pump Of The Evaporator / Supply Fan

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 ATTENTION The display resolution is 0.1°C until the read-out is 99.9, over 100°C it is 1°C. 32 WATER PUMP OF THE EVAPORATOR / SUPPLY FAN 32.1 WATER PUMP OF THE EVAPORATOR / SUPPLY FAN ( With only one evaporator water pump configured, the parameter CO19 / CO20 values do not affect the water pump functioning itself.

  • Page 74: Hot Start

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Note: During the defrost and when the compressor is off in dripping time the pump is on. 33.3 H TART FA25 Hot start Setpoint Low temperature value of PB2 to stop the supply fan. This function is available only with air / air unit configured as heat pump and allows to run the supply fan only when the air temperature is enough hot.

  • Page 75: Load Maintenance

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 36 LOAD MAINTENANCE PARAMETERS CO26..CO31 are the set of the running hour counters of the compressors. They establish, for each load, the number of running hours limit to display a maintenance message. If one of these parameters is equal to 0 the maintenance signalling is disabled but the running hours counter remains active.

  • Page 76: Pwm Output For Fan Control

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 37.1 ’ OUTPUT STEP RELE CONDENSER FAN Par FA01 = 2 ON/OFF step regulation N° 1 circuit with 4 step of ventilation Step regulation OUT relè step n° 1 step n° 2 step n°...
  • Page 77 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Pg.76/105...

  • Page 78: Defrost Cycle

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 37.5 G : ON / OFF RAPH REGULATION OF THE CONDENSER FAN HILLER 37.6 G : ON / OFF RAPH REGULATION OF THE CONDENSER FAN 38 DEFROST CYCLE The defrost cycle starts only if all these steps are determined: CF02=1 heat pump unit.

  • Page 79: Combined Defrost

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 The count-down to the defrost cycle starts when the temperature/pressure of the probe, configured as condensing/evaporating circuit 1 or 2 probe, is lower than dF02 parameter. After the dF09 counting the instruments checks the temperature probe value (configured as combined defrost circuit 1 or 2) and if it is lower than dF10 (temperature setpoint to start the defrost of the circuit1) or dF12 (temperature setpoint to start the defrost of the circuit2) the defrost cycle starts otherwise the unit still runs in heat pump mode.
  • Page 80 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 The compressors and the steps are turned off ( the compressor/s led is blinking, the defrost led is on) Start the dF07 / 2 (half time) time counting; The valve is activated; Start the dF07 / 2 (half time) time counting.
  • Page 81 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 After the interval dF09 determined by the defrost request of one of the circuits the other 2 circuits must wait also the time dF06 before defrosting. dF07 Compressor off time before the defrost (the led of the compressor is blinking) After the dF09 delay and before activating the defrost, the compressors are stopped for the dF07 time.

  • Page 82: Recovery

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 39 RECOVERY The recovery function is Enabled if: 1 Par. rC01 not equal to 0. 2 Chiller running mode. 3 The recovery key is pushed to enable the function and the recovery led is on. 4 The condensing temperature / pressure is lower than set rC06 –rC07 (differential).

  • Page 83: Condenser Temperaure / Pressure Condition To Enable/Disable The Recovery Cycle

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 When the system is running with 100% (eg all the three compressor of a circuit are on) of power and the digital input stop the recovery function: after the rC04 time delay (minimum on time of the recovery function when activated) and before turning off the recovery valve, one of the step is turned off for the time set in rC02.

  • Page 84: Messages - Alarm Codes

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 40.2 R ECOVERY NABLED If the temperaTure/pressure decreases under the set rC06-rC07 (differential) the recovery cycle, of the circuit detected by that transducer , is anabled again. 40.3 N BOUT ECOVERY NABLED ISABLED To avoid long periodof time with recovery function disabled and the temperature/pressure within the range rC06-rC07, the units starts...

  • Page 85: Atsf: Overload Alarm Of The Supply Fan

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 CO16 / CO21=2 Compressor on – pump on The alarm is managed only if one digital input is configured as flow switch, the restart is always automatic, in stand–by or remote OFF ( pump off), it becomes manual after AL16 events per hour.

  • Page 86: Acf1 - Acf2 - Acf3 - Acf4 - Acf5 - Acf6 - Acf7 - Acf8 - Acf9 Configuration Alarm Of The Unit

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 41.8 AF OWER SUPPLY FREQUENCY ALARM Label on the display AFr (Line frequency alarm) Origin The power supply frequency is not equal to the Par. CF81 + tolerance Reset Ferquency control parameter adjusted, disabled CF81 = 2, frequency within the tolerance Restart Automatic Icon...
  • Page 87 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 ACF6 • The total number of compressor of the 2 circuits ( CF04 + CF05 ) is: √ > 6 √ > 4 with no direct compressor start-up (CO10 ≠ 0) or the number of steps is ≠ 0 (CF06), √...

  • Page 88: Alarm Relay And Buzzer

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 41.12 A LOCK ALARM ArtC (clock alarm) Label o the display Origin Wrong setting Reset Clock adjusted Restart Manual in function menu Icon Blinking Action Alarm relay + buzzer ON Regulation Loads Not changed Energy saving...
  • Page 89 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Actions Only signalling Loads Not modified 41.17 B1HP - B2HP H RESSURE SWITCH CIRCUIT Label on display b1HP (high pressure switch circuit #1) b2HP (high pressure switch circuit #2) Reason The unit is running and the digital input of the high pressure switch is active Reset Digital input not active Restart...
  • Page 90 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Normal conditions, stand-by, remote OFF: when the anti-freeze probe value is lower than AL33 for Origin AL36 seconds. With the anti-freeze digital input is active. When the anti-freeze probe value is higher than AL33 + AL34(differenziale). Reset With digital input ont active Restart...
  • Page 91 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 41.24 ONDENSER FAN OVERLOAD ALARM Label o the display b1tF (Condenser fan overload alarm of the circuit #1) b2tF (Condenser fan overload alarm of the circuit #2) When the digital input is active Origin When the digital input is not active Reset...
  • Page 92 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Action Alarm relay + buzzer ON Compressor involved If AL47=0 or 1: OFF Compressor not involved If AL47=0: it follows its regulation. If AL47=1: OFF ATTENTION The parameter AL47 determines the functioning of the overload alarm of the compressors. If AL47 = 0 single compressor locked when its digital input protection is active, on the display the corresponding alarm message.
  • Page 93 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 41.33 1PH - 2PH: P OWN STOP ALARM FROM PRESSURE SWITCH OW PRESSURE SWITCH Label on the display b1PH (Pump down stop alarm of the circuit 1) b2PH (Pump down stop alarm of the circuit 2) Origin Pressure switch: if CO36 = 1,2,3,4 and ID not active, the pump down stops because of the timeout CO39.
  • Page 94 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 41.37 ACP1 - ACP1 C ONDENSER PUMP MINTENANCE ACP1 (Condenser #1 pump maintenance) Label o the display ACP1 (Condenser #2 pump maintenance) Pump running hours > Hour counter setpoint Origin Reset Hour reset in function menu Restart Manual...

  • Page 95: Alarm: "A" Type And Corresponding Output Off

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 43 TABLE OF THE OUTPUT STATUS IN ALARM CONDITION The alarm codes are made of letters and numbers to define the different typologies:. 43.1 ALARM: “A” TYPE AND CORRESPONDING OUTPUT OFF Alarm Alarm description Compressor...

  • Page 96: Alarm: "A" Type And Corresponding Output Off

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 ACF8 Configuration alarm ACF9 Configuration alarm ArtF Faulty clock ArtC Clock error AEUn Unloading signalling from high temp of. evaporator water ALti Low evaporator inlet temperature in air/air unit AEP1 Evaporator #1 water pump maintenance AEP2 Evaporator #2 water pump maintenance ACP1...

  • Page 97: Alarm: "A" Type And Corresponding Compressor Output Off

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 43.3 ALARM: “A” TYPE AND CORRESPONDING COMPRESSOR OUTPUT OFF Alarm Alarm description Compressor Compressors not involved Code C(n)HP Compressor(n) high pressure switch C(n)oP Compressor(n) oil pressure switch / Oil level switch C(n)tr Compressor(n) overload C(n)dt...

  • Page 98: Black-Out

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 44 BLACK-OUT After the black-out is restored: The instrument resores the same operating mode lost after the supply failure. If active, the defrost is aborted. All the timers and time parameters are reloaded. The manual alarm is not reset.

  • Page 99: Metal Front Frame

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 45.4 METAL FRONT FRAME 45.5 V 620 – V ERTICAL BOARDS PANEL CUT The remote terminals are for panel mounting, panel cut-out 72x56 mm, and screwed with two screws. The IP65 can be reached with the gasket RGW-V (optional). WALL MOUNTING: use the vertical V-KIT (black, white and grey) as described in the following scheme: Pg.98/105...

  • Page 100: Electrical Connections

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 46 ELECTRICAL CONNECTIONS The instrument is provided with: • 3 removable terminal blocks MOLEX with 0.5 mm wires: 16 / 8 /22 ways for digital / analogue inputs and modulating outputs. •...

  • Page 101: Transformer

    NVERTER ICROFAN VAC UP TO KW OR Dixell models XV340GS, power up to 8KW (scheme 2) (Scheme 2) 47.3 TRANSFORMER The standard power supply is 12 volt AC/DC or 24 volt AC/DC (optional) The TF10 trasnformer models: 230/12 Vac , 230 /24 Vac, 110 / 12 Vac, 24 / 12 Vac...

  • Page 102: Technical Data

    1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 48 TECHNICAL DATA Housing: self extinguishing ABS. Case: frontal 185x38 mm; depth 70mm (L format) Mounting: panel mounting in a 150x31mm panel cut-out Frontal protection: IP65 with gasket Display: Top Display 3 digits with d.p. Bottom Display 4 digits with d.p.
  • Page 103 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 NOTE Pg.102/105...
  • Page 104 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005...
  • Page 105 1592015300 User manual iCHILL 200 L GB r1.3 09/09/2005 Dixell S.p.A. Z.I. Via dell’Industria, 27 32010 Pieve d’Alpago (BL) ITALY tel. +39 - 0437 - 98 33 - fax +39 - 0437 - 98 93 13 E-mail:dixell@dixell.com - http://www.dixell.com Pg.104/105...
