Airtraq A-360 Instructions For Use Manual

Wi-fi camera
Hide thumbs Also See for A-360:
Table of Contents

Advertisement

Quick Links

Download this manual

IMPORTANT SAFETY INSTRUCTIONS

1. Keep, read and follow all of these instructions.
2. Heed all warnings in these instructions.
3. The A-360 does not work when it is being charged. It should be
charged at least 1.8 m away from the patient.
4. Use only the A-360´s battery charger supplied by the
manufacturer.
5. A-360 is portable RF communications equipment. It may cause
radio interference or may disrupt the operation of nearby
equipment. It may be necessary to take mitigation measures, such
as, reorienting or relocating the A-360.
6. To reduce the risk of fire or shock hazard, do not expose this
equipment to rain or moisture.
7. Do not charge near any heat source such as radiators, heat
registers, stoves or other apparatus that produces heat.
8. Protect the charging cord from being damaged.
9. Do not use this equipment in presence of flammable anaesthetics.
10. ESD (Electrostatic discharge) may cause malfunction of these
devices.
11. Unplug this apparatus during lightning storms or when unused
for long periods of time.
12. Do not place vessels containing liquids on top of the apparatus.
Do not splash liquids on top of the device.
13. Do not attempt to service these devices yourself as opening or
removing covers may expose you to hazards. Refer all servicing to
qualified service personnel from your Airtraq distributor.
A-360 Wi-Fi CAMERA
INSTRUCTIONS FOR USE
ENGLISH
www.airtraq.com
Rev.1.2./2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-360 and is the answer not in the manual?

Questions and answers

Related Manuals for Airtraq A-360

Summary of Contents for Airtraq A-360

  • Page 1: Important Safety Instructions

    1. Keep, read and follow all of these instructions. 2. Heed all warnings in these instructions. 3. The A-360 does not work when it is being charged. It should be charged at least 1.8 m away from the patient. 4. Use only the A-360´s battery charger supplied by the A-360 Wi-Fi CAMERA manufacturer.

  • Page 2: Table Of Contents

    Description: Airtraq Wi-Fi Camera 2. A-360 BASIC INFORMATION INDEX Page The A-360 has been specially designed to work only as an accessory for the Airtraq Video Laryngoscope. 1. Product code and Description ..........3 2. A-360 Basic information ............3 The A-360 provides colour and real-time images on its 2.8 inch 3.

  • Page 3: A-360 Switches, Indicators And Connectors

    100 minutes. Recharging takes approximately 150 minutes. Without use, a fully charged battery, will hold 20 % of charge (20 minutes of use) after 20 days. If the A-360 can be turned on then a minimum of 15 minutes of operating time is guaranteed.

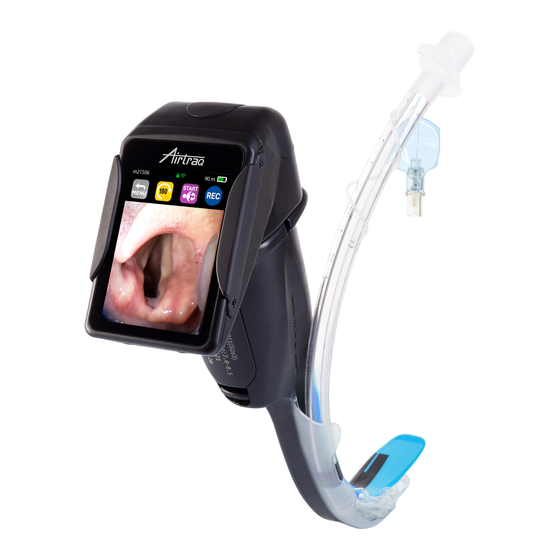

  • Page 4: Mounting The A-360 Onto The Airtraq

    • 1 Blinking Green Light: Battery < 30 % (operating time: 10 to 30 • Slide A-360 onto Airtraq. min.) • 1 Steady Red Light: Battery too low (A-360 will not turn on) During the charging process, if the screen is touched, an icon on the screen will indicate charge status, as follows: •...

  • Page 5: Turn On/Off. Stand By

    270 on the perpendicular axis. • Image can be rotated upside down when necessary using the • Automatically by sliding A-360 onto an Airtraq. It will log on to Rotate Icon “Live Video” function. • Pressing for 2 seconds the orange On/Off button. A-360 will log on to “Main Menu”.

  • Page 6: Help

    Select Help icon in main menu and choose desired topic on help Info screen. The manufacturer recommends watching all tutorial videos before using the A-360. 10. INITIAL SET UP Go to “Main Menu”. Select “Settings”. • Set Device ID: Go to Wi-Fi Settings menu to set Device ID. Any...

  • Page 7: Screen

    Video files will be recorded in .mpg format and stored in A-360´s Right and Left navigation icons to select the position to be set. Use internal memory. A-360 is able to store more than 24 hours of video. “+” and “-“ icons to select the desired value. Use the confirmation Recording provides better resolution videos when Wi-Fi is disabled.

  • Page 8: Connecting Wi-Fi Live Video To Ipad /Iphone

    Recorded videos are internally recorded in mpg format when the section in Airtraq website www.airtraq.com and install it. A-360 is shut down. If A-360 is connected to a PC immediately after recording a video, then it may take some time before the video is Enable Wi-Fi on A-360 Main menu.

  • Page 9: View System Information

    A-360 screen. level disinfection between each patient use. Be sure to follow your If the A-360 cannot be shut down try a hard reset by pressing the institution’s specific cleaning procedures in consultation with this Reset Button, located near the lens of the camera, using a thin bar.

  • Page 10: Operating, Storage And Transport

    This device complies with the Harmonized European Standard EN 301 489-17 23. OPERATING, STORAGE AND TRANSPORT This device is in compliance with the RoHS European Directive. The A-360 should not be used, stored or transported at temperatures IEC 60601-1 and IEC 60601-1-2 NOTICES AND WARNINGS below 0 C/32...

  • Page 11: Disposal Instructions

    FCC AND INDUSTRY CANADA NOTICES AND WARNINGS accept any interference, including interference that may cause undesired operation of the device. FCC COMPLIANCE: Cet appareil est conforme aux normes CNR exemptes de licence Statement according to FCC part 15.19. d’Industrie Canada. Le fonctionnement est soumis aux deus conditions This device complies with part 15 of the FCC Rules.
  • Page 12 (www.airtraq.com). Before making your call please have the serial Hi-Tec Coast, Zhuhai, Guangdong 48930 Las Arenas (Vizcaya) number ready. The serial number of the A-360 is located on a sticker 519085 P.R. China SPAIN near the lens of the camera and also on the original package.
