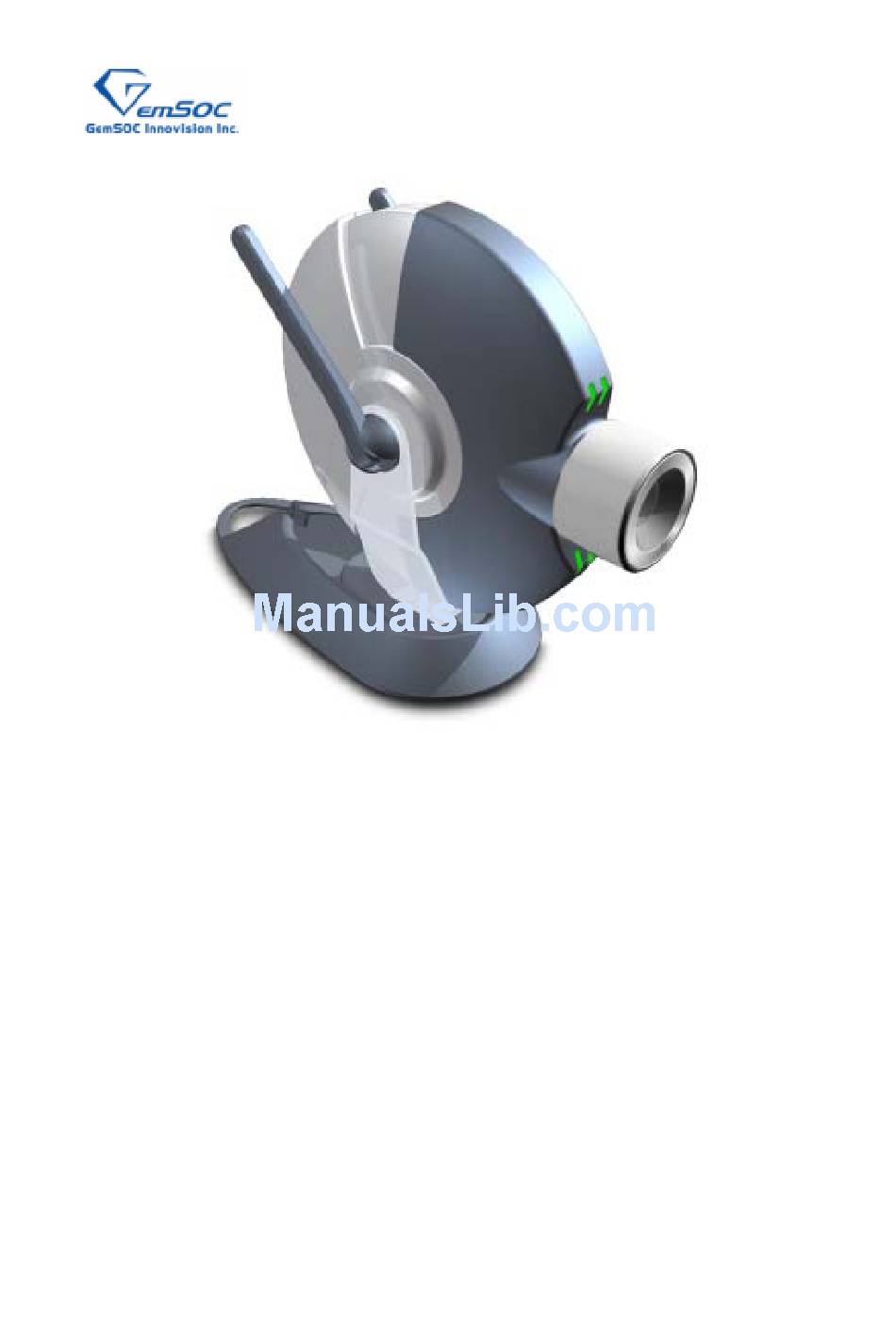

IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual
IPC-4000 Wireless MPEG4 IP Camera
Quick Start Manual
Version 0.30
July 2003
(for firmware release 07/14/2003 or later)
IP Address: Automatic IP (DHCP)
Wireless LAN ESSID: Auto Search
Username: admin
Password: admin
IPS Division, GemSOC Innovision

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC-4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for GemSOC IPC-4000

  • Page 1 IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual Version 0.30 July 2003 (for firmware release 07/14/2003 or later) IP Address: Automatic IP (DHCP) Wireless LAN ESSID: Auto Search Username: admin Password: admin...

  • Page 3: Optional Items

    IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual 1 What you need before setup Required IPC-4000 IP Camera 5V Power Adaptor 802.11b Compliant Wireless LAN Environment Optional items Ethernet RJ-45 Cable Cross-over Ethernet RJ-45 Cable Video Cable for TV Out...

  • Page 4: Hardware Description

    IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual 2 Hardware Description LED 1 Boot-up/Ready LED 2 Net Traffic LED 1 (Green): Boot-up/Ready LED Notifies if boot-up process is completed; it blinks during boot-up and stays on once system is ready.

  • Page 5: Getting Started

    IP address over DHCP protocol (refer to Network setting of Configuration for details). Therefore you only need to power up IPC-4000 and it will get online automatically. In below example, IPC-4000 gets an automatic IP 192.168.1.113. Go to section “3.3 Use Setup Utility”.
  • Page 6 By default, IPC-4000 will automatically get IP address over DHCP protocol (refer to Network setting of Configuration for details). Therefore you only need to power up IPC-4000 and it will get online automatically. In below example, IPC-4000 gets an automatic IP 192.168.1.113.

  • Page 7: Camera Home Page

    Click the Login button, the IPC-4000 Home Page will be automatically brought up with Internet Explorer. 3.4 Camera Home Page At the IPC-4000 Home Page, enter the username and password to login Default Username: admin Default Password: admin IPS Division, GemSOC Innovision...
  • Page 8 IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual Enter Username and Password 3.5 Live View Page After a successful login, you will see the live view page with the Windows Media Player animation running. Please wait a few seconds (4 ~ 7 sec) while Windows Media Player is buffering the stream, and the progress of buffering is shown at the lower-left corner of the window.
  • Page 9 IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual ATTENTION At the first time of login, you will be asked to install the ActiveX object to enable the Instant Record function, Please click “Yes” to accept and install it. IPS Division, GemSOC Innovision...
  • Page 10 IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual Then Live View page shows the real-time video. Adjust the speaker and PC volume to an appropriate level. You can adjust the display size with the pull-down menu on the left. Instant Help...
  • Page 11 Please make sure you already know the settings of your Wireless LAN Access Point (AP). If you want IPC-4000 to connect to a specific AP, disable Auto Search and enter the ESSID of the AP. If your AP has the WEP Encryption enabled, enter the WEP related information at Advanced mode by hitting the “Advanced”...

  • Page 12: Factory Default

    IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual Imaging Configuration Users are allowed to change Frame Size, Bandwidth, Image Brightness in Basic mode, and Color Emphasis (Red/Green/Black) in Advanced mode, according to the requirements of image quality and network bandwidth.

  • Page 13: Instant Help

    IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual Setup Utility to redo the network settings. 7 Instant Help IPC-4000 has a built-in Instant Help file. You can open it at each page by clicking button. Below is the content of this file for your quick reference.

  • Page 14: Live View Page

    IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual IPC-4000 HELP Live View Page After buffering for a few seconds, live video is displayed at center of this window. If you couldn't see the live view correctly, please check, 1) if Windows Media Player is well installed.
  • Page 15 IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual Display Size Display size of image can be changed by hitting "+" and "-" buttons. Available size ranges from 80x60 to Full Screen. Remember to press "ESC" key to return from Full Screen Mode.
  • Page 16 IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual The Live Capture is regularly triggered at a specified interval. Update Rate Available options are 10 seconds, 15 seconds, 30 seconds, 60 seconds. Default interval is 10 seconds. Capture Resolution Three resolutions are supported at Live Capture mode, which are 640x480, 320x240, 160x120.

  • Page 17: Playback Page

    Note that Quad View function is only accessible to Administrator. Playback Page IPC-4000 is able to store up to 8 alarm events in the built-in alarm memory. By hitting the event button (Event 1 ~ 8), the information of specific event is shown, which includes,...

  • Page 18: Network Configuration Page

    Network Configuration Page Camera Name An alias name of the IPC-4000 for easier identification. The TCP/IP communication port. Default value is 80. It can be changed for the following reason: Security: different port number can better prevent unauthorized Port intruders.
  • Page 19 Internet. DDNS is useful when your ISP doesn't offer you permanent and fixed IP. When a new IP is assigned Dynamic DNS to IPC-4000, it will be automatically registered to a DDNS service provider every hour. So that you don't need to know or (Advanced) remember the IP address on Internet.

  • Page 20: Alarm Configuration Page

    IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual Choose the upper limit of bandwidth. For different bandwidth level, frame rate, image quality, and audio mode(ON/OFF) will be influenced. Below is a simple reference of the relationship between Bandwidth and Audio Mode...
  • Page 21 A overall switch of alarm related function. To disable the alarm Trigger function, simply uncheck this box. IPC-4000 has a built-in simple calendar of alarm active time. To make an Active Time schedule, simply assign the starting time, ending time and days of a week.

  • Page 22: System Configuration Page

    FTP account. To set the FTP account, correct FTP Server, Username and Password have to be entered. System Configuration Page System time of IPC-4000 can be synchronized with the following three methods, with this PC: synchronization is done with the PC system time, as shown right after this selection.
  • Page 23 IPC-4000 Wireless MPEG4 IP Camera Quick Start Manual But it doesn't need a password at login page. Guest account is disabled by default. To enable it, check the Enable Guest Account box and it will be active next time you login.
