- Page 1 USER MANUAL PT-500 HI-ACCURACY THERMOMETER Please read this user manual thoroughly before using this unit and keep it for your future reference.
-
Page 2: Table Of Contents
CONTENTS 1. Safety, Environmental & Maintenance ....1 2. Features ............. 2 3. Specifications ............. 3 4. Meter Description ..........4 5. LCD Display Description ........5 6. Operating Instructions ........6 7. Button Functions ..........7 8. Notes..............8 9. -
Page 4: Safety, Environmental & Maintenance
1. SAFETY Read the following safety information carefully before attempting to operate or service the meter. Use the meter only as specified in this manual; ENVIRONMENT CONDITIONS: Altitude up to 2000 meters RH ≤90%（Non-Condensation） Operating Temperature: -20°C to 60°C MAINTENANCE Repairs or servicing not covered in this manual should only be performed by qualified personnel. -
Page 5: Features
2. FEATURES This item is a contact thermometer with PT-100 input. It is widely used for Hi-Accuracy Applications. • Precise measurement • PT-100 input • Selectable 0.1°C or 0.01°C Resolution • Large 34mm backlit LCD display • DATA HOLD function •... -
Page 6: Specifications
3. SPECIFICATIONS Range -200°C to 400°C or -328.0 to 752.0°F Resolution Selectable: 0.1°C or 0.01°C 0.01°C (-80 to 200°C) 0.1°C (-200°C to 400°C) ±0.05°C (-80°C to 200°C) Accuracy ± 0.1°C (Others) Power 1 x 9V PP3 Battery Weight 292g... -
Page 7: Meter Description

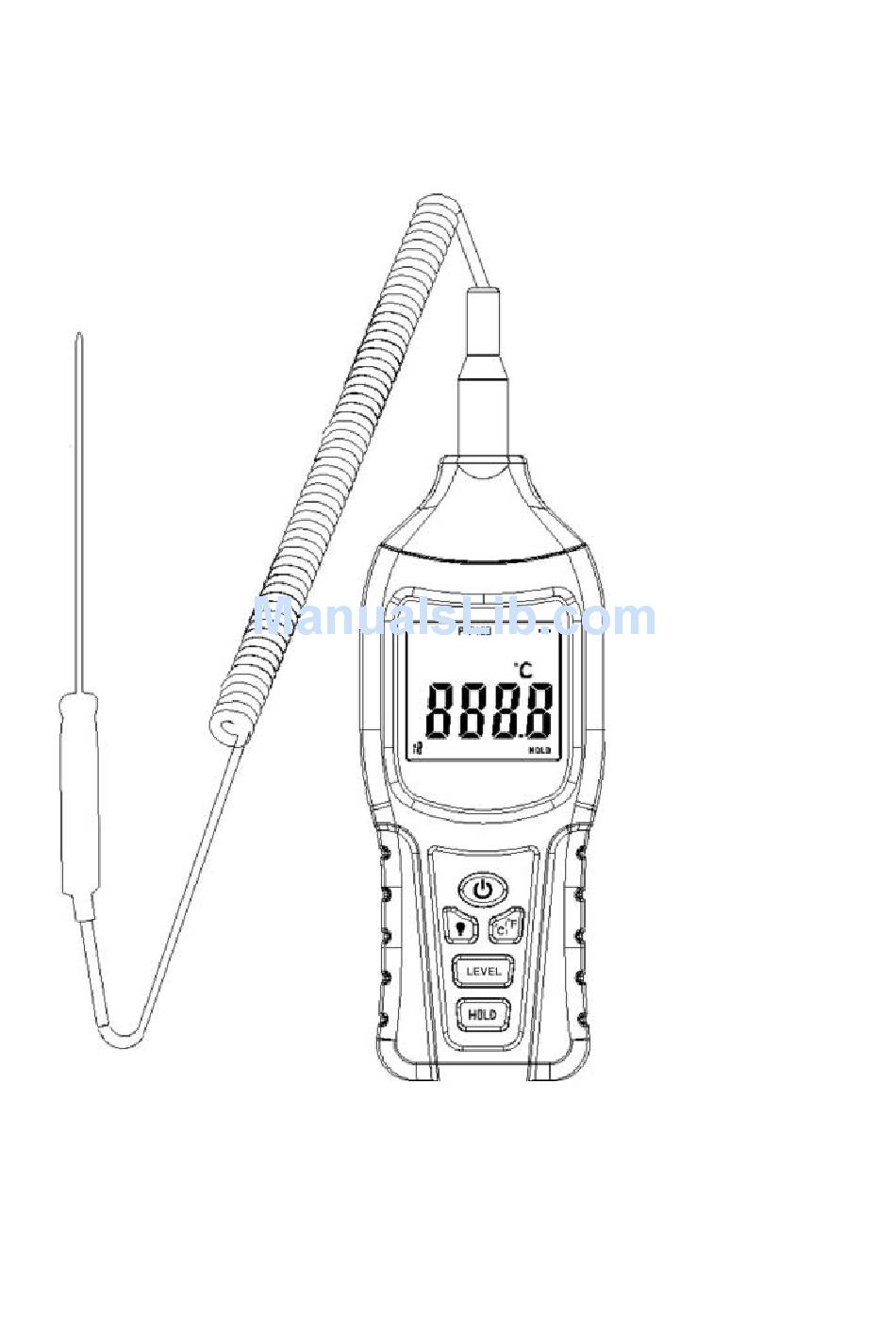

4. METER DESCRIPTION ① PT-100 input connector ② LCD display ③ °C/°F selection button ④ Resolution and measuring range selection button ⑤ Hold button ⑥ Backlight button ⑦ Power ON/OFF button ⑧ Battery Compartment Cover... -
Page 8: Lcd Display Description
5. LCD DISPLAY DESCRIPTION ① Sensor Type ② Low battery Indicator ③ Temp. units icon ④ Reading ⑤ Data Hold Icon ⑥ Auto power off enabled Icon... -
Page 9: Operating Instructions
6. OPERATING INSTUCTIONS Operating steps 1) Open the battery compartment, install a 9V battery and close the battery compartment cover. 2) Connect a PT-100 probe 3) Power on the meter to start measurement. Note: When the low battery icon appears, replace the meter's battery. -
Page 10: Button Functions
7. BUTTON FUNCTIONS 1) Power Button After battery installation press the power button to power on the unit. Hold for three seconds to power the unit off. 2) Backlight Button When powered on, press the backlight button to turn on/off the backlight. -
Page 11: Notes
8. NOTES Do not store or operate the meter in high temperature or humidity. Remove the battery when the meter is to be stored for long periods of time to avoid battery leakage. 9. ACCESSORIES User manual ...
