INSTALLATION INSTRUCTIONS FOR PERGO DEVICE

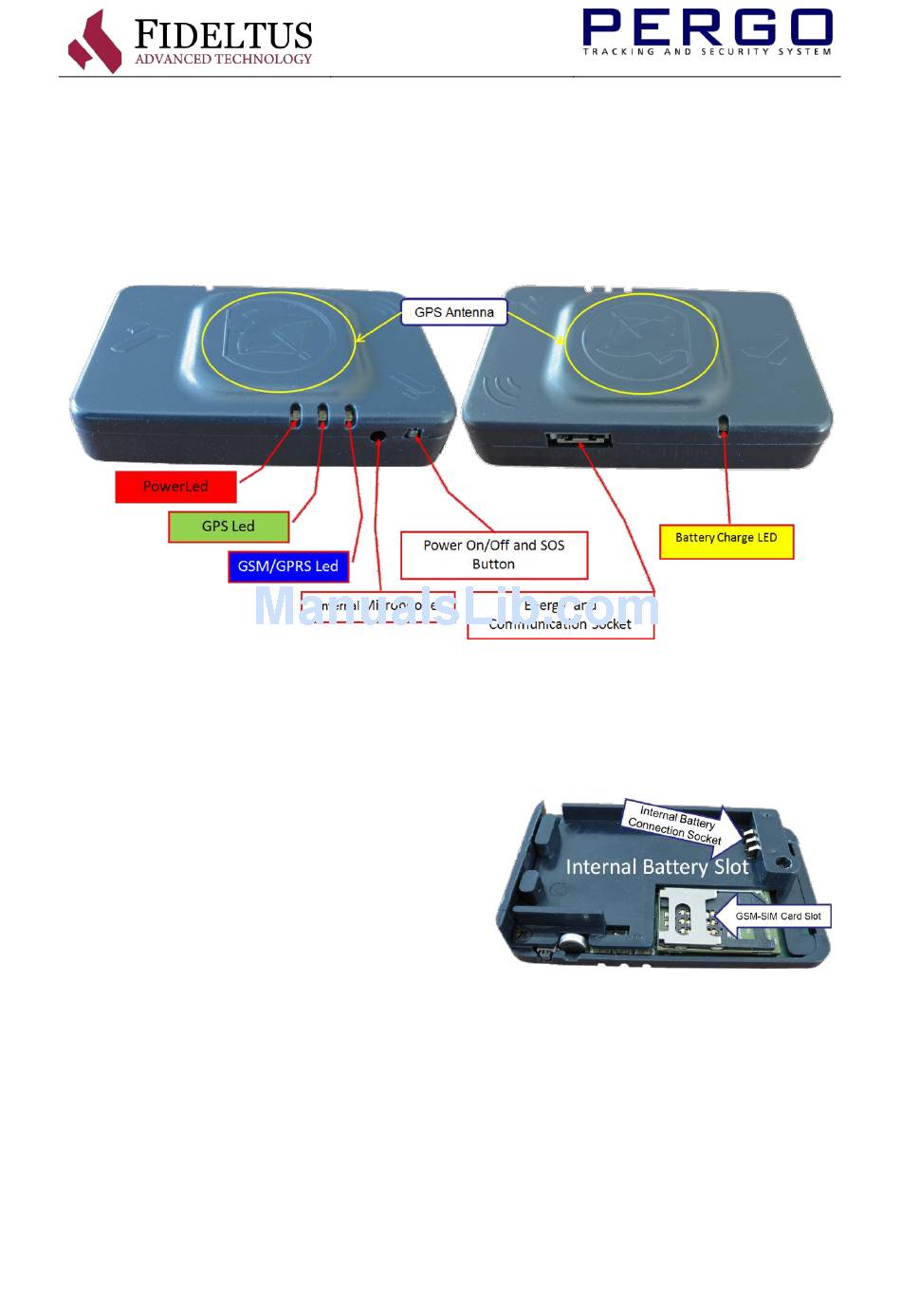

DEVICE OVERVIEW

POINTS TO BE TAKEN INTO CONSIDERATION DURING THE FIXED INSTALLATION OF
THE DEVICE

PREPARING THE DEVICE FOR INSTALLATION

Before beginning the fixed installation of the device into
a vehicle, the SIM card to be used and the battery should be fitted
into the device and operated.
If the security PIN code of the GSM SIM card has not
been cancelled, this should be done or the current PIN code
should be introduced to the device. The GSM SIM card connection
pins must be placed correctly in the SIM card slot on the device
and must fit properly into the space in the "SIM Card Slot."
The power transmission pins of the internal battery that comes with the device must be connected so as to
correspond to the "Internal battery connection pins" shown in the picture, and the Battery must be placed in the "Internal
Battery Slot." The battery must be inserted into its slot from above and in a straight manner. The battery should not be
placed so as to damage or bend the "Internal Battery Connection Pins." The device shall operate automatically when the
battery is first installed. If such operation is not desired, the device should be turned off by holding the on/off button on the
device pressed for 2 seconds.
When beginning installation, the device should be placed on the vehicle on an open and suitable place (with a
view of the sky) enabling the device to fix its position, and should be operated until the device cable is installed in the
vehicle. If the device remains motionless for 3 minutes where it has been placed, it shall automatically initiate low power
12.02.2010, version: 1.8, Page 1
