User's Manual of the DAG Key Gen. 6
User's Manual
of the
DAG Key Gen. 6
Model: HS1
PDSCA1 - T. Herzog
Seite 1 von 6
28.08.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG Key Gen. 6 and is the answer not in the manual?

Questions and answers

Related Manuals for Huf DAG Key Gen. 6

Summary of Contents for Huf DAG Key Gen. 6

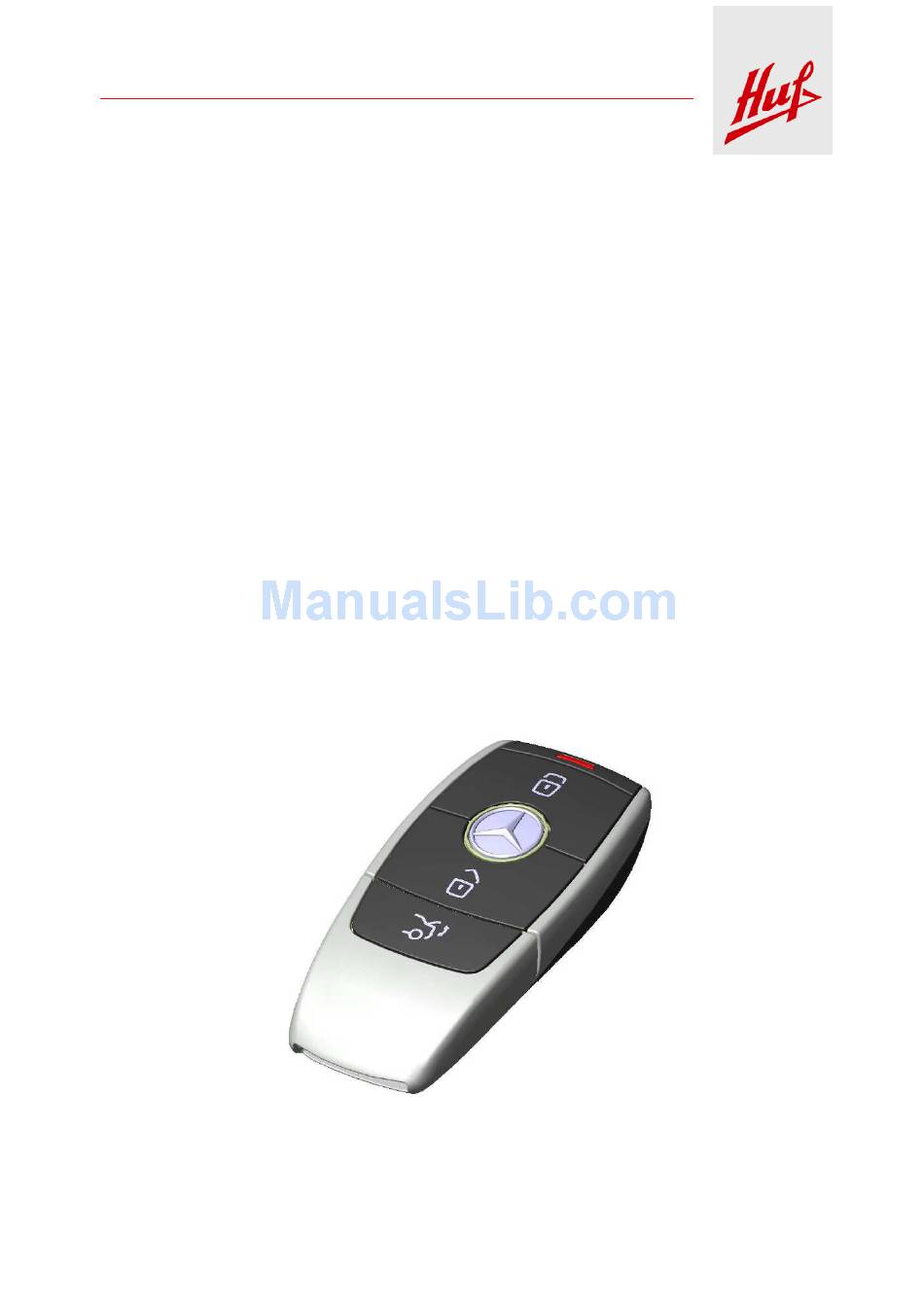

  • Page 1 Huf Hülsbeck & Fürst User’s Manual of the DAG Key Gen. 6 User’s Manual of the DAG Key Gen. 6 Model: HS1 PDSCA1 - T. Herzog Seite 1 von 6 28.08.2014...
  • Page 2 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the DAG Key Gen. 6 Contents 1 General operation of the key ........................3 2 Operating frequencies of HF transferral ....................3 2.1 3-channel ............................3 2.2 Operation of channel-frequencies and power-modes ................. 4 3 Block diagram ............................
  • Page 3 Technical Description and User’s Manual of the DAG Key Gen. 6 1 General operation of the key The DAG Key Gen. 6 consists of a HF transceiver. It is used to transmit the information for locking or unlocking the vehicle by an uni-directional (Remote Keyless Entry RKE) or bi-directional (Keyless Go/Start operation after a LF Wake Up KG) HF transmission.
  • Page 4 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the DAG Key Gen. 6 2.2 Operation of channel-frequencies and power-modes Normally each key operates in 3-channel mode at the respective frequencies listed above. Since some countries allow operation with higher HF-transmitter power, the key fob can be configured between two RF power modes.
  • Page 5 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the DAG Key Gen. 6 4 Technical data 4.1 Electrical characteristics Power supply: Battery (CR2032, coin cell) Type of Battery: Lithium Voltage range: 2,1V … 3,2V Temperature range: RKE/KG: -20°C … +65°C Emergency start: -40°C …...
  • Page 6 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the DAG Key Gen. 6 5 Declaration of Conformity, product Label 5.1 Radio equipment authorization to FCC in USA FCC ID: YGOHS1 The transmitter will be supplied as an original equipment device to the car manufacturer.
