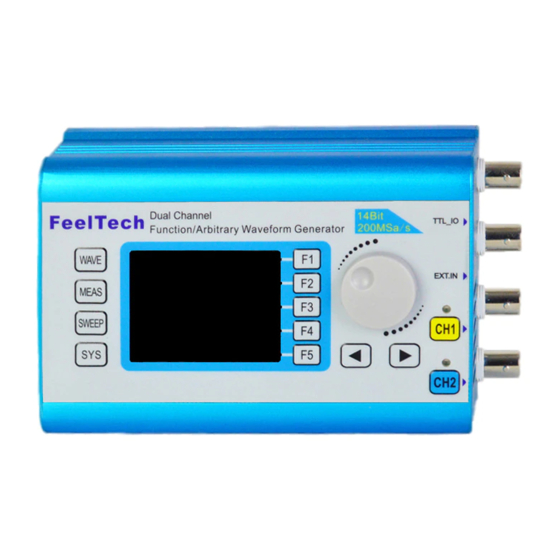

- Page 1 FeelTech FY2300 Series Fully Numerical Control Dual Channel Function/Arbitrary Waveform Generator User’s Manual Rev1.3 January,2016...
-
Page 3: Guaranty And Declaration
FeelTech Guaranty and Declaration Copyright © 2015 FeelTech Technology Co. Ltd. All Rights Reserved. Trademark Information FeelTech is a registered trademark of FeelTech Technology Co. Ltd. Declaration FeelTech reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. -
Page 4: Table Of Contents
Enable the Counter......................Set the Counter........................Sweep........................28 Sweep Object........................Sweep Start Position......................Sweep End Position......................Sweep Time.......................... Sweep Type.......................... Enable Sweep Function...................... System Configuration and Auxiliary Functions........... 34 Save and Load........................Synchronization........................Configuration........................Uplink............................. Troubleshooting......................39 Technical Specification....................40 Appendix.........................43 FY2300 Series User’s Manual... -
Page 5: Brief Introduction
FeelTech Brief Introduction This manual applies to each model of FY2300 series Function/Arbitrary Waveform Signal Generator. The “25M” of the Model Number “FY2300-25M” indicates the Sine wave maximum output frequency is up to 25MHz. FY2300 series Dual Channel Function/Arbitrary Waveform Generator is a... - Page 6 2048 and vertical resolution is 12 bits. High frequency precision up to orders of magnitude. Full range of 1μHz frequency resolution. Minimum amplitude resolution can be up to 1 mV. FY2300 Series User’s Manual...
- Page 7 Output short-circuit protection: All channels can work more than 60 seconds when the load is short-circuited. Can choose our FYV2000 series or FPA1000 series power amplifier to output 20W~60W signal in DC-3MHz width without any distortion. FY2300 Series User’s Manual...
-
Page 8: Quick Start
FeelTech Quick Start General Inspection Please follow the items below when you receive a new FY2300 series Function/Arbitrary Waveform Generator. 1． Inspect the shipping container for damage Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has passed both electrical and mechanical tests. -
Page 9: Front Panel Overview
Can save 20 sets waveform parameters including frequency, amplitude, offset, phase and so on. — System Language has English and Chinese for user’s option. — Buzzer can be turned on/off in this manu. — Set multimachine uplink. — Switch Master-Slave status FY2300 Series User’s Manual... - Page 10 Control CH2 output. Press it to switch to CH2 parameter setting interface. — Press it to turn on CH2 output with current configuration. The indicator will illuminate. — Press it again to turn off CH2 output and the indicator will extinguish. FY2300 Series User’s Manual...
-
Page 11: Right Panel Overview
CH1 and output impedance is no higher than 50Ω. 2) When uplink is enabled and work as slave, the connector works as external signal input interface and input impedance is more than 100 KΩ. Please refer to chapter “Synchronization”. FY2300 Series User’s Manual... -
Page 12: Left Panel Overview
2. USB Device Interface This is for communicating with PC. — Use PC Host software to program. 3. Power Switch Set to “ON” to turn on this instrument or “OFF” to turn it off. FY2300 Series User’s Manual... -
Page 13: Power On And Inspection
If the generator cannot work normally, please check the Chapter “Troubleshooting” for solution. Set the System Language FY2300 series Function/Arbitrary Waveform Generator supports Chinese and English system languages. You can press SYS→CONF to switch the system language. -
Page 14: User Interface
“CH1=Sine” means current waveform selected of CH1 is Sine Wave. It can be changed by press WAVE button. Meanwhile, waveform can be changed quickly by rotating ADJ Knob when waveform switch function is activated. Output status of current channel. FY2300 Series User’s Manual... - Page 15 Display parameters of the channel unselected including frequency, amplitude, offset, phase, duty cycle and output status. These Parameters cannot be changed directly in this interface. If you need to change them, Please switch the channel to be selected. FY2300 Series User’s Manual...
-
Page 16: Appearance And Dimensions
FeelTech Appearance and Dimensions Front View Left View FY2300 Series User’s Manual... - Page 17 FeelTech Right View FY2300 Series User’s Manual...
-
Page 18: Front Panel Operations
Front Panel Operations Waveform Output FY2300 series can output waveforms (Sine, Square, Triangle/Ramp, Pulse and Noise etc.) from one of the channels separately or from the two channels at the same time. At start-up, the dual channels are configured to output a sine waveform with 10kHz frequency and 10Vpp amplitude by default. -
Page 19: Select Waveform
Amplitude √ √ √ √ √ Parameters Offset √ √ √ √ √ Phase √ √ √ √ √ Duty Cycle √ Note: Arbitrary waveforms can be edited and downloaded from PC software provided by FeelTech. FY2300 Series User’s Manual... -
Page 20: Set Frequency
ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. Under setting frequency status, press ADJ Knob to change frequency units among MHz, KHz, Hz, mHz, μHz. FY2300 Series User’s Manual... -
Page 21: Set Amplitude
Then use Arrows button and ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. When Attenuation is 20dB, Amplitude output will be reduced by 10 times. FY2300 Series User’s Manual... - Page 22 According to the figure above, the conversion relation between Vpp and Vrms fulfills the following equation: Vpp = 2 2 Vrms For example, if the current amplitude is 5Vpp, For sine waveform, the converted value is 1.768Vrms. FY2300 Series User’s Manual...
-
Page 23: Set Offset
Press OFFS button to highlight offset value. Then use Arrows button and ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. FY2300 Series User’s Manual... -
Page 24: Set Duty Cycle (Square)
ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. The setting range of duty cycle is 0.1%-99.9%； Press ADJ Knob under duty cycle setting status will initial the value to 50%. FY2300 Series User’s Manual... -
Page 25: Set Phase
Single Channel Extension. Then press PHAS ▼ button to highlight phase value. Then use Arrows button and ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. FY2300 Series User’s Manual... -
Page 26: Enable Output
CH2, then press CH2 to switch between output ON/OFF. 4) Generator is in other working status or current channel selected is not CH2, then press CH2 to make CH2 as channel selected and press CH2 again to switch between output ON/OFF. FY2300 Series User’s Manual... -
Page 27: Example：output Sine Waveform
Press CH1 button to turn CH1 output on. The [CH1] connector outputs the configured waveform. 8. Observe the output waveform Connect the [CH1] connector to the oscilloscope with BNC cable. The waveform is as shown below. FY2300 Series User’s Manual... - Page 28 FeelTech FY2300 Series User’s Manual...
-
Page 29: Generate A Burst Waveform
CH2 Trigger: CH1 will generate a burst when CH2 generates a pulse. Ext. Trigger: CH1 will generate a burst when EXT.IN connector was inputted a pulse. MANU Trigger: User can trigger a burst by pressing ADJ Knob (OK button). FY2300 Series User’s Manual... -
Page 30: Frequency Meter/Counter
Frequency Meter/Counter Interface When the Frequency Meter/Counter is turned on, press STOP button to pause and press ZERO button to reset. Key Point： Amplitude of signal input should be bigger than 1.5V. Maximum safe voltage input is 20V. FY2300 Series User’s Manual... -
Page 31: Set The Counter
Press GATE button to select gate time. The default is “1S”. It’s better to use “10S” as gate time for low frequency signal. Gate Time Frequency Resolution 0.1Hz 100S 0.01Hz Coupling Set the coupling mode of the input signal to “AC” or “DC” and the default is “AC”. FY2300 Series User’s Manual... -
Page 32: Sweep
In Offset Sweep Mode, the generator will output signal variably from start offset to end offset within the specified sweep time. In Duty Cycle Sweep Mode, the generator will output signal variably from start duty cycle to end duty cycle within the specified sweep time. FY2300 Series User’s Manual... -
Page 33: Sweep Start Position
Arrow buttons and rotate the ADJ Knob to set the specified value. For example: START：00.00V Duty Cycle Sweep: Press STAR button to highlight start duty cycle parameter. Press the Arrow buttons and rotate the ADJ Knob to set the specified value. For example: START：50.0% FY2300 Series User’s Manual... -
Page 34: Sweep End Position
Arrow buttons and rotate the ADJ Knob to set the specified value. For example: END：10.00V Duty Cycle Sweep: Press END button to highlight end duty cycle parameter. Press the Arrow buttons and rotate the ADJ Knob to set the specified value. For example: END：80.0% FY2300 Series User’s Manual... -
Page 35: Sweep Time
When Sweep function is enabled, press TIME button to highlight time parameter. Press the Arrow buttons and rotate the ADJ Knob to set the specified value. The default is “1S”. The work range is 10mS~999.99S. For Example: TIME：999.99S FY2300 Series User’s Manual... -
Page 36: Sweep Type
P and T could be current expressed as shown below by the above-mentioned parameters: lg(F P=10 stop sweep T=t+lg(F )/lg(P) start Wherein, t is the time from the start of the sweep and its range is from 0 to sweep. FY2300 Series User’s Manual... -
Page 37: Enable Sweep Function
10mHz to 25MHz Square： 10mHz to 6MHz Ramp： 10mHz to 5MHz Arbitrary：10mHz to 6MHz The generator will restart sweep (according to the current new configuration) from the specified “start frequency” after start or end frequency is changed. FY2300 Series User’s Manual... -
Page 38: System Configuration And Auxiliary Functions
LOAD: To load parameters to current working status from save positions. SYNC: To synchronize CH2 parameter with CH1. Each parameter can be selected separately synchronization including waveform, frequency, amplitude, offset and duty cycle. CONF: To set system language, turn on/off Buzzer and Uplink mode. FY2300 Series User’s Manual... -
Page 39: Save And Load
Select L xx on the right to load parameters from corresponding position to current system status. FY2300 provides 20 positions for saving. The generator will load default parameters from Position 1 automatically after start-up. FY2300 Series User’s Manual... -
Page 40: Synchronization
When AMPL is highlighted, the amplitude of CH2 will vary according to variation of CH1. When OFFS is highlighted, the offset of CH2 will vary according to variation of CH1. When DUTY is highlighted, the duty cycle of CH2 will vary according to variation of CH1. FY2300 Series User’s Manual... -
Page 41: Configuration
Press BUZZ button to turn on/off buzzer. On is the default. Press M/S button to set uplink mode: Master/Slave. Master is the default. Press UPLI button to turn on/off uplink function. Off is the default. FY2300 Series User’s Manual... -
Page 42: Uplink
When the setting above has been finished, all machines in network will work synchronously according to the start phase of master machine. When outputting signal with same frequency, multi channels output can be executed with phase adjustable. FY2300 Series User’s Manual... -
Page 43: Troubleshooting
4) Check whether the indicators of CH1 or CH2 is turned on. If not press corresponding button to turn it on. 5) If the problem is still, please contact FeelTech. FY2300 Series User’s Manual... -
Page 44: Technical Specification
Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, Step. Waveform Length 2048Points Sampling Rate 200MSa/s Vertical Resolution 12 Bits Harmonic ≥45dBc(<1MHz);≥40dBc(1MHz~20MHz); Suppression Sine Total Harmonic <0.8% (20Hz~20kHz,0dBm) Distortion Rise/Fall Time ≤20ns Square Overshoot ≤7.5% Duty Cycle 0.1%~99.9% FY2300 Series User’s Manual... - Page 45 0-4294967295 DC , AC Counter Coupling Working Mode Manual Pulse Width Resolution 5 nS. Max. 10S measurement Voltage Input Range 0.7Vpp~20Vpp Period Measurement Resolution 5ns，Max. Limit 10s Sweep Only CH1 available Sweep Type Linear or :Logarithm FY2300 Series User’s Manual...
-
Page 46: General Specifications
USB to Serial interface. Communicati 9600bps Interface ng Speed Protocol Command line mode, protocol complete open. Voltage Power DC5V±0.5V Range Buzzer Can be turned on/off by setting. Environment Temp.：0~40℃ Humidity：﹤80% Dimension 140mm（Length）X95mm（Width）X54.2mm（Height） Weight Net Weight: 450g， Gross Weight: 750g FY2300 Series User’s Manual... -
Page 47: Appendix
FY2300-25M（25MHz, Dual-channel） 5V 1A Power Adapter USB-B Data/Power Cable Standard BNC-Clip Cable Accessories Resource CD (including the User’s Manual) Warranty Card BNC-BNC cable Options FYA2000/FPA1000 Series Amplifier Note: Options can be ordered from local FeelTech distributors. FY2300 Series User’s Manual... - Page 48 This product enjoy 1 year warranty since its delivery. Damages caused by misuse, vandalism, improper maintenance or force majeure are not covered by the warranty. Any disassembly or amendment without permission will be deemed giving up warranty rights consciously. FY2300 Series User’s Manual...
