Summary of Contents for Roundup WD-50

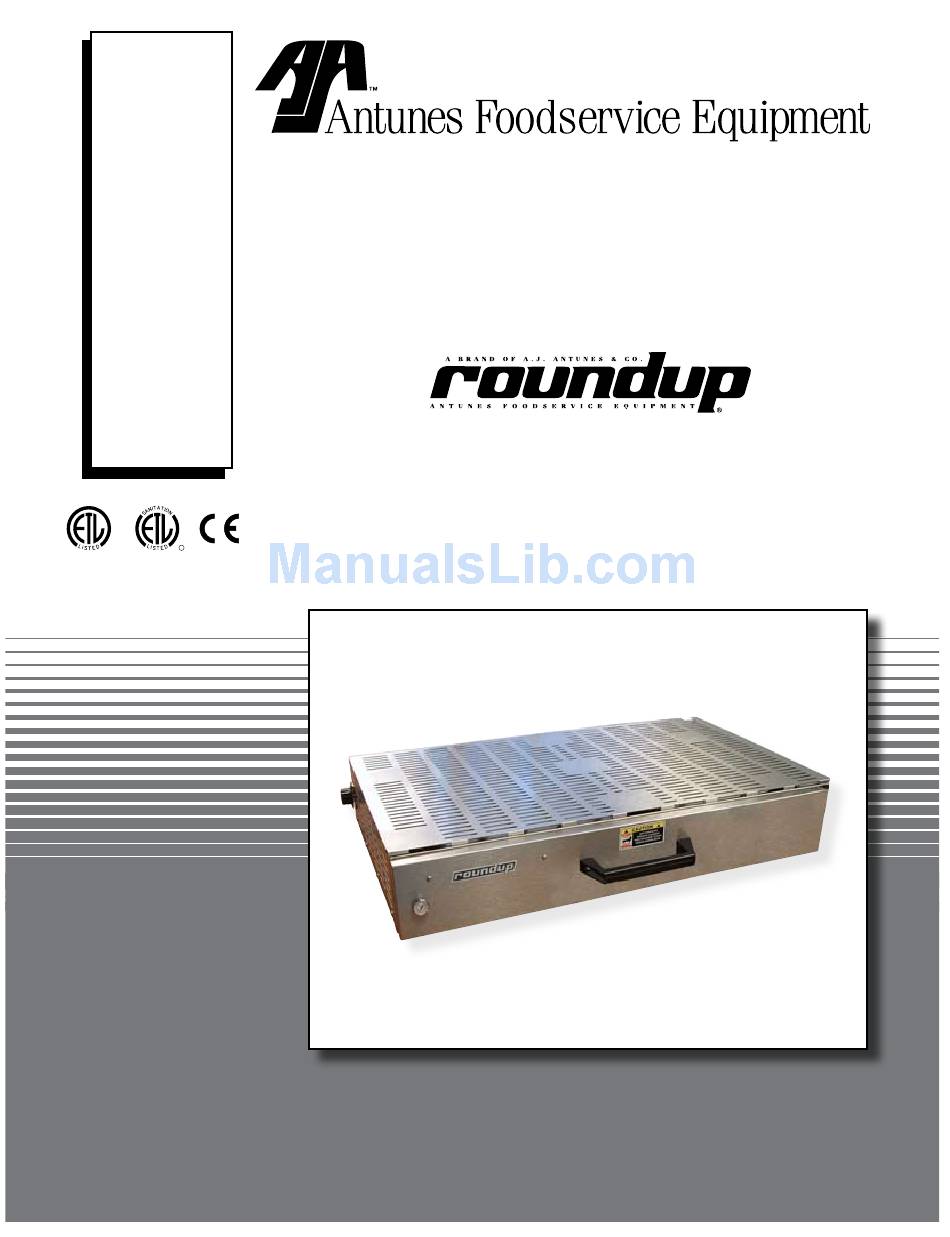

- Page 1 MaNufacturiNg NuMbers: 9400162 Warmer DraWer Model WD-50 P/N 1011046 08/09 Owner s manual ’...
-
Page 2: Table Of Contents
Warmer Drawers are designed to be used sepa- claims are the responsibility of the purchaser and are rately, stacked or to fit under the roundup Hot Dog not covered under warranty. corral. -
Page 3: Service/Technical Assistance
Owner InfOrmatIOn (continued) service/technical assistance authorized service agency if you experience any problems with the installation Name: or operation of your unit, contact your local roundup Phone No.: authorized service agency. address: fill in the information below and have it handy when calling your authorized service agency for assistance. -
Page 4: Important Safety Information
• This equipment should be serviced by qualified personnel only. contact the nearest roundup • warnInG electrIcal shOcK hazarD. authorized service agency for repair. failure to follow these instructions could result in serious injury or death. -
Page 5: Specifications
WarMer DraWer specIfIcatIOns Dimensions model & height width Depth Operating shipping mfg. no. weight weight WD-50 5-3/8" 32-1/2" 21-7/8" 62 lbs. 68 lbs. 9400162 (137 mm) (826 mm) (556 mm) (28 kg) (31 kg) electrical ratings and plug configuration model &... -
Page 6: Installation
When placing the unit into service, pay attention to the following guidelines. • Make sure power to the unit is off and the unit is at room temperature. • Do NOT block or cover any openings on the unit. • Do NOT immerse cord or plug in water. • Keep cord away from heated surfaces. • Do NOT allow cord to hang over edge of table or counter. connect the unit to the power supply. refer to the specification plate for the proper voltage. figure 2. wD-50 accessories P/N 1011046 08/09... -
Page 7: Operation
WarMer DraWer OperatIOn Operating Instructions the recommended starting temperature is 250°f thermostat (121°c). Your operation may require temperature control adjustment up or down, depending on product and usage. Most protein products stay warm at a serving tempera- ture of 160°f (71°c) or above and remain ready to serve for up to 1½... -
Page 8: Maintenance
WarMer DraWer maIntenance weeKly warnInG turn the power off, unplug the power cord, and allow 1. turn the power off, unplug the power cord, and the unit to cool down before performing any service or allow the unit to cool down. maintenance. -
Page 9: Replacing The Thermostat Control
WarMer DraWer maIntenance (continued) replacing the thermostat control Flat side if the thermostat control is removed or needs to be facing up replaced, follow the steps below to ensure it is installed correctly. if the thermostat control is improperly installed, the unit will not operate at the set tempera- tures, which would impact the quality of the food prod- uct inside. -
Page 10: Troubleshooting
WarMer DraWer trOUbleshOOtInG warnInG to avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment should be performed by qualified service personnel. the unit should be unplugged when servicing. problem possible cause) corrective action unit will not heat up. -
Page 11: Wiring Diagram
WarMer DraWer wIrInG DIaGram P/N 1011046 08/09... -
Page 12: Replacement Parts
WarMer DraWer replacement parts P/N 1011046 08/09... - Page 13 WarMer DraWer replacement parts (continued) Item part Description Qty. Item part Description Qty. 2130181 2/3-size Pan, 2.5” Dp. 4030354 thermostat, 315°f 2130182 1/3-size Pan, 2.5” Dp. 0504618 rear Panel 0505866 Pan bottom, 1/3-size 0504626 bottom Weldment 0505865 Pan bottom, 2/3-size 0021596 Heat shield Weldment 0021594...
-
Page 14: Notes
WarMer DraWer nOtes P/N 1011046 08/09... - Page 15 WarMer DraWer nOtes P/N 1011046 08/09...
-
Page 16: Limited Warranty
2. roundup reserves the right to make changes in design or add any improvements on any product. the right is always reserved to modify equipment because of factors beyond our control and government regulations.
