Summary of Contents for Aikexin 4KDK404

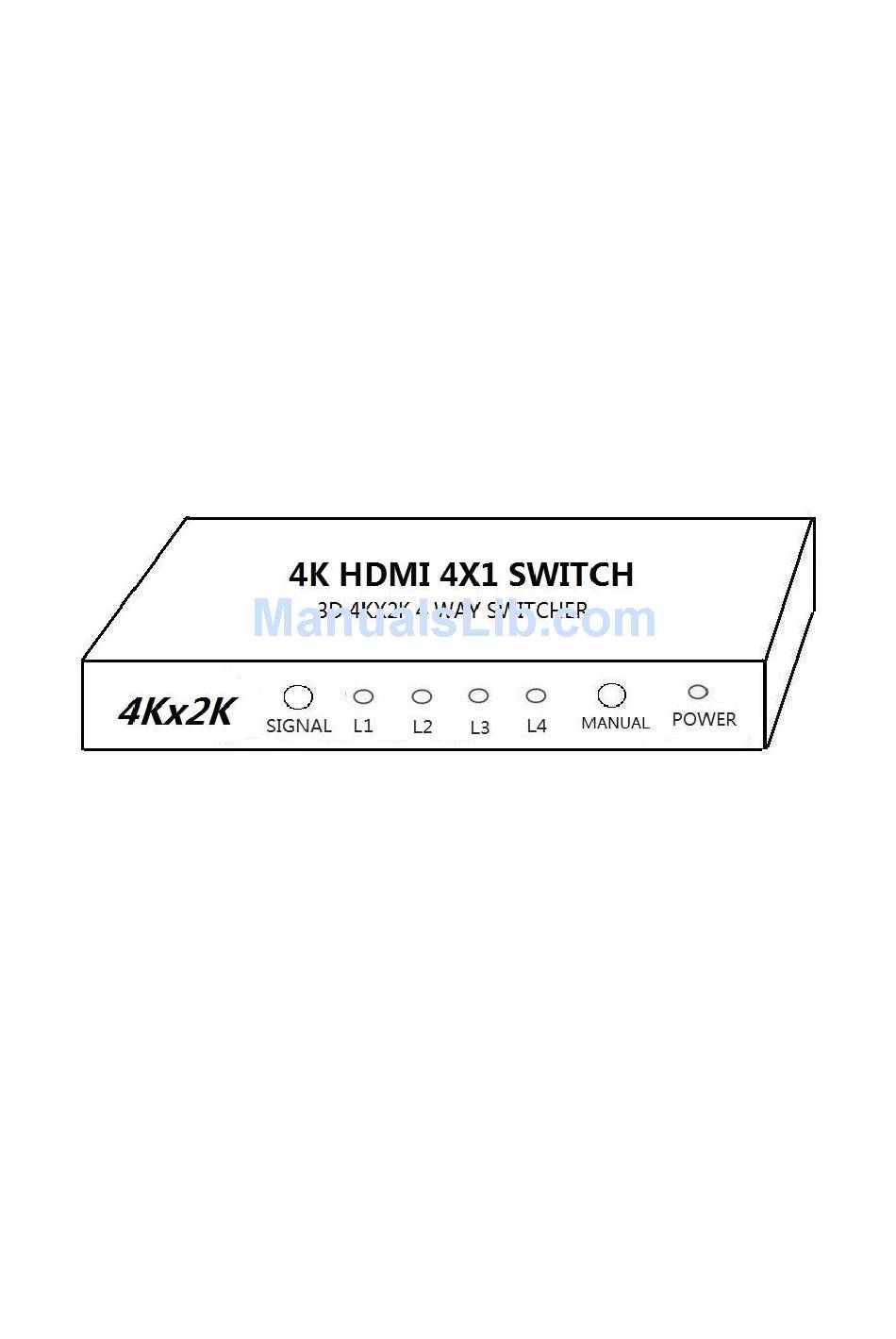

- Page 1 4 Port HDMI Switch 4Kx2K _________________________________ USER MANUAL Model:4KDK404...
- Page 2 Table of Contents 1.0 Introduction 2.0 FEATURES 3.0 SPECIFICATIONS 4.0 Package Contents 5.0 Installation and Precautions 6.0 How It Works 1.0 INTRODUCTION This HDMI Switch 4x1 V1.4 Support Full 3D 4Kx2K 340Mhz is an HDMI Switch with four inputs. It switch between the four input of the HDMI signal into one HD monitor or projector.It can optimize your home theater system to the best effect.It support full 3D format and 4Kx2K.
- Page 3 Max bandwidth 340MHz Max baud rate 3.4Gbps Input cable distance ≤15m AWG26 HDMI standard cable Output cable distance ≤20m AWG26 HDMI standard cable Max working current 300mA Power adapter format Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V Operating Temperature (-15 to +55°C) range Dimension (L x W x H) 145x62.5x20 (mm) Weight...
- Page 4 6.0 How It Works 1. Connect high definition display device such as HDTV TO HDMI Switch's output port 2. Connect source device such as DVD and ps3 TO HDMI Switch's input ports 3. After all the connections have been successfully done and then power on, you can select the information you want to view or listen Note: When HDMI Switch works, make sure the source device and display de vice are well connected with cables.
