Summary of Contents for Samplex America Solarix MPPT 2010

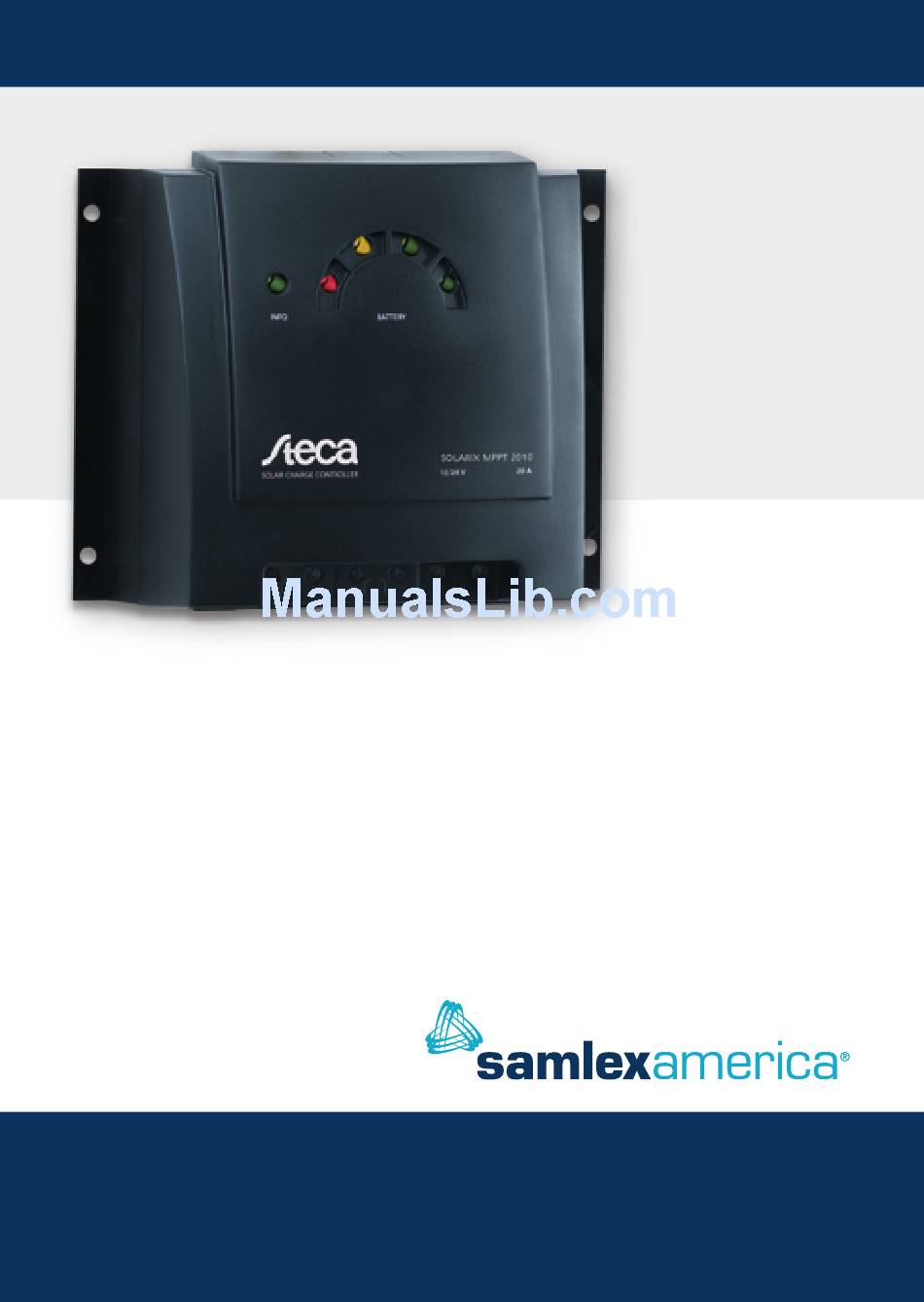

- Page 1 PHOTOVOLTAIK – PHOTOVOLTAICS – PHOTOVOLTAIQUE – FOTOVOLTAICA Installation and operating instructions Solar charge controller Solarix MPPT 010 730.97 | 09.10 730.97 | 09.10...
-
Page 2: Table Of Contents
Index About these instructions ................3 Applicability ....................3 Users .......................3 1.3. Description of symbols ................3 Safety ......................3 Proper usage...................3 Improper usage ..................3 General safety instructions ..............4 Other risks ....................4 Behaviour in the case of faults ...............4 Description .....................5 Functions ....................5 Structure ....................6 LED displays ....................7 Installation ....................7 4.1. -
Page 3: About These Instructions
About these instructions These operating instructions are part of the product. Read these operating instructions carefully before use, keep them over the entire lifetime of the product, and pass them on to any future owner or user of this product. ... -
Page 4: General Safety Instructions
2.3 General safety instructions Follow the general and national safety and accident prevention regulations. Never alter or remove the factory plates and identification labels. Keep children away from PV systems. Never open the device. 2.4 Other risks Danger of fire and explosion Do not use the solar charge controller in dusty environments, in the vicinity ... -
Page 5: Description
Description 3.1 Functions The solar charge controller • monitors the battery voltage, • controls the charging process, • controls the connection/disconnection of loads connected to the load output. This optimises battery use and significantly extends its service life. Solarzellen konv. La A battery charging algorithm protects the battery from harmful states. -
Page 6: Structure
Charge controllers with MPP trackers can be used for a wider range of modules than those without MPPT. With an MPP tracker one is no longer dependent on the module voltage and string size. The module voltage can deviate signifi- cantly from the battery voltage. -
Page 7: Led Displays
3.3 LED displays Status Meaning Info LED illuminates normal operation green flashes red a fault exists (see "Faults and remedies") Red LED flashes quickly battery empty when the battery continues to be discharged the deep-discharge deactivation is triggered flashes deep-discharge deactivation Yellow LED illuminates battery weak... -
Page 8: 4.1. Mounting The Solar Charge Controller
4.1. Mounting the solar charge controller 4.1.1 Mounting location requirements • Do not mount the solar charge controller outdoors or in wet rooms. • Do not subject the solar charge controller to direct sunshine or other sources of heat. • Protect the solar charge controller from dirt and moisture. •... - Page 9 4.2.2 Connection WARNING Danger of explosion from sparking! Danger of electric shock! At a voltage of > 75 V, particularly with regard to module open circuit volt- age (over the entire temperature range), the entire solar energy system must be installed with protection class II. 1st step: connect the battery CAUTION The device will be destroyed if the battery is connected with the wrong polarity.
- Page 10 nd step: connect the solar module CAUTION The connected modules may not exceed an open circuit voltage (VOC) of 100 V, even at extremely low temperatures. Ensure that the solar module is protected from incident light. Ensure that the solar module does not exceed the maximum ...
-
Page 11: Operation
First connect the L+ load cable to the correct pole of the right pair of ter- minals on the solar charge controller (with the lamp symbol), then connect the L– cable. Replace the load fuse or switch on the load. ... -
Page 12: Maintenance
• protection from solar module overcurrent • protection from device overtemperature • protection from overvoltage at the load output • protection from the wrong connection sequence Maintenance The solar charge controller is maintenance-free. All components of the PV system must be checked at least annually, according to the specifications of the respective manufacturers. Ensure adequate ventilation of the cooling element. ... -
Page 13: Faults And Remedies
Faults and remedies Fault Cause Remedy No display • Battery voltage too low Pre-charge the battery • The external fuse in the Replace the external fuse battery connection cable has blown. • Battery is not connected Unclamp all connections • Battery is defective Connect a (new) battery with the correct polarity... - Page 14 Load cannot be • Load output is switched The load output automati- operated off due to too low battery cally switched on again as voltage soon as the battery voltage lies within the permissible info LED flashes range Pre-charge the battery ...
- Page 15 Efficiency example: 100 % 99 % 98 % 97 % 96 % 95 % 94 % 93 % 92 % 91 % 90 % 15 W 40 W 85 W 120 W 200 W 280W 320 W 400 W 730.97 | 09.10...
-
Page 16: Technical Data
Technical data MPPT 2010 Characterisation of the operating behaviour System voltage 1 V (4 V) Rated output 50 W (500 W) Max. efficiency > 98 % Own consumption 10 mA DC input side MPP voltage 15 V (30 V) < U << 100 V module Open circuit voltage solar module **17 V ... -
Page 17: Legal Guarantee
NOTE: Technical data that varies from the above is given on a device label. Subject to change without notice. 9. Legal guarantee In accordance with German statutory regulations, there is a -year legal guar- antee on this product for the customer. The seller will remove all manufacturing and material faults that occur in the product during the legal guarantee period and affect the correct functioning of the product.
