INSTRUCTION MANUAL FOR MINI FOGGER VECTORFOG BY100
When fogging outdoors, you should only fog for short periods at a time and when there is not much wind. When
fogging indoors you should start at the furthest part of the building and work your way back until you get to the
entrance or exit.
It's essential to read the chemical manufacturer's instructions before you start applying, including diluting ratio and
safety precautions.
Only experienced personnel should operate this equipment.
You must exercise caution when connecting the propane/butane canister, in order to avoid the risk of fire.
Please read this manual before using the equipment.
You must wear protective equipment (face/breathing mask, protective clothing, gloves,
etc.) when handling potentially hazardous chemicals.
It is advisable to wear ear plugs to protect the user from the high noise produced by the
machine
The interior of the machine heats up to extremely high temperatures. Do not add fuel or
chemicals during the operation of the machine or when it is hot after use.
Avoid fogging chemicals upwind.
Flammable butane gas (Cartridge Type)
Experts in Fogging Technology™
CAUTION MARKS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for VectorFog BY100
- Page 1 Experts in Fogging Technology™ INSTRUCTION MANUAL FOR MINI FOGGER VECTORFOG BY100 When fogging outdoors, you should only fog for short periods at a time and when there is not much wind. When fogging indoors you should start at the furthest part of the building and work your way back until you get to the entrance or exit.

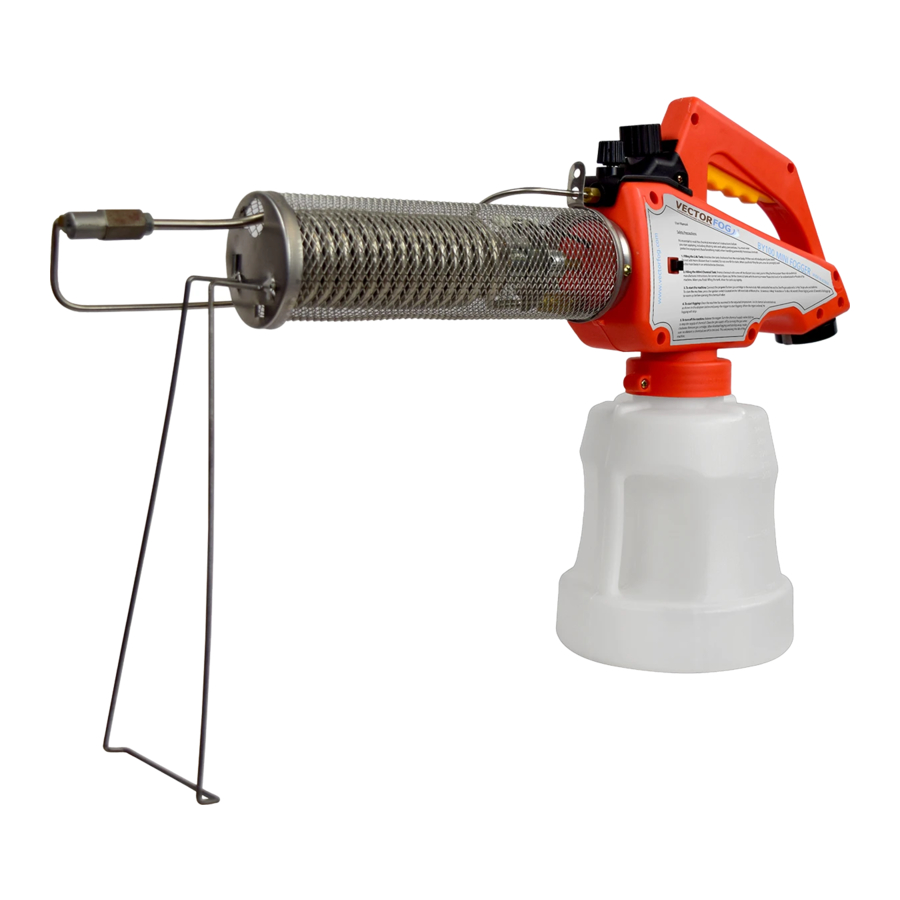

- Page 2 4. Manual VectorFog™ Mini Foggers are powered by a standard propane or butane gas cartridge. The gas is ignited by a pietzo and the gas heats a metal coil tube. The water or oil dilutant is then heated and mixed with the chemical to create a fog or mist.
- Page 3 CHECKLIST BEFORE STARTING THE UNIT Unpacking the unit When unpacking the unit, please make sure that that the machine is not damaged and that all the accessories mentioned in this manual are not missing. Fill the fuel tank Unscrew the tank anticlockwise from the main body. Fill the tank with the dilutant of your choice. Water for water based fogging or oil for oil based fogging.
- Page 4 To turn on the machine Connect the propane/butane gas cartridge to the main body. Make sure is locked into position. Turn the gas supply on by turning the valve anticlockwise, as shown in the diagram below. To start the machine, press the ignition switch located on the left hand side of the machine.
