Plättner ES1000W-AF8 Operating Manual

Operating manual

Electronic Series Switch ES1000W-AF8

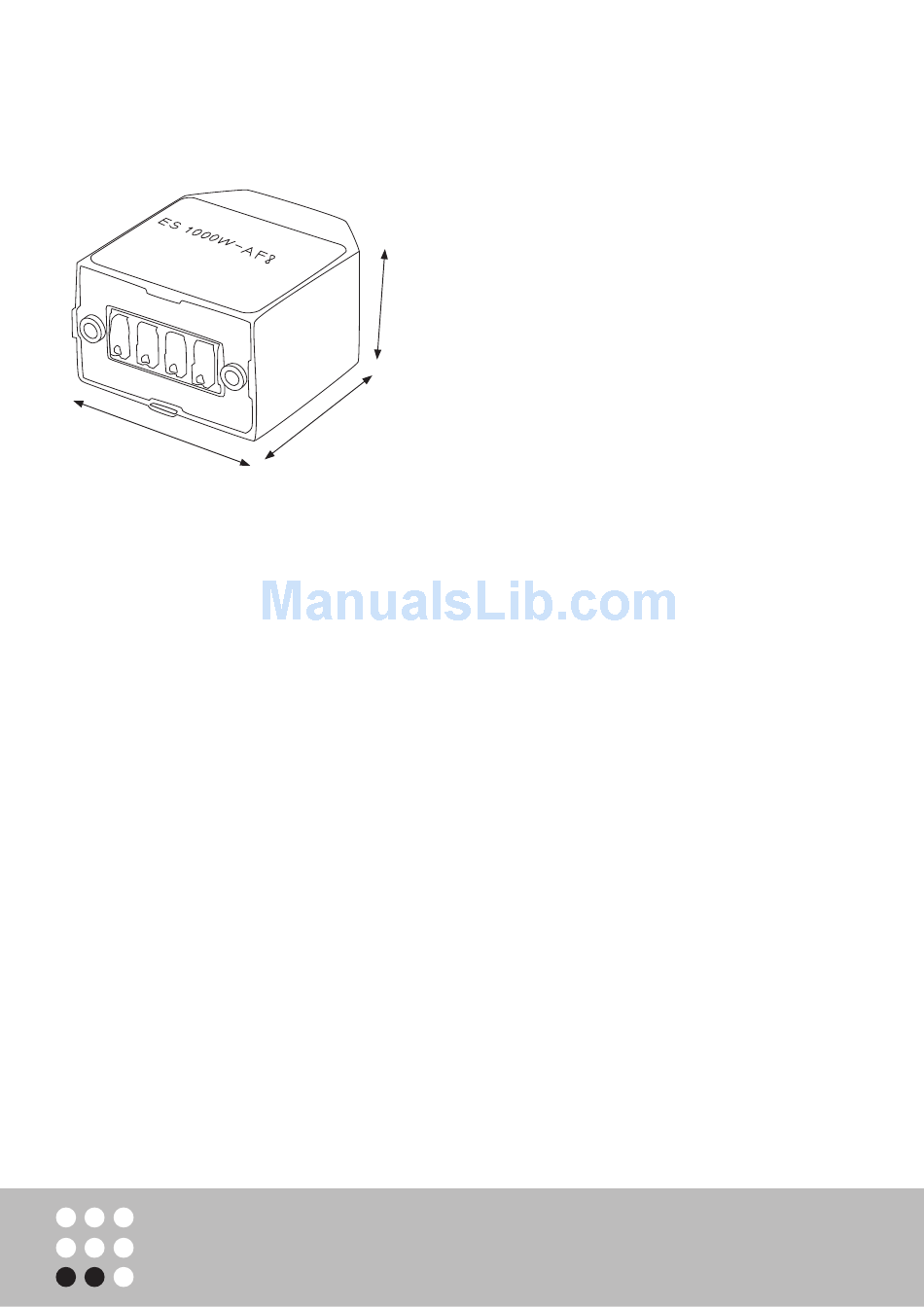

32 mm

Scope of delivery

1 Electronic series switch ES1000W-AF8
1 Operating manual

Usage instructions

The ES1000W-AF8 is intended exclusively for lighting purposes.
It can be used in all classical switching circuits, such as switch-off,
alternating or cross circuits and in impulse relay circuits. The
ES1000W-AF8 extends these circuits to include series switching in a
very simple manner.

Appropriate use

The intended use according to the application conditions of the
ES1000W-AF8 according to DIN EN 60699-2-1.
The ES1000W-AF8 is intended for installation in lighting systems.
The ES1000W-AF8 is suitable for use with resistive loads (filament
lamps, high voltage halogen lamps), energy-saving lamps, LED lamps
with associated driver, low voltage halogen lamps with associated
driver, fluorescent lamps with electronic ballast and fluorescent
lamps with inductive circuits or inductively compensated circuits. The
device may not be used in circuits having orientation lights (neon
lamp) combined with energy saving lamps.
20 mm
The ES1000W-AF8 electronic series switch allows separate switching
of additional lights, such as: ceiling lights and wall lights using only
36 mm
a single existing 230 V circuit.
Article designation/article number
ES1000W-AF8 / 014002001
This allows independent control of two lamps, which can otherwise
only be implemented at a significantly higher cost by using classical
series circuits. With the ES1000W-AF8 the existing installation only
needs to be extended. Only the added lamp must be newly connected.
The small dimensions allow the ES1000W-AF8 to be installed (using
spring terminal technology) e.g. in junction boxes, baldachines etc.
The ES1000W-AF8 electronic series switch is suitable for energy saving.
Use for purposes other than those specified is not permitted.
The overall product must not be modified or converted in any way.
Modifications may lead to damage to the product and, in addition,
may also result in hazards such as short-circuits, fire, electric shock,
etc. All personal injury and material damage caused by inappropriate
usage is the responsibility of the operator of the product and not of
the manufacturer of the product.
Please note that incorrect operation or connection of the product
is outside of our scope of influence. Consequently, we accept no
liability whatsoever for damage caused in this way.
