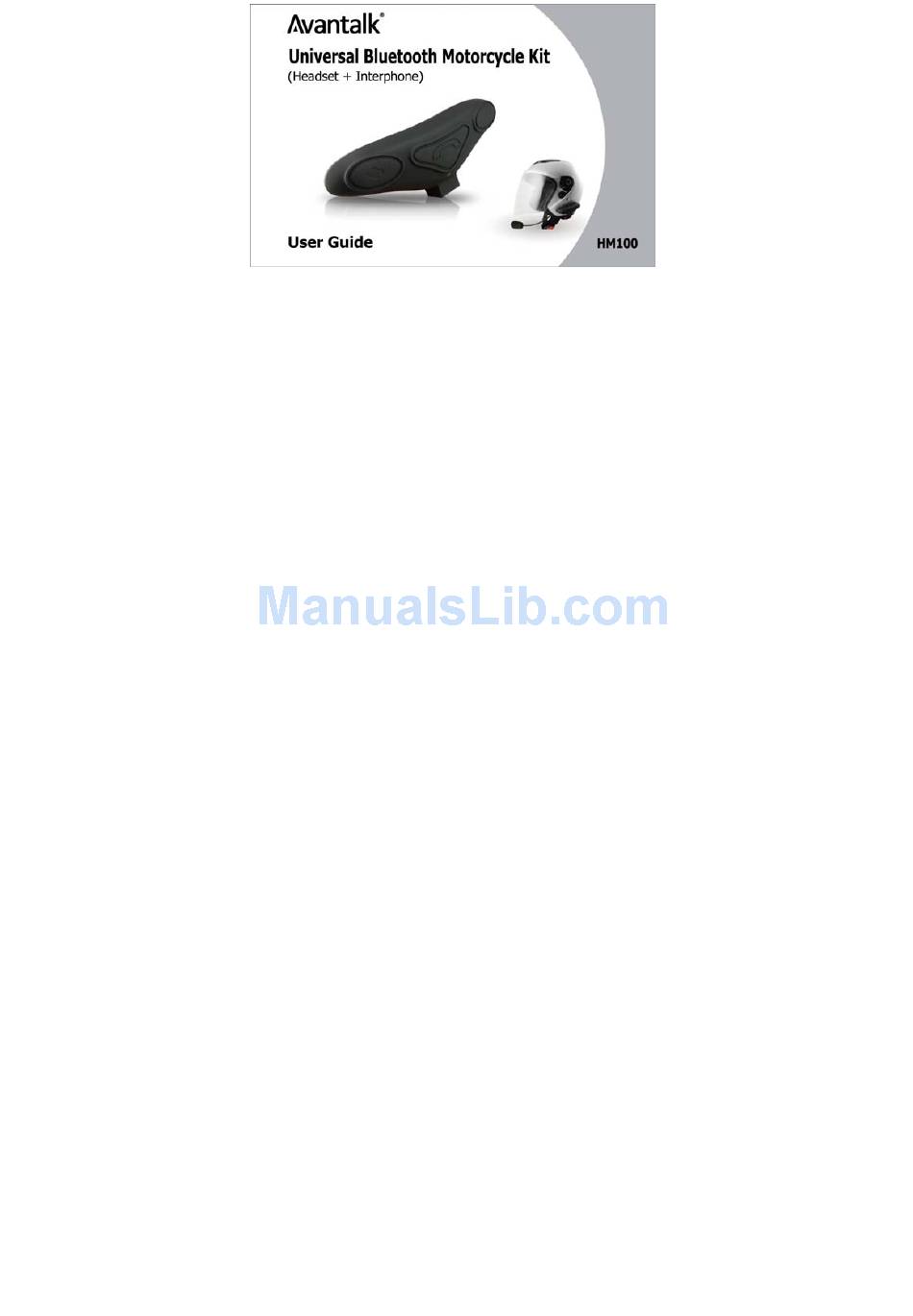

Summary of Contents for Avantalk hm100
-
Page 2: Product Description
Avantalk HM100 is a Bluetooth helmet headset for any Bluetooth Device. Together with the freedom to travel by motorcycle , HM100 gives you the comfort of a Bluetooth wireless communication, its water resistant body guarantees total peace of minder even in the rain. -
Page 3: Product Overview
3. MFB 4. USB port 5.Vol + 6. Speaker 7.Microphone What’s in the box: a. Avantalk helmet headset Main b. Boom mike and speaker c. Helmet shaping mat d. Interphone Velcro e. Ear Speaker Velcro f. Mini USB charging cable g. - Page 4 3. Install Avantalk HM100 1) Installing the Velcro attached to interphone headset helmet A. Find the best location for the headset from the helmet, and make sure this place clean and dry. B. Attach the shaping mat to the location.
- Page 5 2) Installing the HM100 main body Take your HM100 main body, remove the protective strip, make the USB port points down and attach it to the Velcro. 3) Installing the ear speaker and microphone A. Take the speaker Velcro, test for the best position to fix it. The Velcro should be fixed inside the helmet, as close as possible to the ear .
- Page 6 Suggest put the helmet on a few times to find the optimum position. once fixed , not suggest to move. 4) Connecting the ear speaker and microphone to HM100 main body Connect USB cable to the USB port of HM100 main body carefully, Now Avantalk HM-100 is installed successfully.
- Page 7 The USB port is only for charging. User can charge the unit by using a USB cable via a PC. 1) For first time use, please charge your HM100 until the battery reaches its full capacity. This usually takes about 2 hours 2) Afterwards, each charge cycle may take up to 2 hours.
- Page 8 5）We suggest to fully charge the HM100 for at least one time in two months Note: When the battery becomes low, the red LED will flash and the HM100 emits 3 “DU” tones every 30 seconds. Please recharge the battery fully as described above.
- Page 9 B. Press and hold the MFB button for 3-5 seconds until the LED flashes blue and red, and HM100 enter pairing mode again. C. Search the Bluetooth device and get them paired and connected. D. Then HM100 pair and connect with two Bluetooth devices already. Note:...
-
Page 10: Intercom Feature
HM100 will switch to standby mode automatically if it can’t pair with any device within 2 minutes. b. HM100 will power itself off if it is not connected with any device within 10 minutes c. HM100 can connect with two devices simultaneously, either two cell phones or a cell... -
Page 11: Call Features
• Volume down: Short or long press VOL- button, you will hear two ”DU” tones when max or min volume is reached 8. Call Features: When HM100 is connected with a Bluetooth cell phone, then you can make calls with HM100. • Answer a call: Short press MFB button •... -
Page 12: Product Specification
• Volume down: Short or long press VOL- button, you will hear two ”Du” tones when min volume is reached • Set factory defaulted settings: Charge HM100 will set it to factory default settings. Note: When HM100 is connect with another intercom and a cell phone at the same time, you can answer call and make call via your mobile phone resume. -
Page 13: Safety Information
• Don’t scratch the surface with sharp things. • Don’t remove the microphone’s protector, so the microphone won’t be damaged. • Please take down HM100 from the helmet when you don’t use it for a long time. 11. Declaration of Conformity 11.1. EU... - Page 14 This product is CE certified according to the provision of the R&TTE Directive (99/5/EC). Declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. 11.2. FCC warning statement FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
- Page 15 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
-
Page 16: Warranty
Due to software update, there could be some changes on operations. Please always refer to Product Tutorial page in Avantalk website for the latest features. Z-BHMN-HM100-0000V0.1...
