Summary of Contents for Saga SG-FC4560

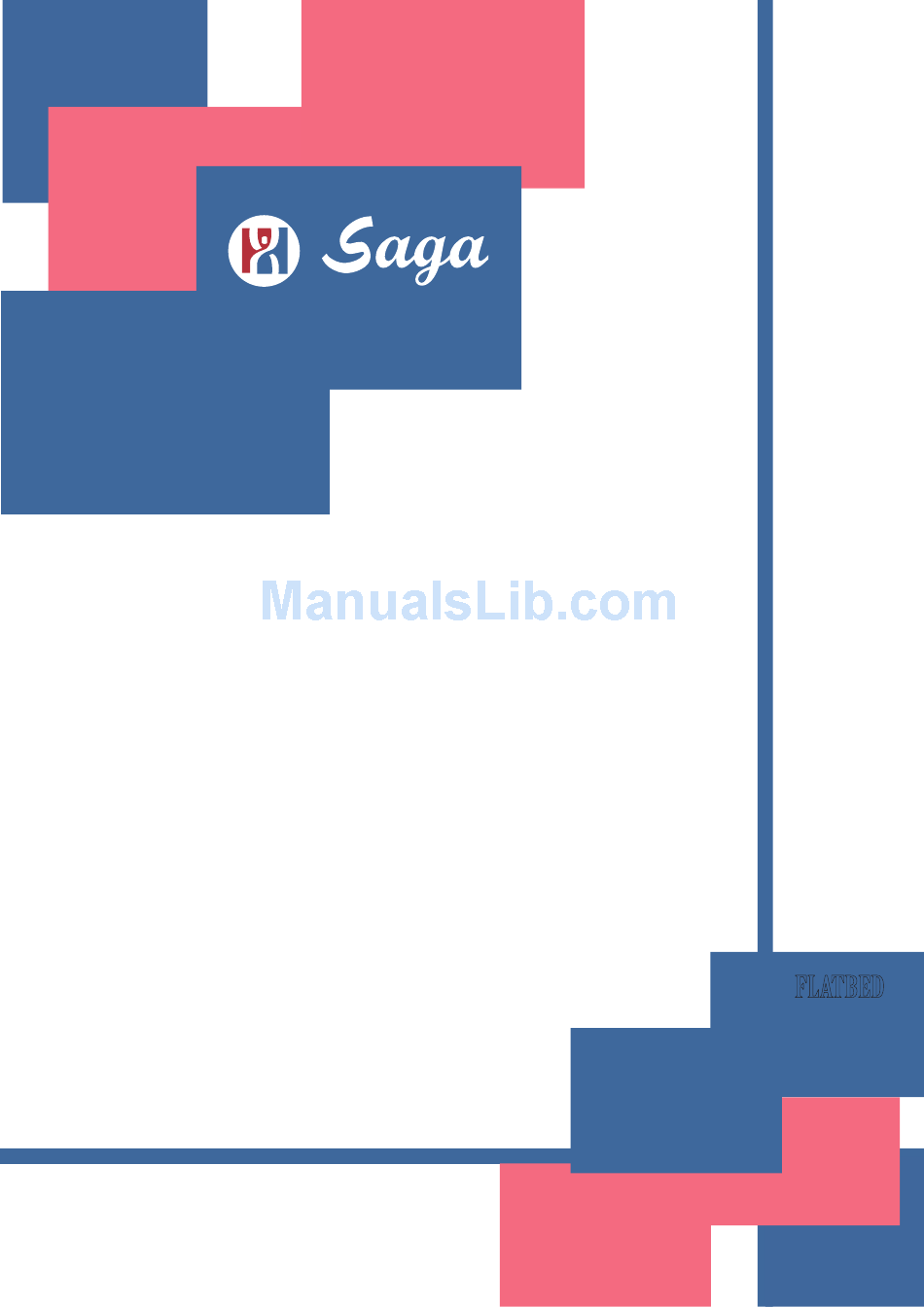

- Page 1 U S E R ’ S G U I D E SG-FCA3+ SG-FC4560 SG-FC6090 SG-FC76106 FLATBED CUTTER...
- Page 2 1.Introduction of Product 2.Tool Description 3.Operation 4.Software 5.Fault and Maintenance 6.Performance Parameter...
- Page 3 CHAPTER Introduction of product 1.1 Type and Specification 1.2 Standard Parts 1.3 Parts Names 1.4 Control Panel...
- Page 4 1.1 Type and Specification Effective Cutting Effective Contour Model Stand Area Cutting Area SG-FCA3+ 350×510mm 330×488mm SG-FC4560P 470×630mm 450×600mm SG-FC6090 620×930mm 600×900mm 780×1080mm 760×1060mm SG-FC76106 1.2 Standard Parts Item Specription Air pump Vacuum suction Hose Vacuum suction DragonCut Software Cutting software Creasing Blade Crease tool Blade Holder...
- Page 5 Reduce noise for silence device air pump Pump Box SG-FC76106（only) Plastic cutting pad Mainly used for cutting For creasing effect is better, Felt pad (cutting and creasing) 1.3 Parts Names Tool holder 1 Tool holder 2 Carriage....Drives the cutter blade/pen/creasing tool to the forward/backward. Tool holder 1...Holds the pen/creasing tool and drives it up/down Tool holder 2...Holds the cutter blade tool and drives it up/down.
-
Page 6: Control Panel
1.4 Control Panel LED Display..Display various parameters. Fun1....The switch for vacuum adsorption function. Fun2....Return to the main interface, when you set the parameters. Press this key to return to the original interface. (Original interface display: speed and Force) Fun3....The switch for sensor.(the carriage sensor,scan mark) Reset....Resrt Key,The carriage will return to the mechanical origin,LED display speed and force. - Page 7 CHAPTER Tool Description 2.1 Types of cutter blades 2.2 Blade holder introduction 2.3 replacing the blade 2.4 Adjust the blade length...
- Page 8 2.1 Types of cutter blade Blade Applications and Name and pic Angle diameter Features For thick media. The sharply angled tip provides a longer 60° 0.1mm cutting edge. Suitable for cutting media from 0.5 to 1.5 mm thick. For adhesive stickers, Blade 45°...
-
Page 9: Replacing The Blade
2.3 Replacing the blade Step1 Step2 Step3 Step1/Step2/Step3 1. Push the blade to the bottom of the blade holder. 2. Adjust the blade tip to suitable length by rotating “Adjustment depth knobs” and then tighten the lock. 3. Press the push-pin to remove the blade from the blade holder when replacing blade. Notice The blade is a consumable item, and you’ll always get the best quality cut with a newer blade. - Page 10 2.4 Adjust the blade length The blade length is adjusted by turning the blade adjustment knob. • To extend the cutter blade, turn the knob in the A direction. • To retract the cutter blade, turn the knob in the B direction. How to confirm the right height Gradually increase the blade length to suit the thickness of the medium being used.
- Page 11 CHAPTER Operation 3.1 Basic Operational Steps 3.2 Connecting to a Computer 3.3 Installing Tools 3.4 Turning on the cutter 3.5 Calibration the sensor 3.6 Loading the Media 3.7 Running a Cutting Test...
- Page 12 3.1 Basic Operational Steps Install stand Install software (6090/76106only) Connecting to a Computer Installling tools (blade/pen/creasing tool) Turn on the cutter Calibration the sensor Loading the media Cutting Test Working...
- Page 13 3.2 Connecting to Computer Only install the software, don’t need to install any driver. Operation cannot be guaranteed in the following cases: • When connection has been made to a USB hub or an add-on USB board • When you are using a custom-built computer or one that you have modified Be sure to observe the following: •...
-
Page 14: Installing Tools
3.3 Installing Tools Step2 Step3 Step1..Loosen the tool holder screw sufficiently to enable a cutter pen to be inserted up to its flange. Step2..Push the cutter pen all the way into the holder until it contacts the upper part of the tool holder. Step3.. - Page 15 Beam The figure below shows what the plotter does when the power is turned on. The tool carriage returns to the Home position. 3.5 Calibration the sensor Step1..Put a blank A4 paper on the flatbed. Step2..Move the car to the middle of the paper． ...
- Page 16 Step1 Step2 Step3 Step4 Step5...
- Page 17 3.6 Loading the media Make sure the materical is flat. Blank cutting Place the paper on the platform and move the carriage to the starting point of the cutting ARMS cutting Place the paper on the platform and move the carriage to the starting point of the mark 3.5 Running a cutting test Moving the carriage to a blank area (no marks and pictures) Installing a pen in tool holder1,installing a blade in tool holder 2.
- Page 18 Tool1 painted a blank box, tool2 painted a red box, which can test the force of blade/pen/creasing Media height Creasing Blade Cutting medium Blade height Speed or gram weight Force Force Stickers 160g 0.15mm 500mm/s 0.2mm Adhesive stickers 600mm/s 0.76mm Thick paper 300g 400g...
- Page 19 CHAPTER Software 4.1 Install and activate 4.2 Common parameters of software 4.3 How to use DragonCut Cutting and Creasing...
- Page 20 Please install CD first and check your 20 bits license. Please pay attention to a few points as follows 1.Enter your license (Each license can be used 3 times only) 2.Pay attention to the your machine model SG-FCA3+ choice 720IIP SG-FC4560 choice 720IIP SG-FC6090 choice 720IIP SG-FC76106 choice 1350IIP...
- Page 21 3.This network connection is normal and then activation software directly 4.Activation success 4.2 Common parameters of software 1.Create Cut Contour Contour lines can be generated automatically 2.contour cut Wizard Automatically generate contour lines and add markers...
- Page 22 3.Send to cutter Direct cutting, mainly used for cutting blank materials 4.Vinyl Spooler ARMS cutting,mainly used for file with marks. (open Barcode Controller after,you will find ARMS cutting interface) Blade Blade offset On Vinyl Spooler 5.Blade offset Machine default is 0.3mm, but sometimes depending on the thickness of the material, need to test and adjust.
- Page 23 4.3 How to use DragonCut Blank file Import your file with cutting line and creasing line. Use your cutting line and creasing line with different colors. Click send to cutter. Select the color of the cutting line and creasing line. cut now...
- Page 24 ARMS file Import your label file. Click create cut contour make outline for label. Through the hand-printed, making the creasing line. Select the cutting line, press the button use left mouse press the button use left mouse. Select creasing line, press the button use right mouse press the button use right mouse.
- Page 26 CHAPTER Fault and Maintenance 5.1 Scan Problem 5.2 Cutting Effect Problem 5.5 Error Messages...
- Page 27 5.1 Scan Problem Phenomenon Cause Solution Check the print size, The sensor cannt scan first print size must the same mark or secnd read failed. size as the original file First check the cable, if the line not problem Sensor not bright so need to replace the sensor First check the cable,...
- Page 28 5.2Cutting effect problem Phenomenon Cause Solution 1.check your data 2.The offset is too low The starting and end points 3.The medium is too flimsy. do not match. 4.Knife holder rotation insensitive Adjust the OFFSET value. • If it is too low, the corners The cut corners are rounded become rounded.
-
Page 29: Error Messages
Phenomenon Cause Solution 1.Set the effective cutting area Some parts of the medium to a larger area. cannot be cut. 2.Reduce the size of the data. The Cutting The medium is discolored Adjust the blade length and wherethe cutter blade has the cutting FORCE setting. - Page 30 CHAPTER Performance Parameter SG-FCA3+ SG-FC4560P SG-FC6090 SG-FC76106 510g(3g/step) Max Force Max Speed 600mm/s Max Cutting Depth 0.60mm Max Cutting Weight 450g (Paper) Machincial Resolution 0.01 Number of tools Programmable Resolution HPGL 0.025mm Contorl System Servo Motor Interface USB Cable Software DragonCut Working Enviroment 5°—...
- Page 31 Thank you for your reference, if you have any questions, please contact the local dealer. Thank you again ! From saga FLATBED CUTTER...
