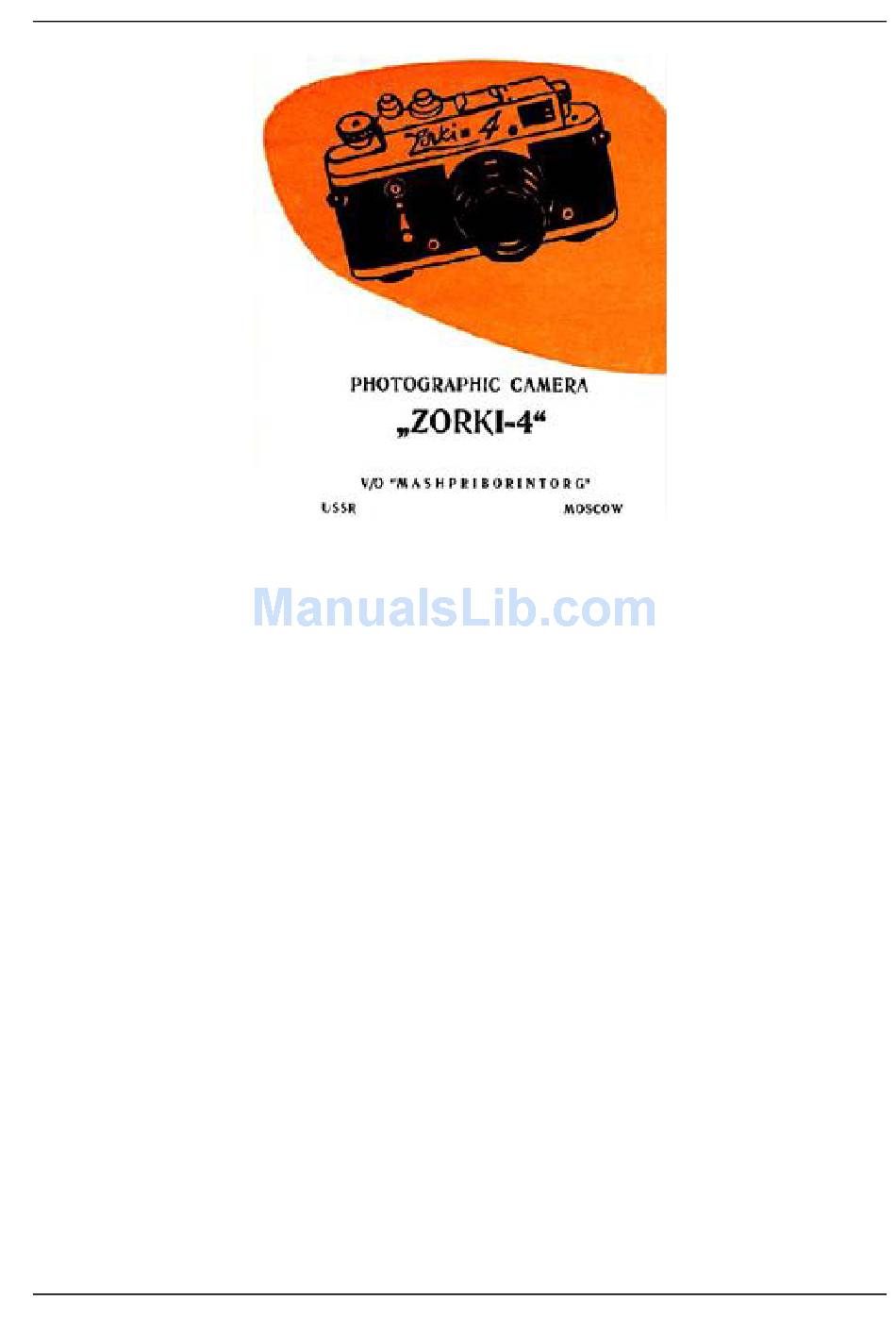

Zorki-4
ATTENTION!
This Instruction Manual contains brief characteristics and essential operating principles of the
"Zorki-4" camera; it is not intended as a photographer's handbook.
Before proceeding to take pictures, study the operation of the camera and its handling instructions
presented in this Manual.
Minor differences between your camera and the Manual may be due to ever-advancing
development of the camera design.
Do not direct the lens at the sun in order to avoid burning through the shutter curtains because the
lens acts like a powerful collecting piece.
The lens should be screwed in and out of the camera only by the knurled portion of the depth-of-
field scale ring (the greatest diameter of the mount).
To avoid the damage of the camera set the exposure speeds only after the shutter is cocked.
Do not rotate the shutter speed dial in the interval between "30" and "1".
Do not turn the release button, if not necessary, while releasing the shutter to avoid the cutting out
of the shutter setting mechanism.
While setting the camera shutter, always turn the setting lever up to the mechanical limit to avoid
blank frames on the film.
Purpose
The "Zorki-4" is intended for a wide range of versatile photography; it is used with equal success
by skilled amateur photographers, camera men and scientists.
Description
The "Zorki-4" (Figs. 1 and 2) is a compact roll-film minicamera provided with a flash synchronizer
and a self-timing device (automatic releaser).
The camera uses a standard perforated 35-mm motion picture film. The camera magazine
accommodates 1.65-m length of film, sufficient for making 36 exposures, the picture size being 24 by
36 mm.
Zorki-4
Brief Description.
– 1 –
Brief Description

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZORKI-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mashpriborintorg ZORKI-4

  • Page 1 While setting the camera shutter, always turn the setting lever up to the mechanical limit to avoid blank frames on the film. Purpose The “Zorki-4” is intended for a wide range of versatile photography; it is used with equal success by skilled amateur photographers, camera men and scientists. Description The “Zorki-4”...

  • Page 2: Operation

    Undo the two buttons of the case, and flap the cover down. Rotate the camera stand nut counterclockwise to unscrew it from the camera base plate, and draw the camera from the case. Fig. 1. “Zorki-4” Camera: 1 — camera top surface;...
  • Page 3 Zorki-4 Brief Description Fig. 2. “Zorki-4” Camera. View of Back Cover: 17 — detachable back cover; 21 — release button; 18 — film reverse take-up knob; 22 — picture counting index dot; 19 — range-and view-finder eyepiece; 23 — picture counting dial;...
  • Page 4 Before closing the case cover, set the lens at “∞“. Magazine Loading The magazine 25 of the “Zorki-4” camera consists of outer casing, inner casing and central spool. To open and strip the magazine, press the nickel-plated button and give the inner casing half a turn clockwise to align the side cutouts on the inner and outer casings.

  • Page 5: Shutter Disengaging Ring

    Zorki-4 Brief Description Do not attempt to pull the film if you wish to tighten after rolling on the spool, as-this is liable to cause scratches on the emulsion face of the film. The film should be held by its sides so that no finger prints are left on its emulsion side.

  • Page 6: Magazine

    Zorki-4 Brief Description Replace the camera back cover on its guide grooves, draw it all the way up to the top of the camera body and push it against the stop. While doing this, hold the perforated leader of the film on the sprocket with the thumb of the left hand.

  • Page 7: Release Button

    Lens The “Zorki-4” camera normally operates with lenses of 5-cm focal length and 28.8 mm working distance. The lens opening degree (diaphragm) is set by rotating ring 12 on the lens. Lens opening operation should take place prior to focussing.

  • Page 8: Shutter Setting Knob

    Synchronization scale 2 is set irrespective of the shutter setting, too. The “Zorki-4” camera may use only shutter speeds of 1/30th of a second and slower, and hand- controlled time exposures “B” when photographing with either flash bulbs or electronic flash.

  • Page 9: Take-Up Spool

    Zorki-4 Brief Description 8. Focus the lens operating the range-finder mechanism. 9. Take the shot by smoothly pressing the shutter release button to avoid jerking of the camera. The above mentioned procedure is true for instantaneous exposures when the camera is hand-held and no flexible releaser is used.

  • Page 10: Care Of The Camera

    Zorki-4 Brief Description Care of the Camera Protect the camera (especially the lens) against impacts, jolts, dust, moisture and sharp temperature fluctuations. Do not touch upon the lens coated optical surfaces with your fingers. Coated optical surfaces may be damaged due to careless cleaning. To minimize cleaning, prevent the optics from fouling.
