Summary of Contents for Hydro ICS 8950

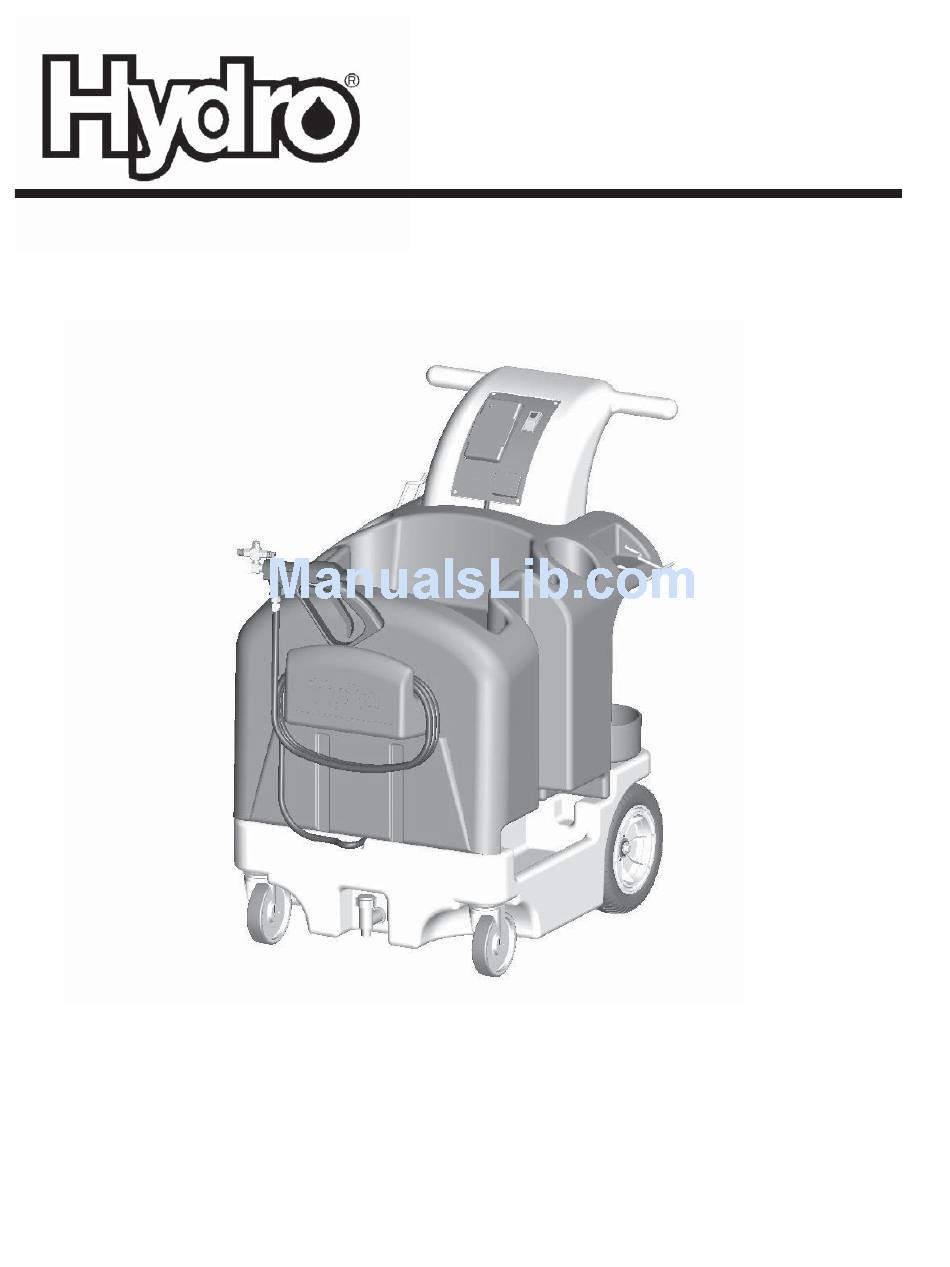

- Page 1 ICS 8950 Integrated Cleaning System Rechargeable Battery...
- Page 2 THANK YOU FOR CHOOSING OUR PRODUCTS Hydro Systems manufactures quality chemical proportioners. Please use this equipment carefully and observe all warnings and cautions. protective clothing and eyewear when working in the vicinity of chemicals or other WEAR materials, when fi lling or emptying equipment or changing metering tips.
- Page 3 Overview: The ICS 8950 is a battery powered, portable, self-contained unit designed to make daily maintenance of your facility easier. This unit includes the following features: Spray attachment with two nozzles (solution and rinse) Battery Charger On/Off Switch Battery Life...
- Page 4 Fig. B Initial Set-up Remove any items sitting on the cart top. Remove cart top by lifting near the chemical bottles. See Fig. B. Remove tubing from checkvalve/metering tip holder. Push the selected metering tip into metering tip holder. Put clean metering tips into any Pegs unused lines.
- Page 5 Fig. D Initial Setup (cont.) Water fi ll port The spray attachment is in the accessory box. Attach it to the discharge hose. Left Remove the black cap from the water fi ll port Chemical (it rotates COUNTER CLOCKWISE to open). Holder Fill the tank with cool, clear tap water.
- Page 6 Normal Operation: The power switch is lighted when it is in the “ON” position. The pump will run when the trigger on the spray attachment is pulled and stop when it is released. The rollover valve on the outlet of the spray attachment selects between the two attached spray nozzles.
-
Page 7: Troubleshooting
Troubleshooting: The spray is weak or there is no spray. The pump does not operate at full fl ow if there is air in the system. Air can enter the system from several sources: Out of water - fi ll the water reservoir and prime the system. Out of chemical - replace the chemical container and prime the system. - Page 8 Parts List Part Number Description 10092250 Pump replacement kit 10091845 Spray attachment 10092253 Battery 10092254 Battery charger 10092211 Cord, battery charger 10092255 Battery life indicator 10092262 Chemical selector valve 10091864 Discharge hose replacement, black 10092252 On/off switch replacement kit 10091867 Caster replacement kit (set of 2) 10091866 Wheel replacement kit (set of 2)
